Model # MAT15MNAGW0 Official Maytag commercial washer

Here are the diagrams and repair parts for Official Maytag MAT15MNAGW0 commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

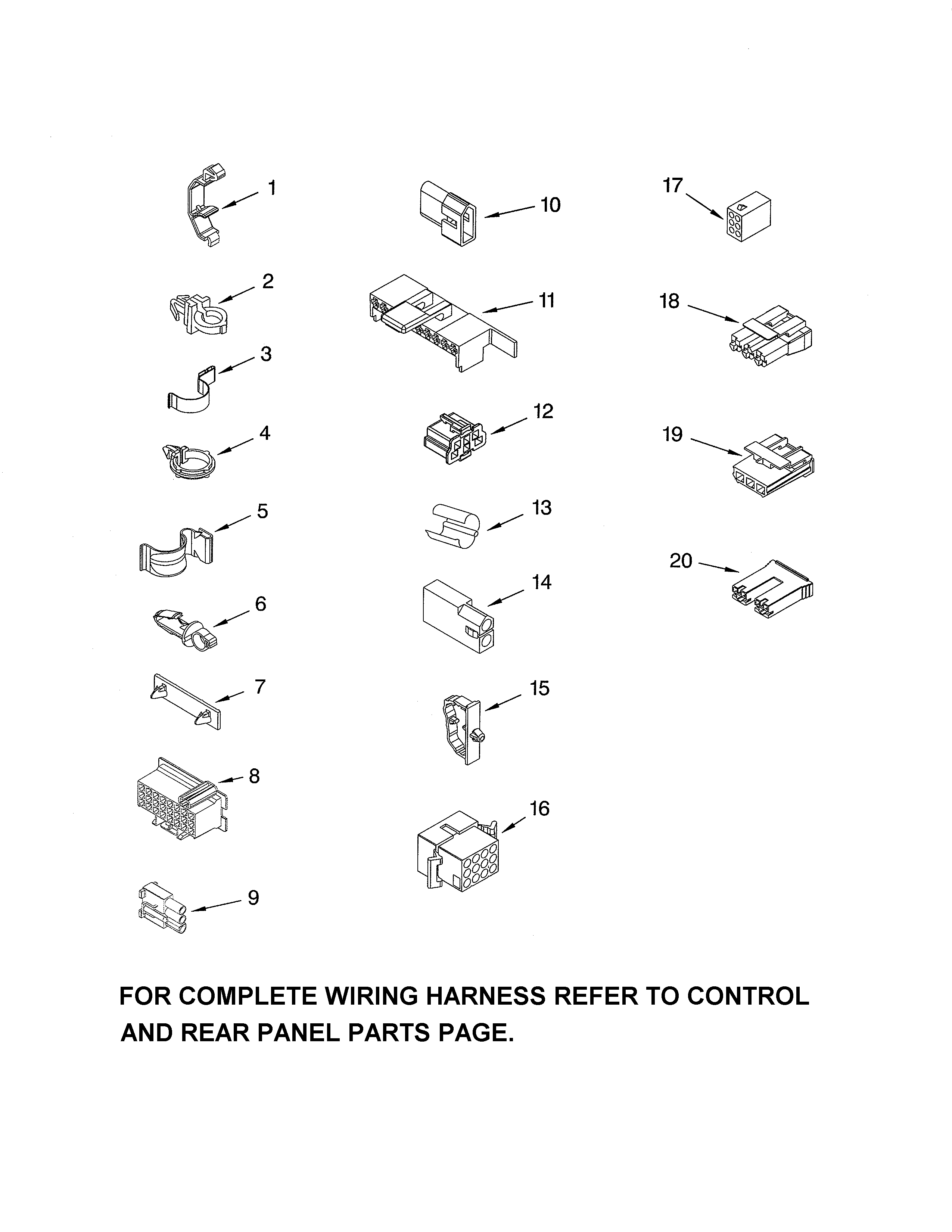

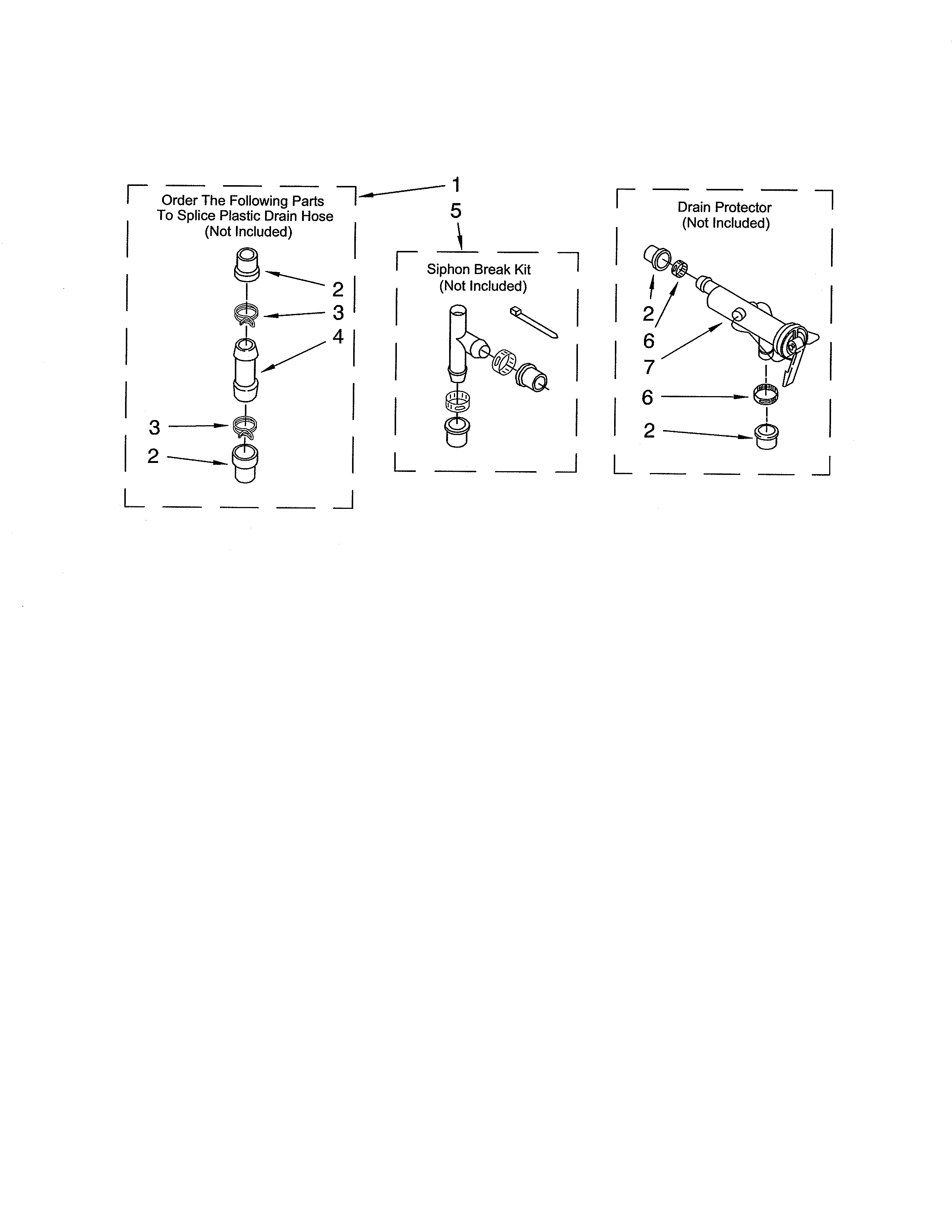

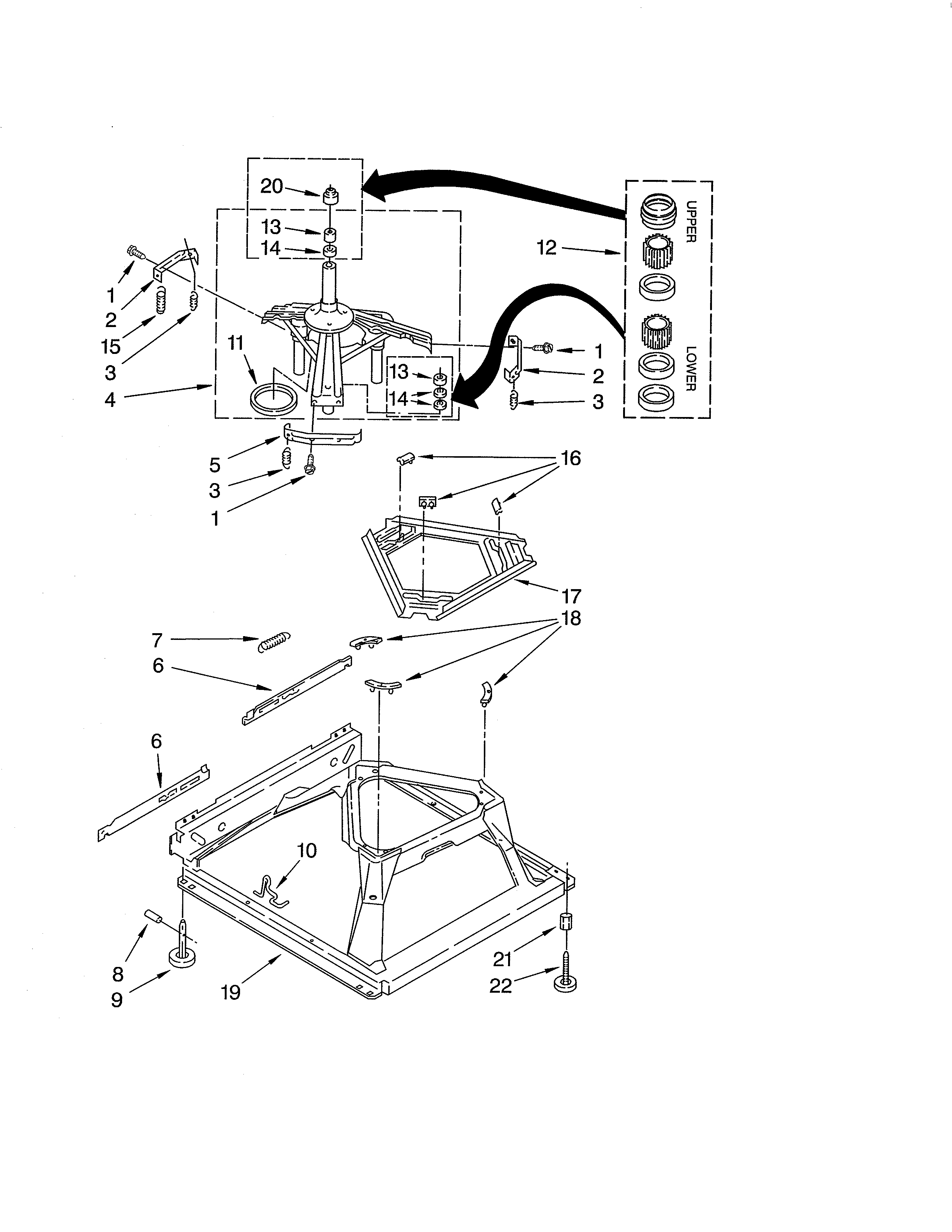

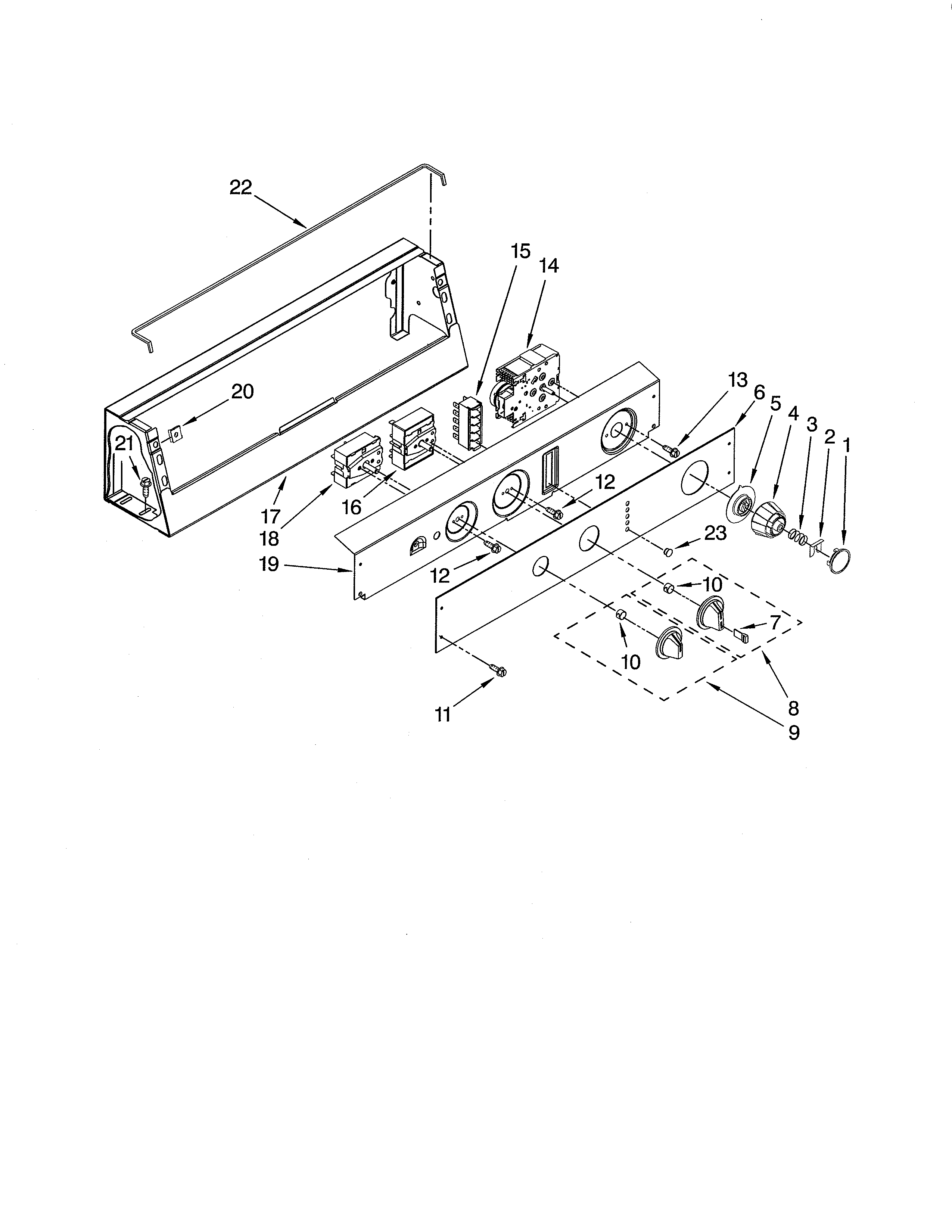

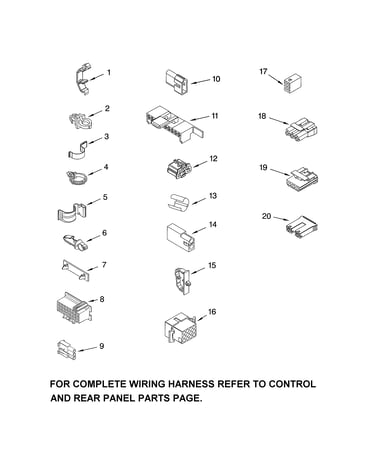

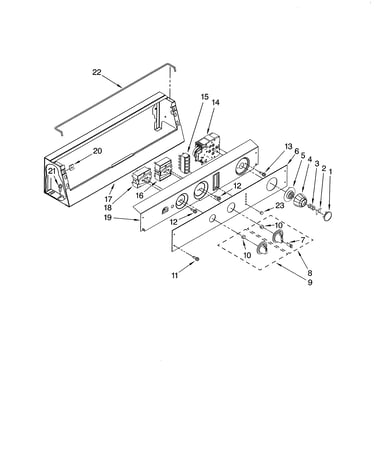

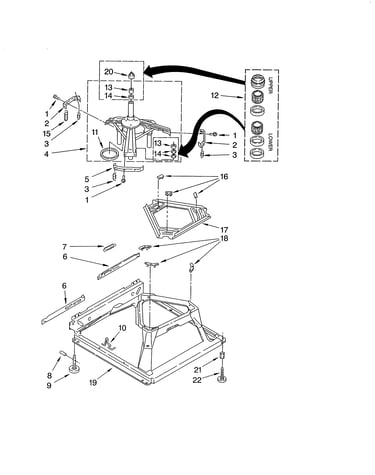

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Basketdriv 388951
#1

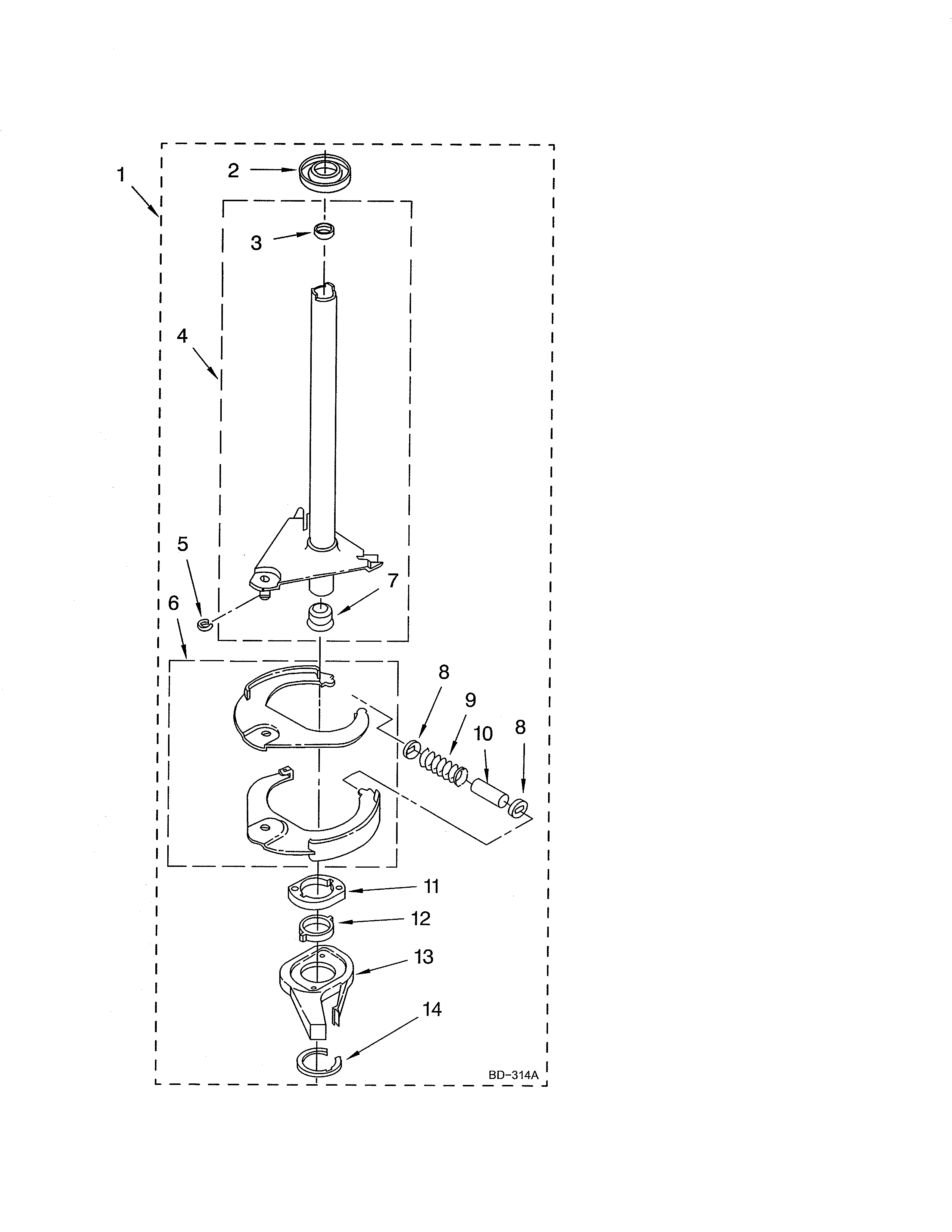

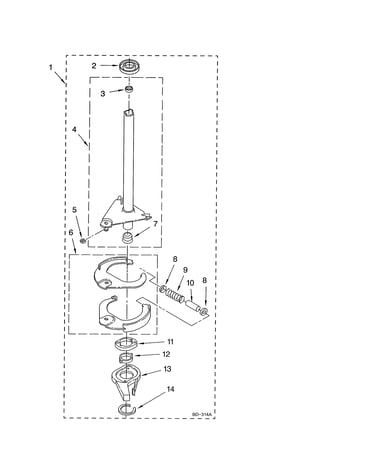

Brake & drive tube diagram

Basketdriv

Part #388951

Replaced by #W10820043

?
Manufacturer substitution
This part replaces 388951. Substitute parts can look different from the original.
BEST SELLER
$118.18 |
9% OFF Phone Price : $130.18
In Stock
Drive Basket 388952
#1

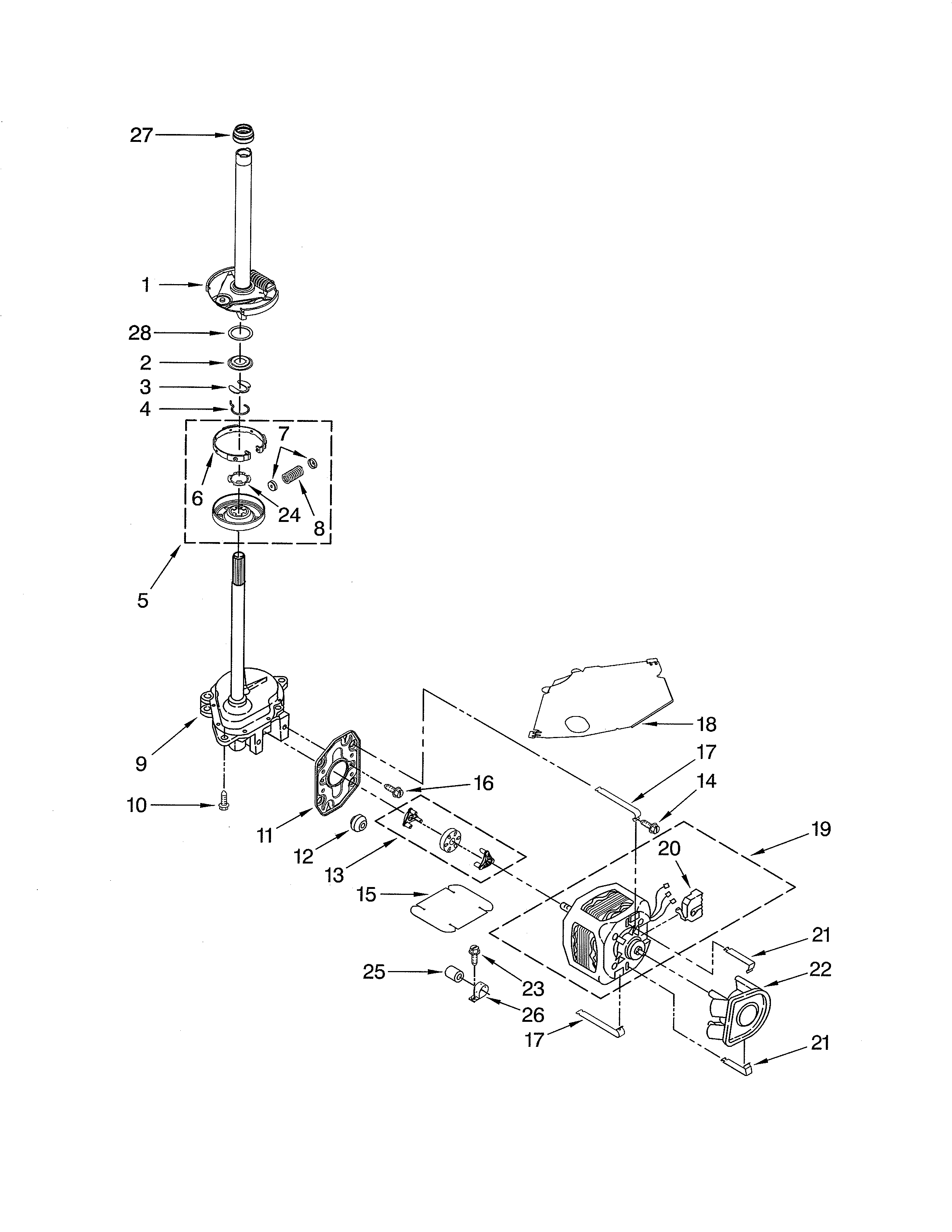

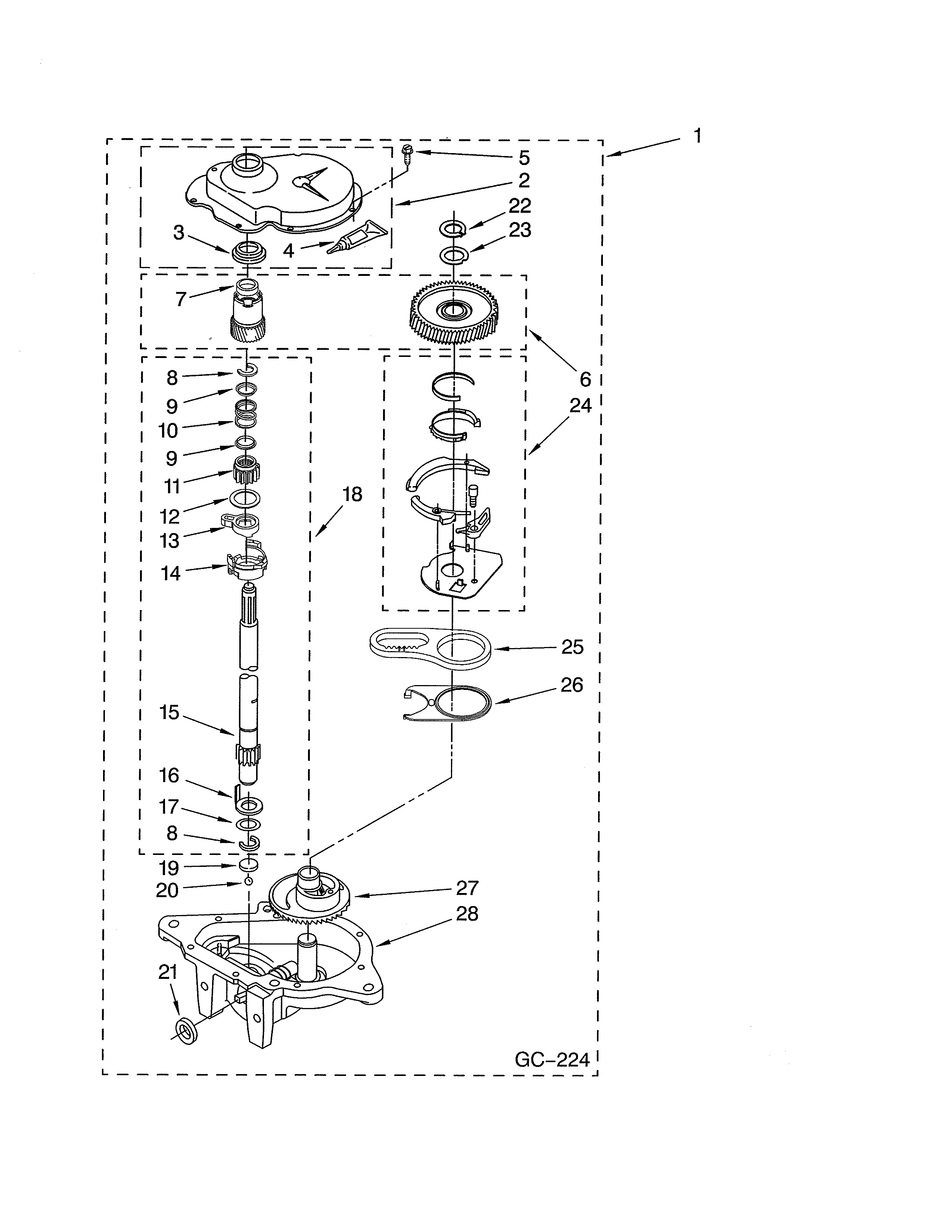

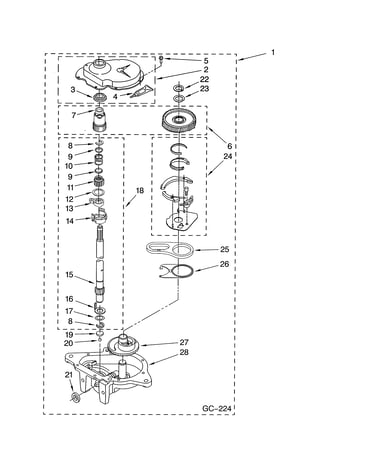

Brake/clutch/gearcase/motor/pump diagram

Drive basket

Part #388952

Replaced by #W10820043

?
Manufacturer substitution
This part replaces 388952. Substitute parts can look different from the original.
BEST SELLER
$118.18 |
9% OFF Phone Price : $130.18
In Stock
Washer Drain Pump 3363394
#22

Brake/clutch/gearcase/motor/pump diagram

Washer drain pump

Part #3363394

Replaced by #WP3363394

?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
BEST SELLER
$33.87 |
15% OFF Phone Price : $39.87
In Stock
Washer Drive Block 389140
#11

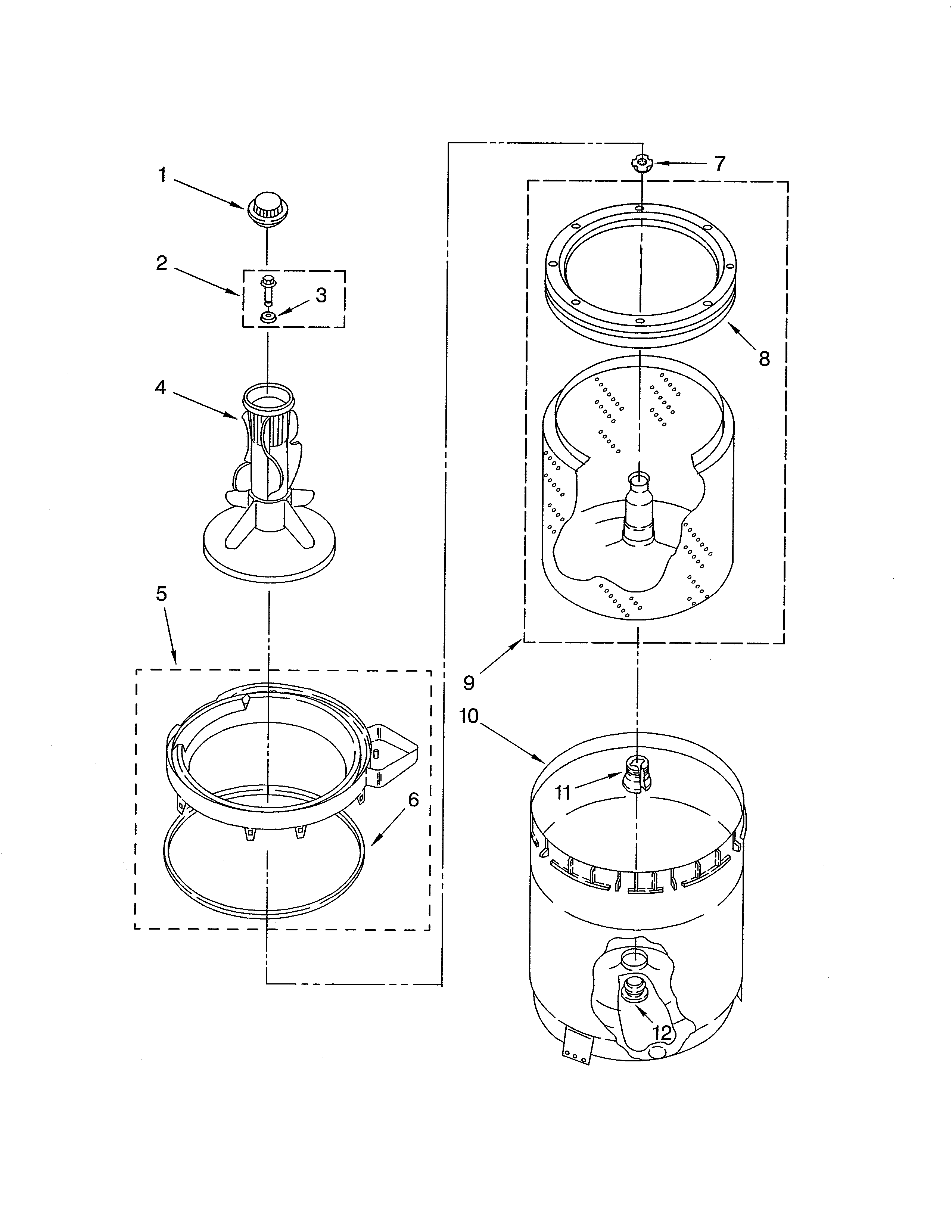

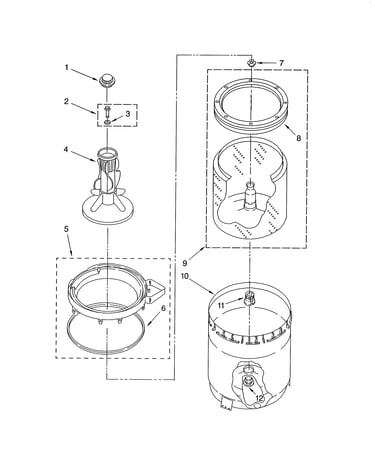

Agitator/basket/tub diagram

Washer drive block

Part #389140

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
BEST SELLER
$23.94 |
20% OFF Phone Price : $29.94
In Stock
Washer Lid Switch Assembly 8318084
#11

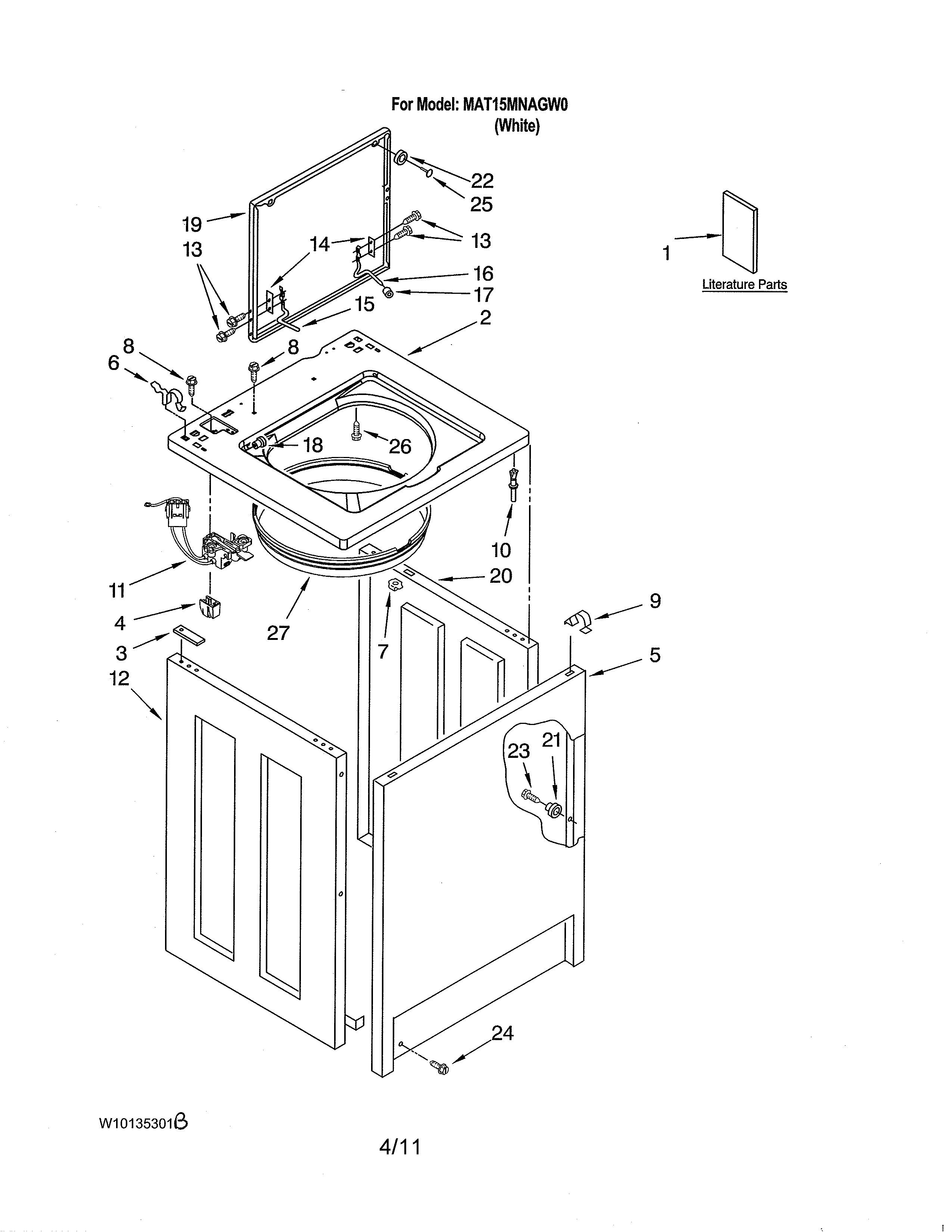

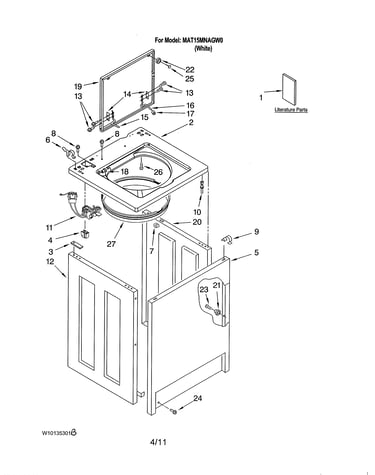

Top & cabinet diagram

Washer lid switch assembly

Part #8318084

Replaced by #WP8318084

?
Manufacturer substitution
This part replaces 8318084. Substitute parts can look different from the original.
BEST SELLER
$29.43 |
17% OFF Phone Price : $35.43
In Stock
Washer Spanner Nut 21366
#7

Agitator/basket/tub diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Tub Gasket 383727
#12

Agitator/basket/tub diagram

Washer tub gasket

Part #383727

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 383727. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Washer Screw W10003790
#2

Agitator/basket/tub diagram

Washer screw

Part #W10003790

Replaced by #W10772621

?
Manufacturer substitution
This part replaces W10003790. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Clamp W10096851
#13

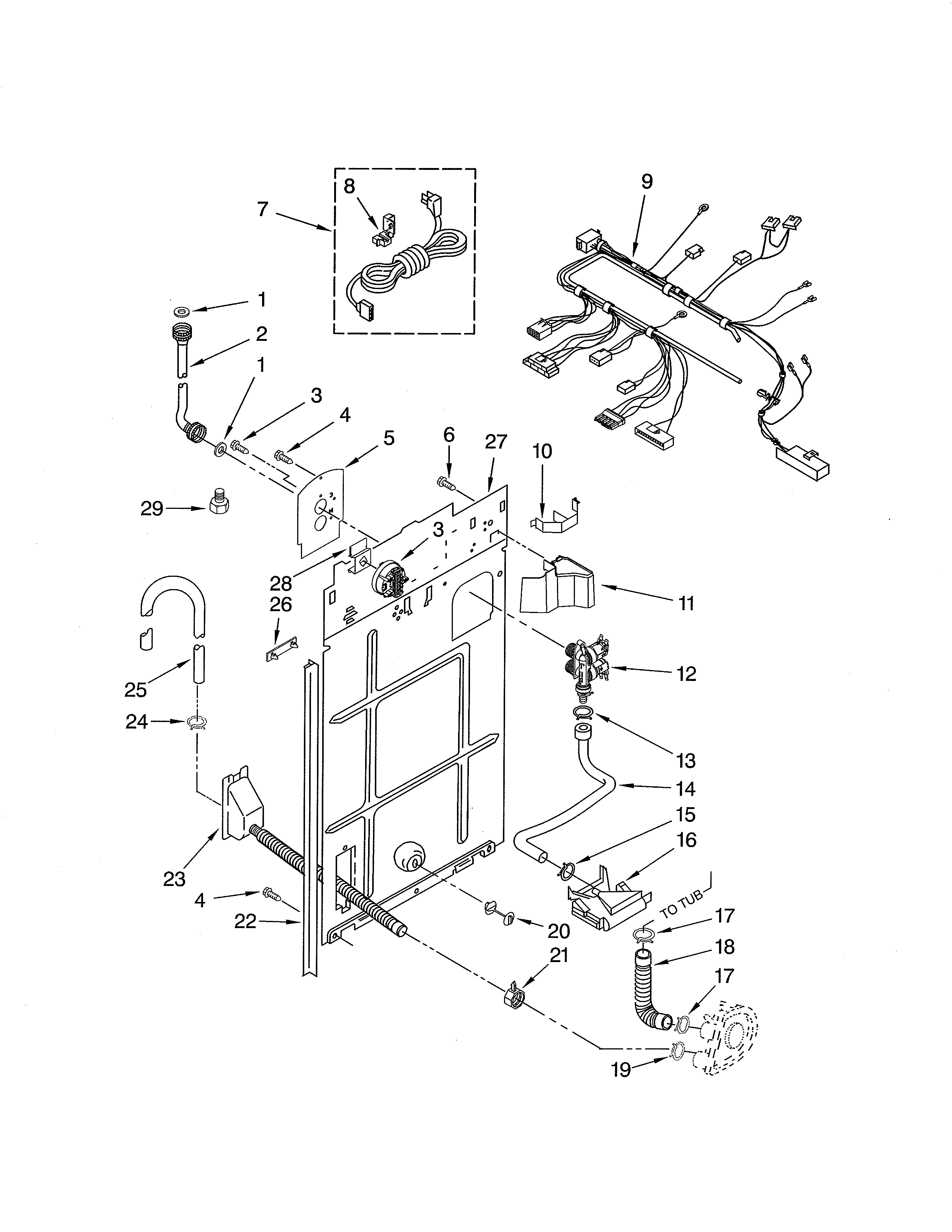

Rear panel diagram

Clamp

Part #W10096851

Replaced by #WP596669

?
Manufacturer substitution
This part replaces W10096851. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp W10096852
#15

Rear panel diagram

Clamp

Part #W10096852

Replaced by #WP596669

?
Manufacturer substitution
This part replaces W10096852. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
