Frigidaire
Electric Wall Oven

Model # FEB24S5ABC Official Frigidaire electric oven

Here are the diagrams and repair parts for Official Frigidaire FEB24S5ABC electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

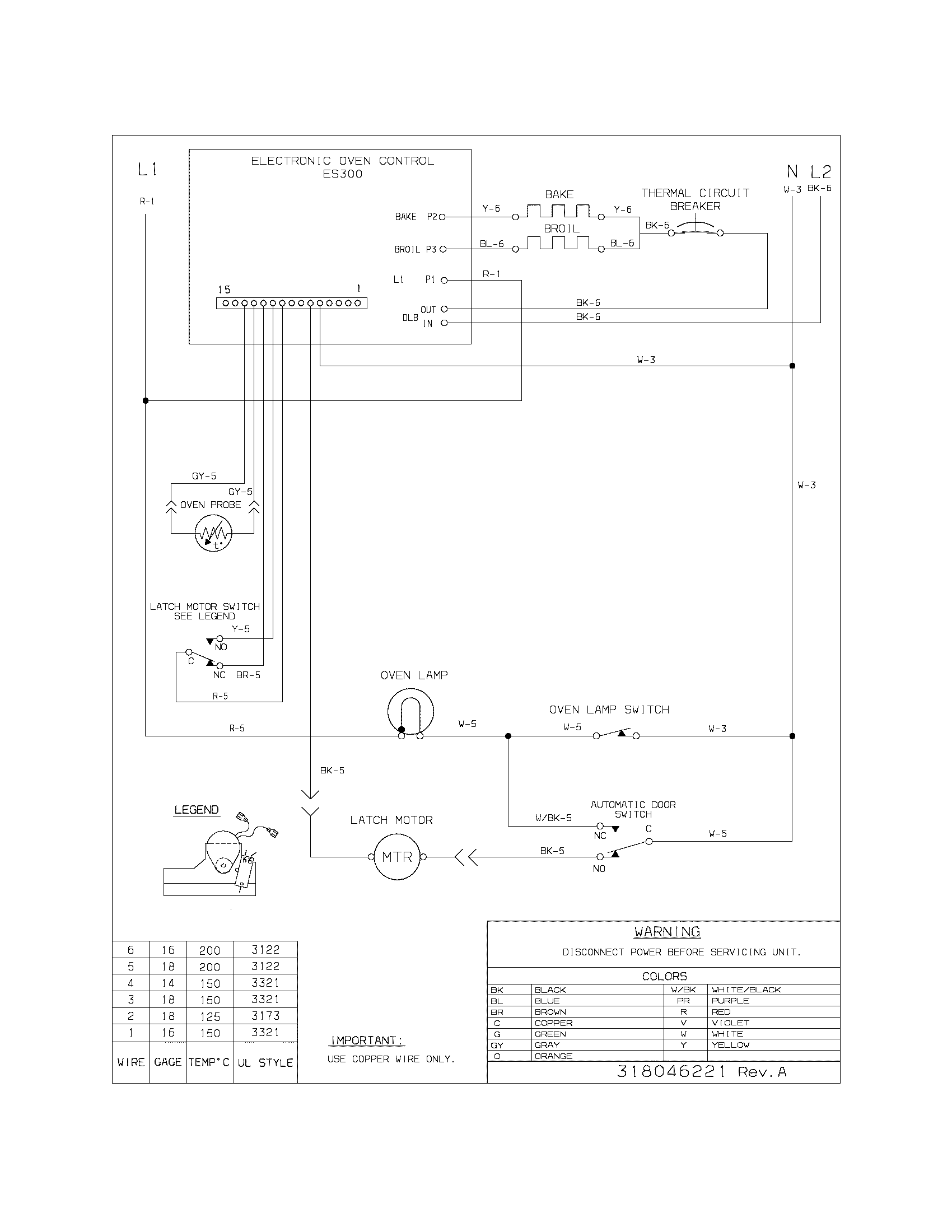

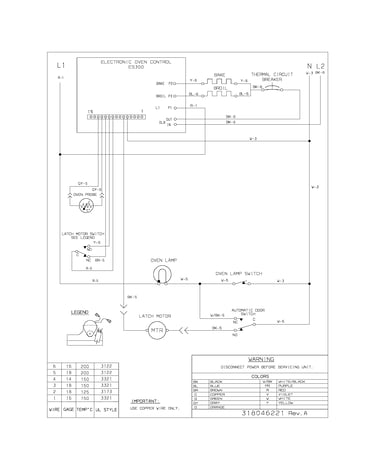

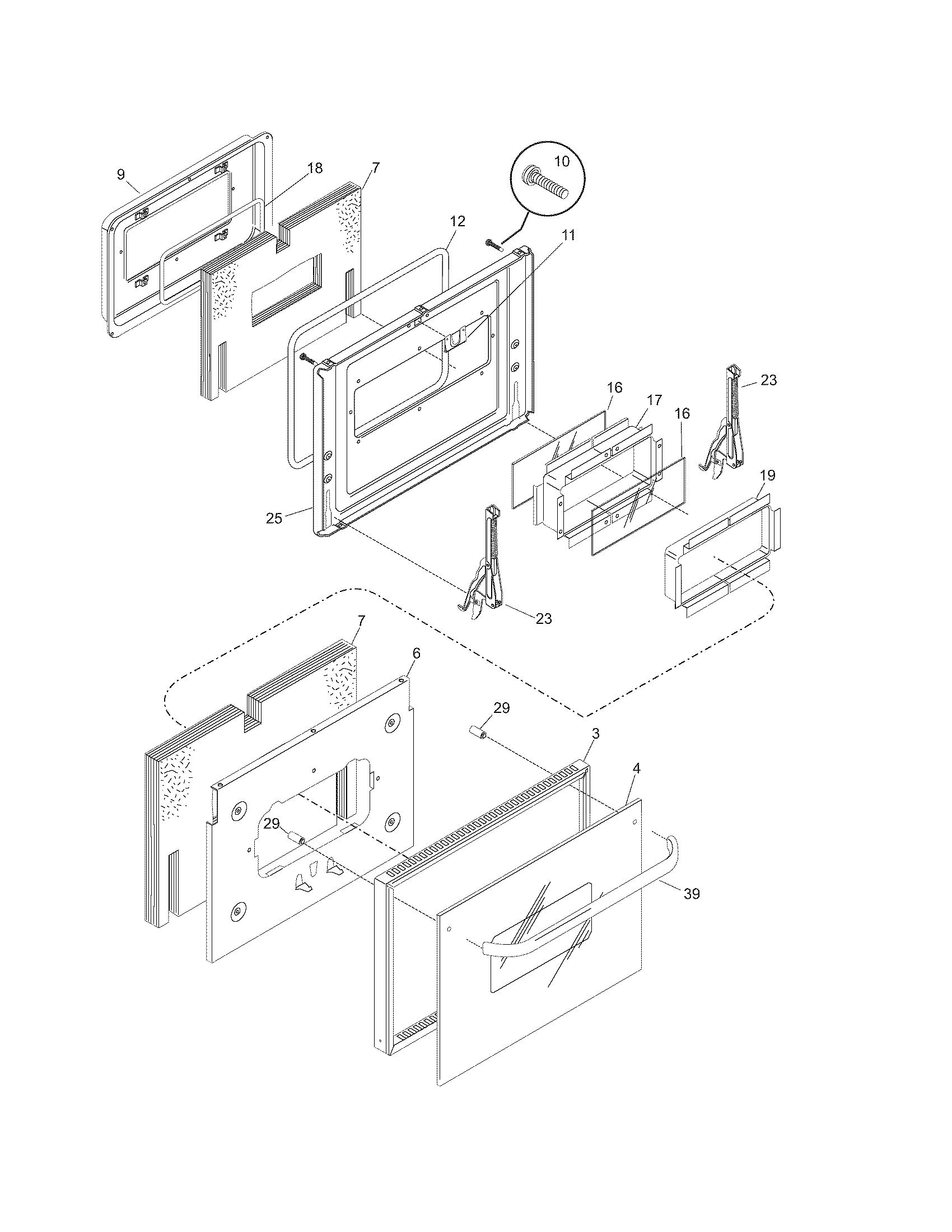

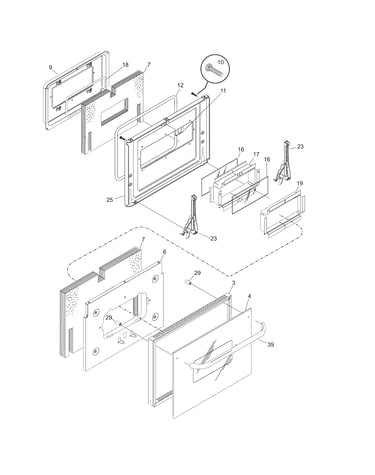

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Range Oven Light Bulb 5303013071
#15

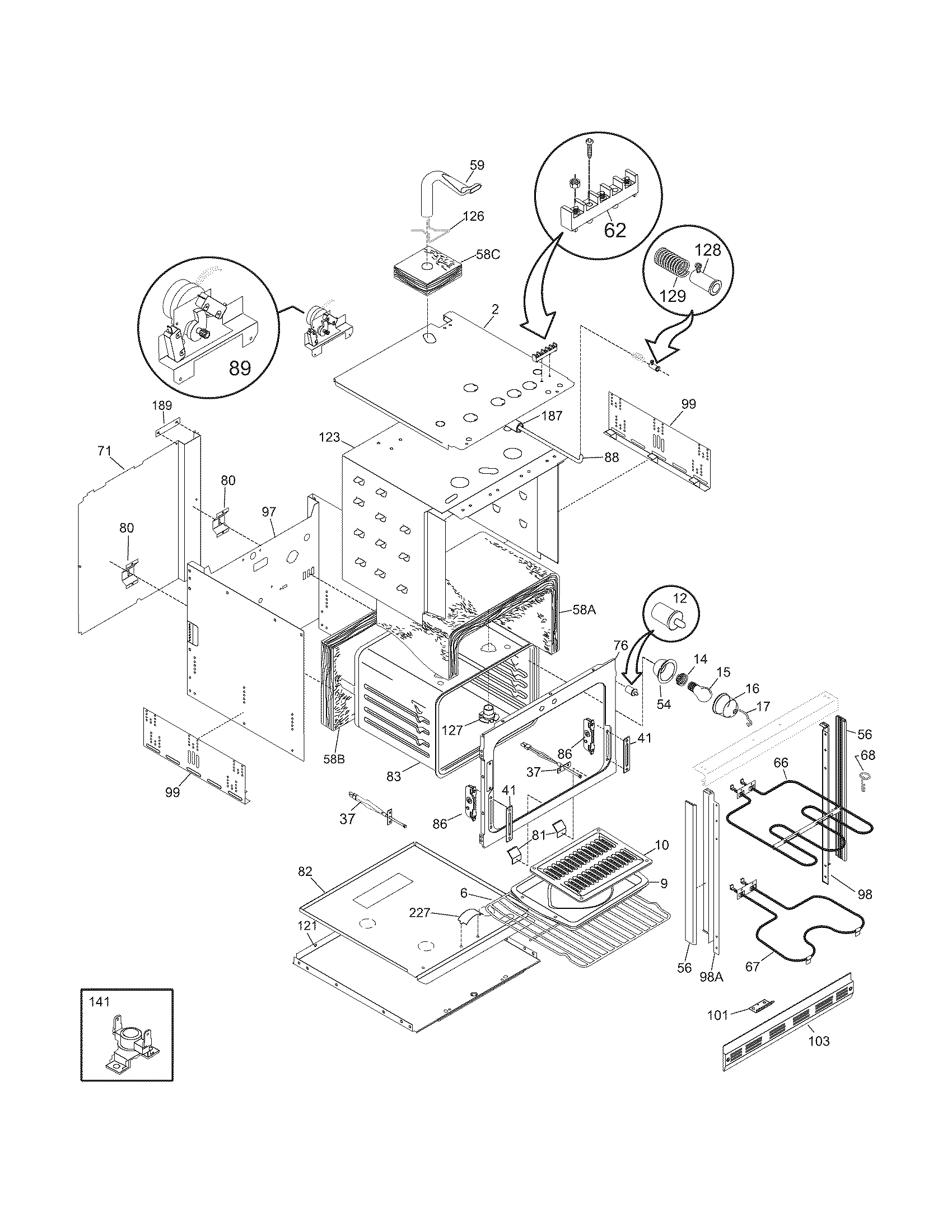

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Frigidaire Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7 316217002
#37

Body diagram

Frigidaire range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Range Bake Element (replaces 318255105) 318255101
#67

Body diagram

Range bake element (replaces 318255105)

Part #318255101

BEST SELLER
$132.85 |
8% OFF Phone Price : $144.85
In Stock
Range Oven Control Overlay (replaces 316220818, 316220841, 318214502) 316220805
#NI

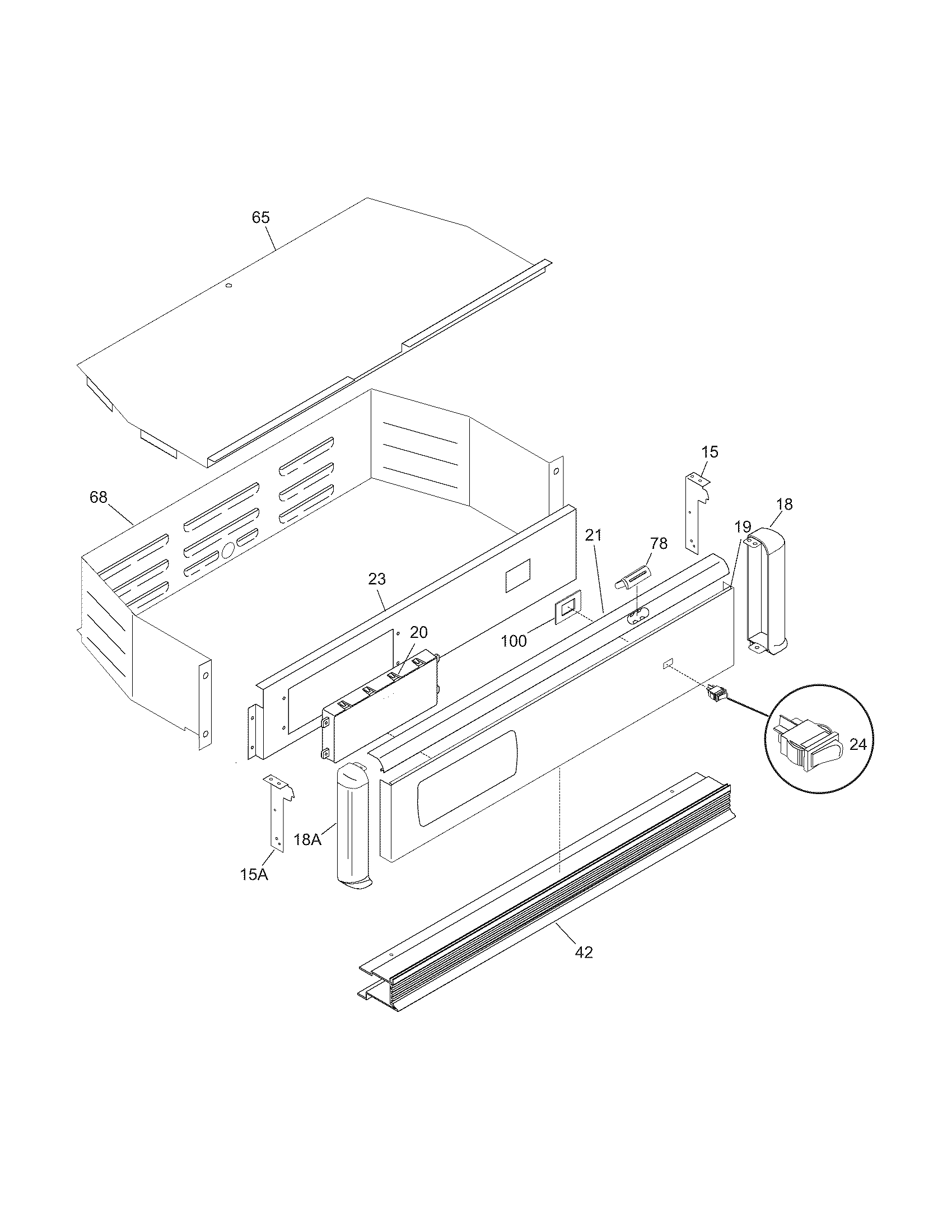

Control panel diagram

Range oven control overlay (replaces 316220818, 316220841, 318214502)

Part #316220805

BEST SELLER
$58.21 |
9% OFF Phone Price : $64.21
In Stock
Range Oven Control Overlay (replaces 316220817, 316220839, 316220840, 318214505, 318214508) 316220804
#NI

Control panel diagram

Range oven control overlay (replaces 316220817, 316220839, 316220840, 318214505, 318214508)

Part #316220804

BEST SELLER
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Clock Overlay 316220806
#NI

Control panel diagram

Clock overlay

Part #316220806

Replaced by #316220804

?
Manufacturer substitution
This part replaces 316220806. Substitute parts can look different from the original.
BEST SELLER
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Rocker Switch 316005607
#24

Control panel diagram

Rocker switch

Part #316005607

Replaced by #5304527842

?
Manufacturer substitution
This part replaces 316005607. Substitute parts can look different from the original.
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Range Broil Element 318255601
#66

Body diagram

Range broil element

Part #318255601

Replaced by #318255606

?
Manufacturer substitution
This part replaces 318255601. Substitute parts can look different from the original.
$139.04 |
8% OFF Phone Price : $151.04
In Stock
Oven Switch 318089913
#12

Body diagram

Oven switch

Part #318089913

Replaced by #318394803

?
Manufacturer substitution
This part replaces 318089913. Substitute parts can look different from the original.
$35.19 |
15% OFF Phone Price : $41.19
In Stock
Light Switch 316005602
#24

Control panel diagram

Light switch

Part #316005602

Replaced by #5304527841

?
Manufacturer substitution
This part replaces 316005602. Substitute parts can look different from the original.
This item is not returnable
$10.94 |
15% OFF Phone Price : $12.94
In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why won't my wall oven broil?

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Read more

Why won't my wall oven bake?

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Read more

Why isn't my wall oven at the temperature I set?

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Read more

Why doesn't my wall oven work?

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Read more

Why won't my wall oven heat?

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Read more
