Model # HT-SB200 Official Sharp audio speaker

Here are the diagrams and repair parts for Official Sharp HT-SB200 audio speaker, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
HT-SB200 Audio Equipment
Screw LX-EZ0010AWF7
#601

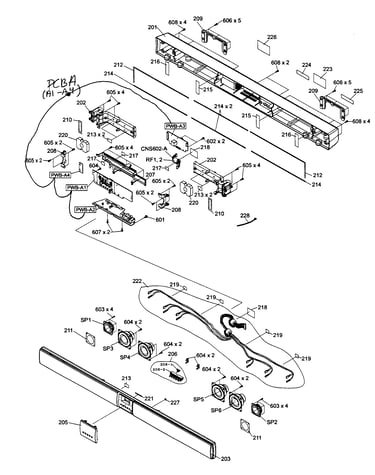

Cabinet parts diagram

Screw

Part #LX-EZ0010AWF7

The manufacturer no longer makes this part, and there's no substitute part

Sharp Connector QPLGNA164WJZZ
#NI

Cabinet parts diagram

Sharp connector

Part #QPLGNA164WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Screw XEBY835P10000
#606

Cabinet parts diagram

Screw

Part #XEBY835P10000

The manufacturer no longer makes this part, and there's no substitute part

Screw XJBY830P10000
#608

Cabinet parts diagram

Screw

Part #XJBY830P10000

The manufacturer no longer makes this part, and there's no substitute part

Cushion PCUSSA118AWZZ
#NI

Cabinet parts diagram

Cushion

Part #PCUSSA118AWZZ

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-JZ0047AWF7
#602

Cabinet parts diagram

Screw

Part #LX-JZ0047AWF7

The manufacturer no longer makes this part, and there's no substitute part

Cable QCNWGA041AWPZ
#NI

Cabinet parts diagram

Cable

Part #QCNWGA041AWPZ

The manufacturer no longer makes this part, and there's no substitute part

Adapter RADPAA061AW01
#NI

Cabinet parts diagram

Adapter

Part #RADPAA061AW01

The manufacturer no longer makes this part, and there's no substitute part

Sharp Connector QPLGN0061CEZZ
#NI

Cabinet parts diagram

Sharp connector

Part #QPLGN0061CEZZ

The manufacturer no longer makes this part, and there's no substitute part

Sharp Connector QPLGN0054CEZZ
#NI

Cabinet parts diagram

Sharp connector

Part #QPLGN0054CEZZ

The manufacturer no longer makes this part, and there's no substitute part
