Model # MS840BB/XAA Official Samsung microwave

Here are the diagrams and repair parts for Official Samsung MS840BB-XAA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$17.74 |
10% OFF Phone Price : $19.74
In Stock
Switch 3405-001042
#9

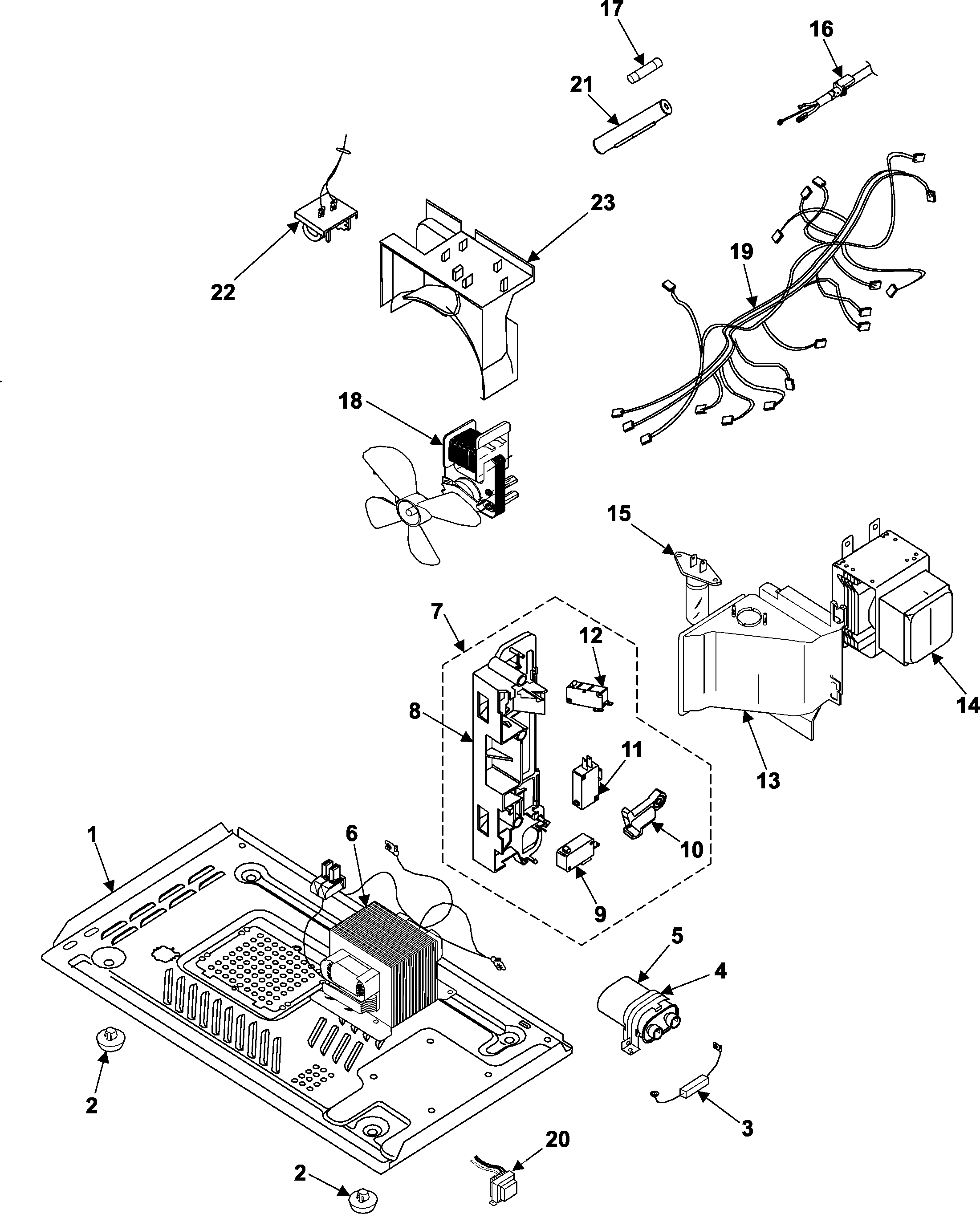

Internal control/latch assy/base diagram

Switch

Part #3405-001042

Replaced by #3405-001034

?
Manufacturer substitution
This part replaces 3405-001042. Substitute parts can look different from the original.
BEST SELLER
$17.74 |
10% OFF Phone Price : $19.74
In Stock
Microwave Door Micro-switch 3405-001033
#11

Internal control/latch assy/base diagram

Microwave door micro-switch

Part #3405-001033

BEST SELLER
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Microwave High-voltage Capacitor (replaces 2501-001110, 2501-001279) 2501-001035
#5

Internal control/latch assy/base diagram

Microwave high-voltage capacitor (replaces 2501-001110, 2501-001279)

Part #2501-001035

$90.15 |
6% OFF Phone Price : $96.15
In Stock
Microwave Light Bulb 4713-001102
#15

Internal control/latch assy/base diagram

Microwave light bulb

Part #4713-001102

This item is not returnable
$16.93 |
11% OFF Phone Price : $18.93
In Stock
Microwave Thermostat DE47-20173A
#7

Body/cavity/elements diagram

Microwave thermostat

Part #DE47-20173A

This item is not returnable
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Fuse 3601-001197
#17

Internal control/latch assy/base diagram

Fuse

Part #3601-001197

Replaced by #3601-001197

?
Manufacturer substitution
This part replaces 3601-001197. Substitute parts can look different from the original.
$27.23
In Stock
Spring Key DE61-00198A
#8

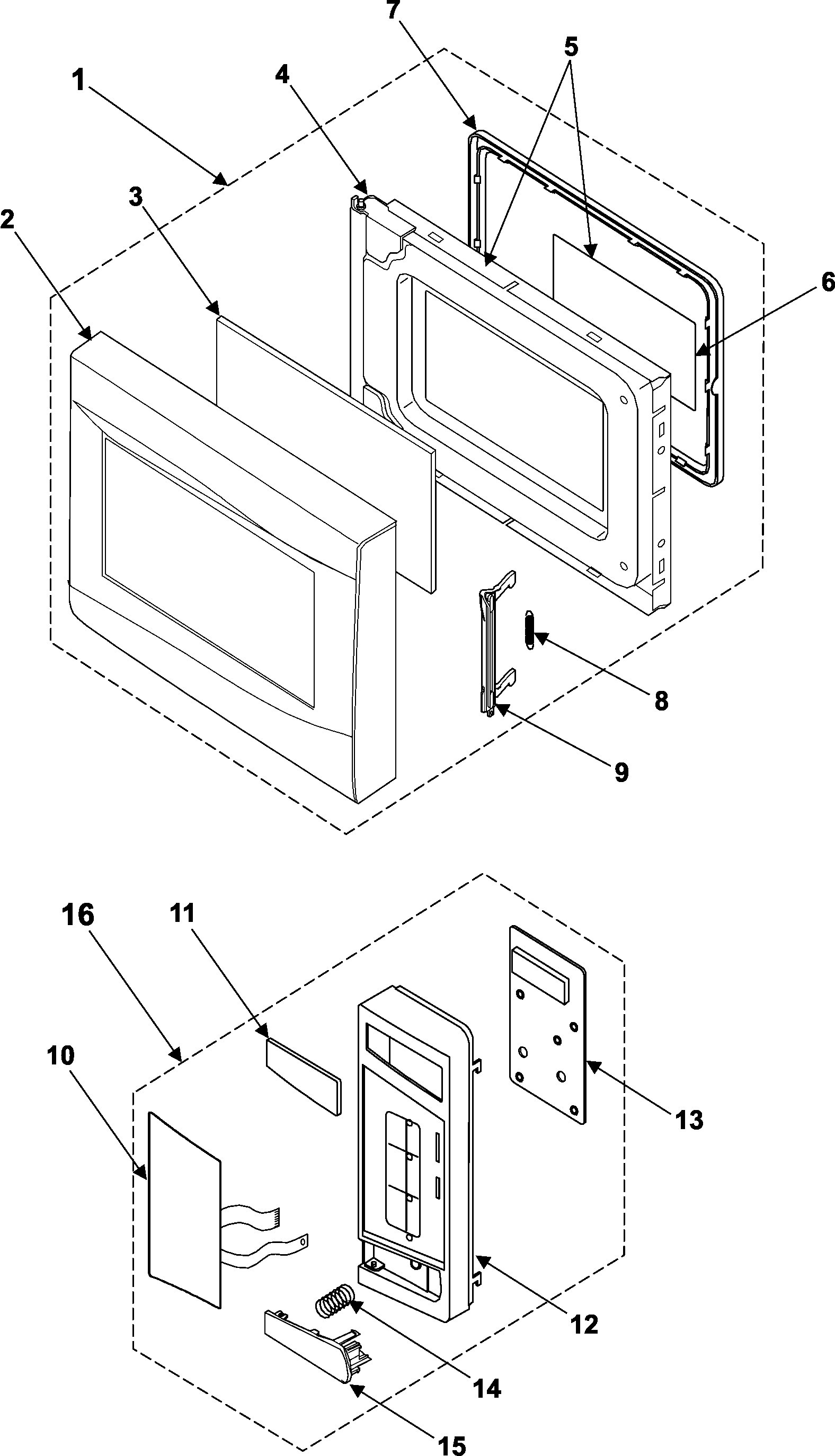

Control panel/door assembly diagram

Spring key

Part #DE61-00198A

$14.51
In Stock
Cover-air DE71-60457B
#13

Internal control/latch assy/base diagram

Cover-air

Part #DE71-60457B

This item is not returnable
$7.26
In Stock
Door Film DE64-00221B
#6

Control panel/door assembly diagram

Door film

Part #DE64-00221B

This item is not returnable
$6.66
In Stock
