Model # ER36GISCHLP Official Dacor range

Here are the diagrams and repair parts for Official Dacor ER36GISCHLP range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

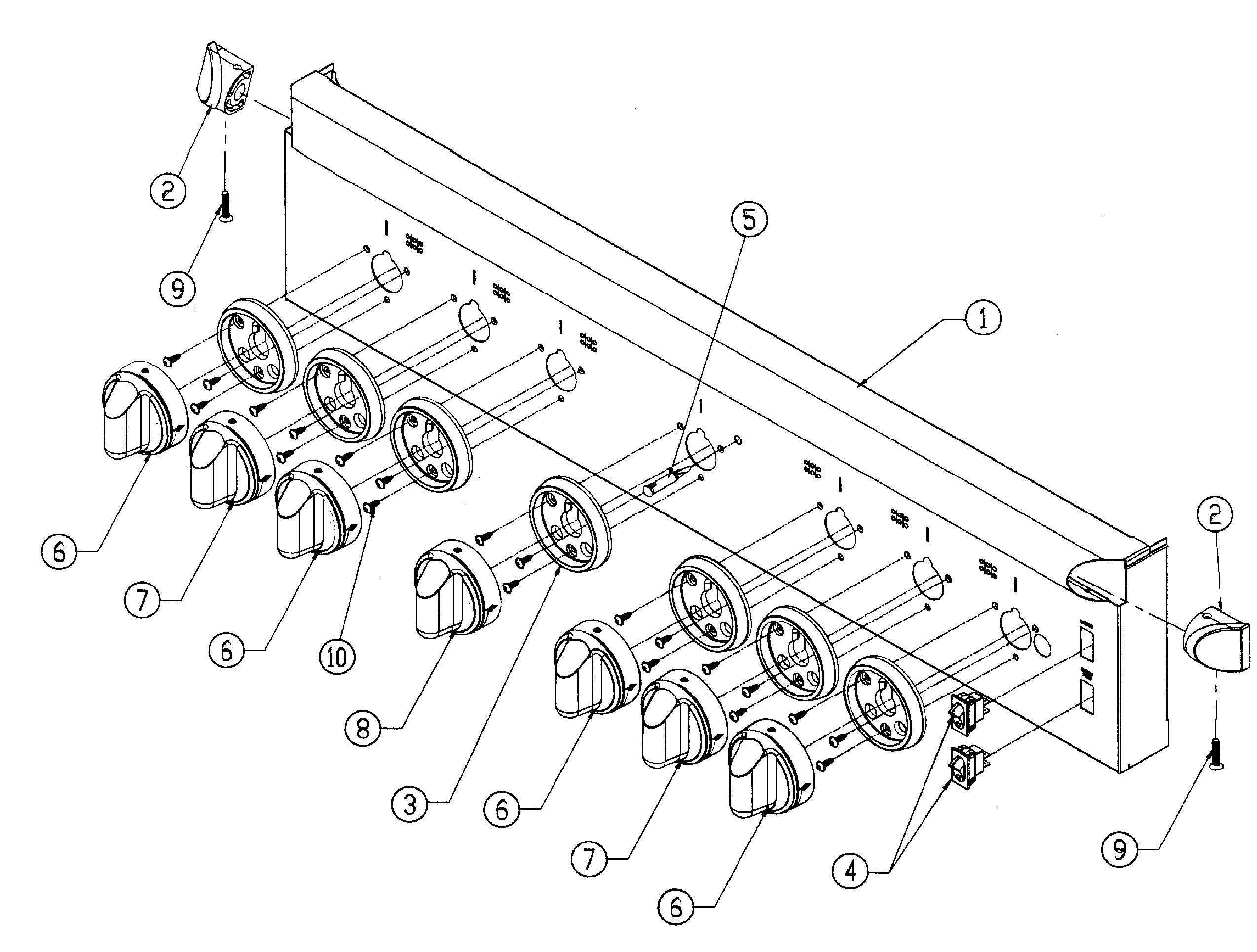

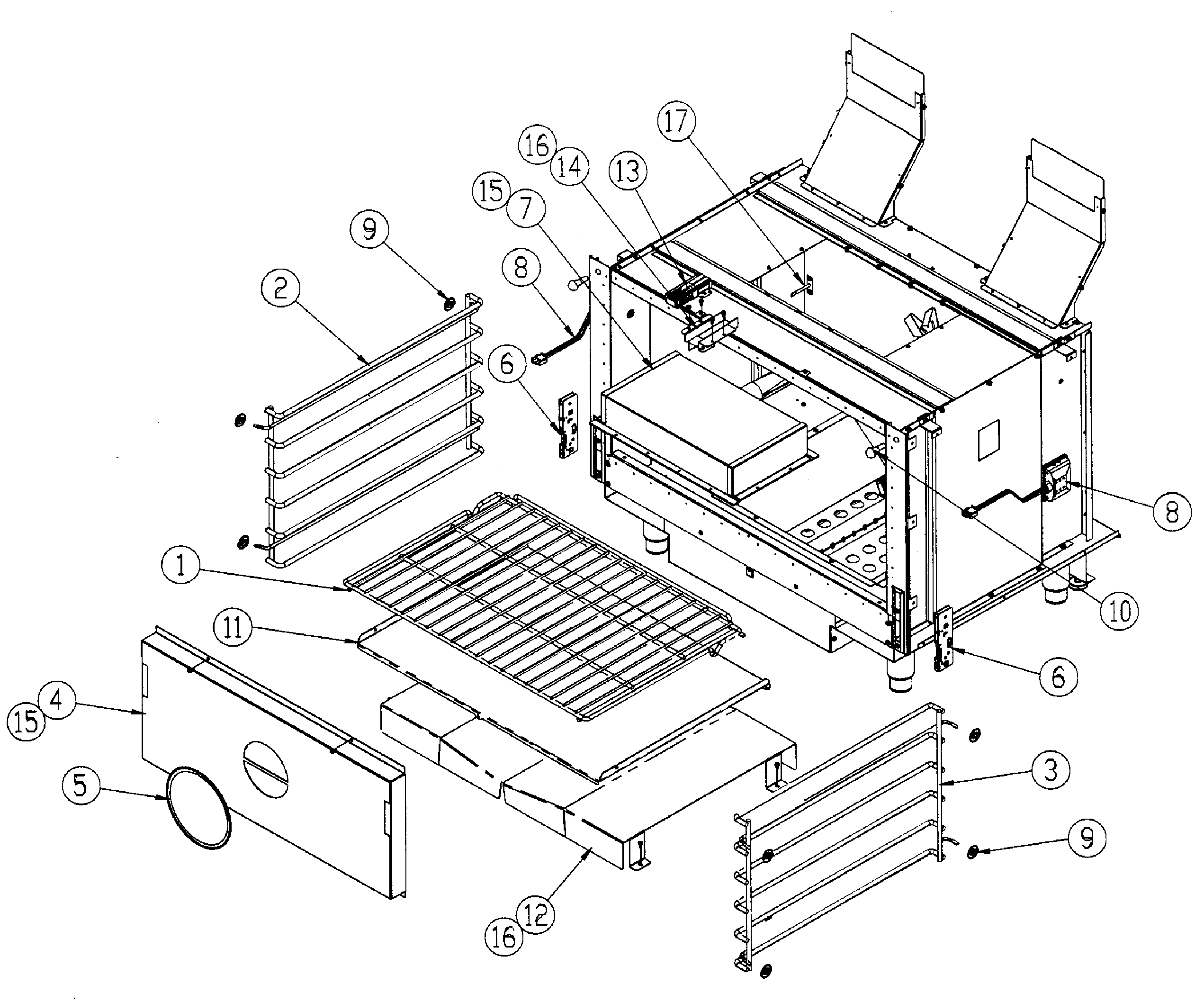

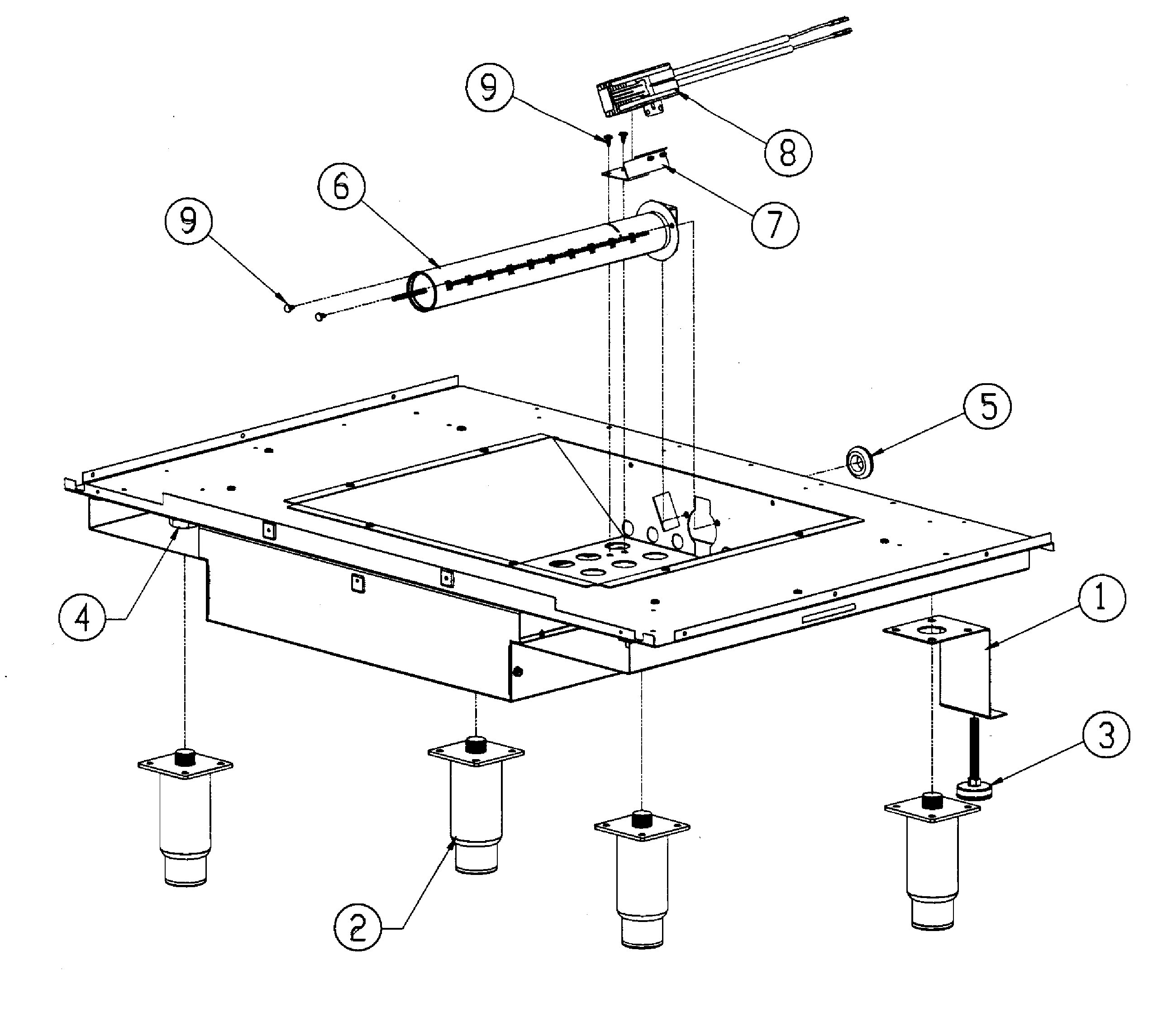

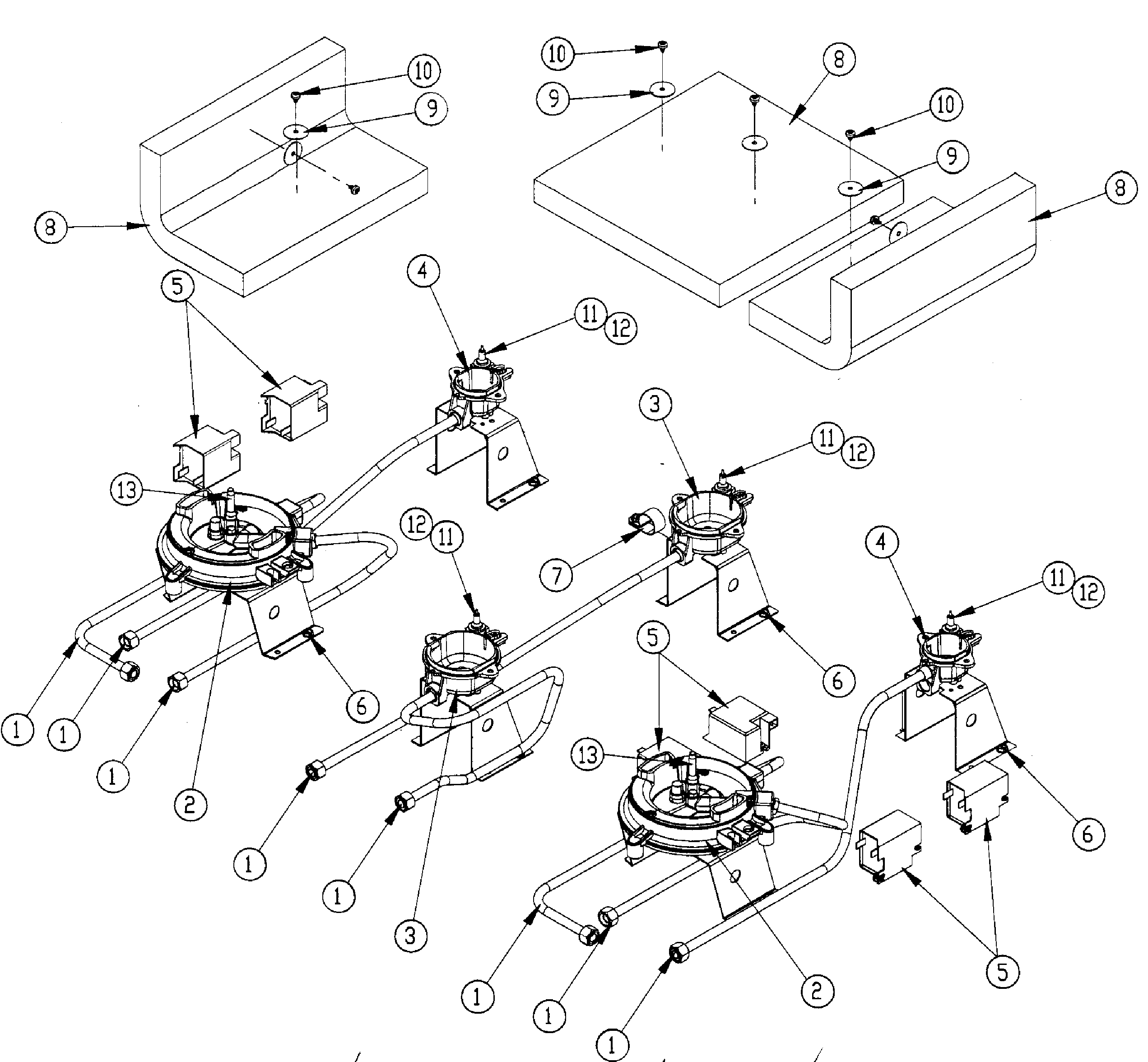

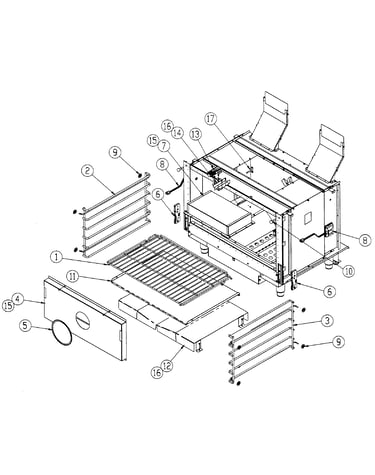

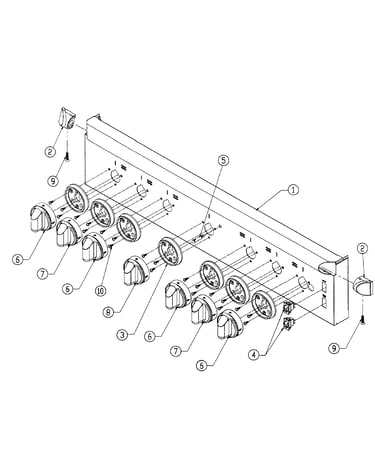

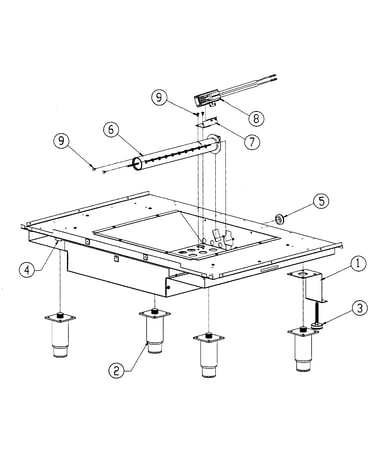

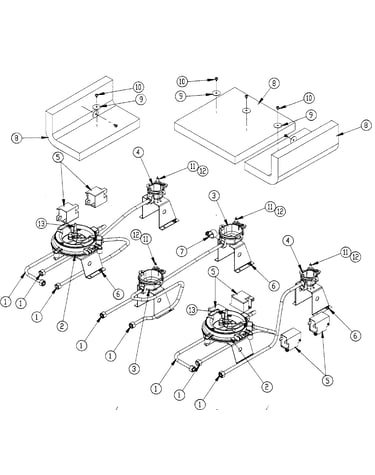

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Nut 83308
#10

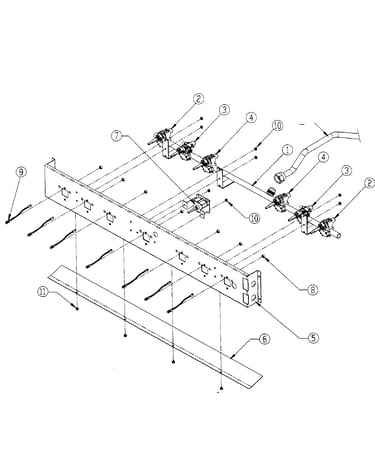

Manifold diagram

Nut

Part #83308

This item is not returnable
$2.16
In Stock
Range Oven Control Board 106169-02
#12

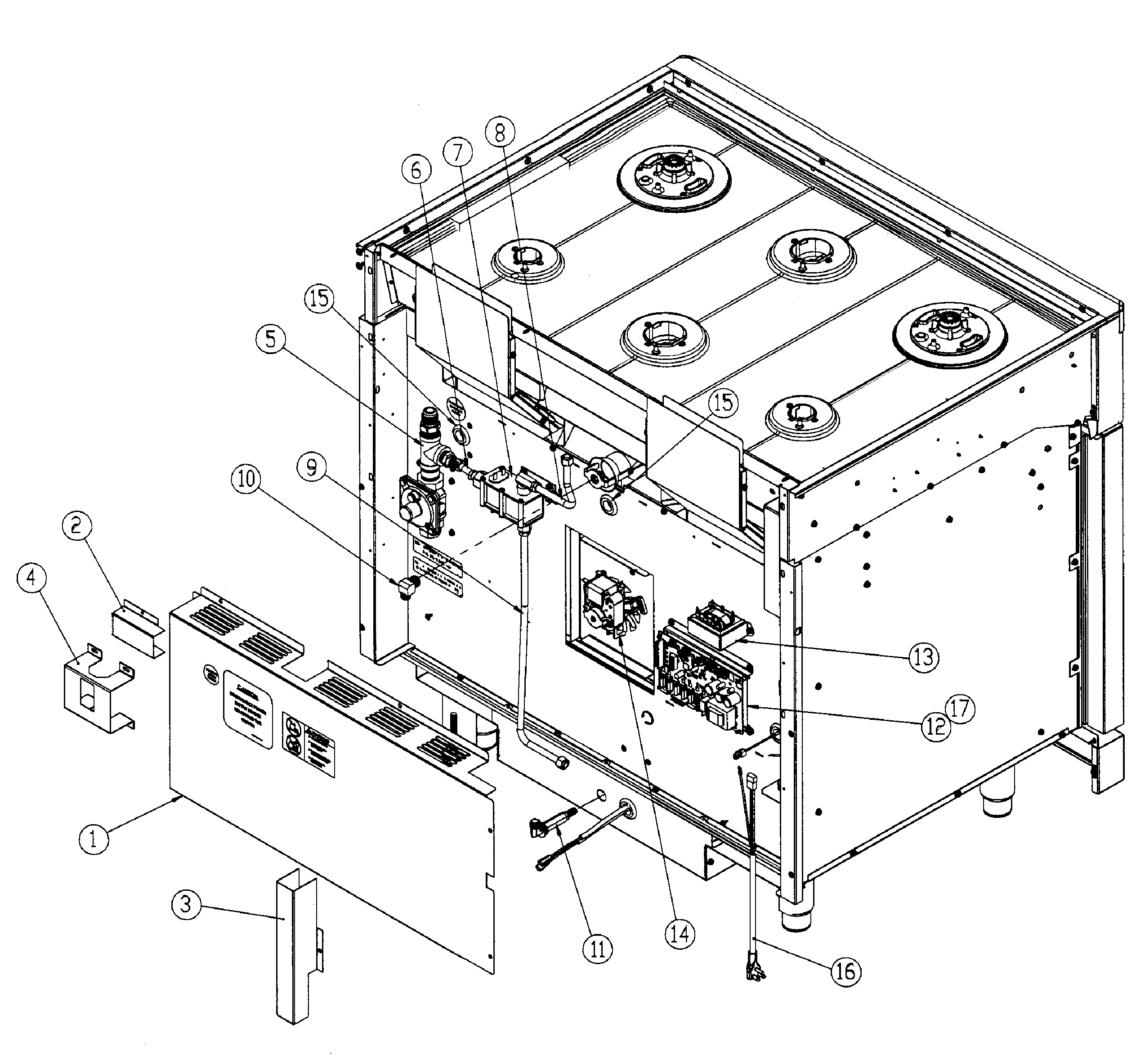

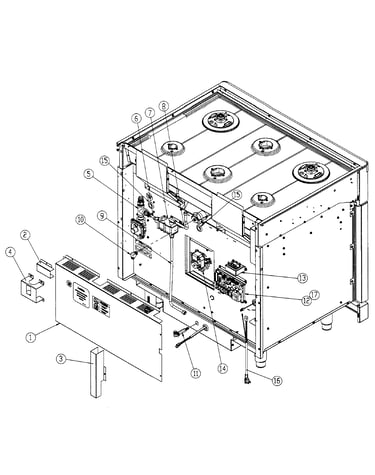

Rear assy diagram

Range oven control board

Part #106169-02

$187.99
In Stock
Spill Tray 106375BP
#1

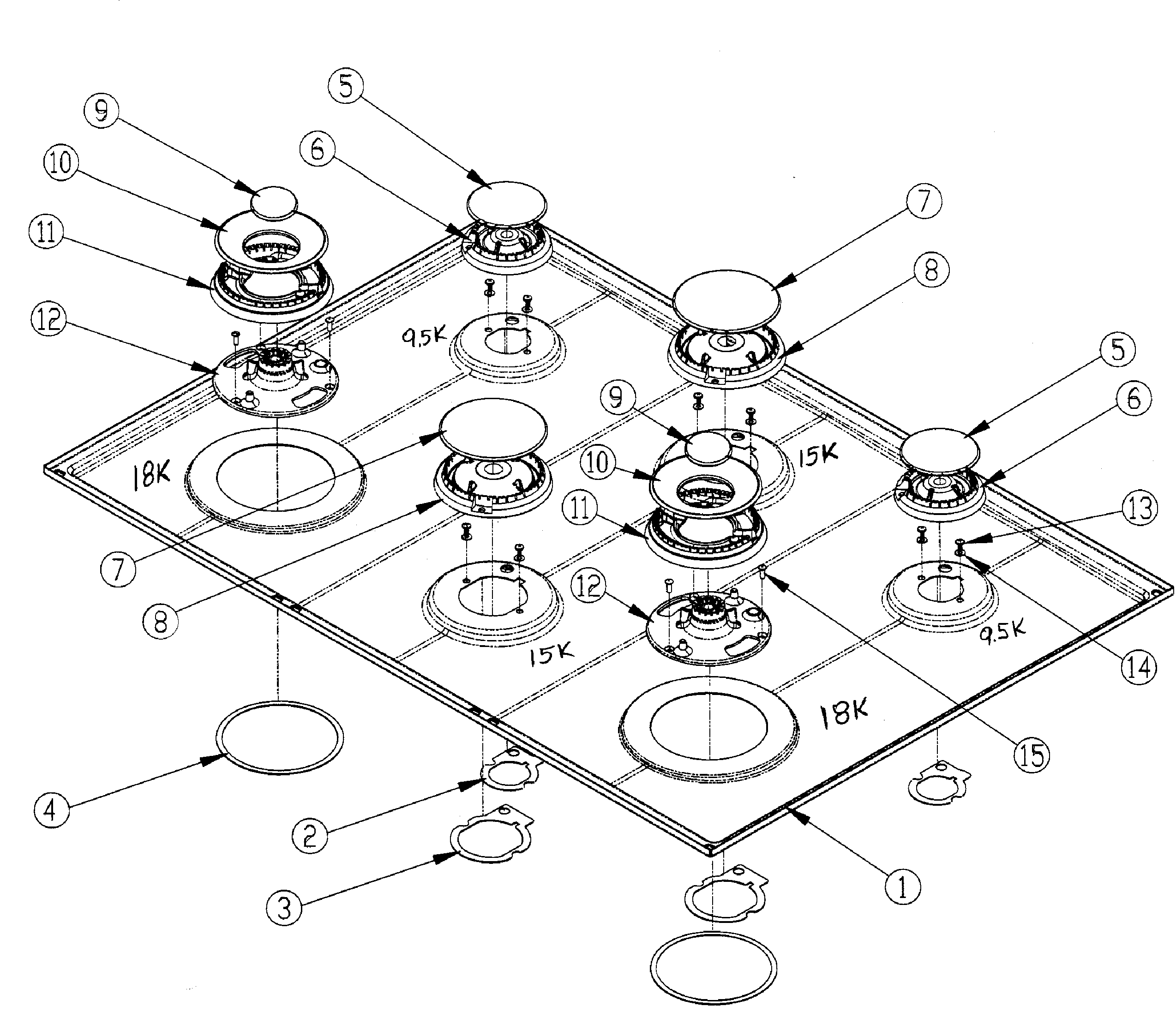

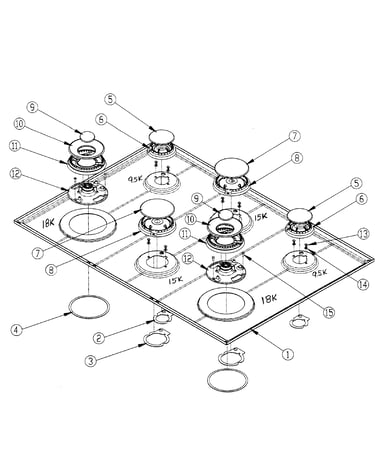

Top assy diagram

Spill tray

Part #106375BP

$99.49
In Stock
Dual Valve 103689-02
#3

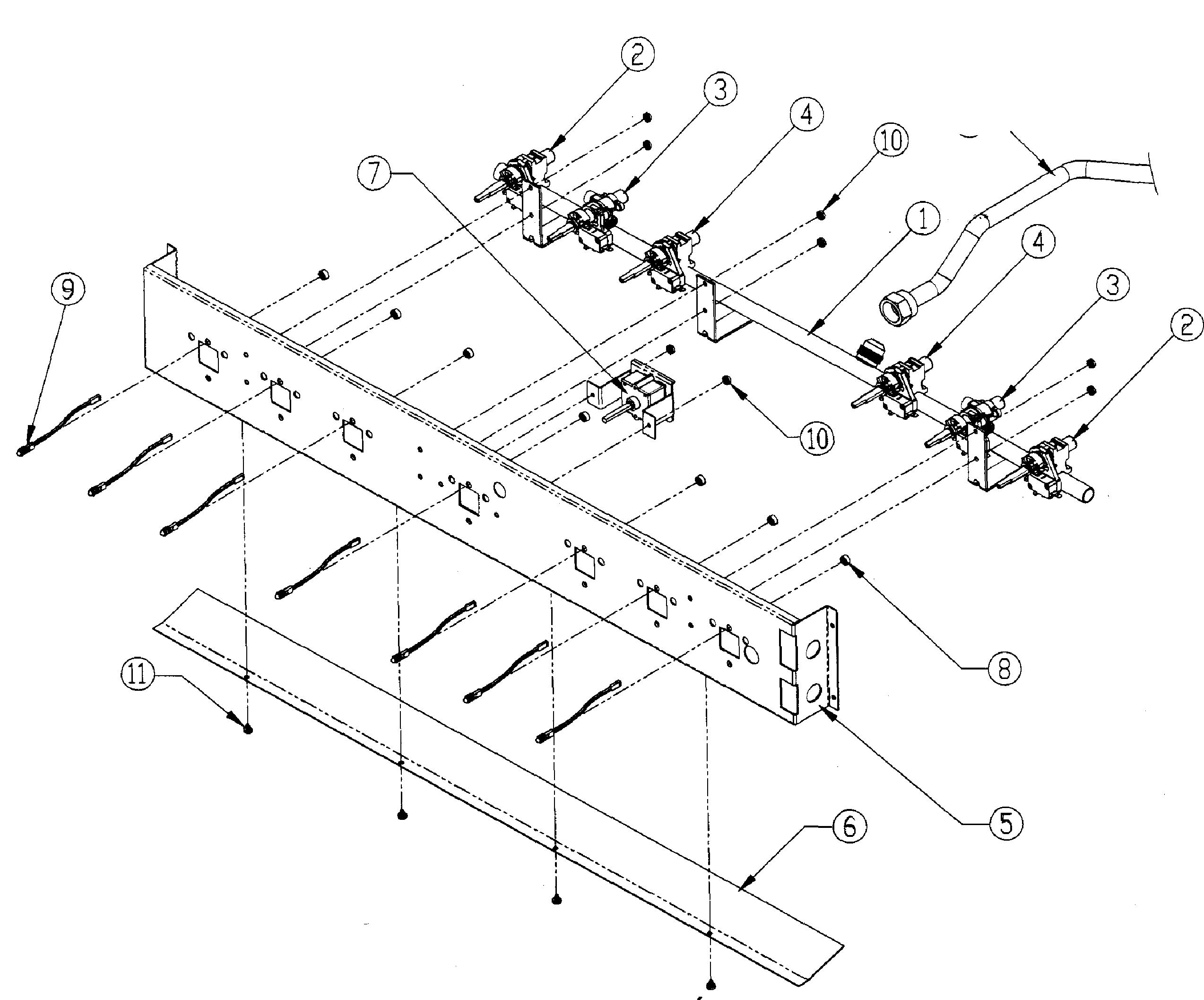

Manifold diagram

Dual valve

Part #103689-02

$54.49
In Stock
Wall Oven Door Window Assembly 72968
#5

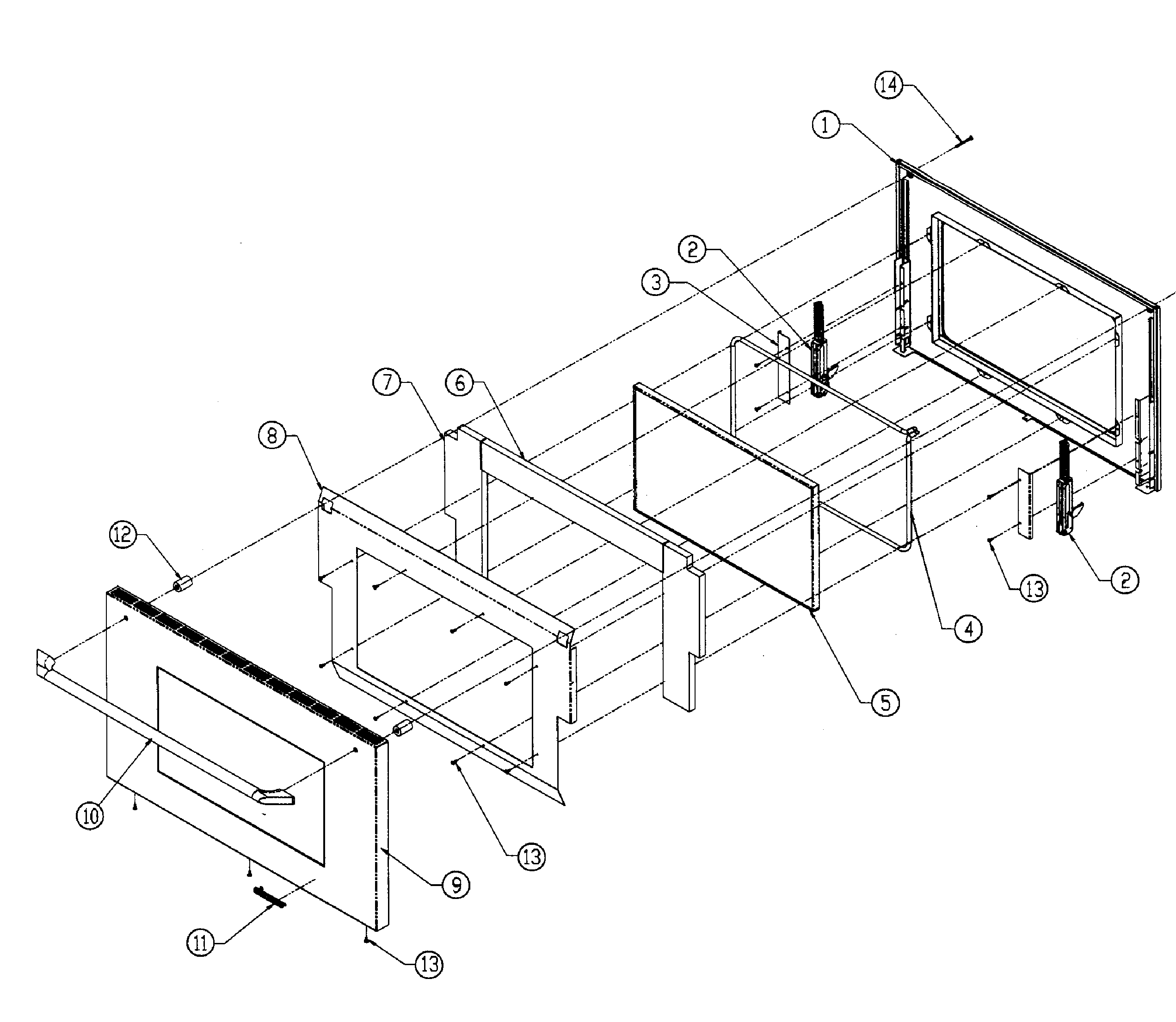

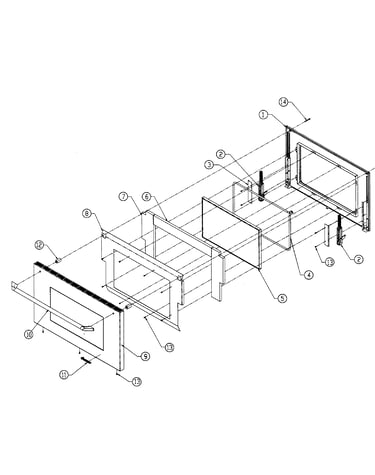

Door assy diagram

Wall oven door window assembly

Part #72968

$176.99
In Stock
Range Surface Burner Cap 102593
#5

Top assy diagram

Range surface burner cap

Part #102593

$9.99
In Stock
Cooktop Dual Valve 103659
#7

Rear assy diagram

Cooktop dual valve

Part #103659

$119.99
Back Order
Harnes Led 106413
#NI

Rear assy diagram

Harnes led

Part #106413

$130.99
In Stock
Wire Cover 106373
#2

Rear assy diagram

Wire cover

Part #106373

$36.49
In Stock
Panel 701159-02
#3

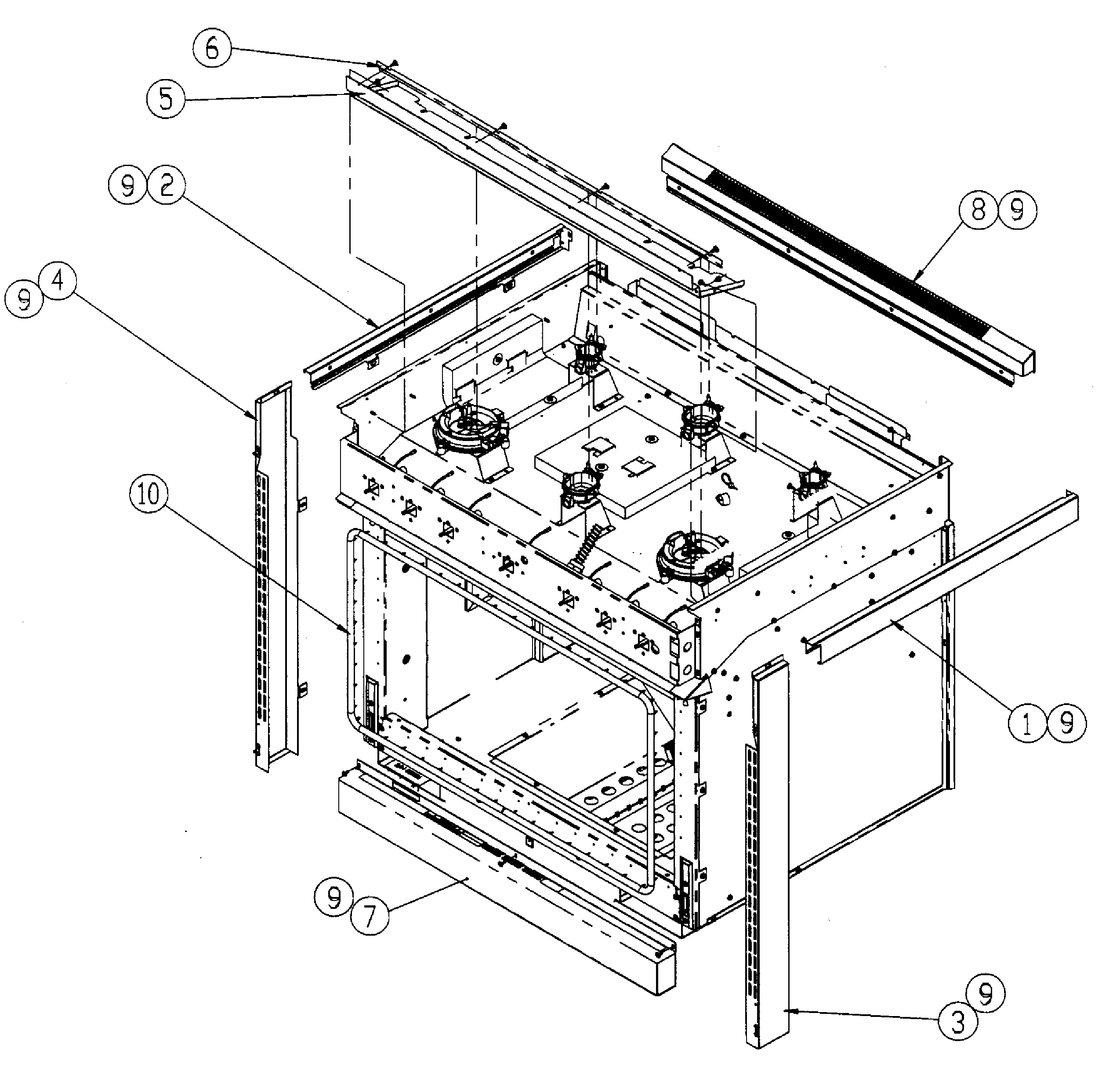

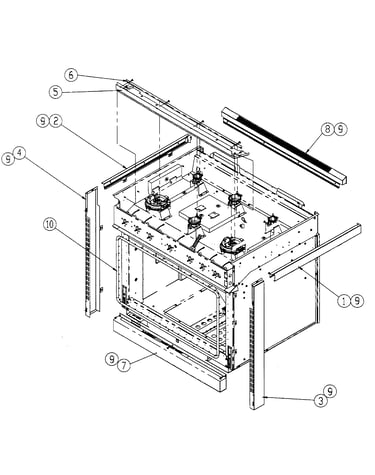

Outer assy diagram

Panel

Part #701159-02

$84.99
In Stock
