Amana
Electric Range

Model # ARC-100/P85001-3S Official Amana electric range

Here are the diagrams and repair parts for Official Amana ARC-100-P85001-3S electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

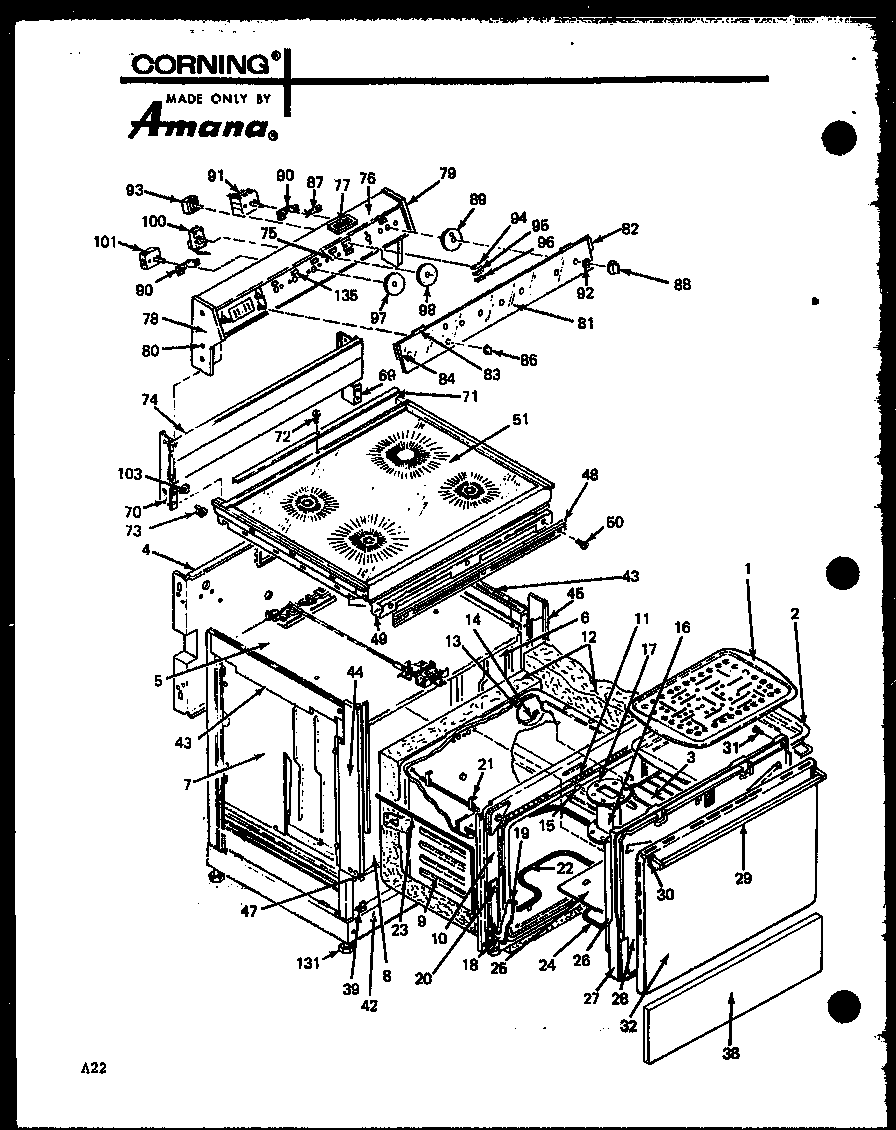

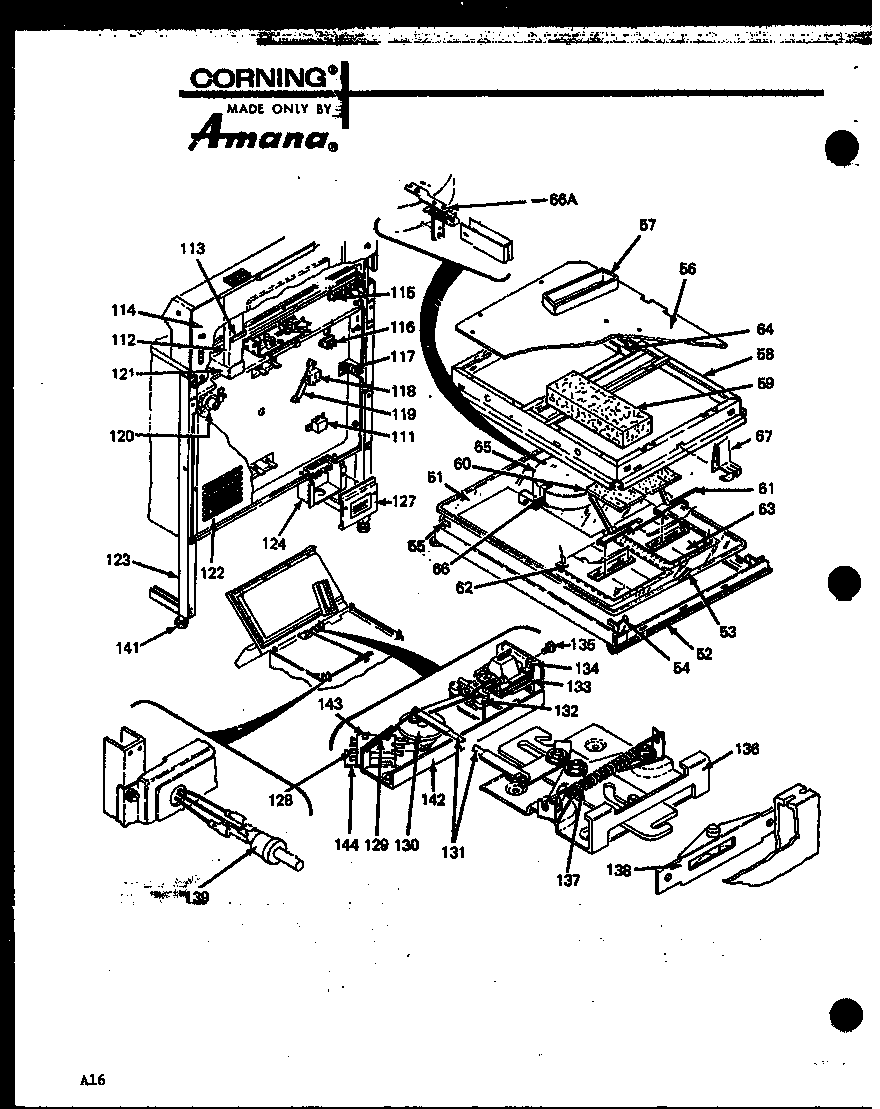

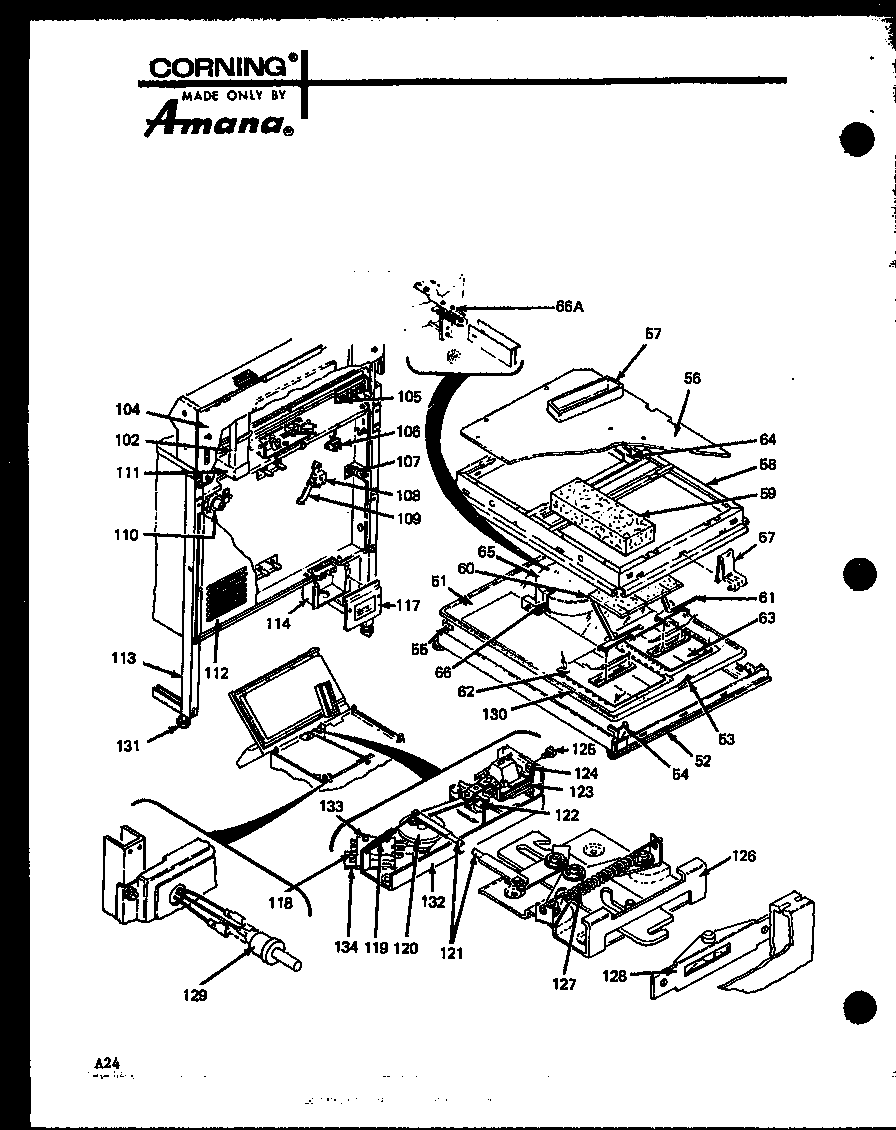

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |
Screw M0211531
Screw

Part #M0211531

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0211531. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw M0211017
#152

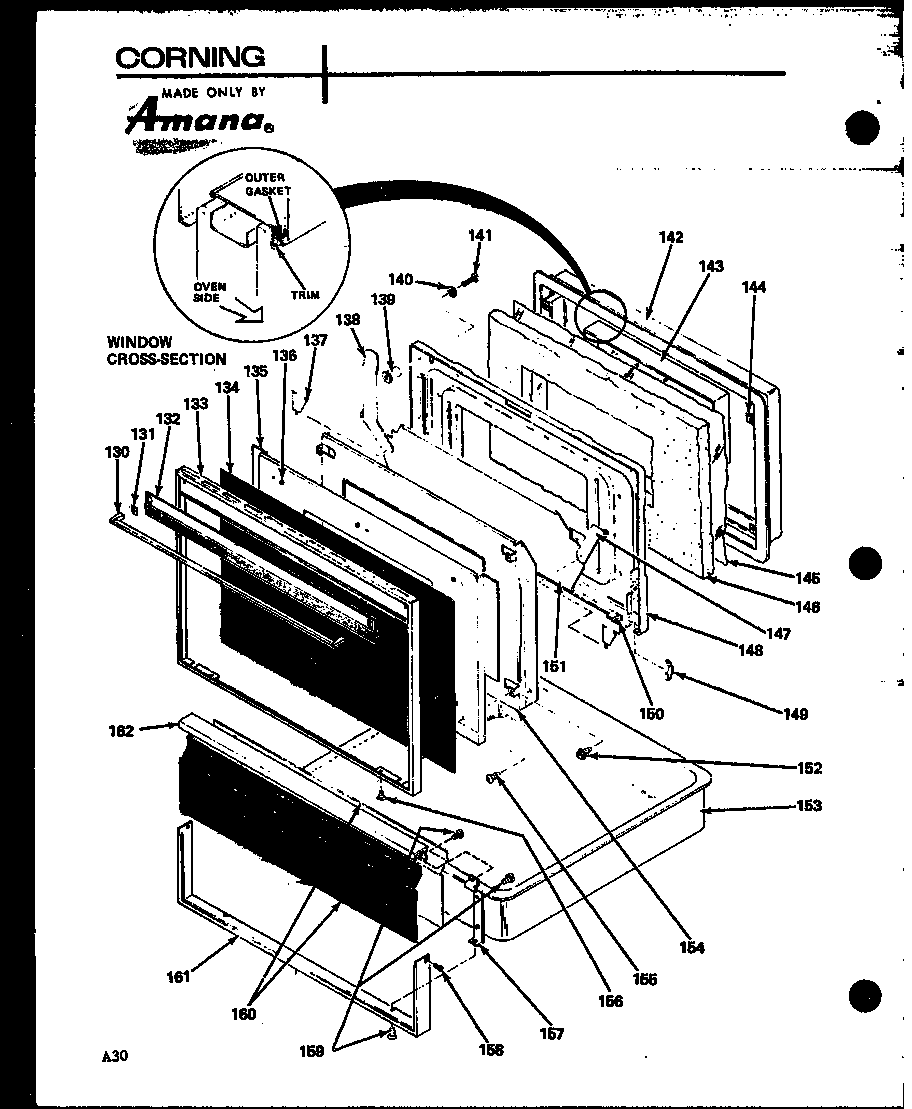

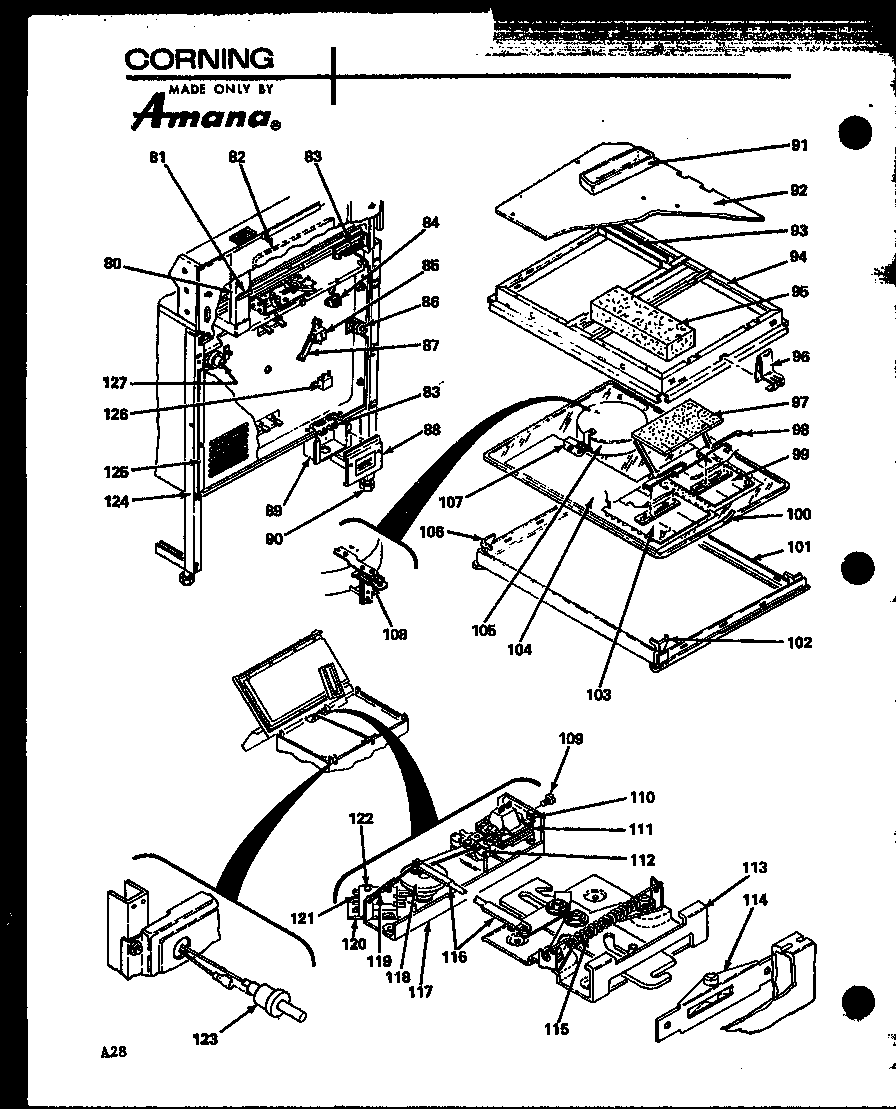

(arc-100/p85001-3s) diagram

Screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0211016
Screw

Part #M0211016

This item is not returnable
$3.40
In Stock

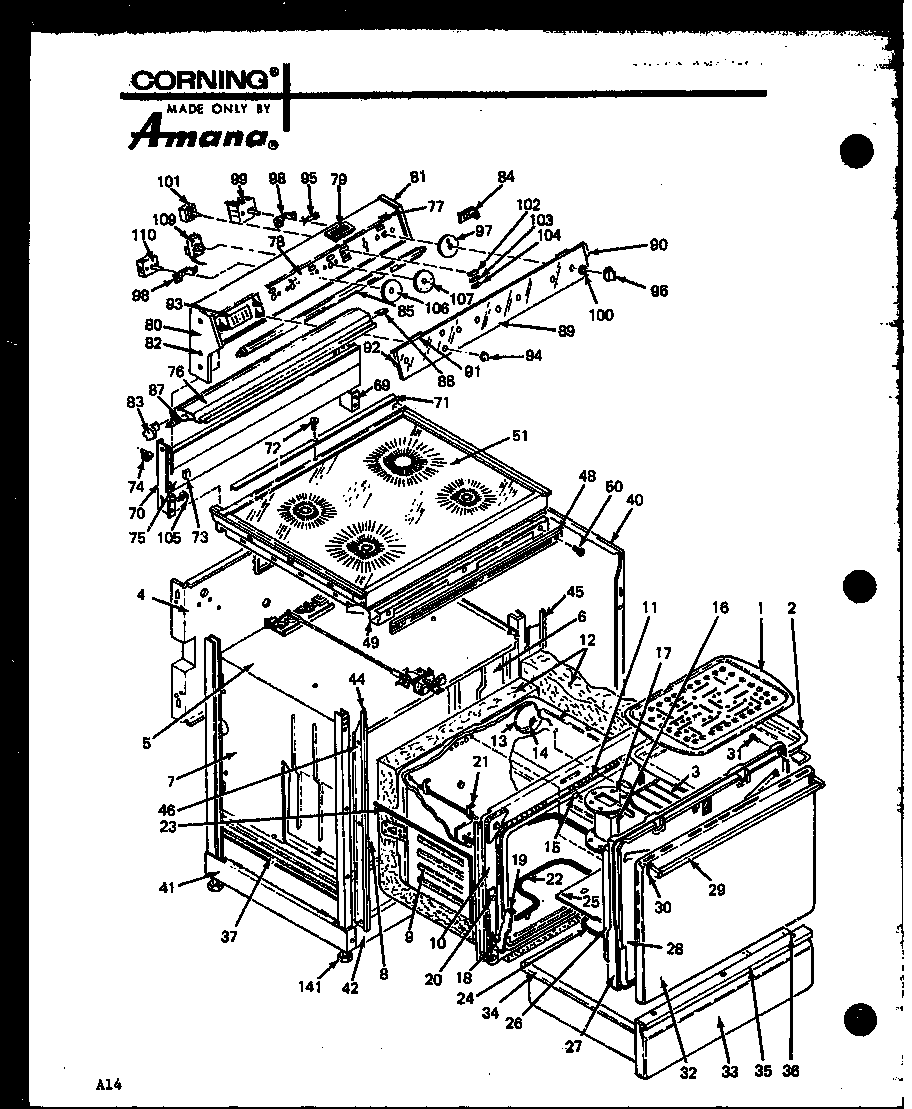

Light Switch CG985103
#69

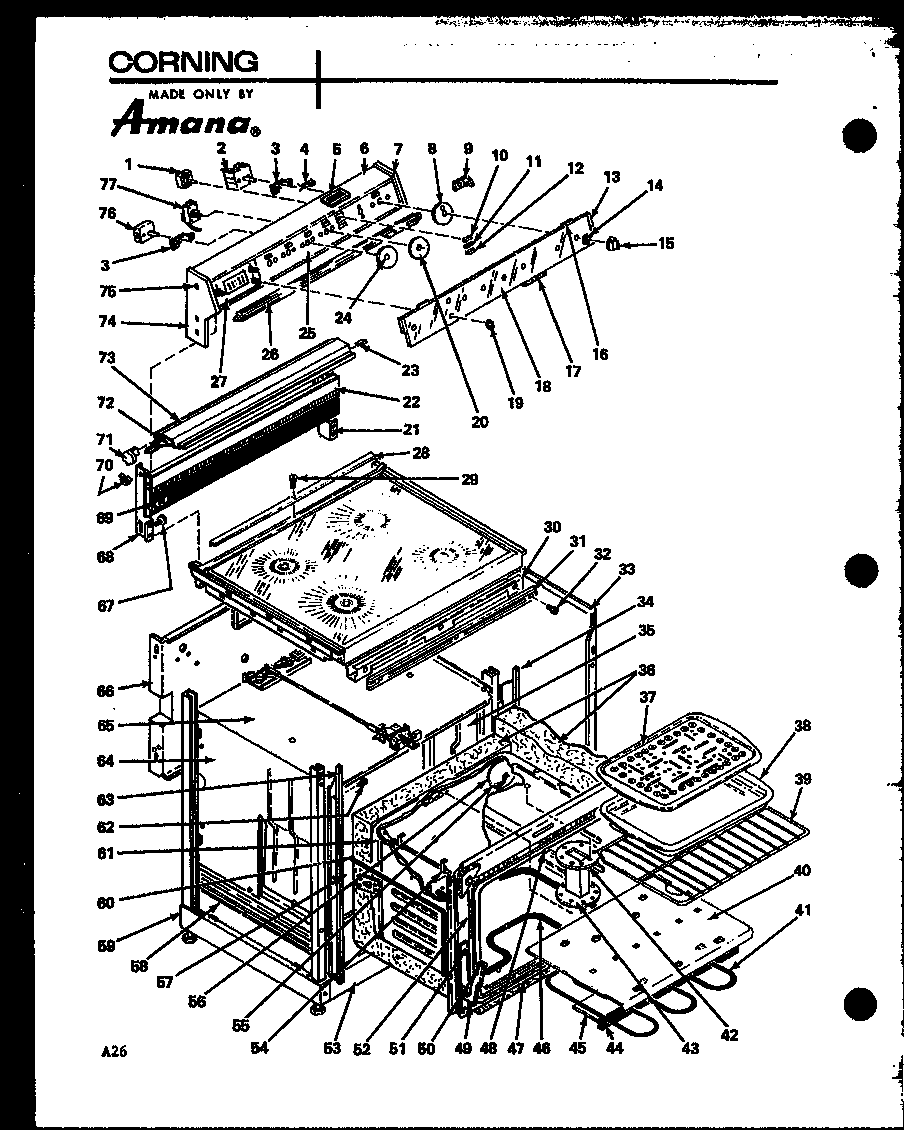

(arc-100/p85001-3s) diagram

Light switch

Part #CG985103

The manufacturer no longer makes this part, and there's no substitute part

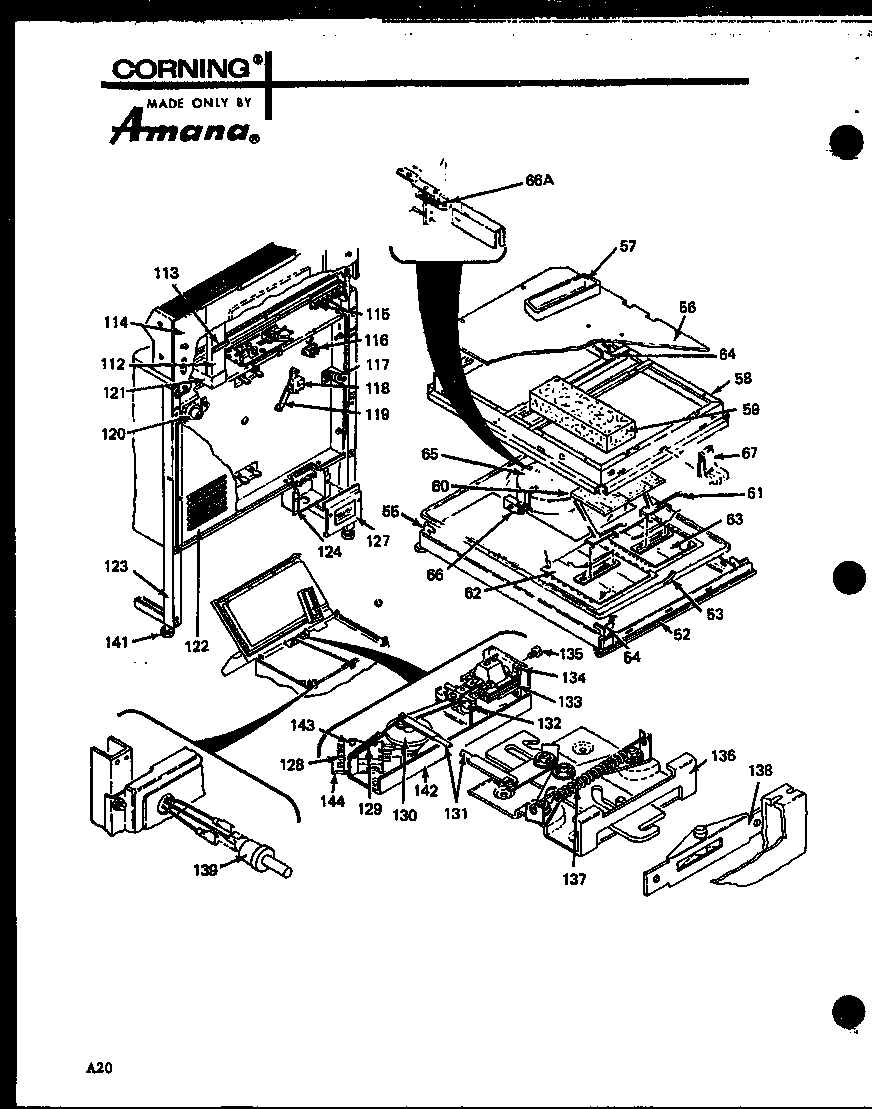

Bottom Extrusion CG984962
#75

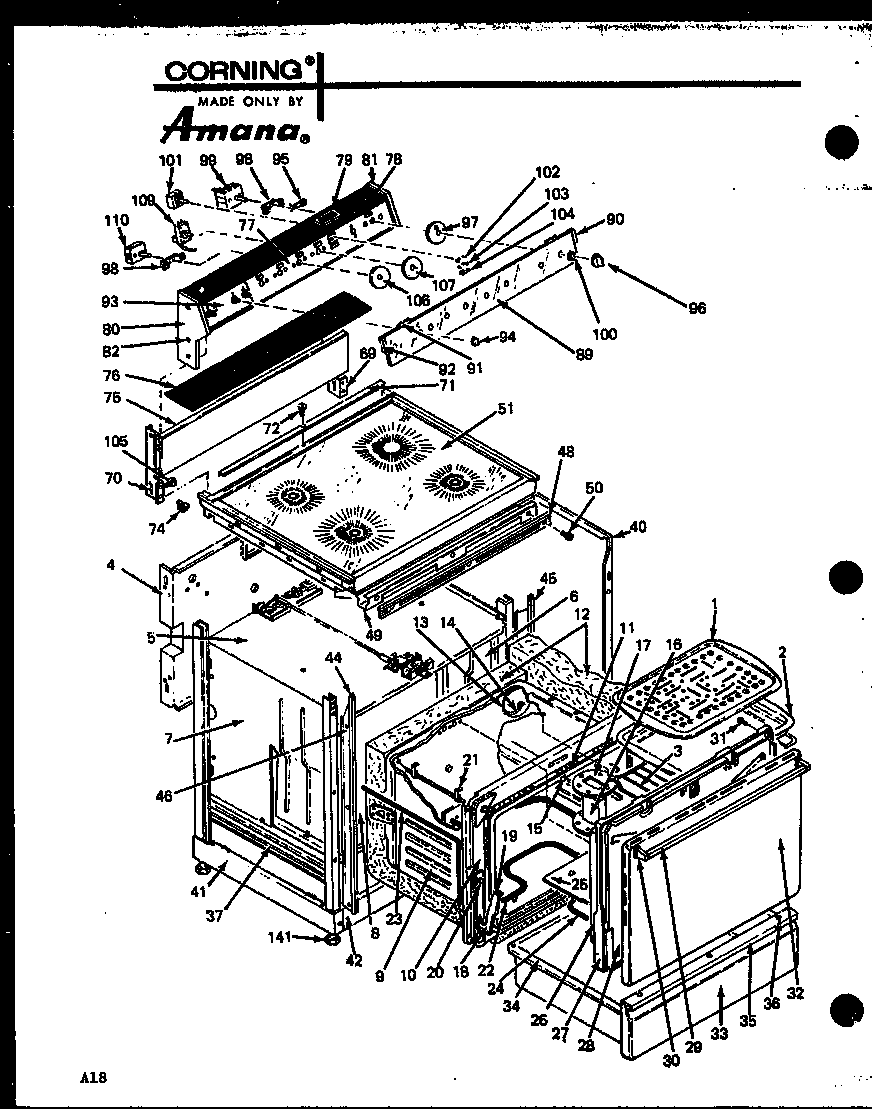

(arc-2/p85001-2s) diagram

Bottom extrusion

Part #CG984962

The manufacturer no longer makes this part, and there's no substitute part

Cap, End, L.h. CG984635
Cap, end, l.h.

Part #CG984635

The manufacturer no longer makes this part, and there's no substitute part

Retainer D8510401
Retainer

Part #D8510401

The manufacturer no longer makes this part, and there's no substitute part

Oven Thermostat Disc CG984079
#97

(arc-2/p85001-2s) diagram

Oven thermostat disc

Part #CG984079

The manufacturer no longer makes this part, and there's no substitute part

Shoulder Screw M0219043
Shoulder screw

Part #M0219043

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Handle Pads CG981078
Oven door handle pads

Part #CG981078

The manufacturer no longer makes this part, and there's no substitute part
