Thermador
Electric Wall Oven

Model # CT227N-01 Official Thermador electric wall oven

Here are the diagrams and repair parts for Official Thermador CT227N-01 electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

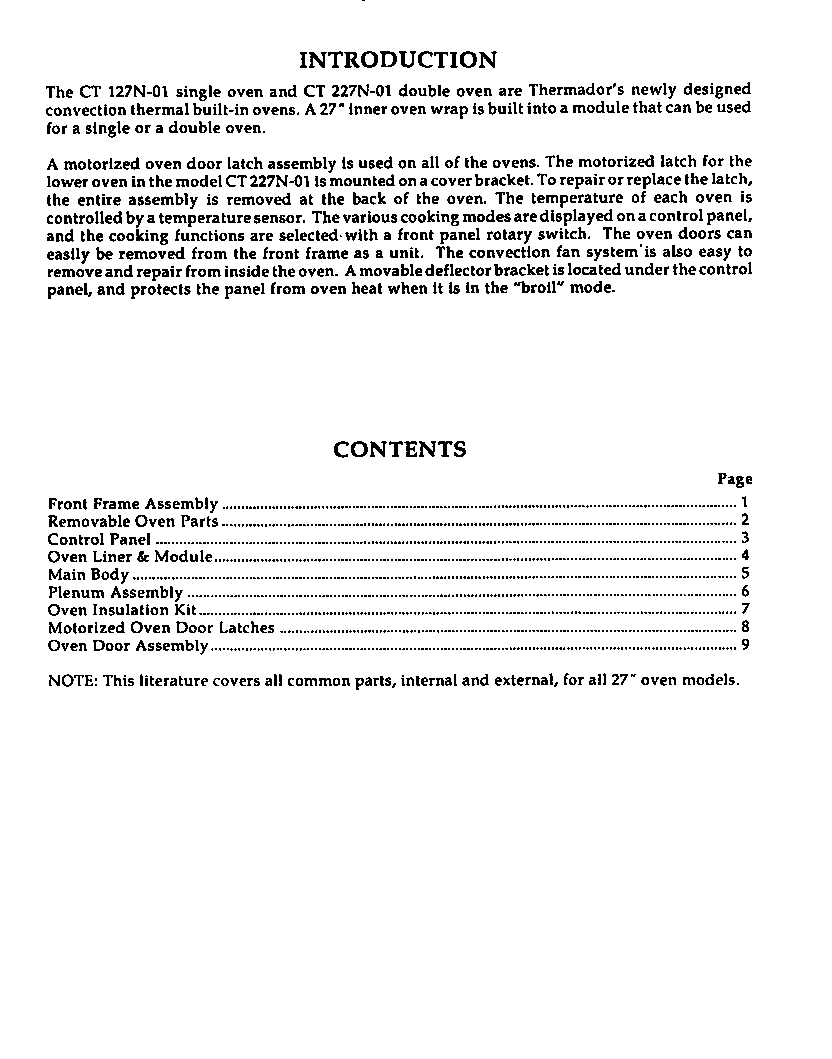

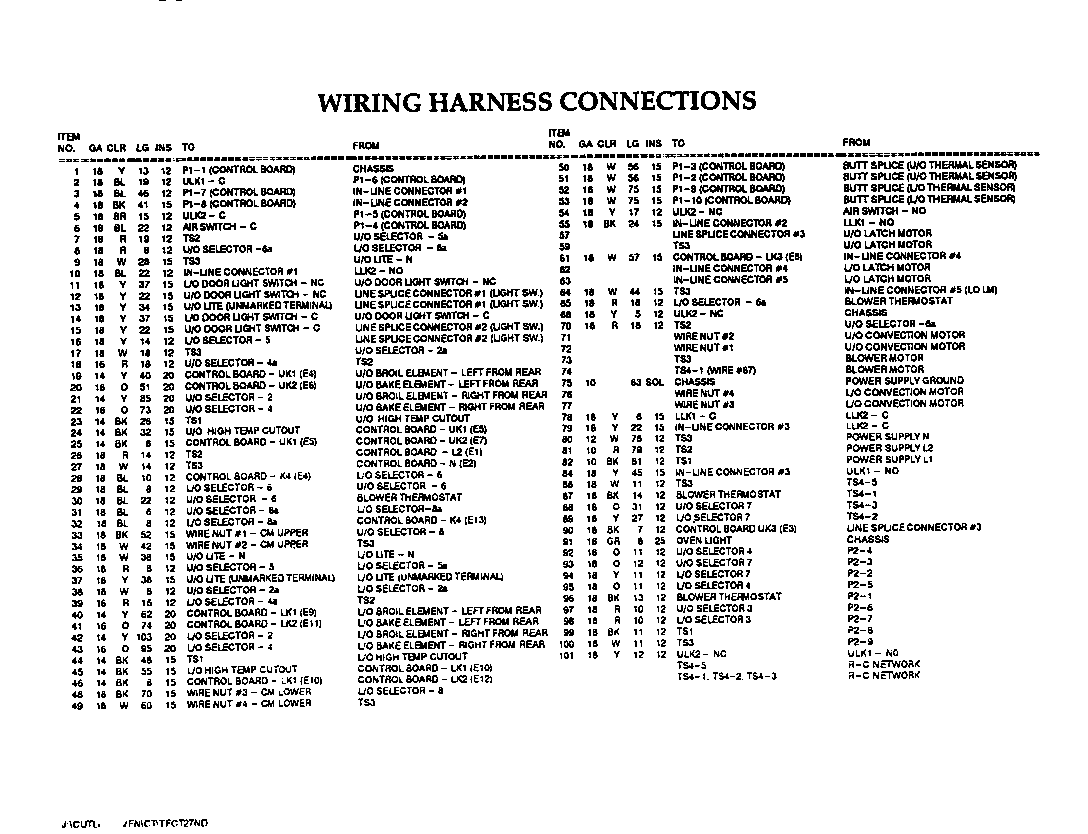

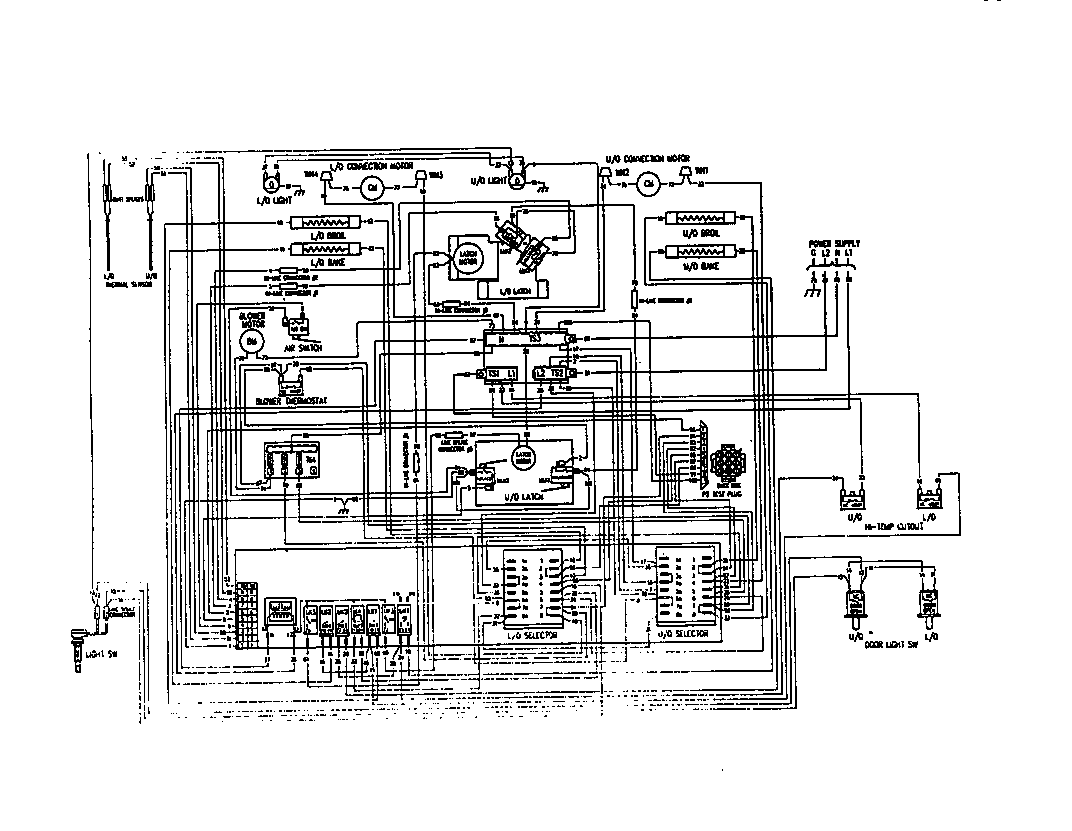

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Cover 14-33-111
#6

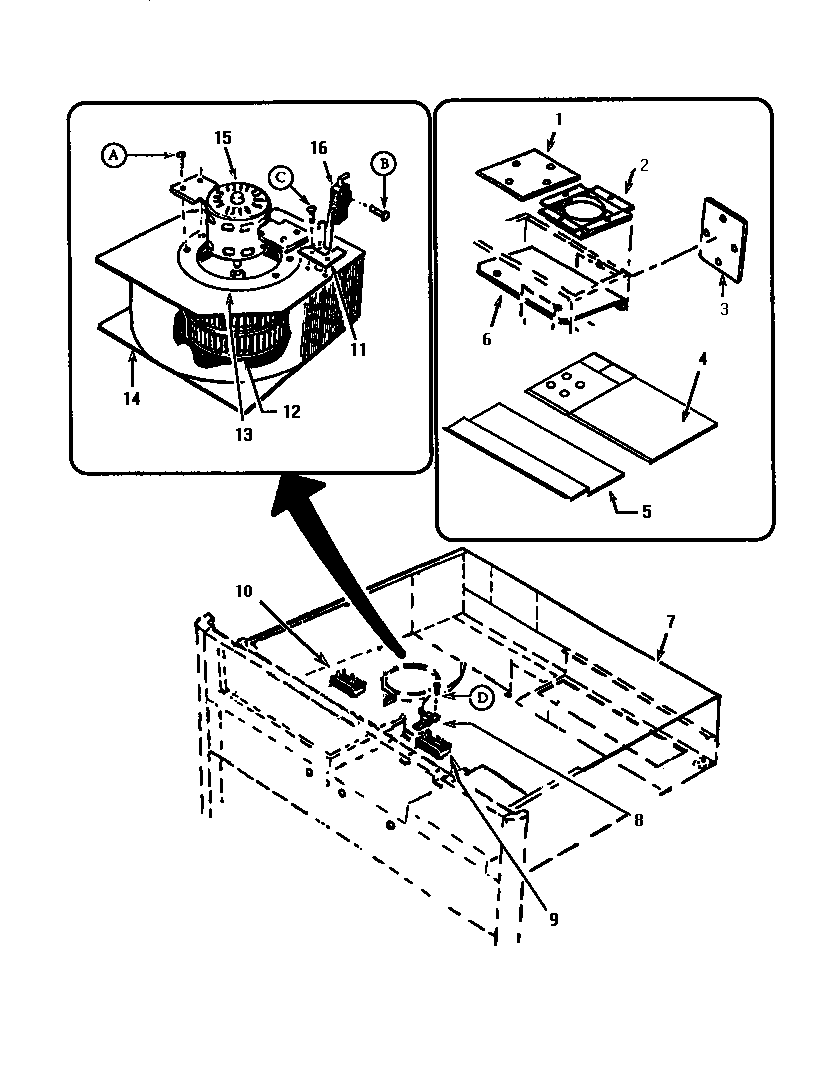

Plenum assembly diagram

Cover

Part #14-33-111

$10.99
In Stock
Door Oven 14-33-262

#NI

All parts diagram

Door oven

Part #14-33-262

$954.99
In Stock
Extension 14-33-171-03
#9B

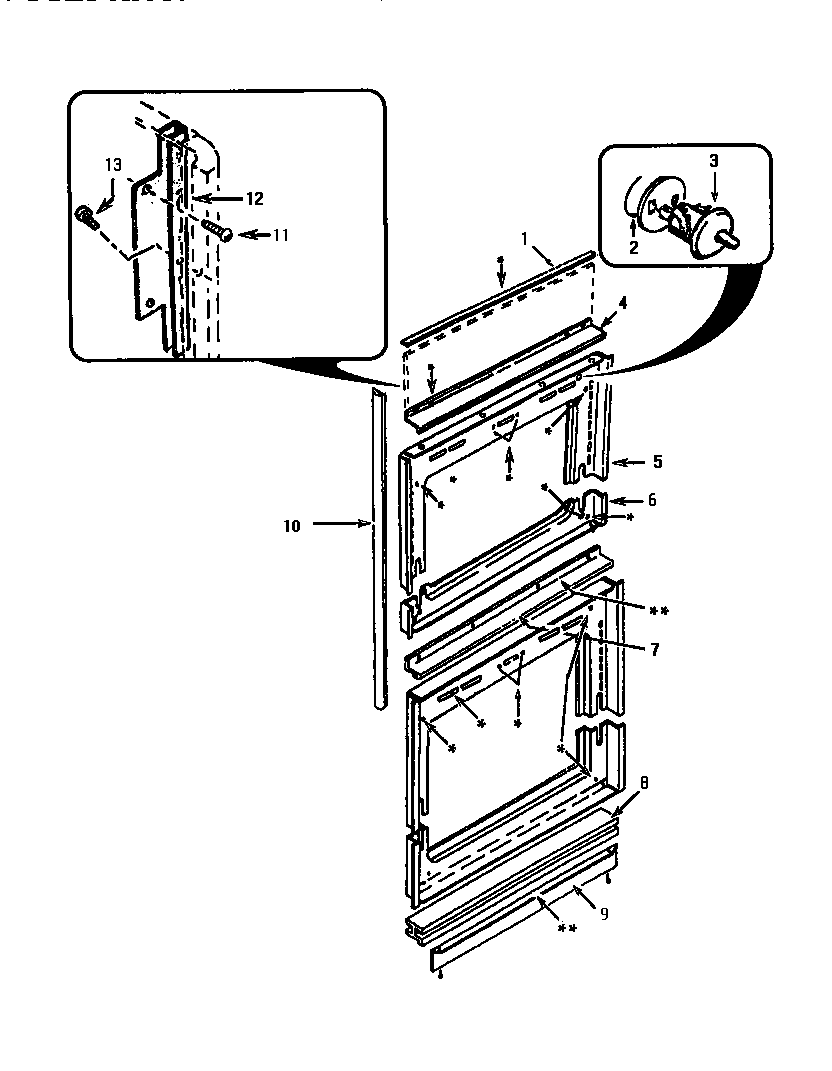

Front frame assembly diagram

Extension

Part #14-33-171-03

$67.99
In Stock
Bracket 14-31-733-02
#6

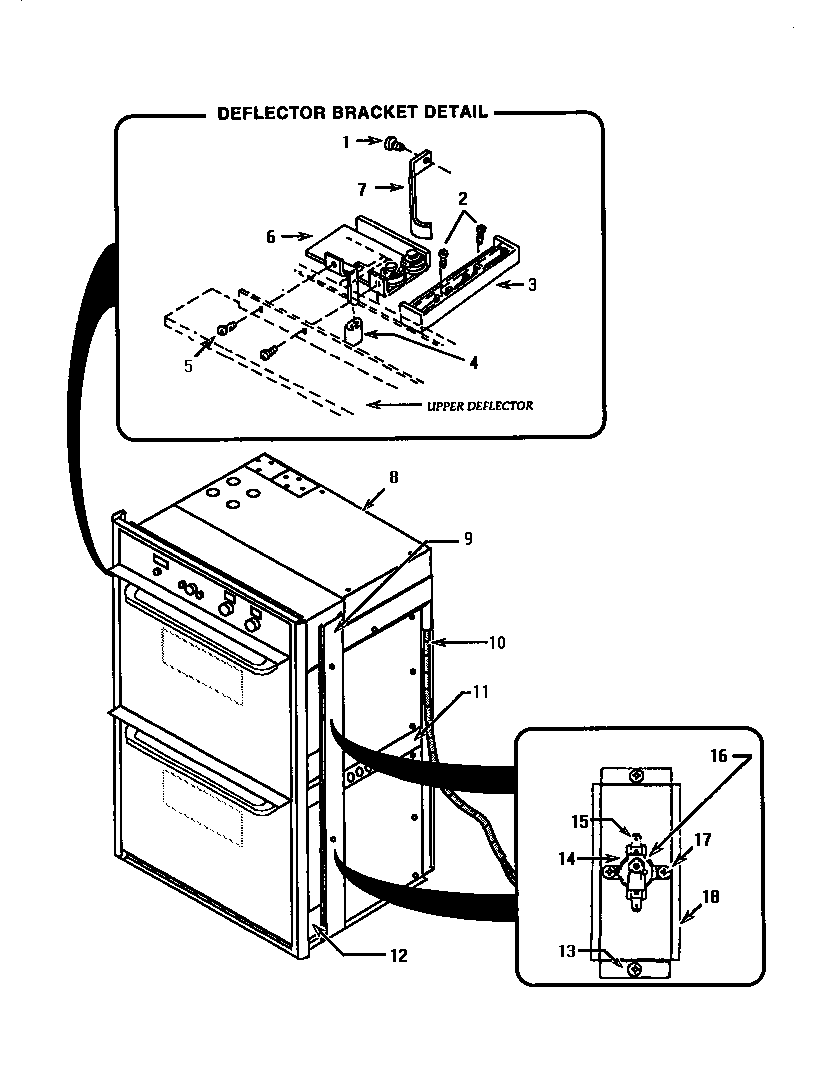

Main body diagram

Bracket

Part #14-31-733-02

This item is not returnable
$5.99
In Stock
Body 14-31-850-01
#10

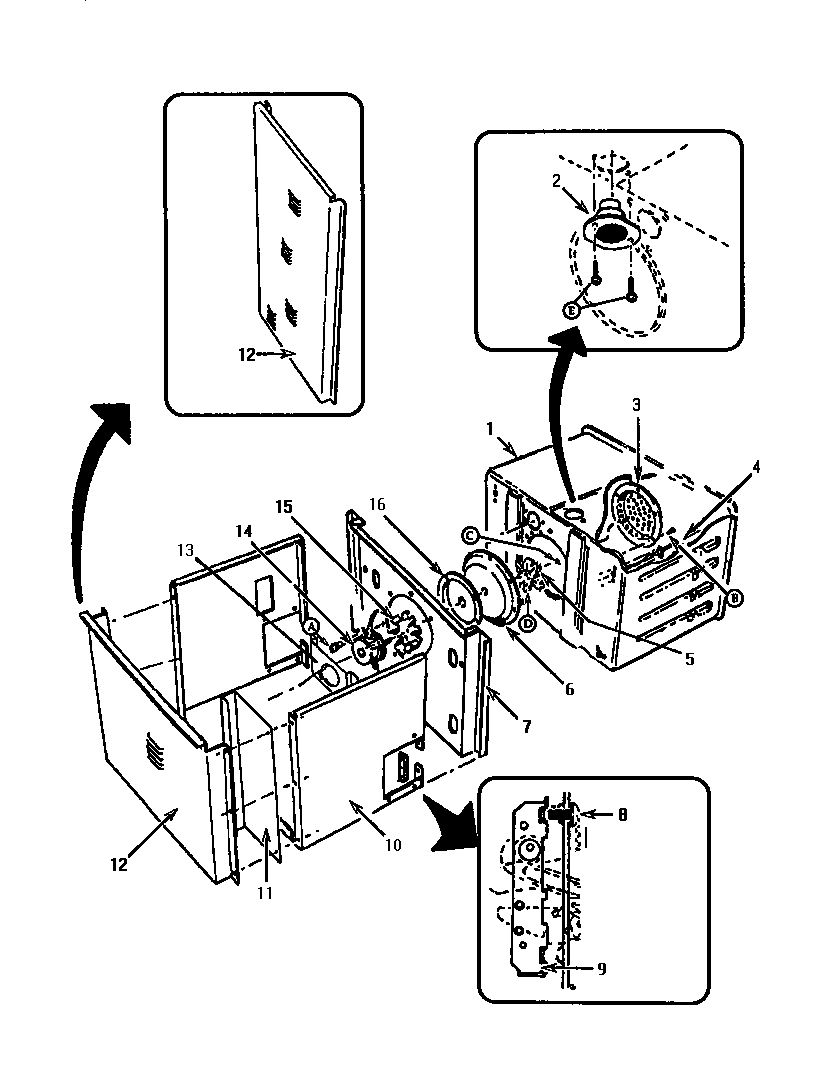

Oven liner and module diagram

Body

Part #14-31-850-01

$75.99
In Stock
Deflector 14-31-757-04
#4

Front frame assembly diagram

Deflector

Part #14-31-757-04

$66.49
In Stock
Bracket 14-33-091
#17

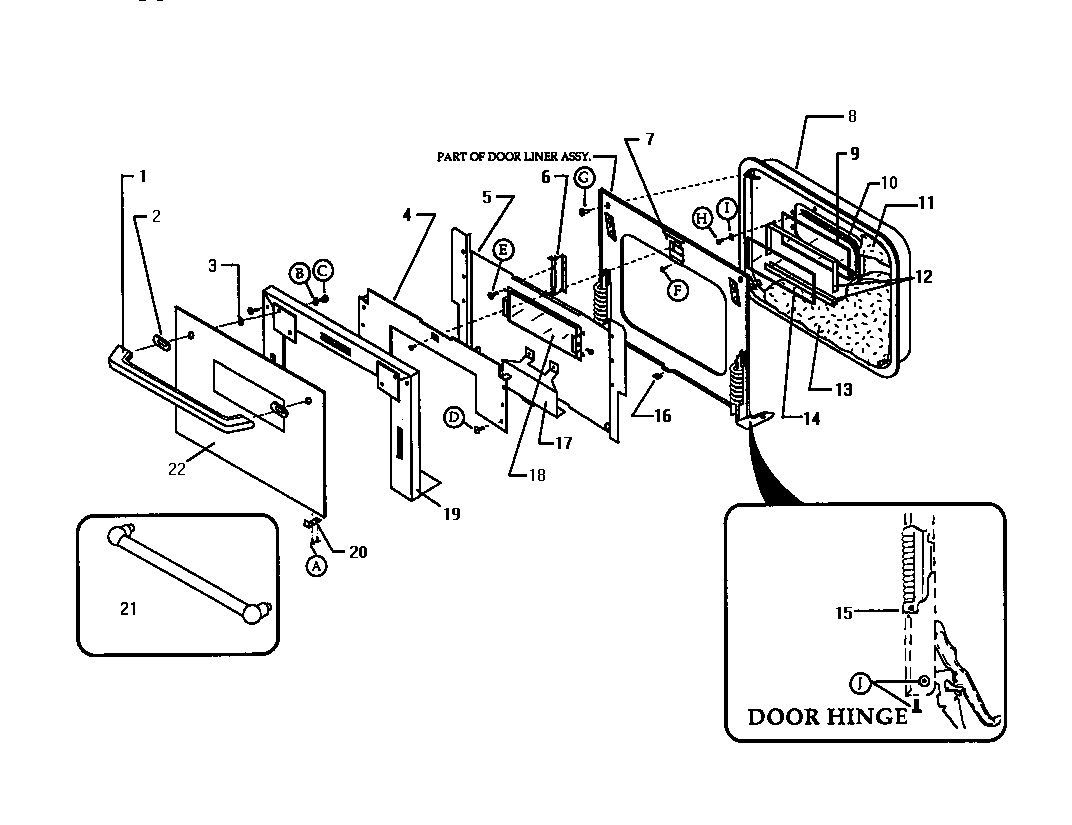

Oven door assembly diagram

Bracket

Part #14-33-091

$14.49
In Stock
Mounting Bracket 14-31-912
#12

Main body diagram

Mounting bracket

Part #14-31-912

This item is not returnable
$6.49
In Stock
Deflector 14-31-757-05
#4A

Front frame assembly diagram

Deflector

Part #14-31-757-05

$53.49
In Stock
Deflector 14-31-240
#12

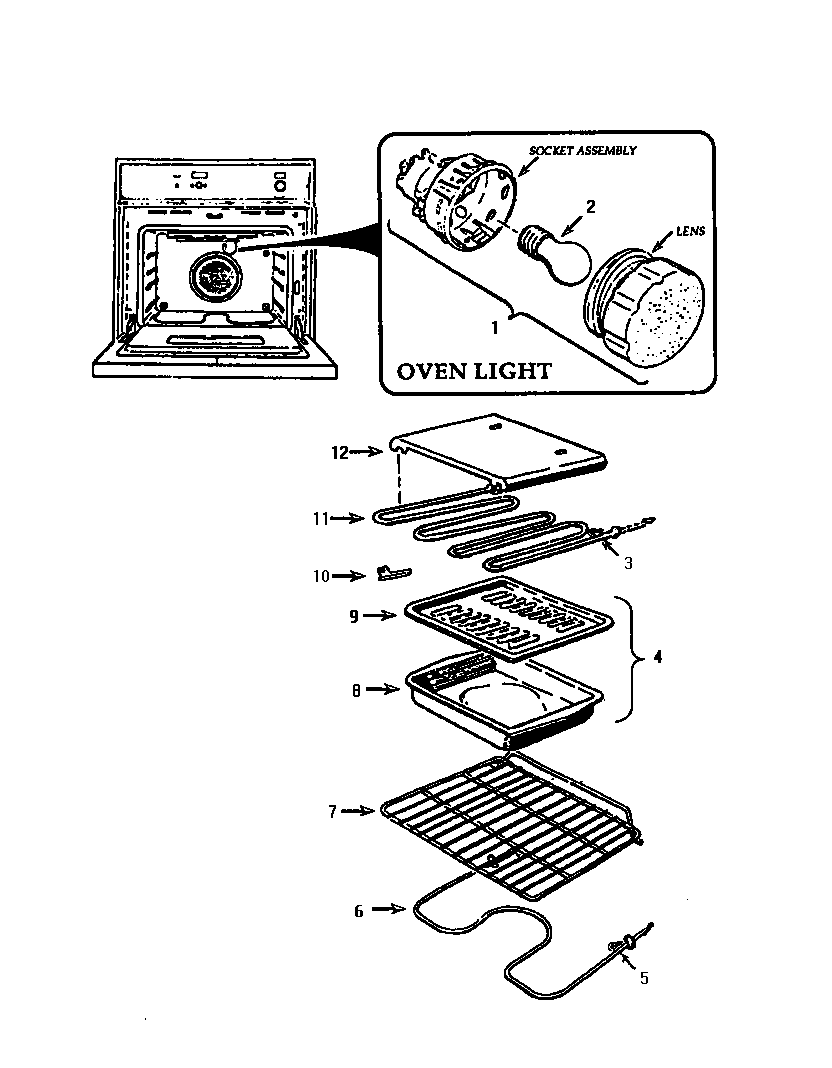

Removable oven parts diagram

Deflector

Part #14-31-240

$35.49
In Stock
