Model # F9808W0 Official Roper electric range

Here are the diagrams and repair parts for Official Roper F9808W0 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

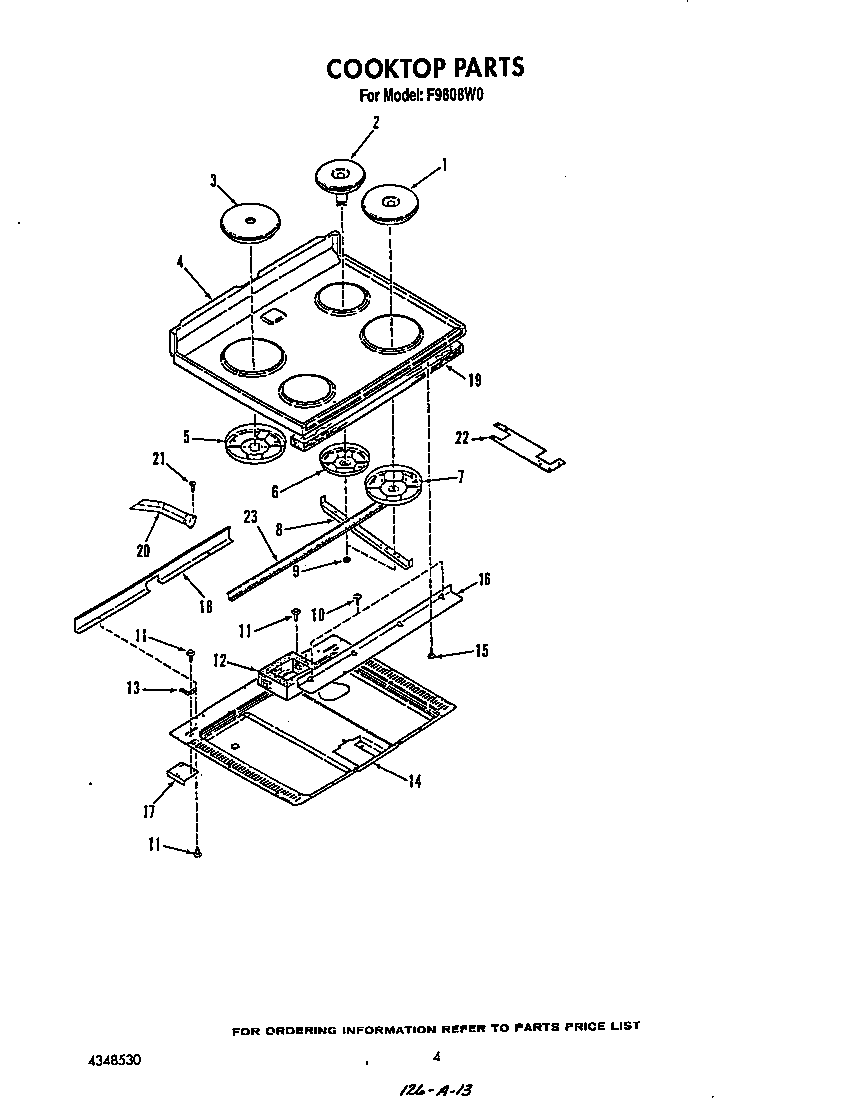

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |
Lamp Bulb 4338591
#39

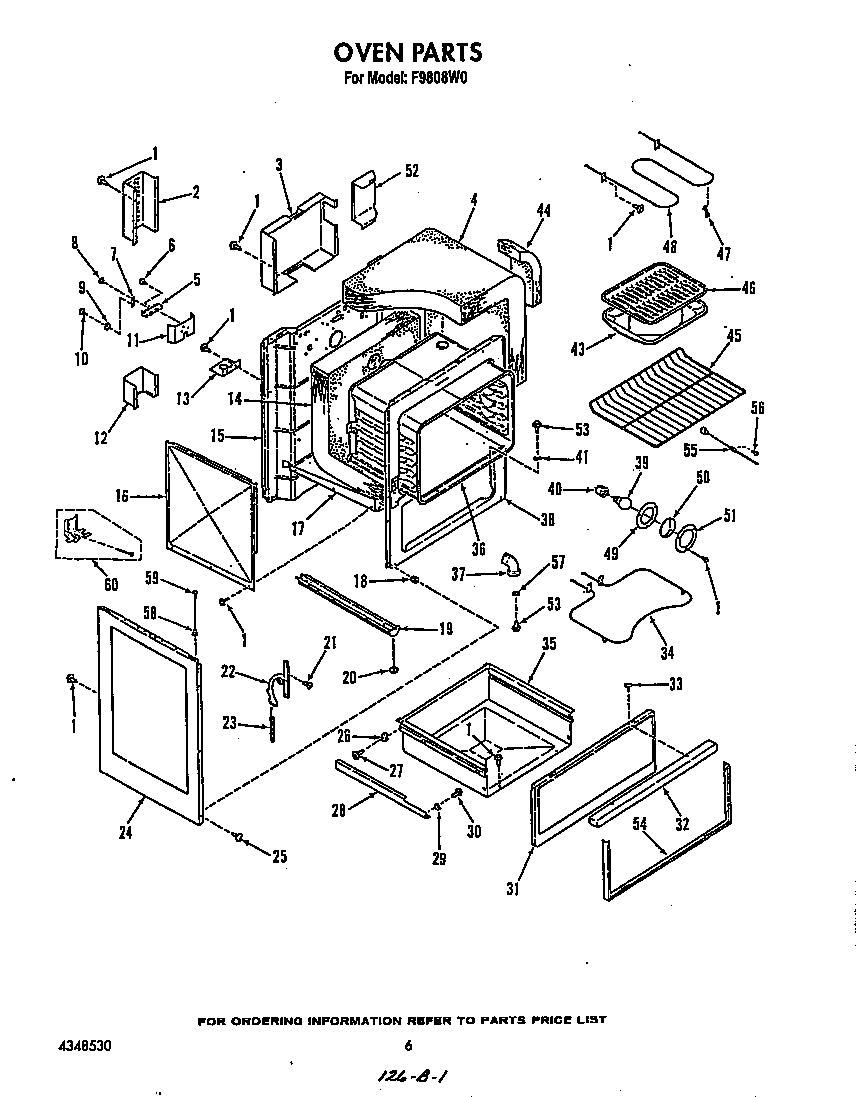

Oven diagram

Lamp bulb

Part #4338591

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4338591. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Element Support 4338587
#47

Oven diagram

Element support

Part #4338587

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces 4338587. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Bake Unit 4334928
#34A

Oven diagram

Bake unit

Part #4334928

The manufacturer no longer makes this part, and there's no substitute part

Screw-10-32x 4327611
#30

Oven diagram

Screw-10-32x

Part #4327611

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 4327611. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer 4323979
#41

Oven diagram

Washer

Part #4323979

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces 4323979. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Indicator Light 4336633
#13

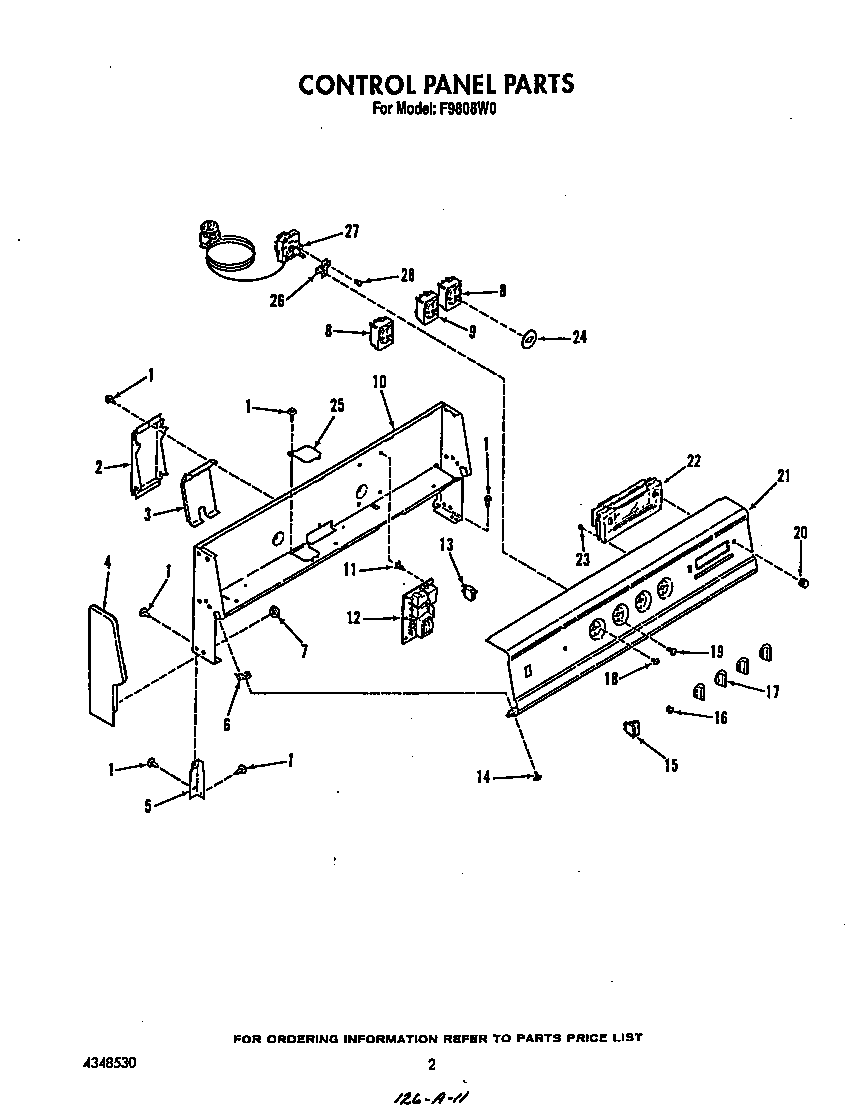

Control panel diagram

Indicator light

Part #4336633

Replaced by #WB25T10039

?
Manufacturer substitution
This part replaces 4336633. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Nut-hex 10-3 4338637
#8

Oven diagram

Nut-hex 10-3

Part #4338637

Replaced by #WB1X1259

?
Manufacturer substitution
This part replaces 4338637. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Terminal Flag 4325035
#3

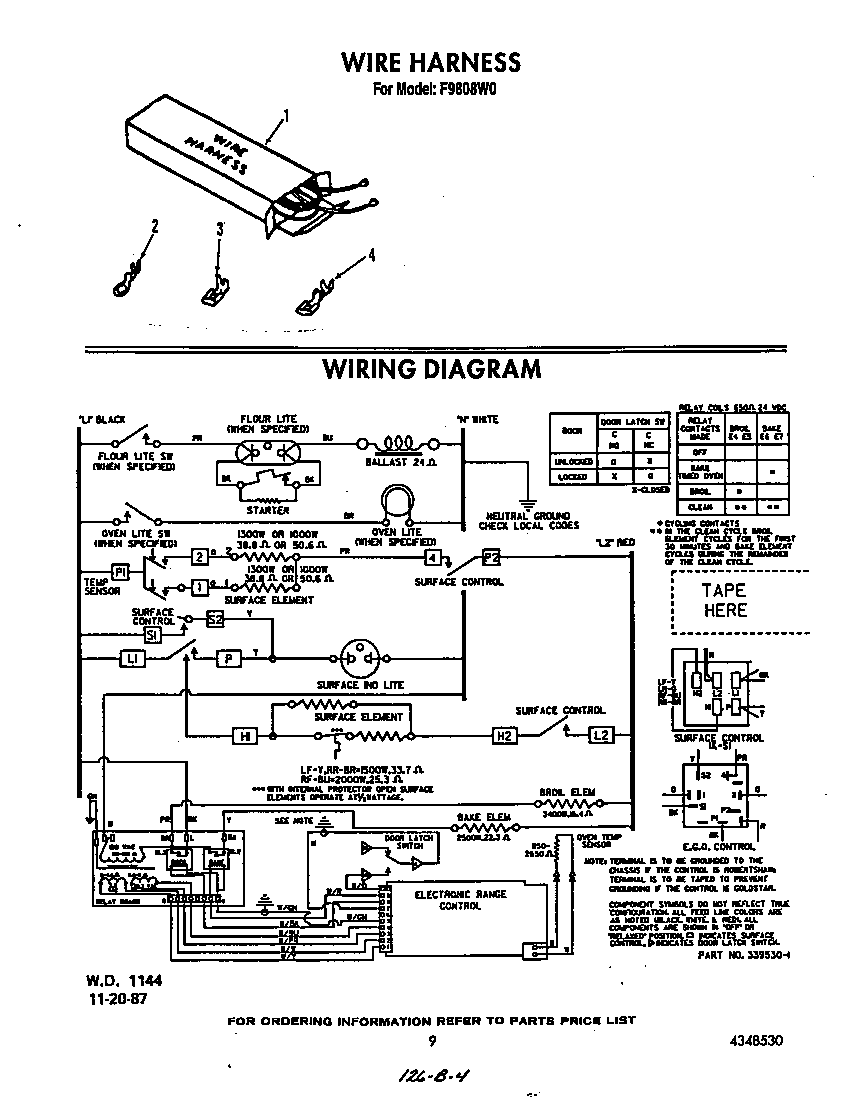

Wire harness diagram

Terminal flag

Part #4325035

This item is not returnable
$2.29
In Stock
Faston Term 4325036
#4A

Wire harness diagram

Faston term

Part #4325036

This item is not returnable
$2.29
In Stock
Grid Broiler Pan 4334897
#46

Oven diagram

Grid broiler pan

Part #4334897

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces 4334897. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
