Ingersoll Rand
Impact Wrench

Model # 110 Official Ingersoll Rand impact ratchet

Here are the diagrams and repair parts for Official Ingersoll Rand 110 impact ratchet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Ingersoll Rand Cylinder 110-A3
#17

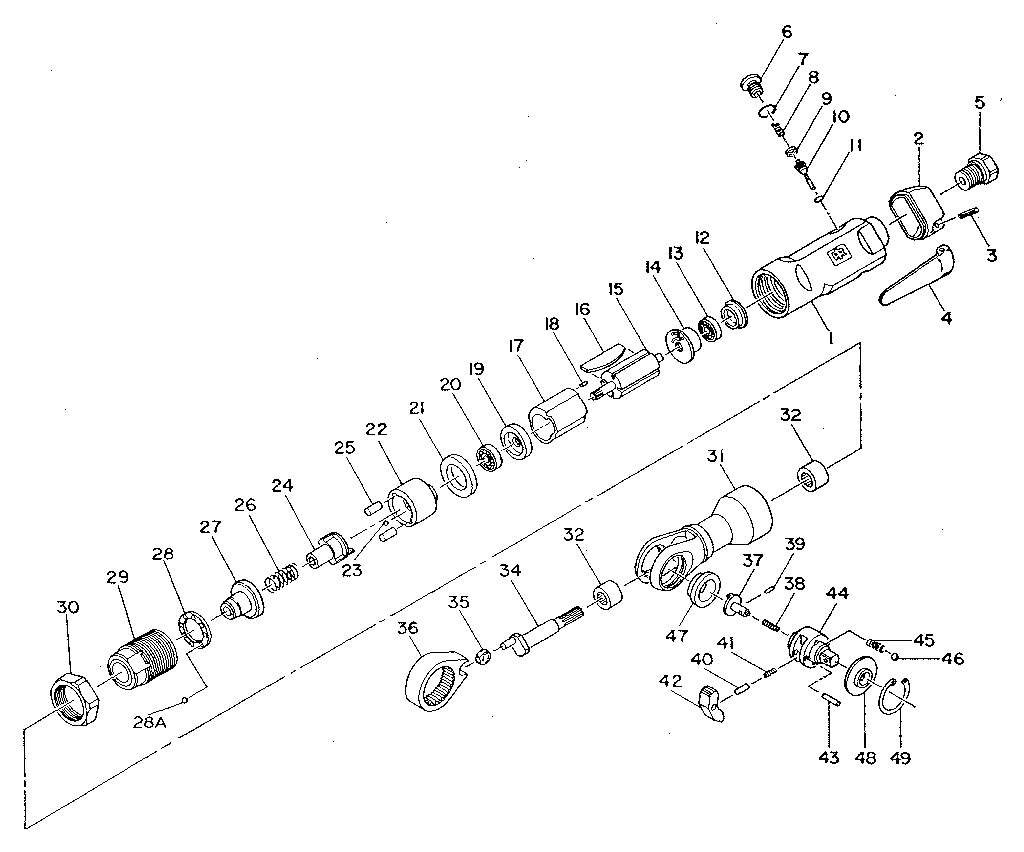

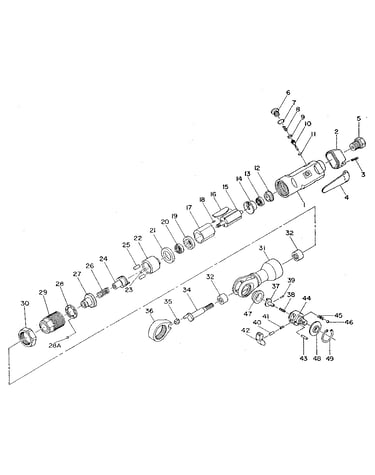

Unit diagram

Ingersoll rand cylinder

Part #110-A3

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Race 110-723
#28

Unit diagram

Ingersoll rand race

Part #110-723

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Valve 110-A302
#10

Unit diagram

Ingersoll rand valve

Part #110-A302

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Crankshaft 110-35
#34

Unit diagram

Ingersoll rand crankshaft

Part #110-35

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Rev Buttn 110-34
#38

Unit diagram

Ingersoll rand rev buttn

Part #110-34

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Rev Button 110-38
#37

Unit diagram

Ingersoll rand rev button

Part #110-38

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Owner's Manual P6871

#NI

All parts diagram

Ingersoll rand owner's manual

Part #P6871

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Nameplate 110-301

#NI

All parts diagram

Ingersoll rand nameplate

Part #110-301

The manufacturer no longer makes this part, and there's no substitute part

Bearing 107-97
#20

Unit diagram

Bearing

Part #107-97

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Spring 110-41
#41

Unit diagram

Ingersoll rand spring

Part #110-41

The manufacturer no longer makes this part, and there's no substitute part
