Model # AC053L7A1 Official White-Westinghouse room air conditioner - lw34088080

Here are the diagrams and repair parts for Official White-Westinghouse AC053L7A1 room air conditioner - lw34088080, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

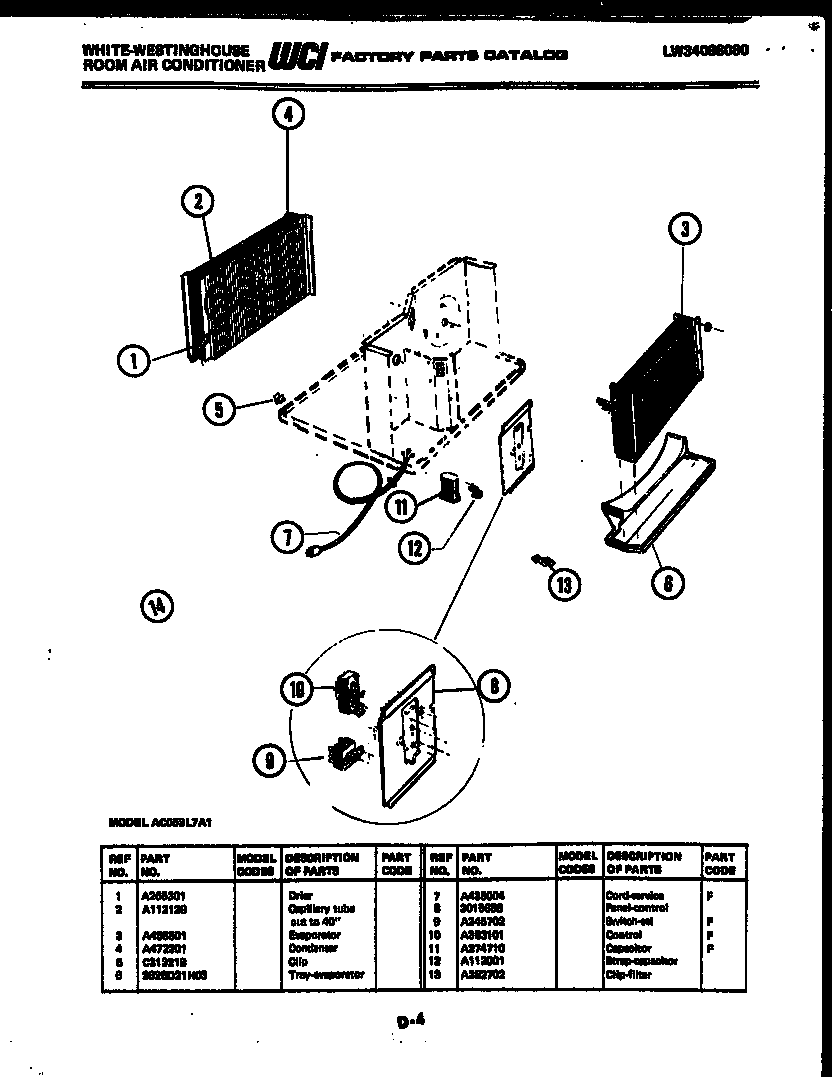

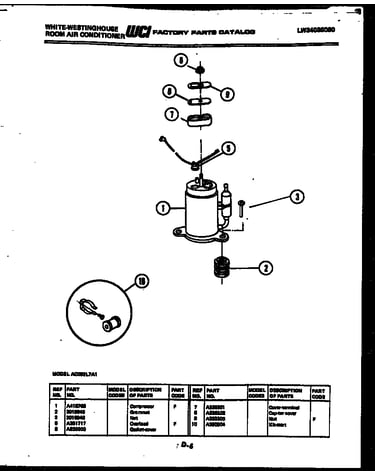

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Screw C506417
#10

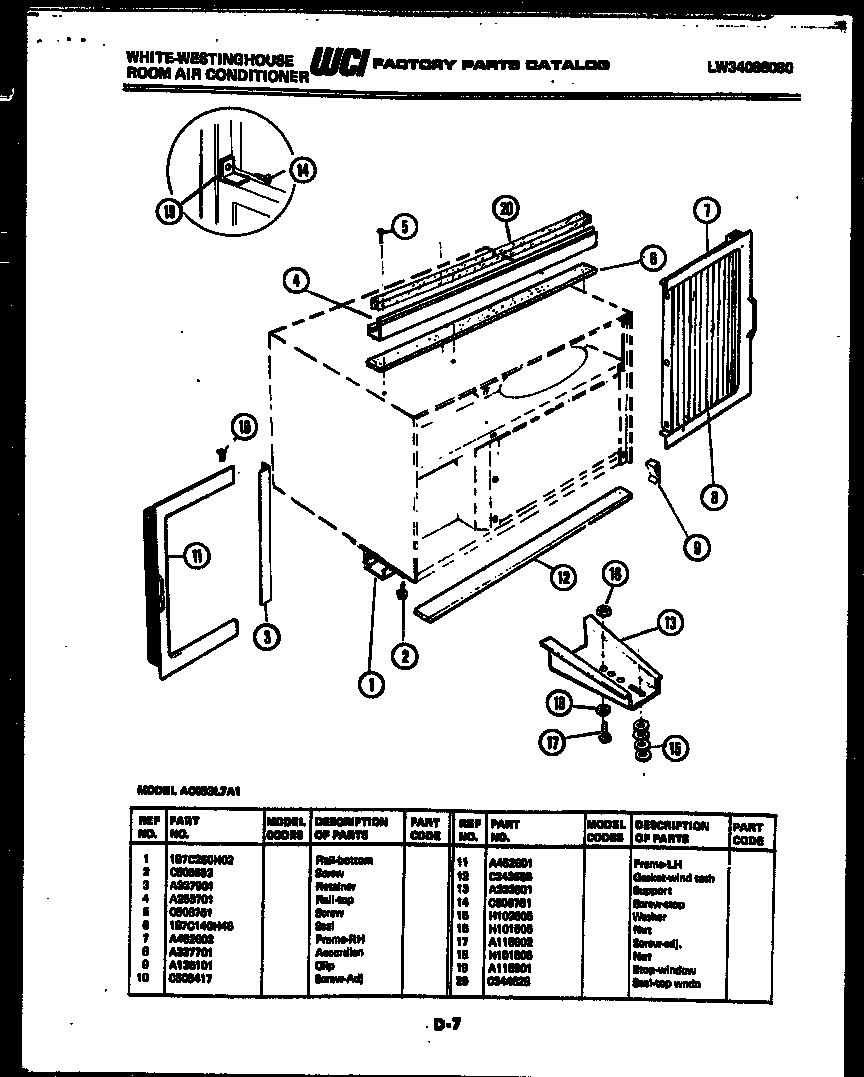

Cabinet and installation parts diagram

Screw

Part #C506417

The manufacturer no longer makes this part, and there's no substitute part

Screw 684B755H04
#8

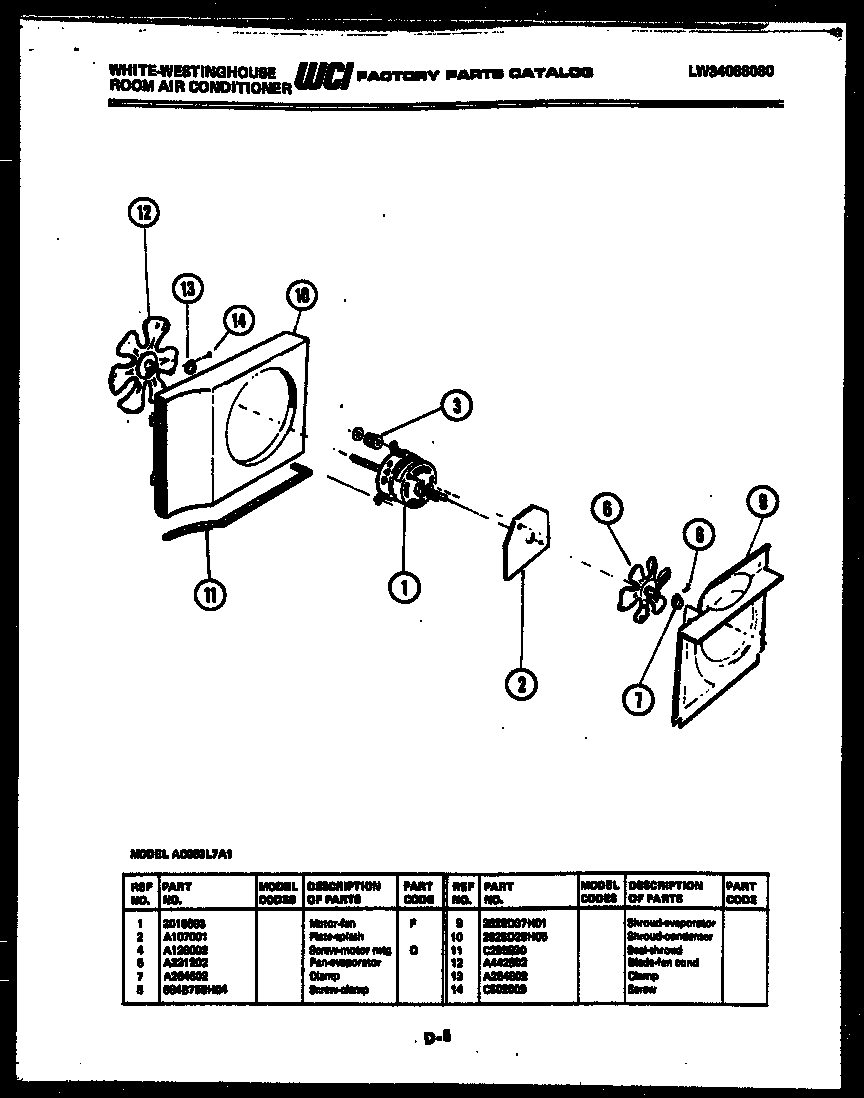

Air handling parts diagram

Screw

Part #684B755H04

The manufacturer no longer makes this part, and there's no substitute part

Clip A135101
#9

Cabinet and installation parts diagram

Clip

Part #A135101

The manufacturer no longer makes this part, and there's no substitute part

Frame Rh A452602
#7

Cabinet and installation parts diagram

Frame rh

Part #A452602

The manufacturer no longer makes this part, and there's no substitute part

Blade A442902
#12

Air handling parts diagram

Blade

Part #A442902

The manufacturer no longer makes this part, and there's no substitute part

Door 3016694
#11

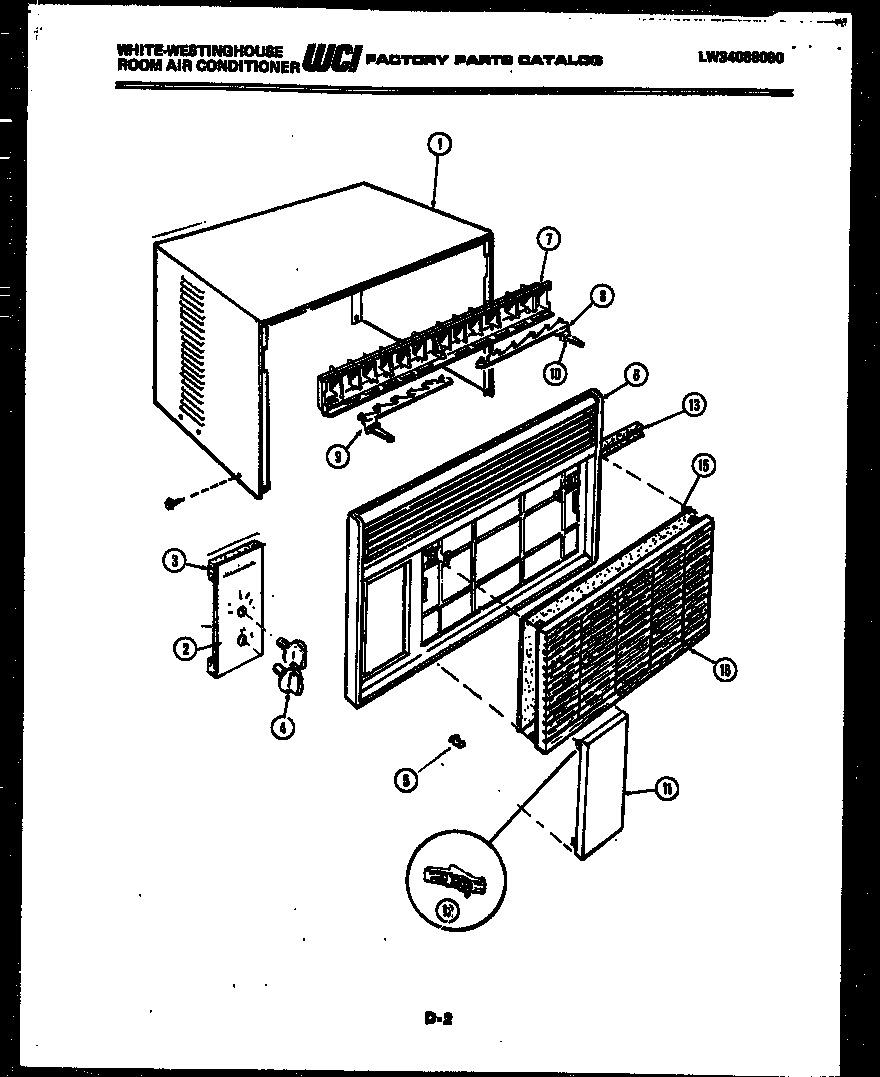

Cabinet parts diagram

Door

Part #3016694

The manufacturer no longer makes this part, and there's no substitute part

Motor 3015683
#1

Air handling parts diagram

Motor

Part #3015683

The manufacturer no longer makes this part, and there's no substitute part

Link Louver Lh A362002
#9

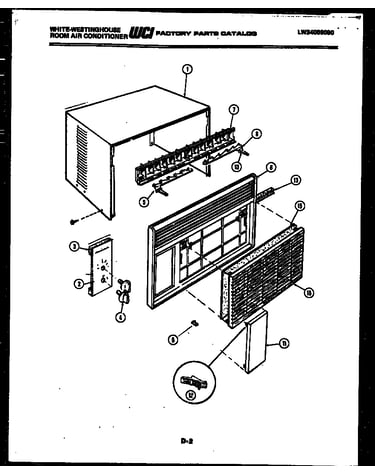

Cabinet parts diagram

Link louver lh

Part #A362002

The manufacturer no longer makes this part, and there's no substitute part

Fan Mount Screw A128002
#4

Air handling parts diagram

Fan mount screw

Part #A128002

The manufacturer no longer makes this part, and there's no substitute part

Accordion A337701
#8

Cabinet and installation parts diagram

Accordion

Part #A337701

The manufacturer no longer makes this part, and there's no substitute part
