Model # 502475370 Official Sears 16" & 20" screamer bicycle

Here are the diagrams and repair parts for Official Sears 502475370 16" & 20" screamer bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Spk 7-9/16 303155

#NI

All parts diagram

Spk 7-9/16

Part #303155

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518

#NI

All parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 302056
#2

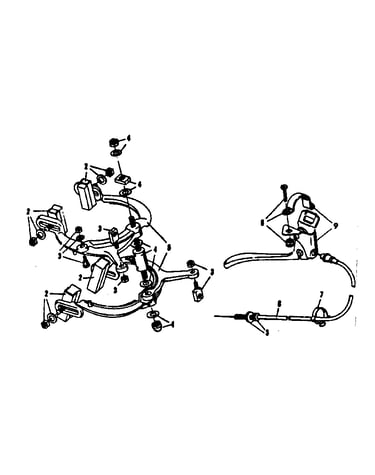

Excel dual rear caliper hand brake diagram

Brake shoe

Part #302056

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 27522
#6

Frame assembly diagram

Sprocket

Part #27522

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 26755Z
#9

Frame assembly diagram

Seat post

Part #26755Z

The manufacturer no longer makes this part, and there's no substitute part

Tap Screw 300252
#8

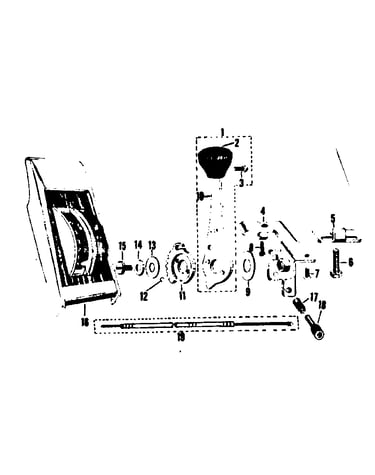

Shimano-5-spd console control replacement parts diagram

Tap screw

Part #300252

The manufacturer no longer makes this part, and there's no substitute part

Hub Shell 302089

#NI

All parts diagram

Hub shell

Part #302089

The manufacturer no longer makes this part, and there's no substitute part

Drag Bolt S-2285
#17

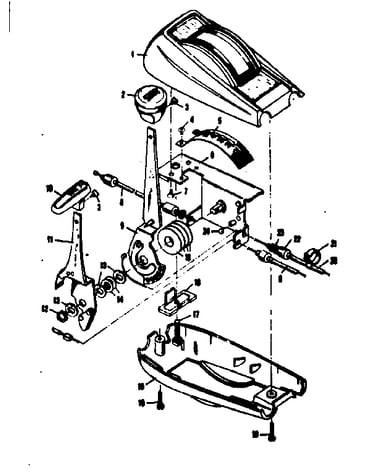

Shimano-5-speed console control & parking-brake diagram

Drag bolt

Part #S-2285

The manufacturer no longer makes this part, and there's no substitute part

Lever Frame 300264
#4

Shimano-5-spd console control replacement parts diagram

Lever frame

Part #300264

The manufacturer no longer makes this part, and there's no substitute part

Bolt 300225
#3

Shimano-5-spd console control replacement parts diagram

Bolt

Part #300225

The manufacturer no longer makes this part, and there's no substitute part
