GE
Side-By-Side Refrigerator

Model # CZS22MSKBHSS Official GE refrigerator

Here are the diagrams and repair parts for Official GE CZS22MSKBHSS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

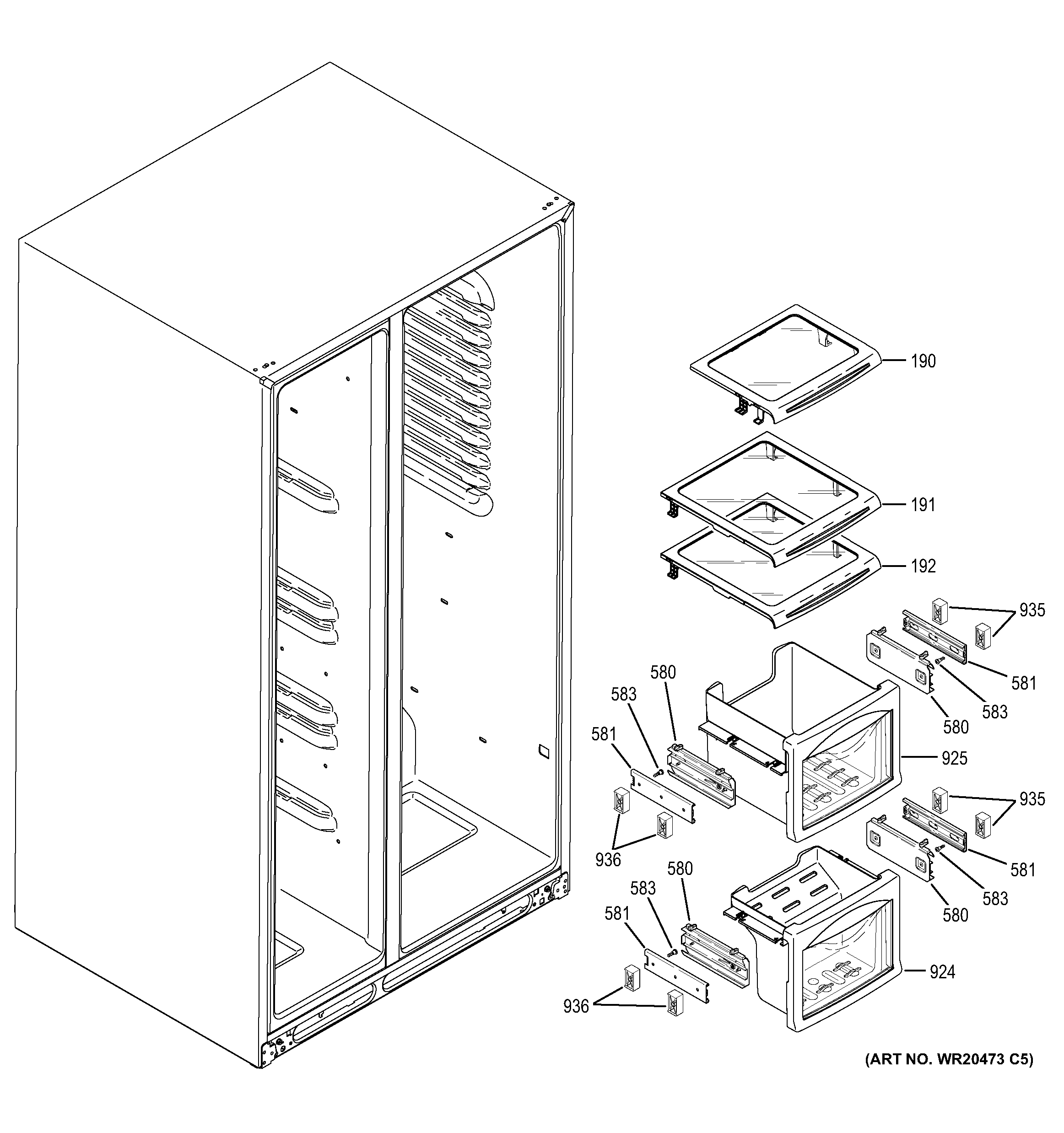

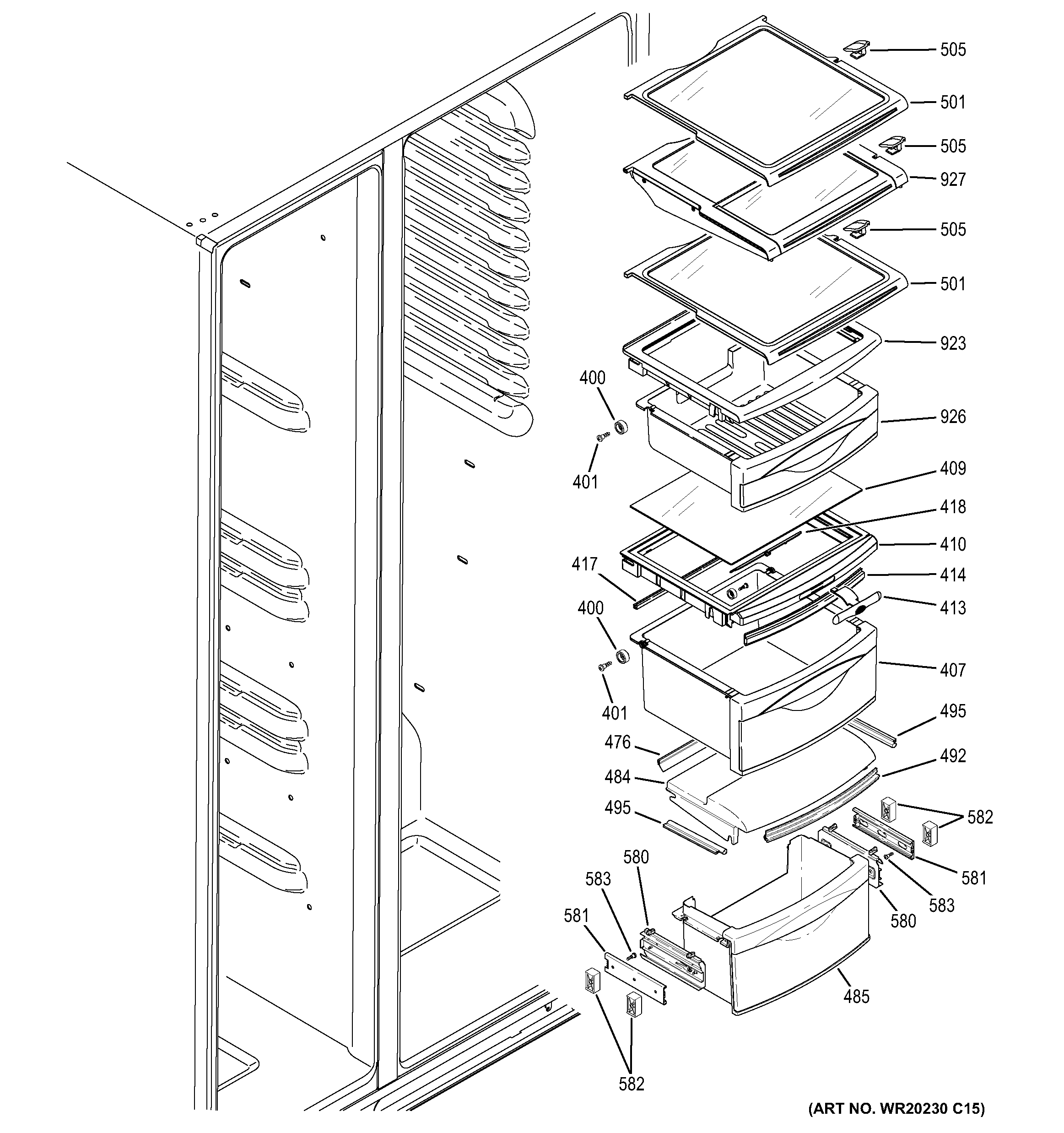

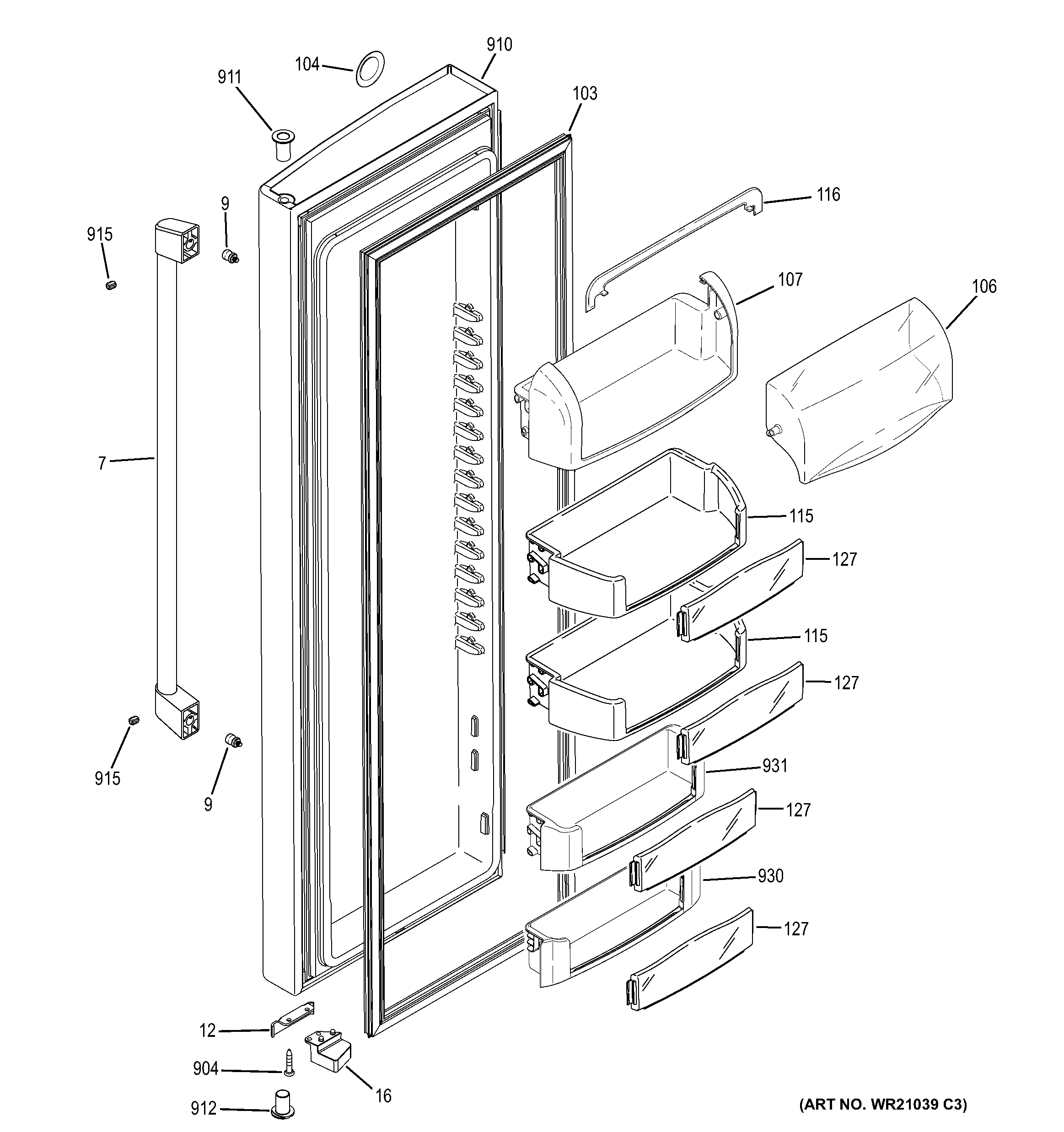

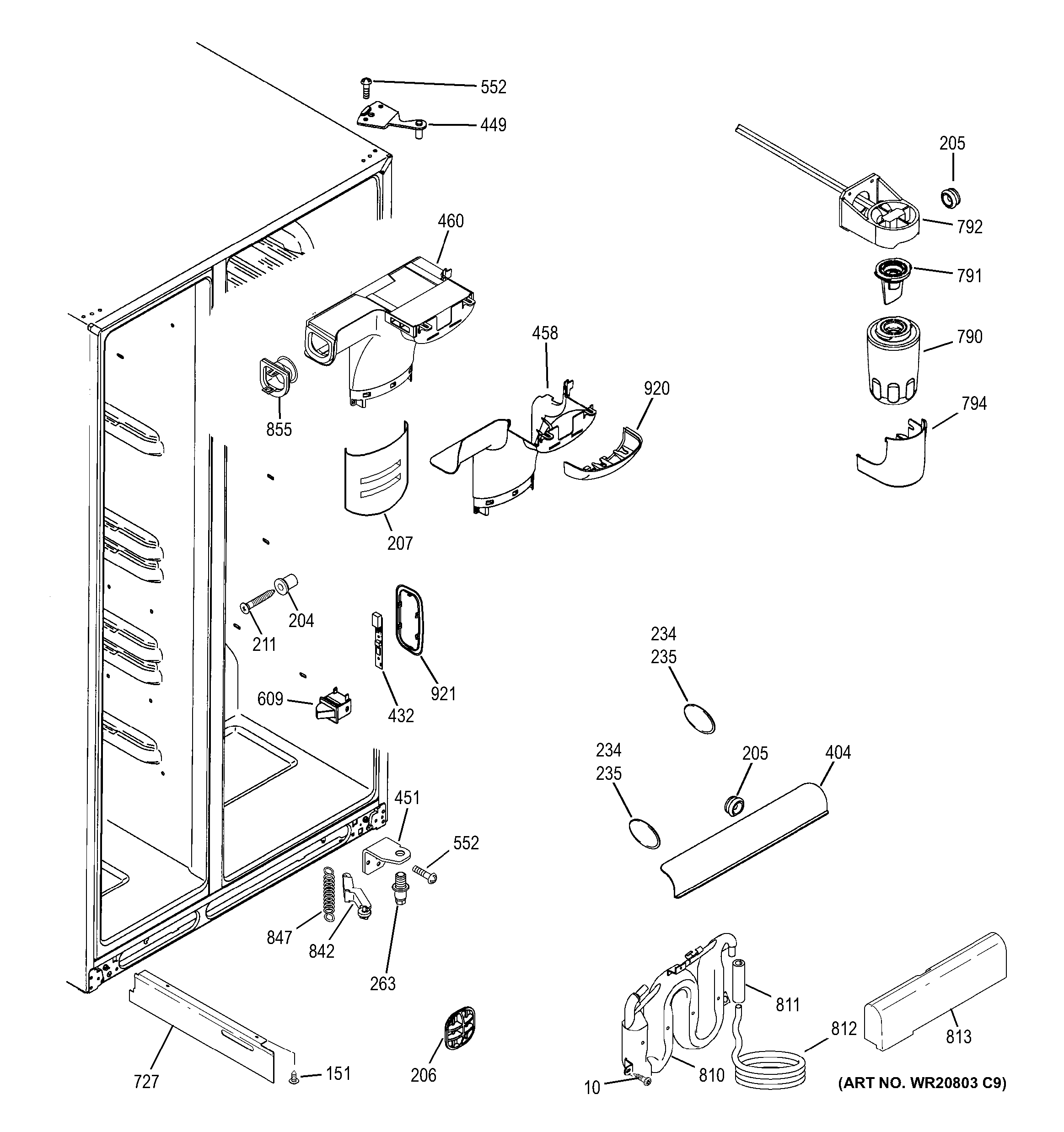

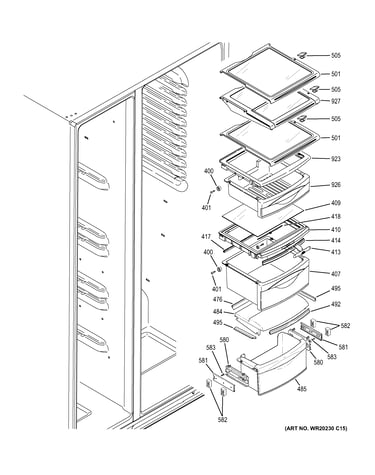

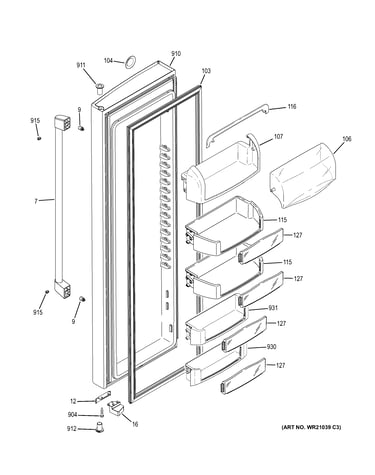

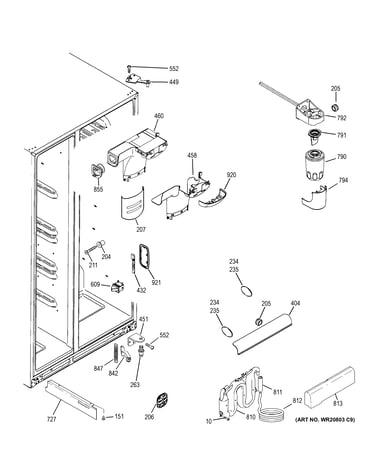

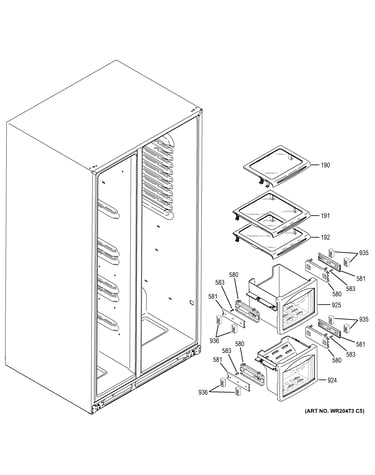

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 226 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
#241

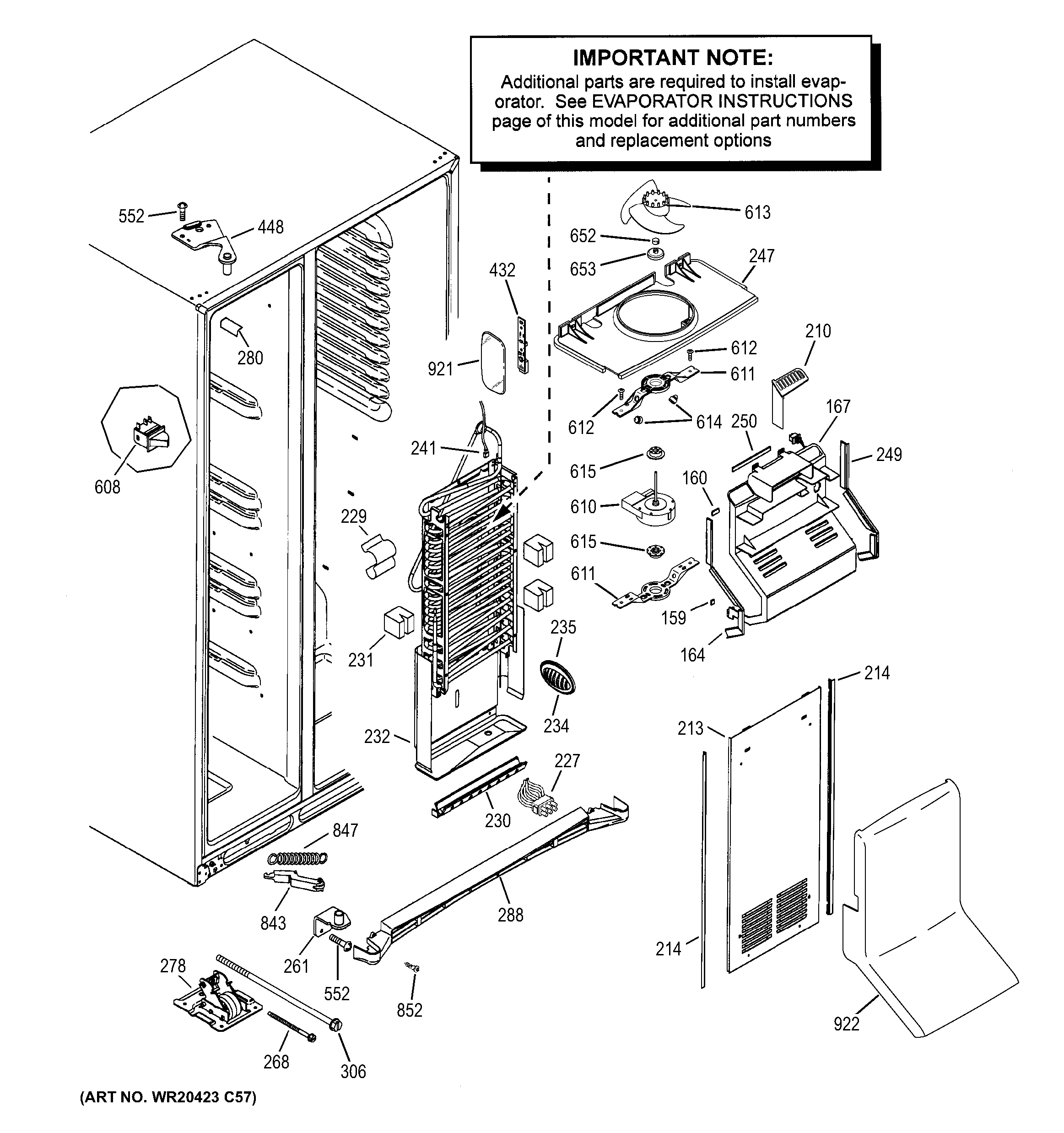

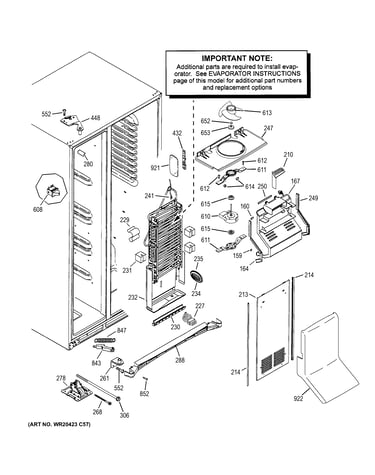

Freezer section diagram

Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Defrost Heater (replaces Wr51x10030) WR51X10055
#230

Freezer section diagram

Refrigerator defrost heater (replaces wr51x10030)

Part #WR51X10055

BEST SELLER
$96.63 |
11% OFF Phone Price : $108.63
In Stock
G.e. Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
#820

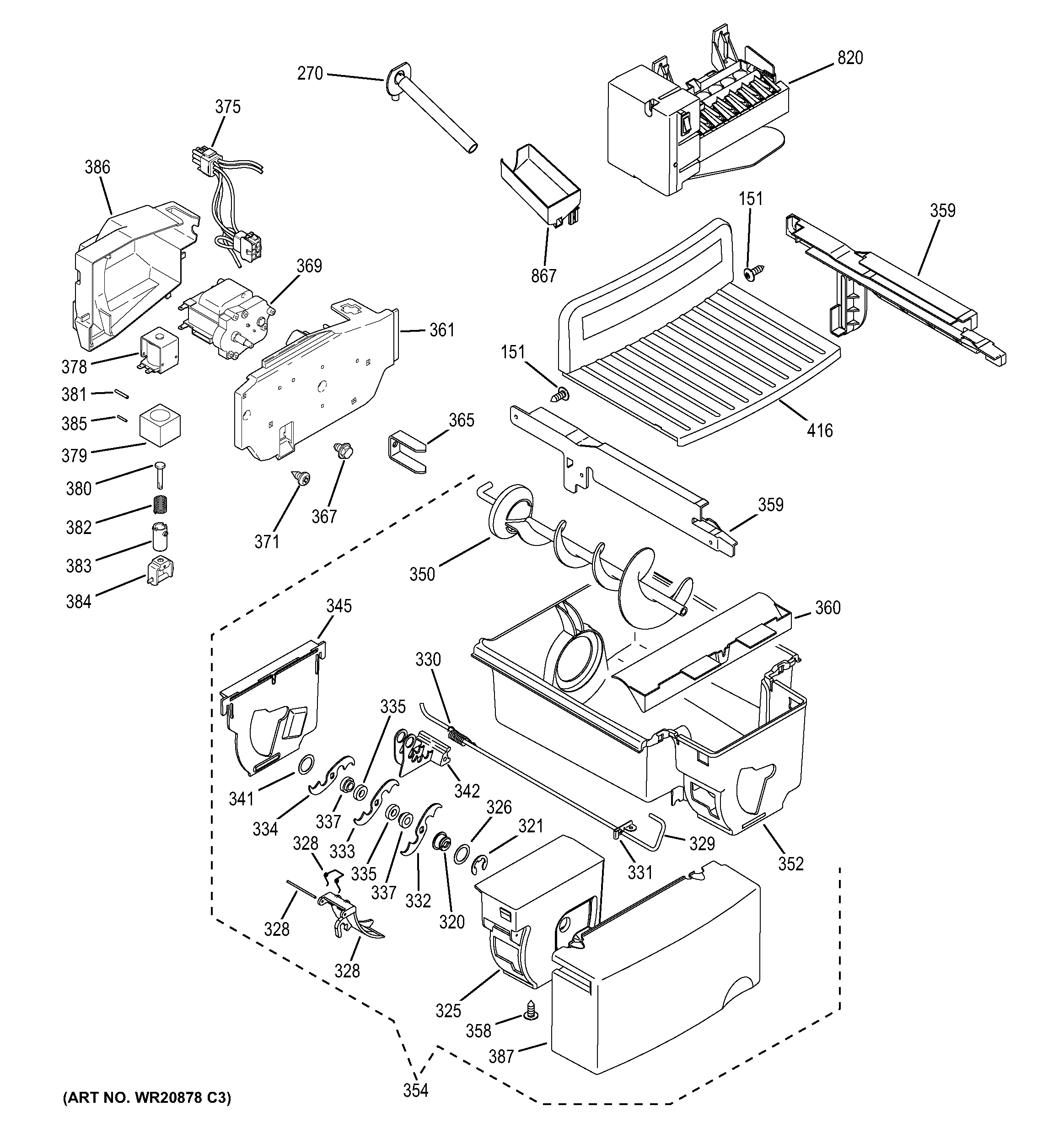

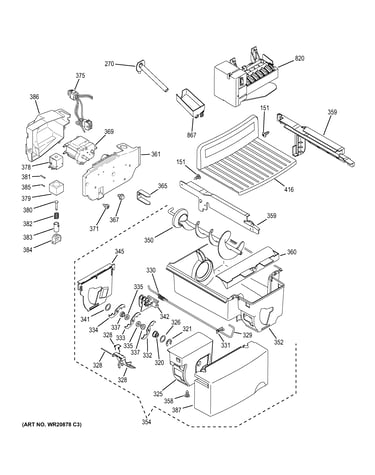

Ice maker & dispenser diagram

G.e. refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$180.85 |
6% OFF Phone Price : $192.85
In Stock
Dryer Filter WR86X0096
#740

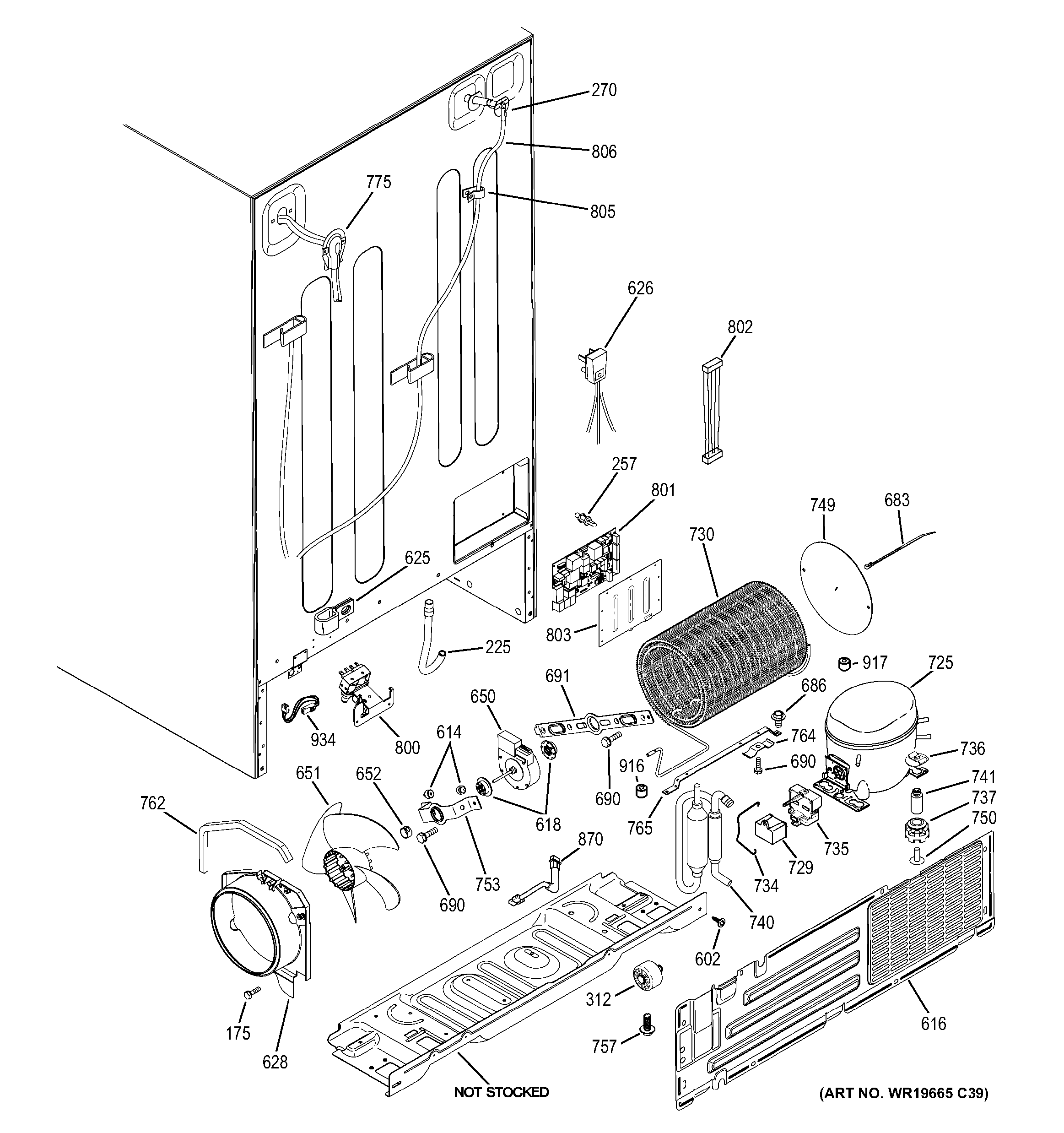

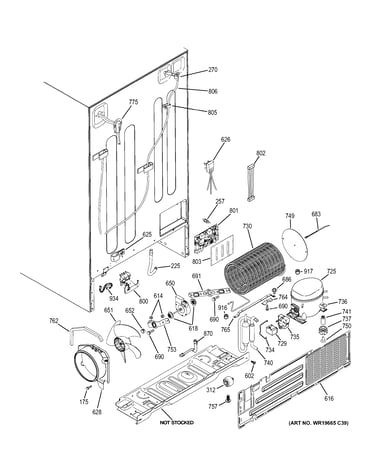

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Water Valve WR57X10040
#800

Machine compartment diagram

Refrigerator water valve

Part #WR57X10040

Replaced by #WR57X33326

?
Manufacturer substitution
This part replaces WR57X10040. Substitute parts can look different from the original.
BEST SELLER
$66.89 |
8% OFF Phone Price : $72.89
In Stock
Refrigerator Capacitor WR55X20800
#729

Machine compartment diagram

Refrigerator capacitor

Part #WR55X20800

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR55X20800. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Refrigerator Evaporator Fan Motor (replaces Wr60x10224, Wr60x30370) WR60X10307
#610

Freezer section diagram

Refrigerator evaporator fan motor (replaces wr60x10224, wr60x30370)

Part #WR60X10307

BEST SELLER
$150.35 |
7% OFF Phone Price : $162.35
In Stock
Rca Refrigerator Dispenser Ice Chute Door Solenoid (replaces Wr62x10020) WR62X10055
#36

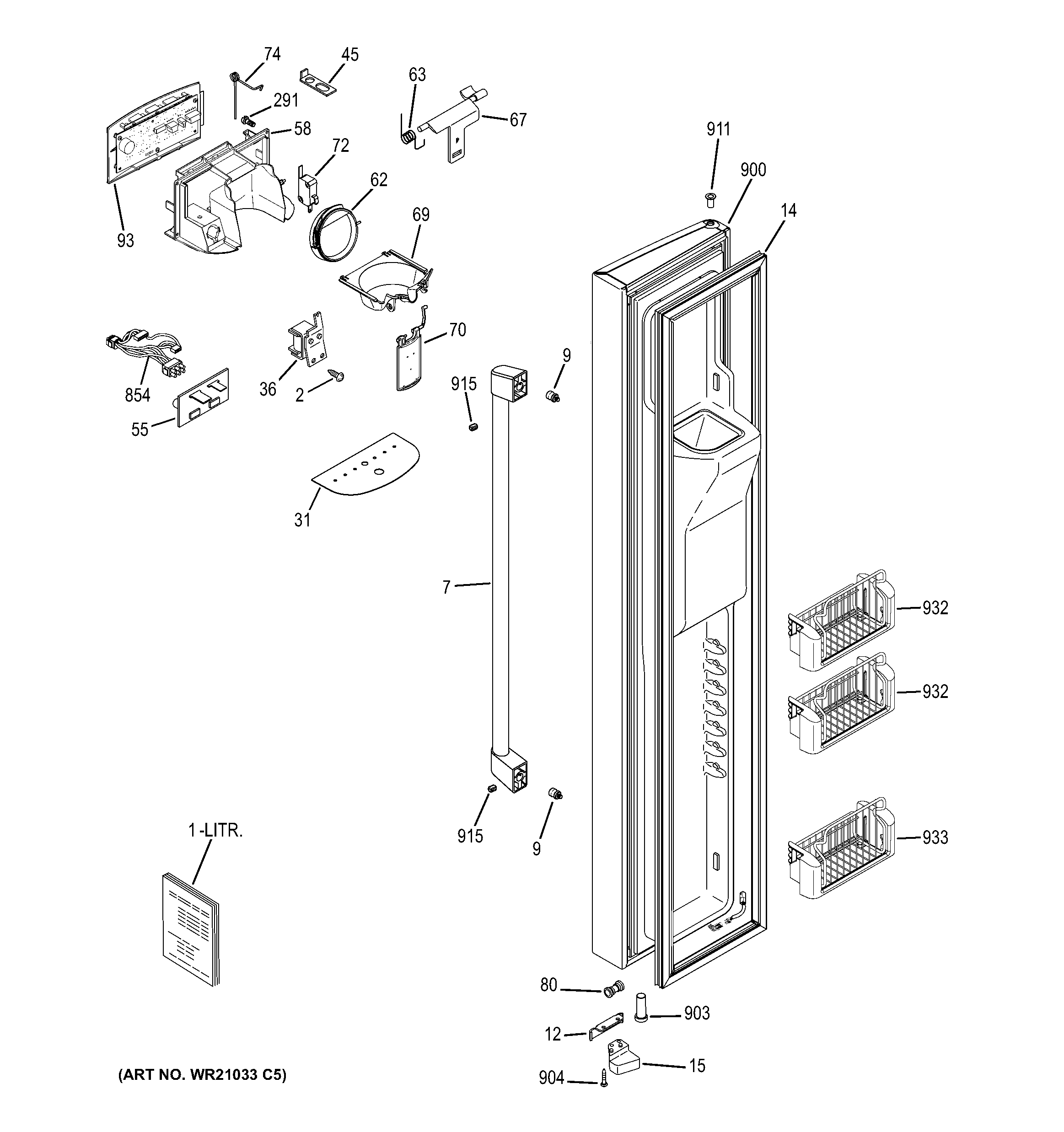

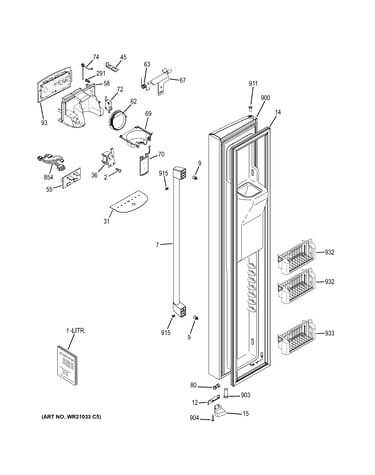

Freezer door diagram

Rca refrigerator dispenser ice chute door solenoid (replaces wr62x10020)

Part #WR62X10055

BEST SELLER
$54.06 |
10% OFF Phone Price : $60.06
In Stock
Refrigerator Water Tube Fitting, 5/16 X 5/16-in (replaces Wr02x10471) WR02X11330
#80

Freezer door diagram

Refrigerator water tube fitting, 5/16 x 5/16-in (replaces wr02x10471)

Part #WR02X11330

BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Refrigerator Dispenser Ice Chute Door Kit (replaces Wr17x3093) WR17X11653
#62

Freezer door diagram

Refrigerator dispenser ice chute door kit (replaces wr17x3093)

Part #WR17X11653

BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
