Craftsman
Power Grinder

Model # 315115080 Official Craftsman grinder

Here are the diagrams and repair parts for Official Craftsman 315115080 grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

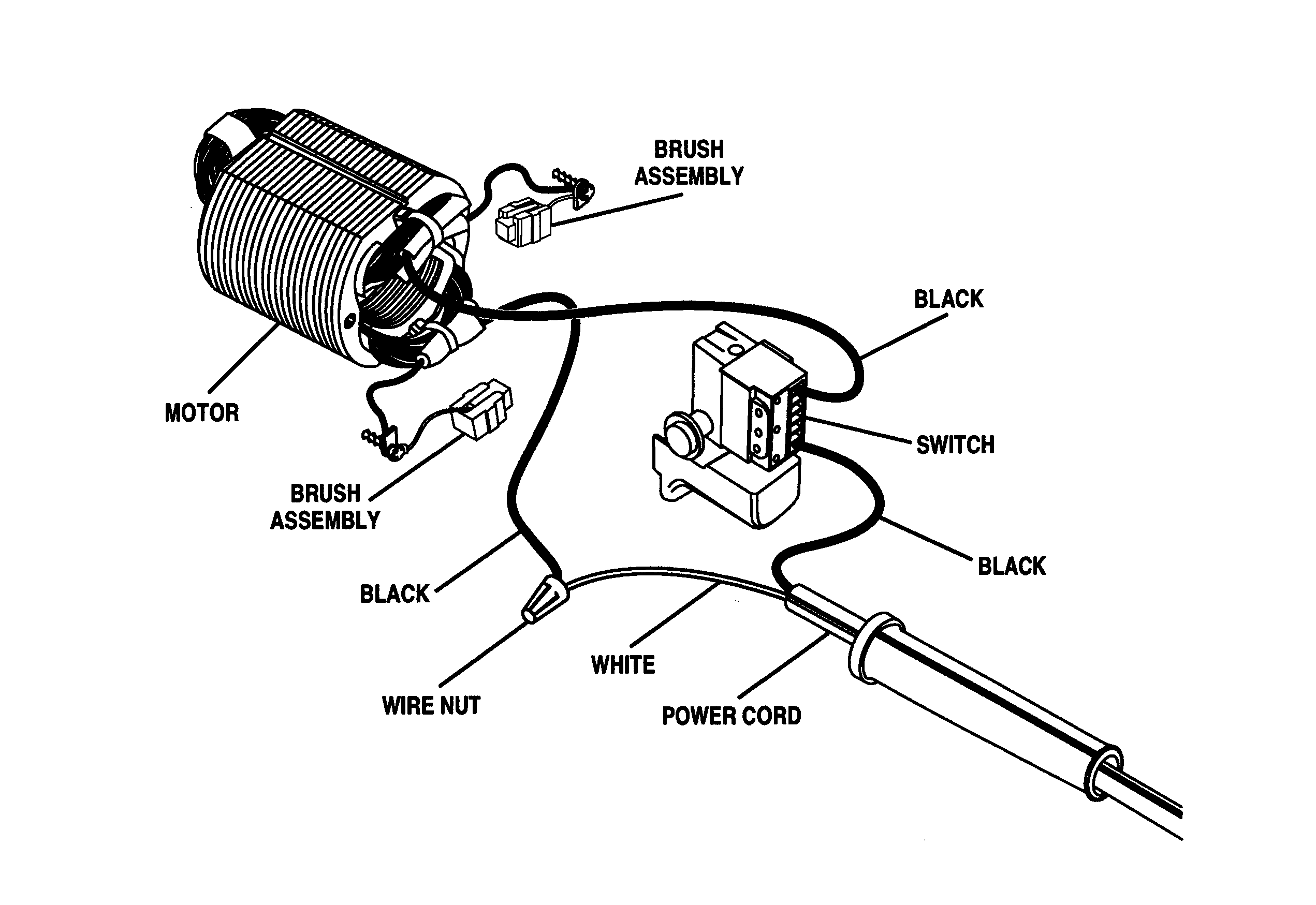

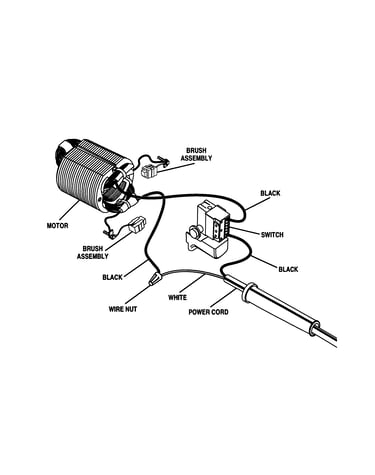

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Guard 11508-011
#5

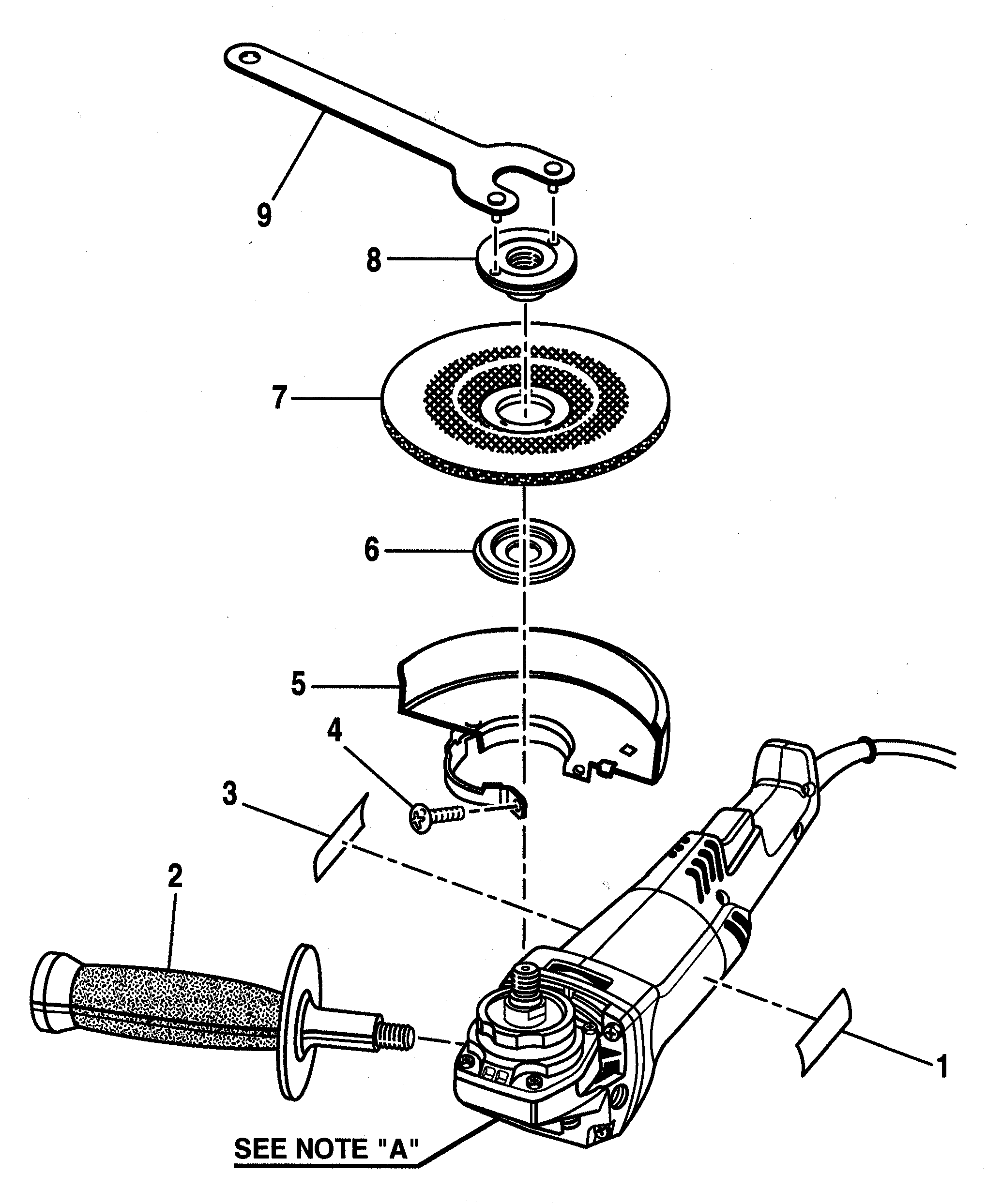

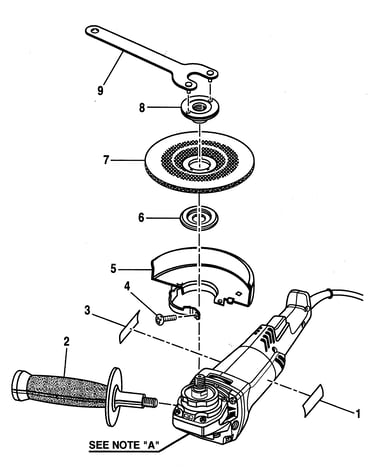

Cabinet parts diagram

Guard

Part #11508-011

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 11508-26
#14

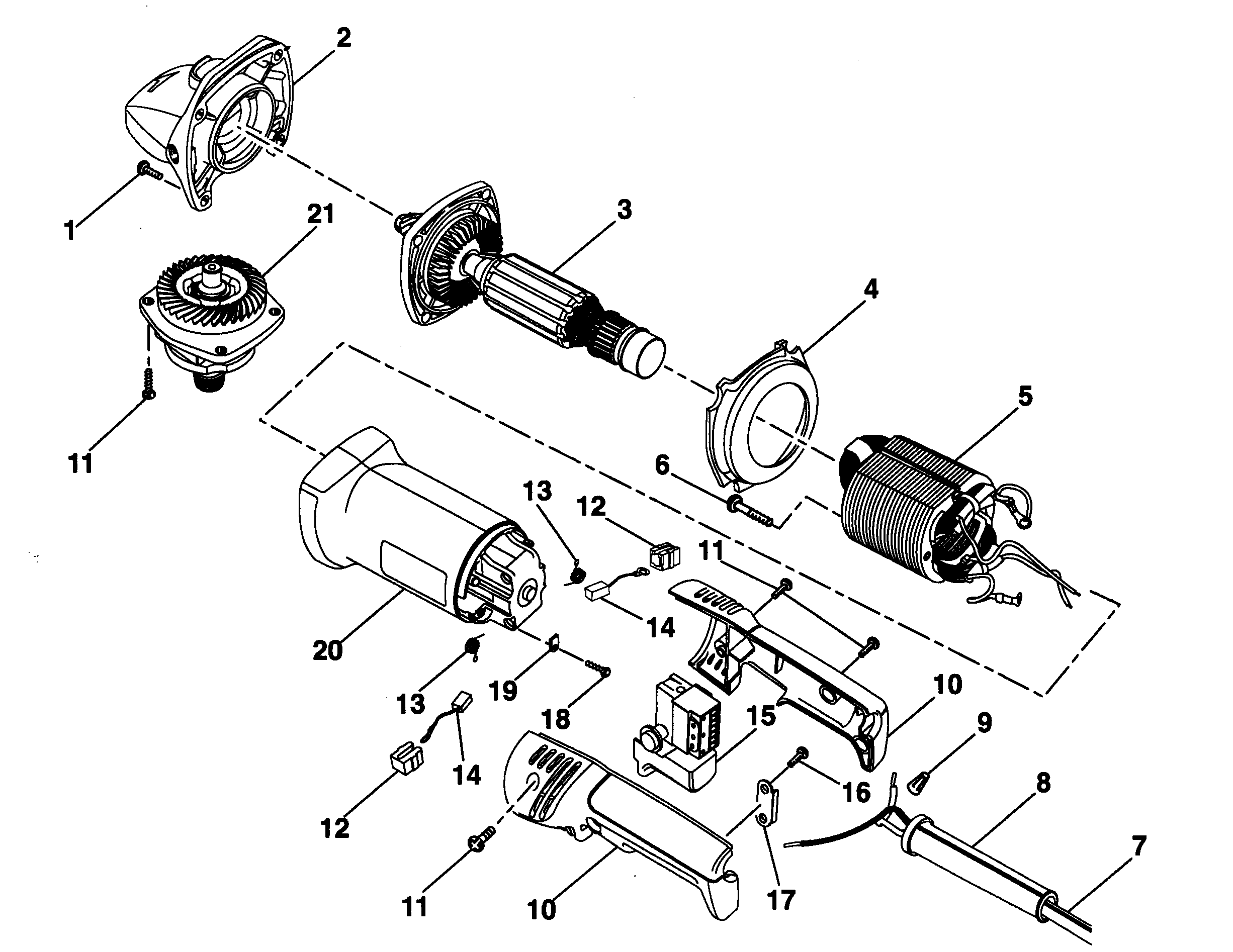

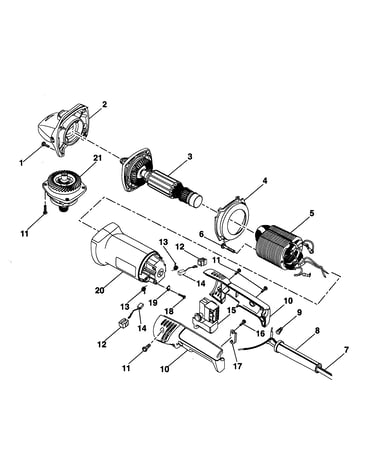

Motor assy diagram

Brush assembly

Part #11508-26

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 11508-16
#5

Motor assy diagram

Field assembly

Part #11508-16

The manufacturer no longer makes this part, and there's no substitute part

Switch 11508-27
#15

Motor assy diagram

Switch

Part #11508-27

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 11508-02
#2

Motor assy diagram

Gear case

Part #11508-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 11508-21
#18

Motor assy diagram

Screw

Part #11508-21

The manufacturer no longer makes this part, and there's no substitute part

Spring 11508-24
#13

Motor assy diagram

Spring

Part #11508-24

The manufacturer no longer makes this part, and there's no substitute part

Pinion Gea 11508-40
#3C

Motor assy diagram

Pinion gea

Part #11508-40

The manufacturer no longer makes this part, and there's no substitute part

Handle 11508-22
#10

Motor assy diagram

Handle

Part #11508-22

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 11508-28
#17

Motor assy diagram

Cord clamp

Part #11508-28

The manufacturer no longer makes this part, and there's no substitute part
