Model # 360633803 Official Kenmore toaster oven

Here are the diagrams and repair parts for Official Kenmore 360633803 toaster oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

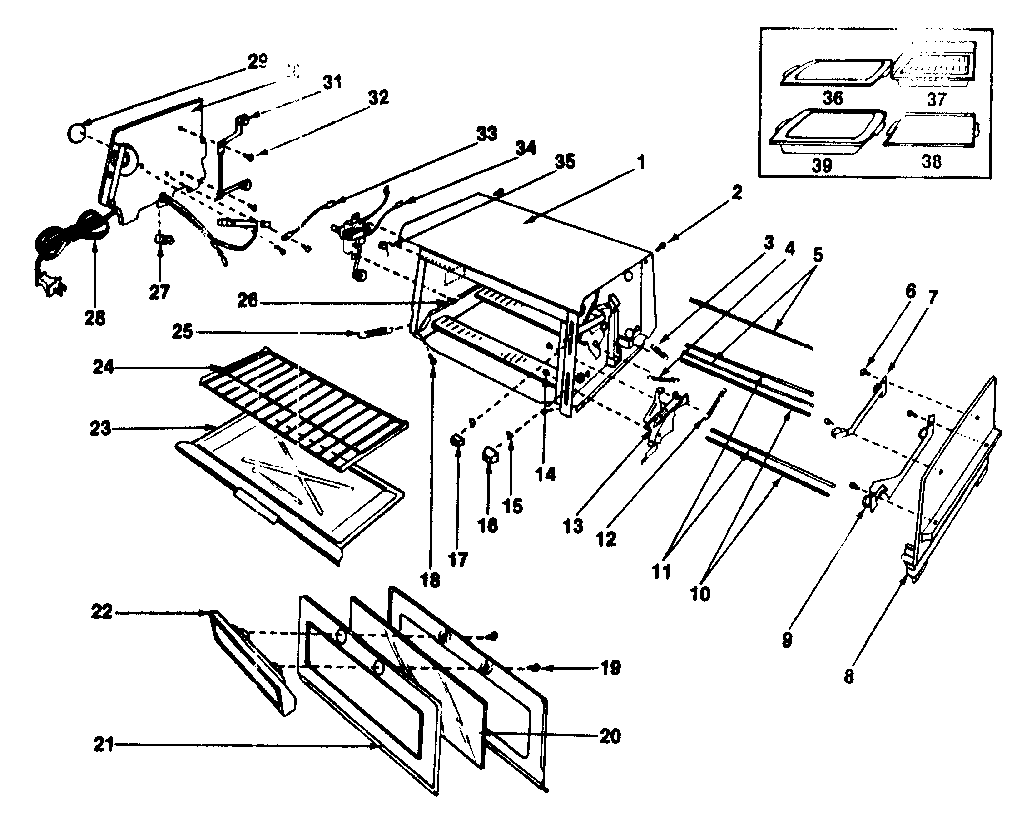

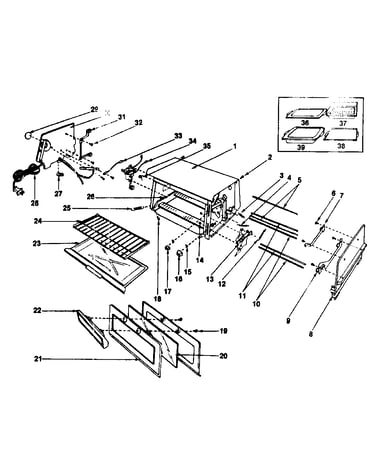

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Chassis 922964
#1

Replacement parts diagram

Chassis

Part #922964

The manufacturer no longer makes this part, and there's no substitute part

Left Panel 926490
#30

Replacement parts diagram

Left panel

Part #926490

The manufacturer no longer makes this part, and there's no substitute part

Upr Bus Bar 968308
#7

Replacement parts diagram

Upr bus bar

Part #968308

The manufacturer no longer makes this part, and there's no substitute part

Screw 002733
#2

Replacement parts diagram

Screw

Part #002733

The manufacturer no longer makes this part, and there's no substitute part

Relief 121028
#27

Replacement parts diagram

Relief

Part #121028

The manufacturer no longer makes this part, and there's no substitute part

Bus Bar 908692
#31

Replacement parts diagram

Bus bar

Part #908692

The manufacturer no longer makes this part, and there's no substitute part

Door Handle 156398
#22

Replacement parts diagram

Door handle

Part #156398

The manufacturer no longer makes this part, and there's no substitute part

Door Assembly 923081
#21

Replacement parts diagram

Door assembly

Part #923081

The manufacturer no longer makes this part, and there's no substitute part

Lwr Bus Bar 968002
#9

Replacement parts diagram

Lwr bus bar

Part #968002

The manufacturer no longer makes this part, and there's no substitute part

Connector 968321
#33

Replacement parts diagram

Connector

Part #968321

The manufacturer no longer makes this part, and there's no substitute part
