Kenmore
Blender

Model # 31182160 Official Kenmore blender

Here are the diagrams and repair parts for Official Kenmore 31182160 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

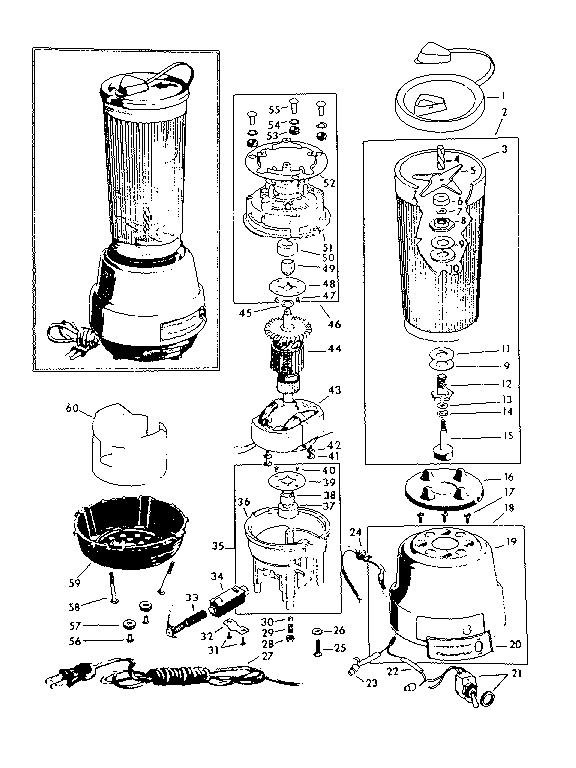

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Self-tap Screw, 6 X 3/8 Bd. Hd. Type Fl. Ni. Pl. (standard Hardware Item) 122-6
#31

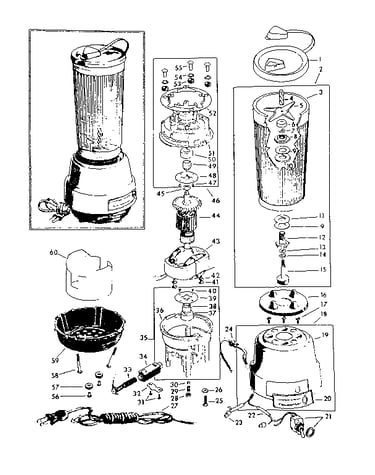

Replacement parts diagram

Self-tap screw, 6 x 3/8 bd. hd. type fl. ni. pl. (standard hardware item)

Part #122-6

The manufacturer no longer makes this part, and there's no substitute part

Connector 6415-003
#23

Replacement parts diagram

Connector

Part #6415-003

The manufacturer no longer makes this part, and there's no substitute part

Wick 6410-028
Wick

Part #6410-028

The manufacturer no longer makes this part, and there's no substitute part

Holder 6410-610
#34

Replacement parts diagram

Holder

Part #6410-610

The manufacturer no longer makes this part, and there's no substitute part

Washer 300-274
#54

Replacement parts diagram

Washer

Part #300-274

The manufacturer no longer makes this part, and there's no substitute part

Nut 6405-612
#28

Replacement parts diagram

Nut

Part #6405-612

The manufacturer no longer makes this part, and there's no substitute part

Cord 6415-520
#27

Replacement parts diagram

Cord

Part #6415-520

The manufacturer no longer makes this part, and there's no substitute part

Washer 300-265
#7

Replacement parts diagram

Washer

Part #300-265

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 6412-660
#43

Replacement parts diagram

Field assembly

Part #6412-660

The manufacturer no longer makes this part, and there's no substitute part

Foot 7602-144
#57

Replacement parts diagram

Foot

Part #7602-144

The manufacturer no longer makes this part, and there's no substitute part
