Gas Walk-Behind Mower

Model # 917377282 Official Craftsman rotary mower

Here are the diagrams and repair parts for Official Craftsman 917377282 rotary mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |
Belt 146527
#5

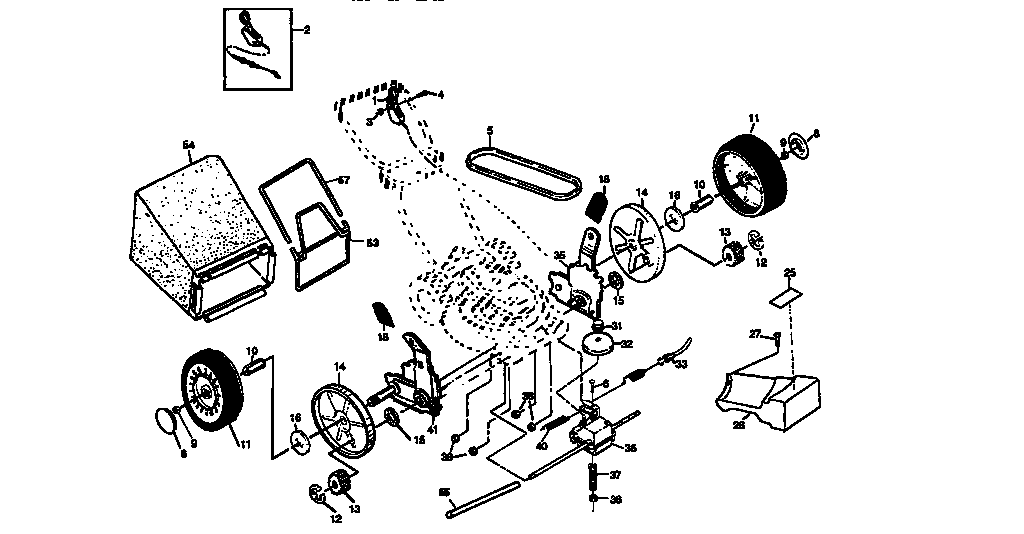

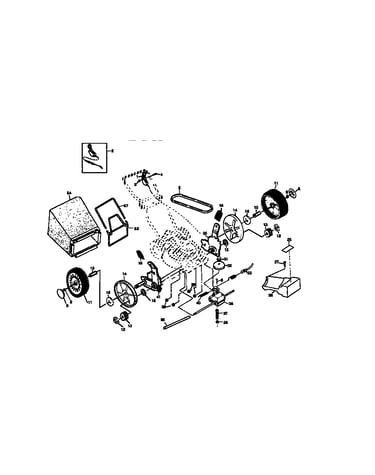

Drive assembly diagram

Belt

Part #146527

Replaced by #532157769

?
Manufacturer substitution
This part replaces 146527. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$25.69
In Stock
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Blade Adapter 851514
#46

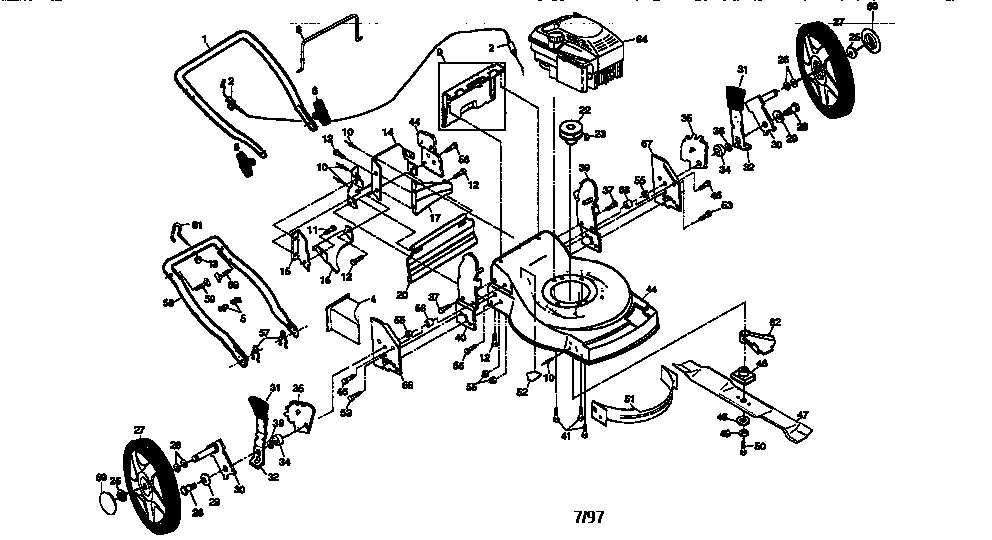

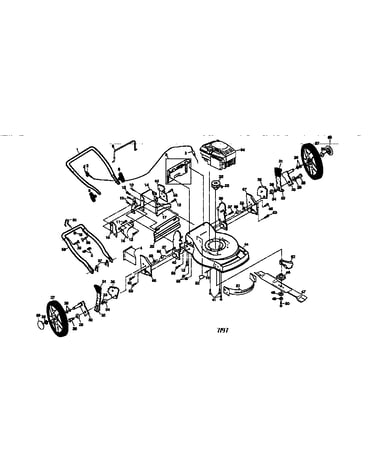

Main frame diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Tune-up Kit 5106S

#NI

All parts diagram

Tune-up kit

Part #5106S

Replaced by #5140B

?
Manufacturer substitution
This part replaces 5106S. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$20.80 |
22% OFF Phone Price : $26.80
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#56

Main frame diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#12

Drive assembly diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Screw.hxhd.1 143603
#27

Drive assembly diagram

Screw.hxhd.1

Part #143603

Replaced by #582961101

?
Manufacturer substitution
This part replaces 143603. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
American Yard Products Lawn & Garden Equipment Washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384) 88348
#38

Main frame diagram

American yard products lawn & garden equipment washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384)

Part #88348

Replaced by #532088348

?
Manufacturer substitution
This part replaces 88348. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Spring 700331X004
#32

Main frame diagram

Spring

Part #700331X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 700331X004. Substitute parts can look different from the original.
$8.54
In Stock
Lawn Mower Washer 88118
#15

Drive assembly diagram

Lawn mower washer

Part #88118

Replaced by #532088118

?
Manufacturer substitution
This part replaces 88118. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
