Model # 143534012 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143534012 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

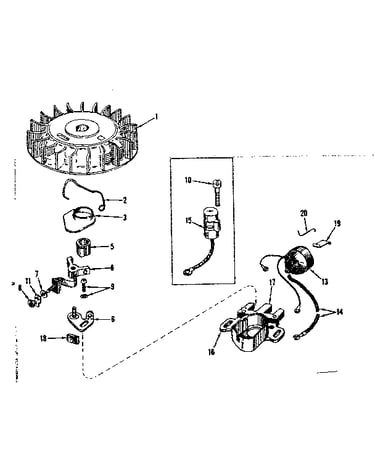

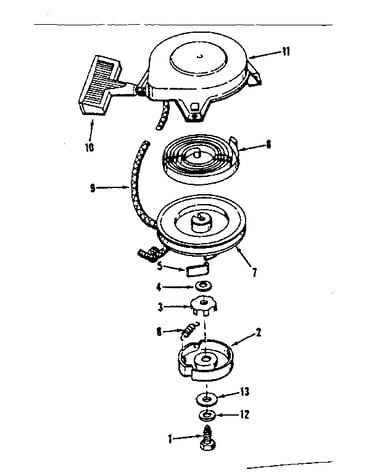

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Plug 27625
#25

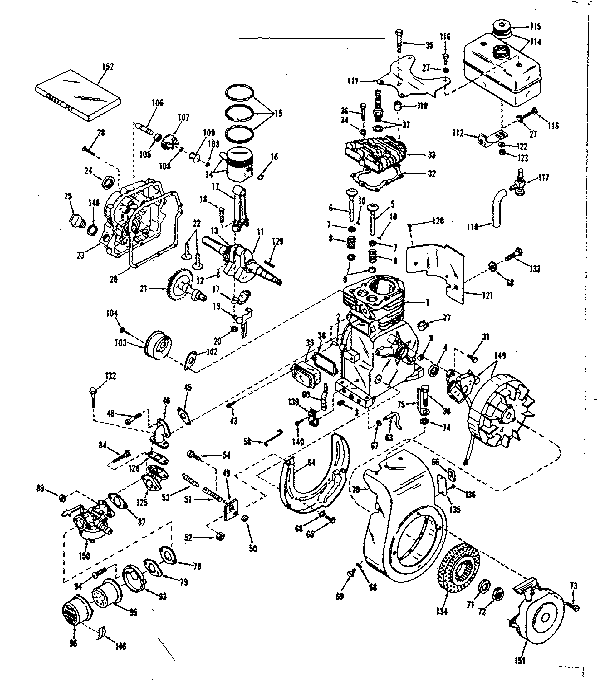

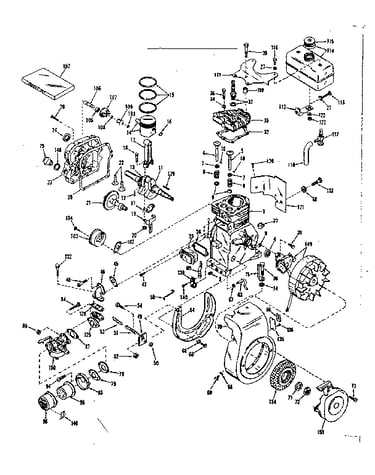

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#94

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#139

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Screw 650176
#48

Basic engine diagram

Screw

Part #650176

The manufacturer no longer makes this part, and there's no substitute part

Screw 30564
#28

Basic engine diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 30590
#105

Basic engine diagram

Flat washer

Part #30590

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Spring 27113
#5

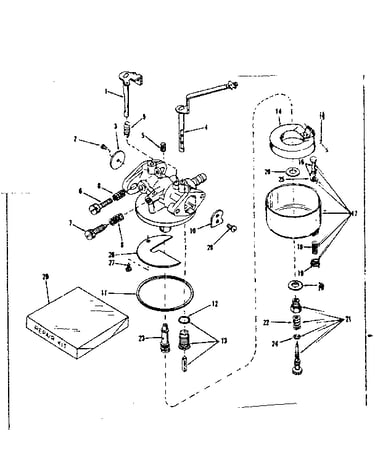

Carburetor no. 630968 diagram

Spring

Part #27113

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 650490
#71

Basic engine diagram

Flat washer

Part #650490

The manufacturer no longer makes this part, and there's no substitute part

Valve Kit 29314
#5

Basic engine diagram

Valve kit

Part #29314

The manufacturer no longer makes this part, and there's no substitute part
