White-Westinghouse
Top-Mount Refrigerator

Model # RT170GCW2 Official White-Westinghouse top-mount refrigerator - l284924

Here are the diagrams and repair parts for Official White-Westinghouse RT170GCW2 top-mount refrigerator - l284924, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 185 parts  |
Evaporator Motor G173301
#17

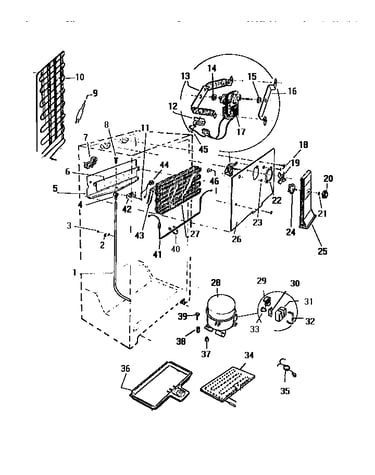

Cooling system diagram

Evaporator motor

Part #G173301

Replaced by #5300158289

?
Manufacturer substitution
This part replaces G173301. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
Refrigerator Screw G163980
#3

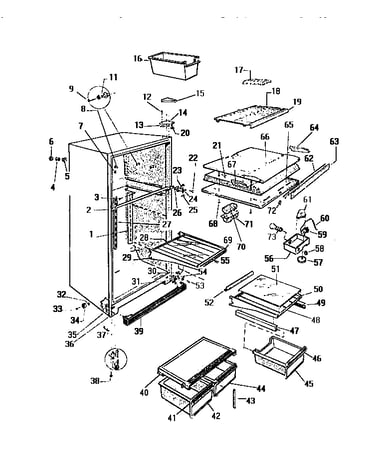

Cabinet, shelves, divider, fan assembly diagram

Refrigerator screw

Part #G163980

Replaced by #5304455650

?
Manufacturer substitution
This part replaces G163980. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Hinge Screw G167103
#12

Cabinet, shelves, divider, fan assembly diagram

Hinge screw

Part #G167103

Replaced by #241710601

?
Manufacturer substitution
This part replaces G167103. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Butter Dish G161079
#18

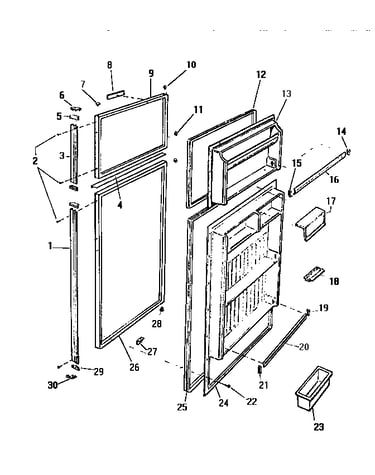

Door diagram

Butter dish

Part #G161079

Replaced by #5308000716

?
Manufacturer substitution
This part replaces G161079. Substitute parts can look different from the original.
This item is not returnable
$19.75 |
9% OFF Phone Price : $21.75
In Stock
Complete Grommet G177617
#37

Cooling system diagram

Complete grommet

Part #G177617

Replaced by #218513300

?
Manufacturer substitution
This part replaces G177617. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Refrigerator Panel G180158-11
#26

Door diagram

Refrigerator panel

Part #G180158-11

$158.71
In Stock
Refrigerator Button Plug G162977-01
#11

Door diagram

Refrigerator button plug

Part #G162977-01

Replaced by #240494001

?
Manufacturer substitution
This part replaces G162977-01. Substitute parts can look different from the original.
This item is not returnable
$19.78 |
9% OFF Phone Price : $21.78
In Stock
Defrost Heater G178425-01
#41

Cooling system diagram

Defrost heater

Part #G178425-01

Replaced by #5317842502

?
Manufacturer substitution
This part replaces G178425-01. Substitute parts can look different from the original.
$102.87
In Stock
Screw G144049
#22

Door diagram

Screw

Part #G144049

Replaced by #218843801

?
Manufacturer substitution
This part replaces G144049. Substitute parts can look different from the original.
$13.26
In Stock
Outer Ferrule G174734
#6

Cabinet, shelves, divider, fan assembly diagram

Outer ferrule

Part #G174734

Replaced by #5303001287

?
Manufacturer substitution
This part replaces G174734. Substitute parts can look different from the original.
$9.89
In Stock
