GE
Top-Mount Refrigerator

Model # GTS18FMLEES Official GE top-mount refrigerator

Here are the diagrams and repair parts for Official GE GTS18FMLEES top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
#820

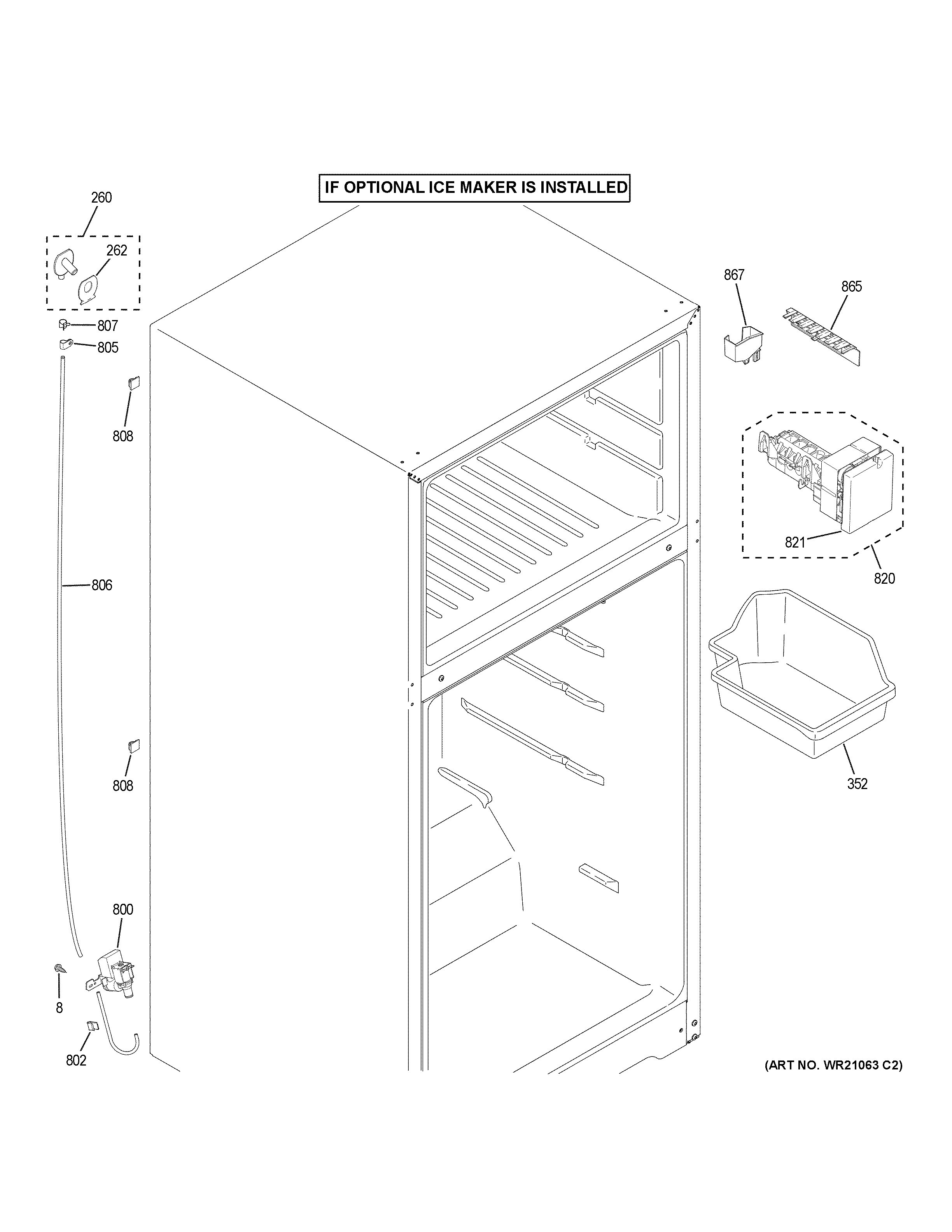

Ice maker diagram

Refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Drier WR87X30548
#502

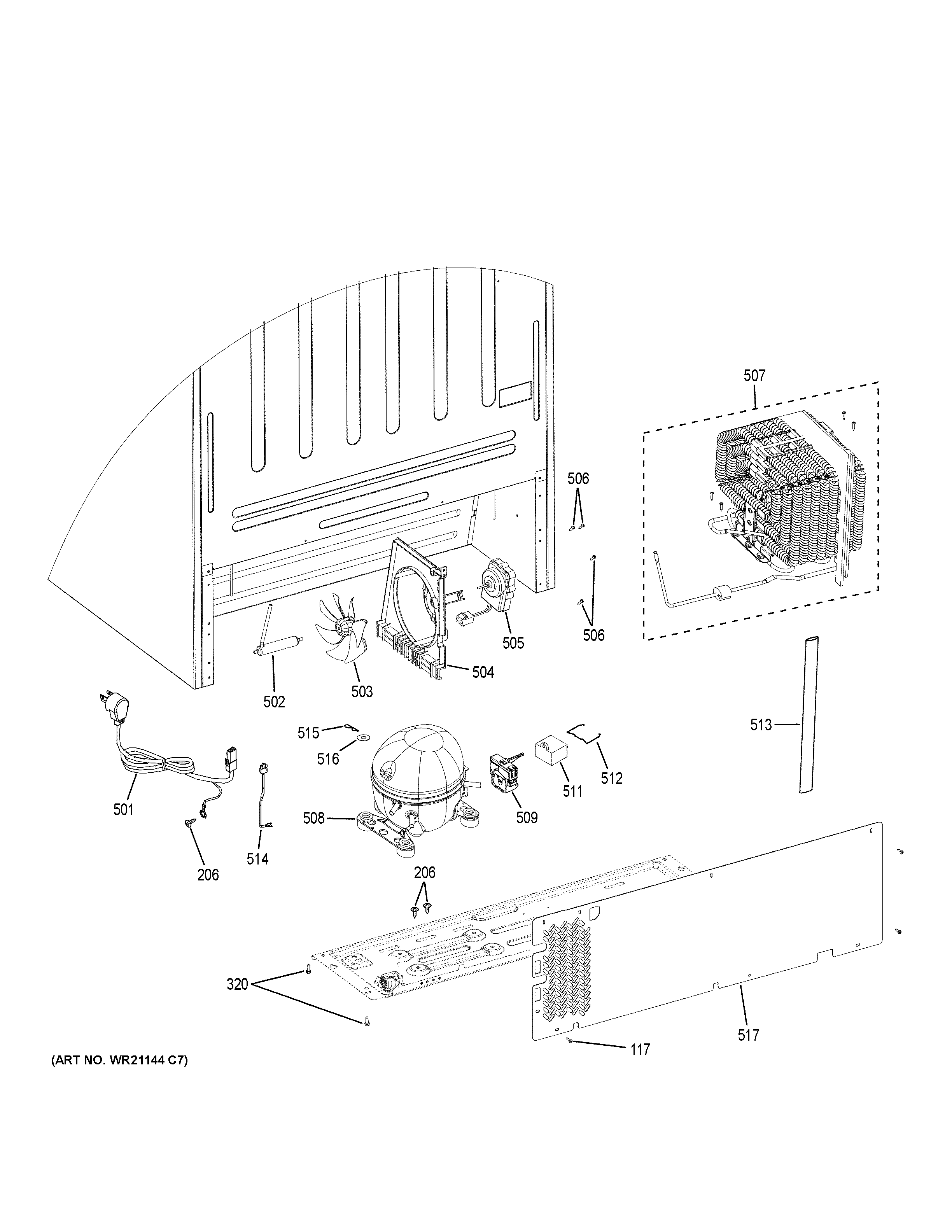

Machine compartment diagram

Drier

Part #WR87X30548

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR87X30548. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Compressor WR87X30981
#508

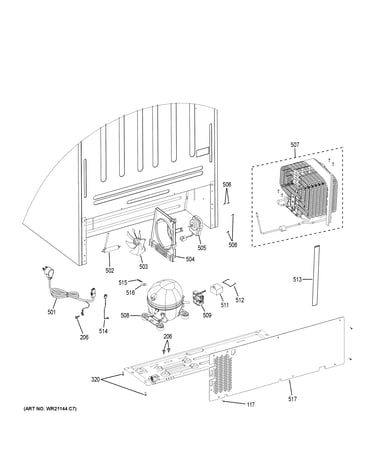

Machine compartment diagram

Compressor

Part #WR87X30981

Replaced by #WR87X33165

?
Manufacturer substitution
This part replaces WR87X30981. Substitute parts can look different from the original.
BEST SELLER
$377.63 |
$12.00 OFF Phone Price : $389.63
In Stock
Refrigerator Tube WR17X10893
#806

Ice maker diagram

Refrigerator tube

Part #WR17X10893

Replaced by #WR17X11349

?
Manufacturer substitution
This part replaces WR17X10893. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Water Inlet Valve WR57X21246
Refrigerator water inlet valve

Part #WR57X21246

Replaced by #WR57X39965

?
Manufacturer substitution
This part replaces WR57X21246. Substitute parts can look different from the original.
$49.18
In Stock
Refrigerator Defrost Control Board (replaces Wr09x30979) WR09X28646
#310

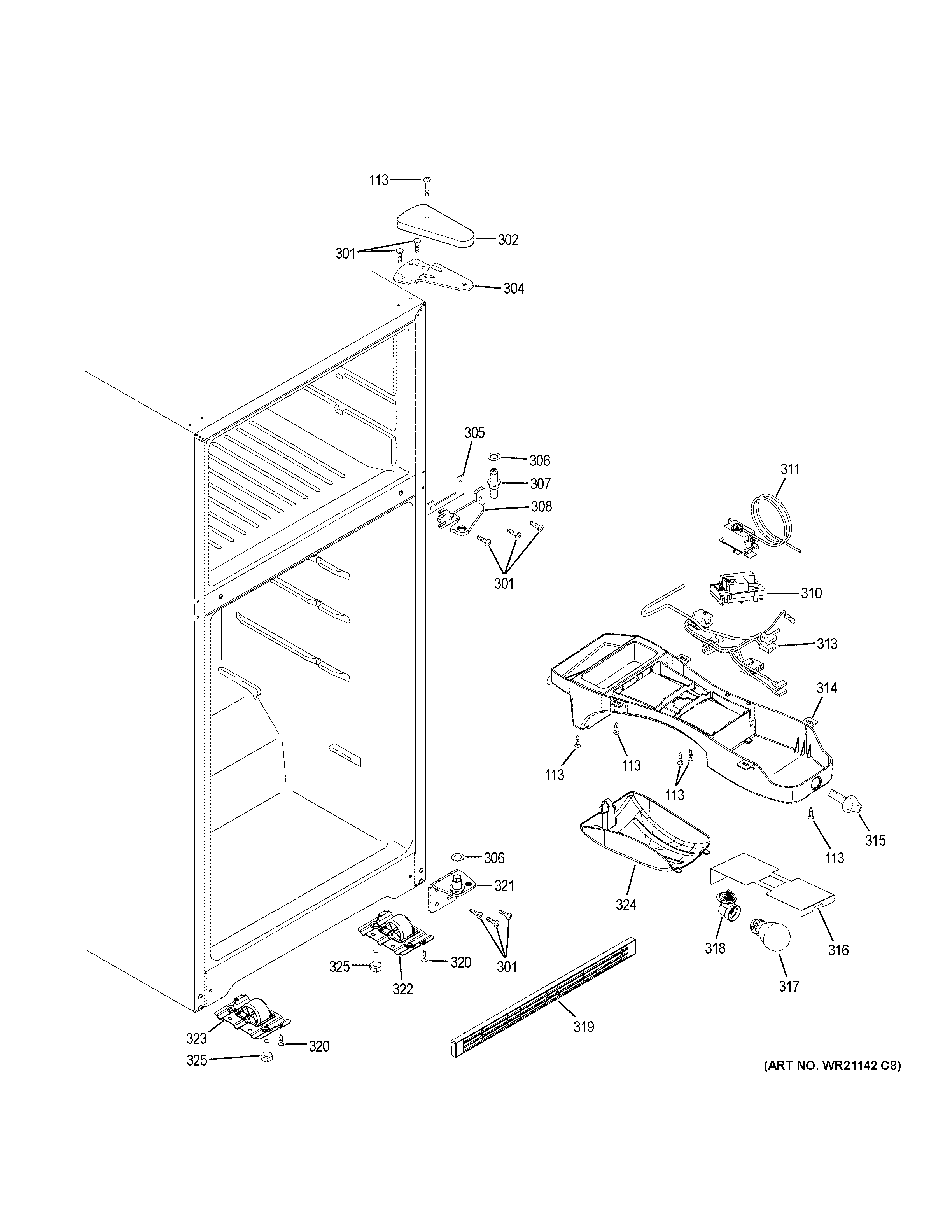

Fresh food section diagram

Refrigerator defrost control board (replaces wr09x30979)

Part #WR09X28646

$48.77 |
11% OFF Phone Price : $54.77
In Stock
Refrigerator Ice Maker Water Supply Tube Clamp WR02X11437
#807

Ice maker diagram

Refrigerator ice maker water supply tube clamp

Part #WR02X11437

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Thermostat WR09X30985
#311

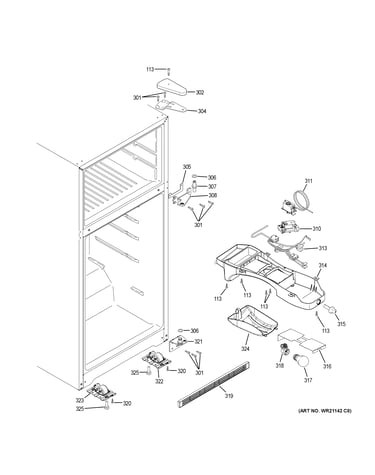

Fresh food section diagram

Thermostat

Part #WR09X30985

Replaced by #WR09X30047

?
Manufacturer substitution
This part replaces WR09X30985. Substitute parts can look different from the original.
$52.88 |
10% OFF Phone Price : $58.88
In Stock
Refrigerator Grommet WR2X9224
#260

Ice maker diagram

Refrigerator grommet

Part #WR2X9224

Replaced by #WR02X10967

?
Manufacturer substitution
This part replaces WR2X9224. Substitute parts can look different from the original.
$20.01 |
23% OFF Phone Price : $26.01
In Stock
Cover Dairy WR01X27287
#110

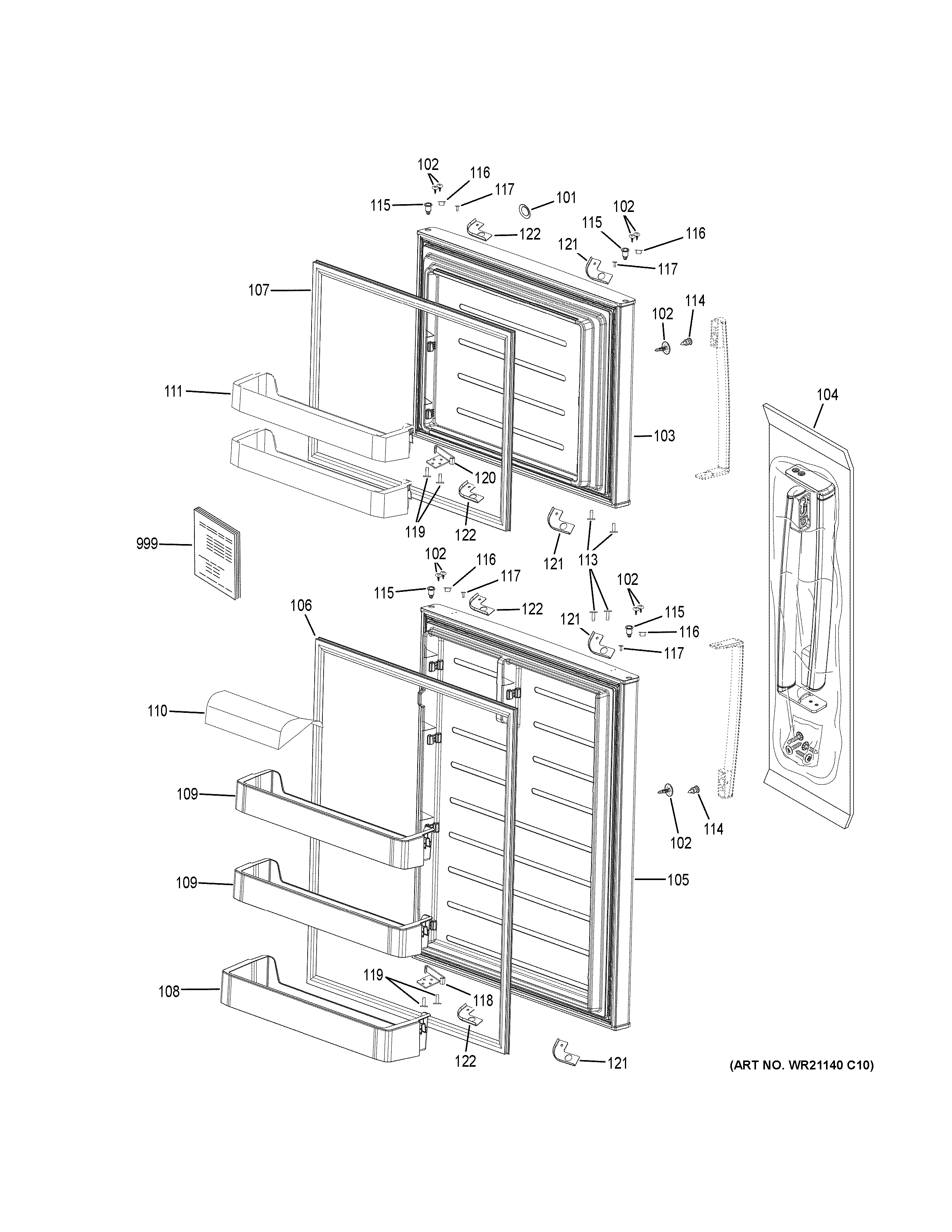

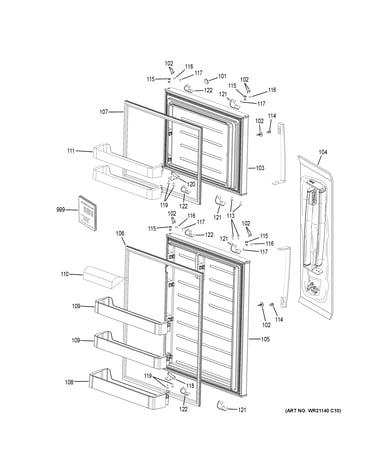

Doors diagram

Cover dairy

Part #WR01X27287

$82.31 |
7% OFF Phone Price : $88.31
In Stock
