Model # KFGS306VSS04 Official KitchenAid 30" gas cooktop

Here are the diagrams and repair parts for Official KitchenAid KFGS306VSS04 30" gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Cooktop Gas Pressure Regulator W10132345
#21

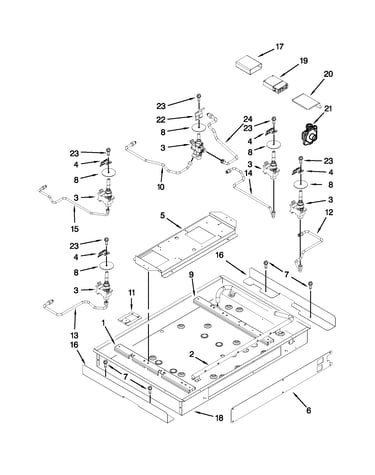

Burner box, gas valves and switches parts diagram

Cooktop gas pressure regulator

Part #W10132345

Replaced by #W11087445

?
Manufacturer substitution
This part replaces W10132345. Substitute parts can look different from the original.
$130.91 |
8% OFF Phone Price : $142.91
In Stock
Cooktop Burner Head 8286814
#8A

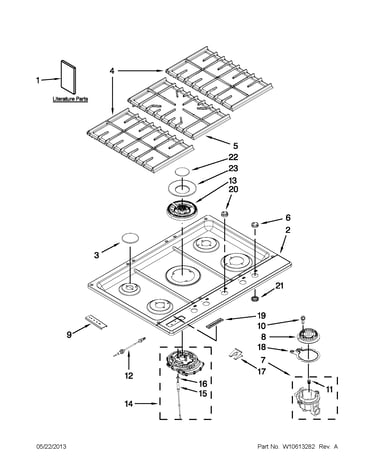

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286814

Replaced by #WP8286814

?
Manufacturer substitution
This part replaces 8286814. Substitute parts can look different from the original.
$64.15 |
9% OFF Phone Price : $70.15
In Stock
Cooktop Burner Head 8286815
#8B

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286815

Replaced by #WP8286815

?
Manufacturer substitution
This part replaces 8286815. Substitute parts can look different from the original.
$64.14 |
9% OFF Phone Price : $70.14
In Stock
Surface Igniter 8286722
#12

Cooktop, burner and grate parts diagram

Surface igniter

Part #8286722

Replaced by #WPW10560001

?
Manufacturer substitution
This part replaces 8286722. Substitute parts can look different from the original.
$33.19 |
15% OFF Phone Price : $39.19
In Stock
Range Screw 3177991
#NI

Parts not illustrated diagram

Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Cooktop Burner Head W10398571
#13

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #W10398571

Replaced by #W10836409

?
Manufacturer substitution
This part replaces W10398571. Substitute parts can look different from the original.
$74.19 |
7% OFF Phone Price : $80.19
In Stock
Cooktop Screw, #4-7 X 19-mm 8287057
#23

Burner box, gas valves and switches parts diagram

Cooktop screw, #4-7 x 19-mm

Part #8287057

This item is not returnable
$7.02
In Stock
Cooktop Holder Orifice W10140570
#7

Cooktop, burner and grate parts diagram

Cooktop holder orifice

Part #W10140570

$29.89
In Stock
Range Surface Burner Igniter Clip 8286863
#17

Cooktop, burner and grate parts diagram

Range surface burner igniter clip

Part #8286863

$29.89
In Stock
Cooktop Lp Conversion Kit W10418077
#NI

Parts not illustrated diagram

Cooktop lp conversion kit

Part #W10418077

This item is not returnable
$10.89 |
16% OFF Phone Price : $12.89
In Stock
