Bosch
Electric Wall Oven

Model # HBL765AUC Official Bosch wall oven

Here are the diagrams and repair parts for Official Bosch HBL765AUC wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Wall Oven Filter 489268
#489268

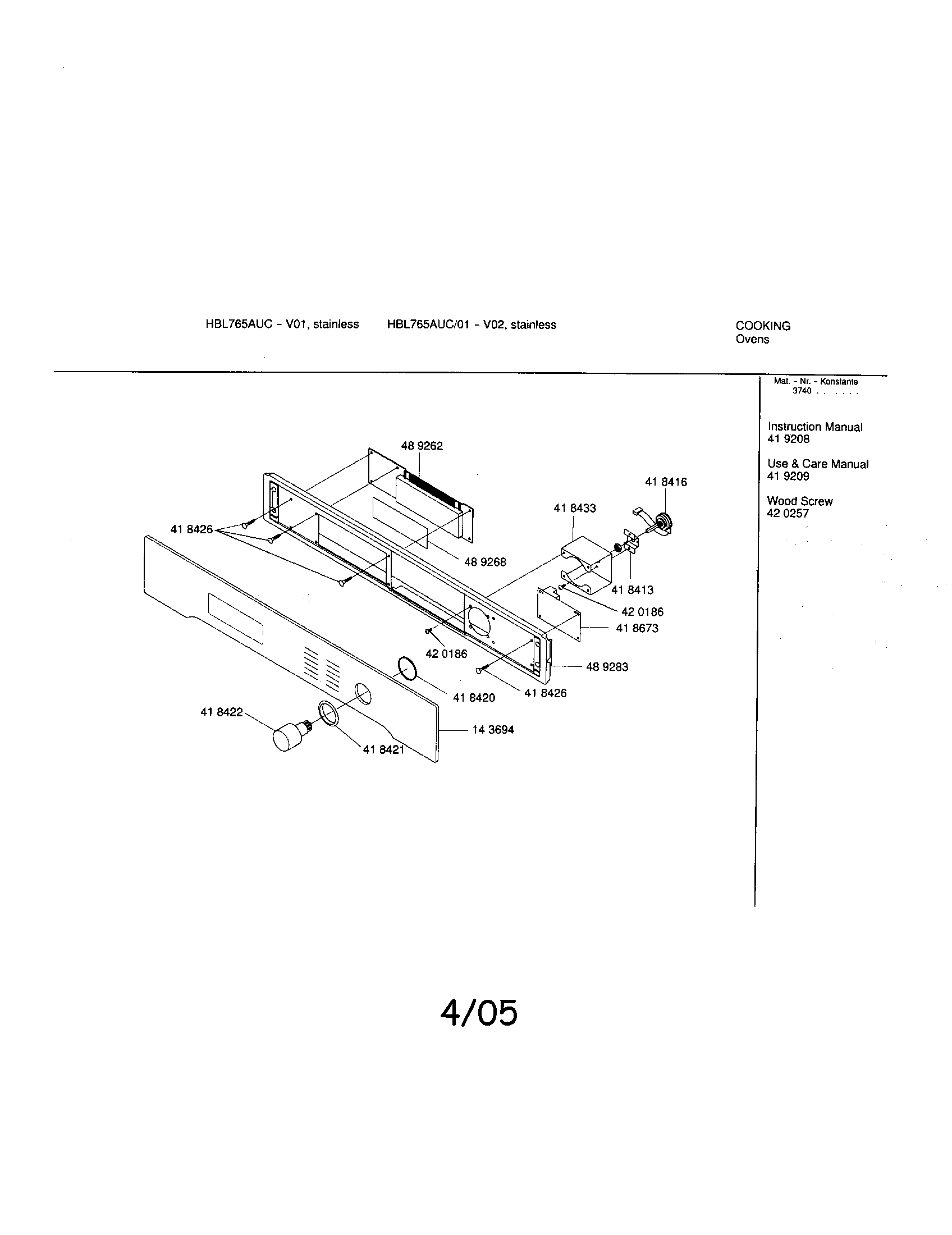

Fascia panel diagram

Wall oven filter

Part #489268

Replaced by #00489268

?
Manufacturer substitution
This part replaces 489268. Substitute parts can look different from the original.
$29.04 |
17% OFF Phone Price : $35.04
In Stock
Oven Bulb 420228
Oven bulb

Part #420228

Replaced by #00189351

?
Manufacturer substitution
This part replaces 420228. Substitute parts can look different from the original.
$25.79 |
19% OFF Phone Price : $31.79
In Stock
Crossbar 143620
#143620

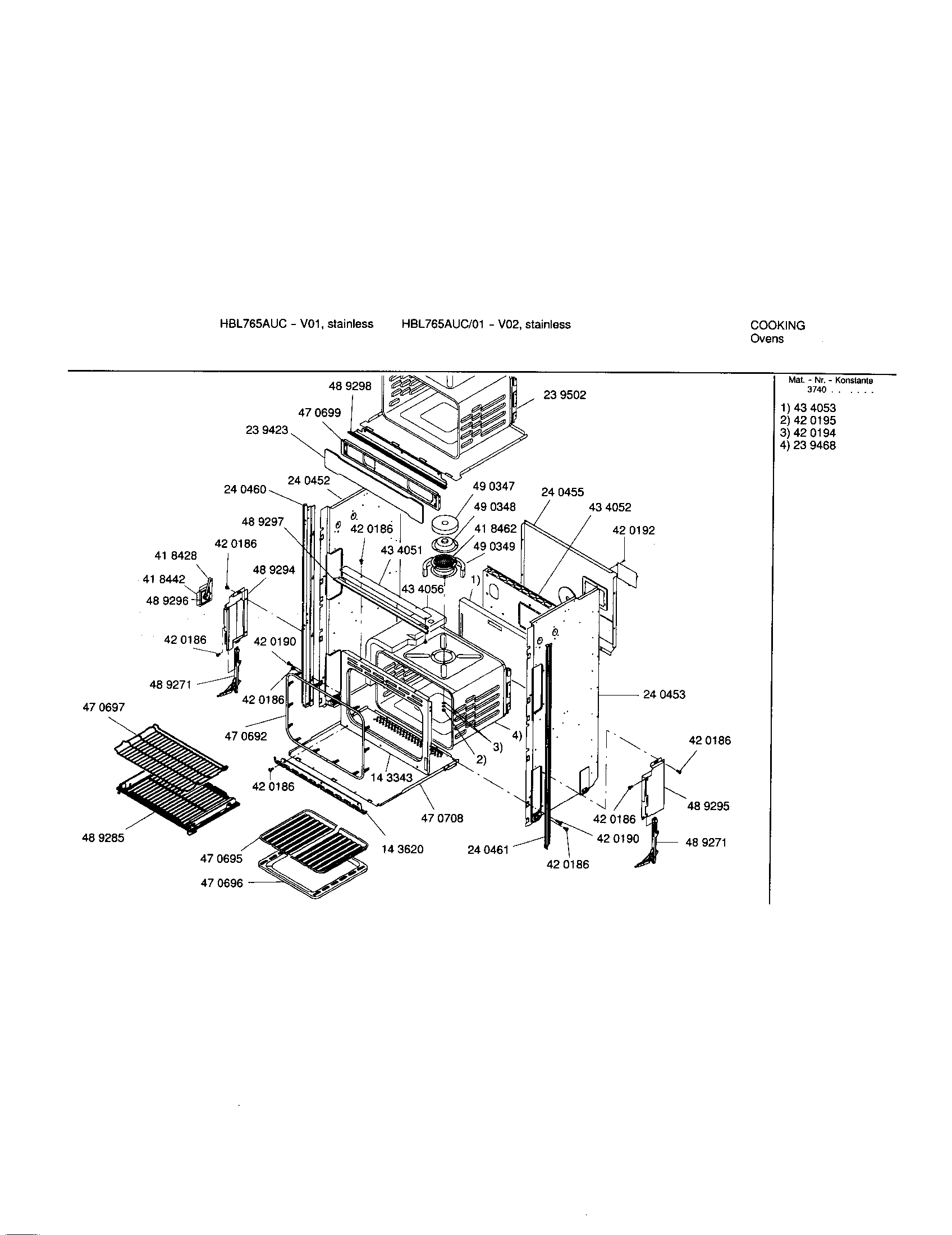

Lower body diagram

Crossbar

Part #143620

The manufacturer no longer makes this part, and there's no substitute part

Oven Rack 470697
Oven rack

Part #470697

The manufacturer no longer makes this part, and there's no substitute part

Reflector 239405
#239405

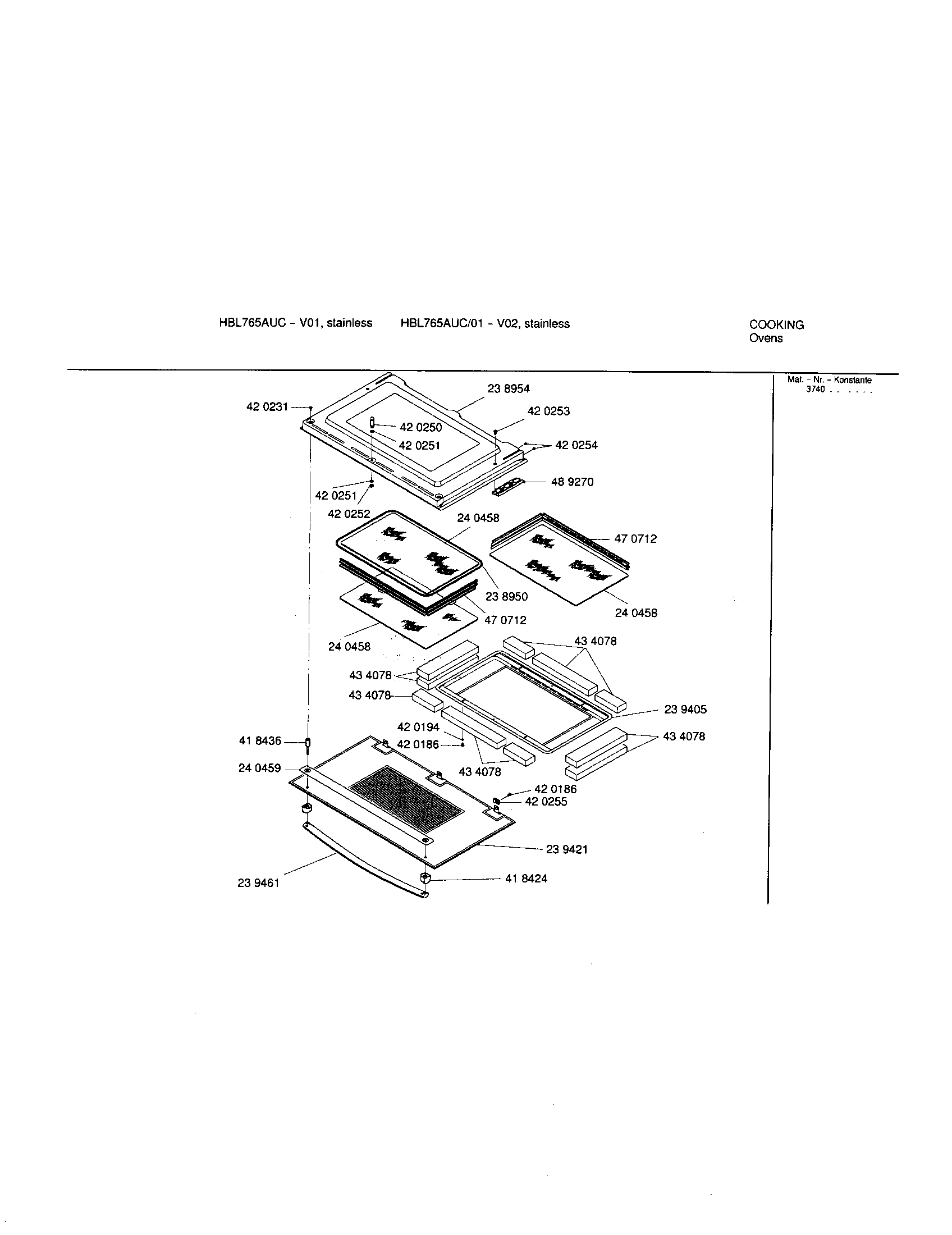

Upper lower door diagram

Reflector

Part #239405

The manufacturer no longer makes this part, and there's no substitute part

Resistor 420238
Resistor

Part #420238

The manufacturer no longer makes this part, and there's no substitute part

Support 489283
#489283

Fascia panel diagram

Support

Part #489283

The manufacturer no longer makes this part, and there's no substitute part

Element 420222
#420222

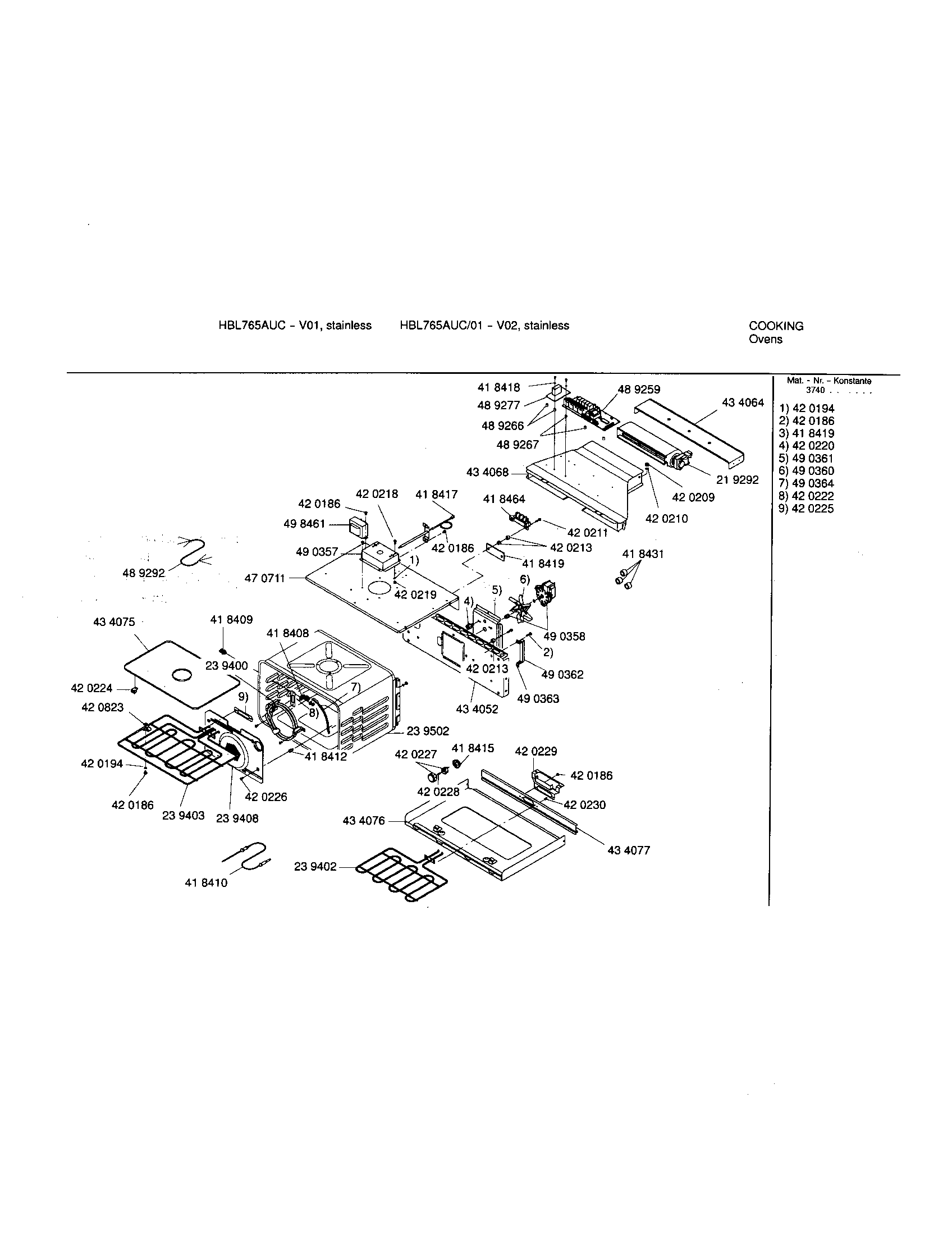

Upper cavity diagram

Element

Part #420222

The manufacturer no longer makes this part, and there's no substitute part

Oven Owner's Manual 419209

#NI02

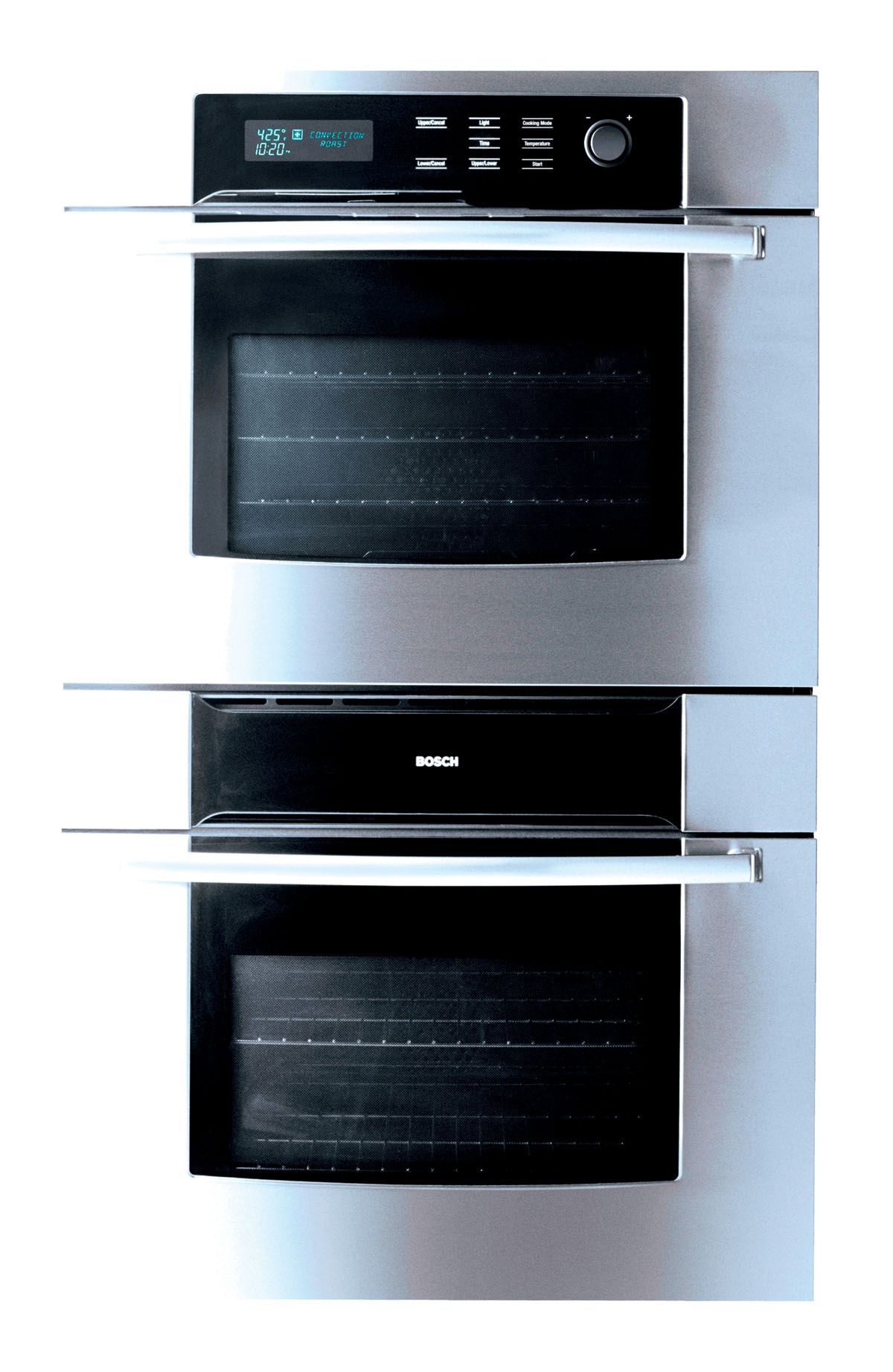

All parts diagram

Oven owner's manual

Part #419209

The manufacturer no longer makes this part, and there's no substitute part

Case 470693
#470693

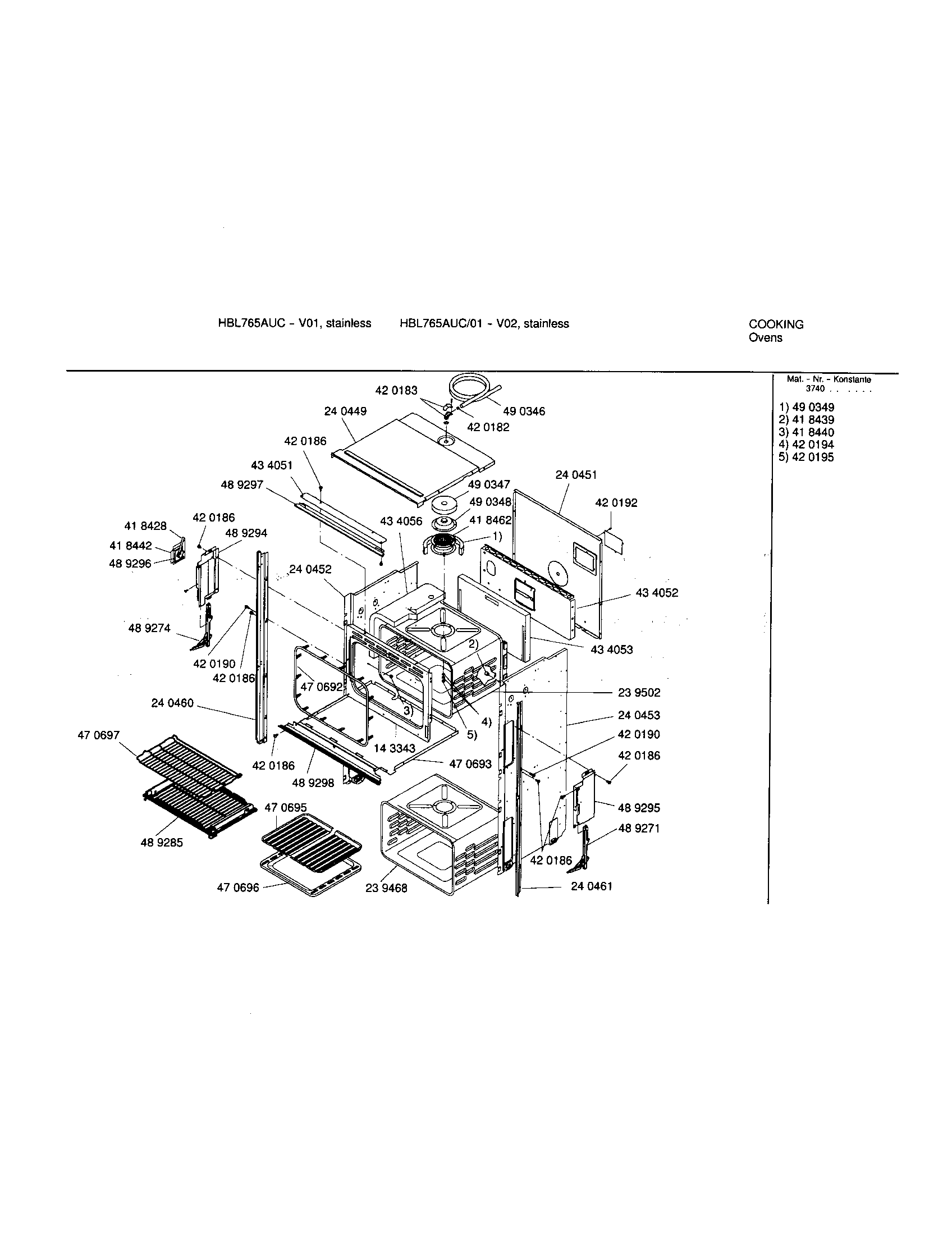

Upper body diagram

Case

Part #470693

The manufacturer no longer makes this part, and there's no substitute part
