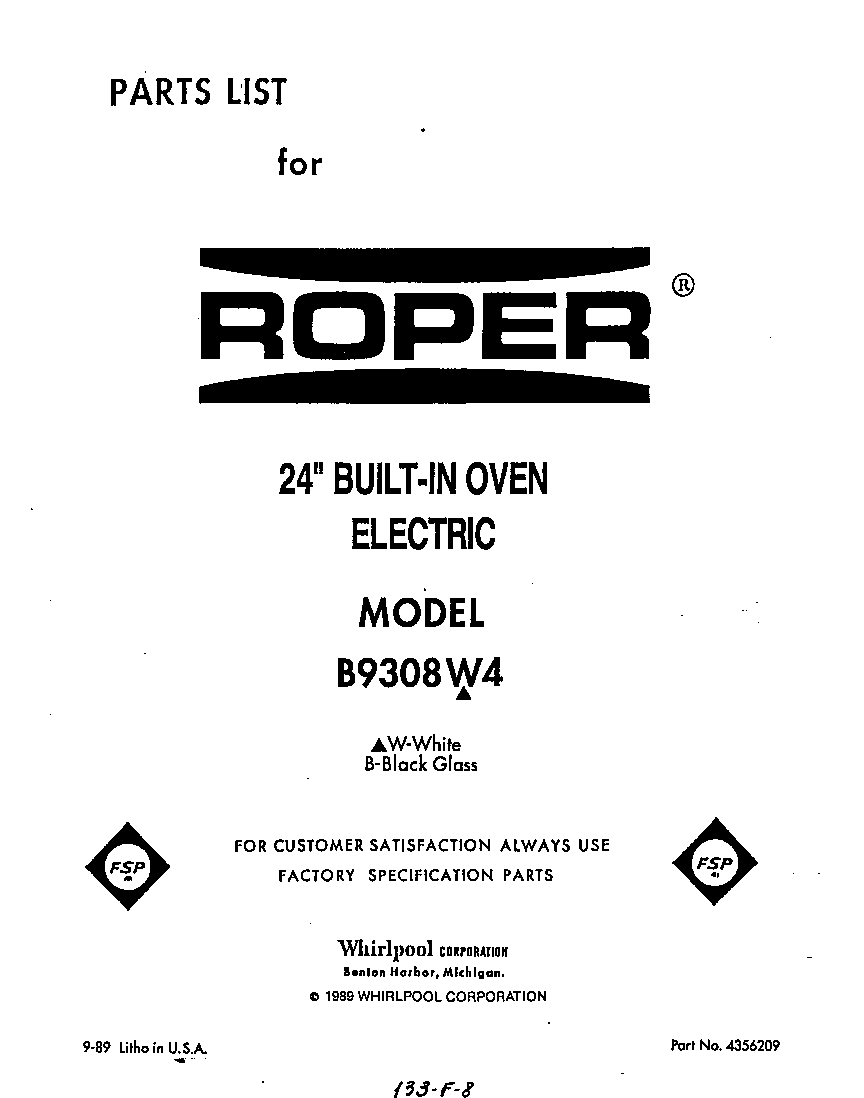

Model # B9308W4 Official Roper electric range

Here are the diagrams and repair parts for Official Roper B9308W4 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

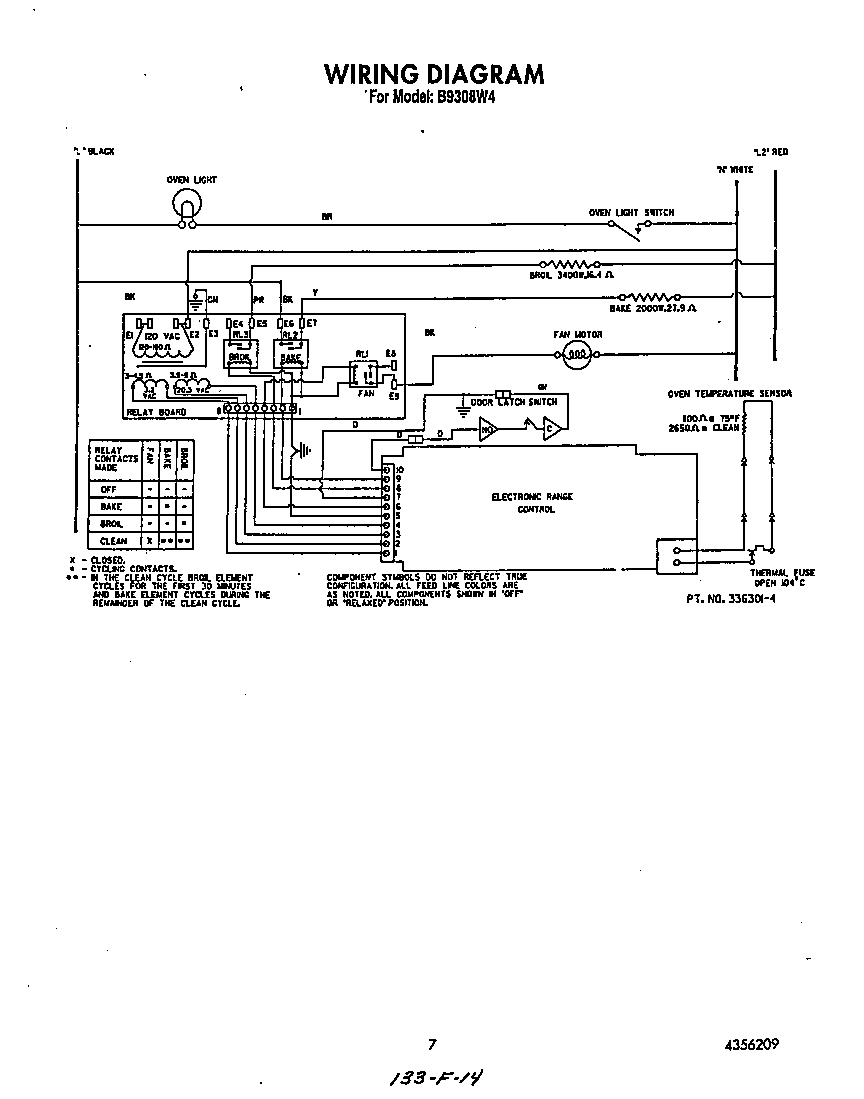

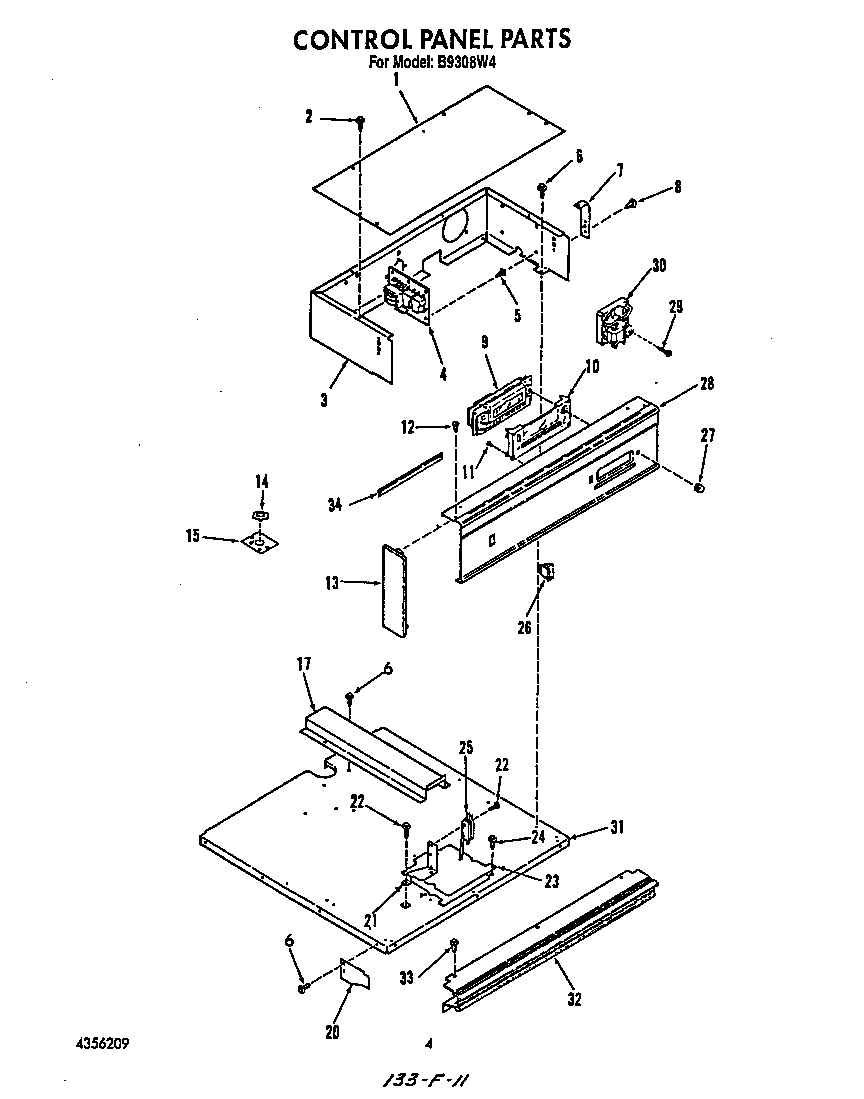

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Lamp Bulb 4338591
#25

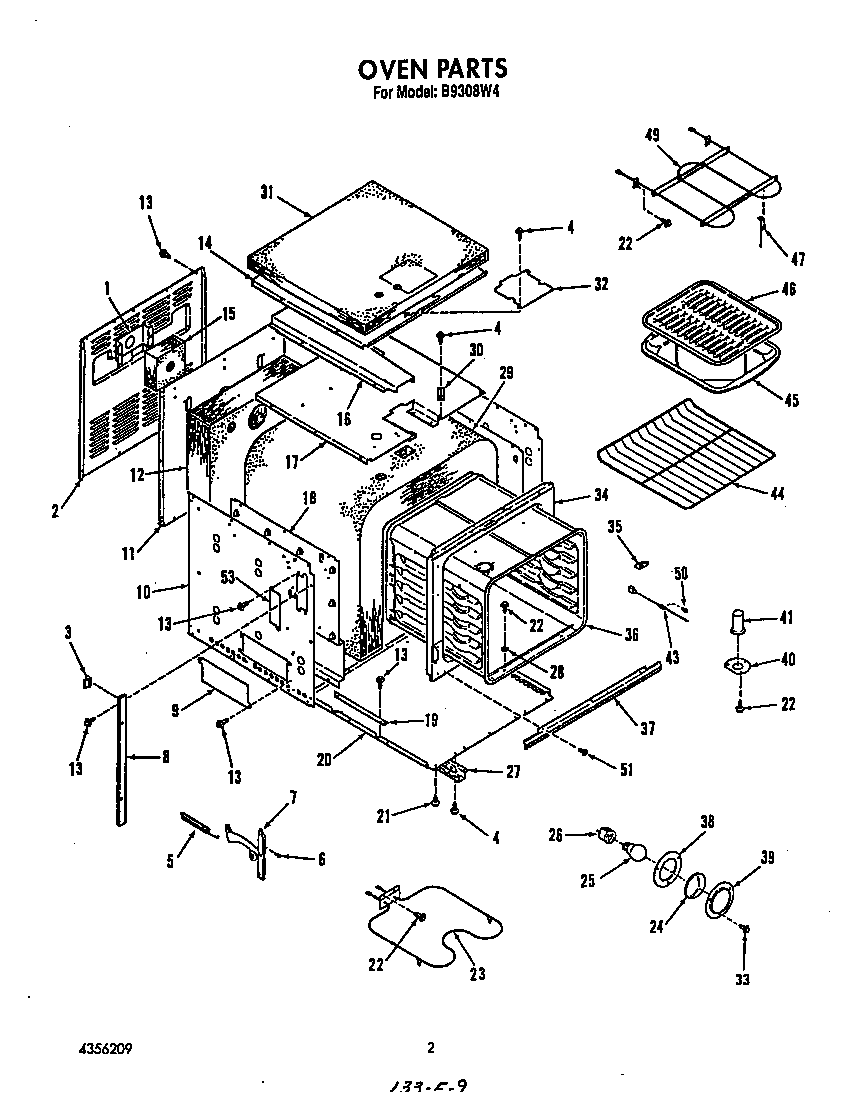

Oven diagram

Lamp bulb

Part #4338591

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4338591. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Bake Element 4335541
#23

Oven diagram

Bake element

Part #4335541

Replaced by #WB44M6

?
Manufacturer substitution
This part replaces 4335541. Substitute parts can look different from the original.
$69.28 |
8% OFF Phone Price : $75.28
In Stock
Screw-10-32x 4327611
#17

Oven door diagram

Screw-10-32x

Part #4327611

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 4327611. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 369 4331106
Screw 369

Part #4331106

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 4331106. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Grid Broiler Pan 4334897
#46

Oven diagram

Grid broiler pan

Part #4334897

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces 4334897. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Oven Broiler Pan 4336602
#45

Oven diagram

Oven broiler pan

Part #4336602

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces 4336602. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Screw 6-20x3 4336048
#15A

Oven door diagram

Screw 6-20x3

Part #4336048

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces 4336048. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw 6x3/8 4324445
#50

Oven diagram

Screw 6x3/8

Part #4324445

Replaced by #WB1X681

?
Manufacturer substitution
This part replaces 4324445. Substitute parts can look different from the original.
$8.11
In Stock
Hndle-lock 4338045
#4

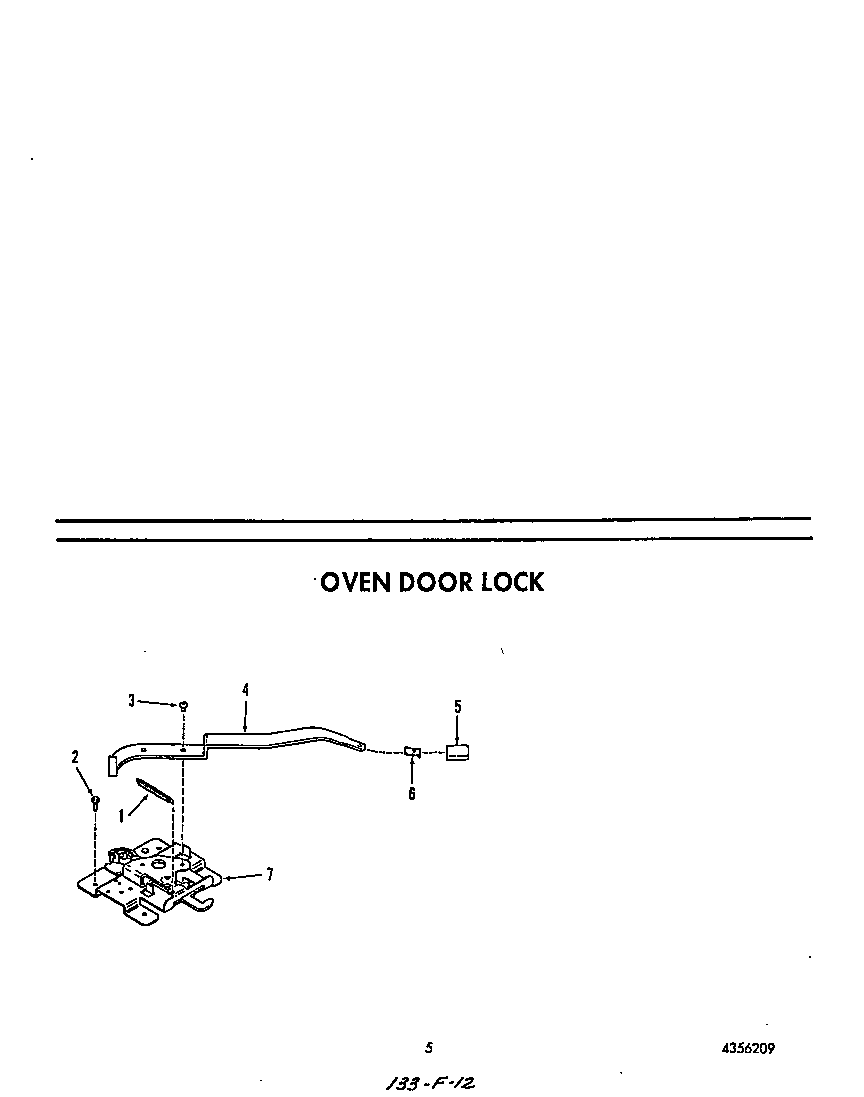

Oven door lock diagram

Hndle-lock

Part #4338045

This item is not returnable
$4.49
In Stock
Faston Term 4325036
#53C

Oven diagram

Faston term

Part #4325036

This item is not returnable
$2.29
In Stock
