Jenn-Air
Bottom-Mount Refrigerator

Model # JFC2089HPR11 Official Jenn-Air bottom-mount refrigerator

Here are the diagrams and repair parts for Official Jenn-Air JFC2089HPR11 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

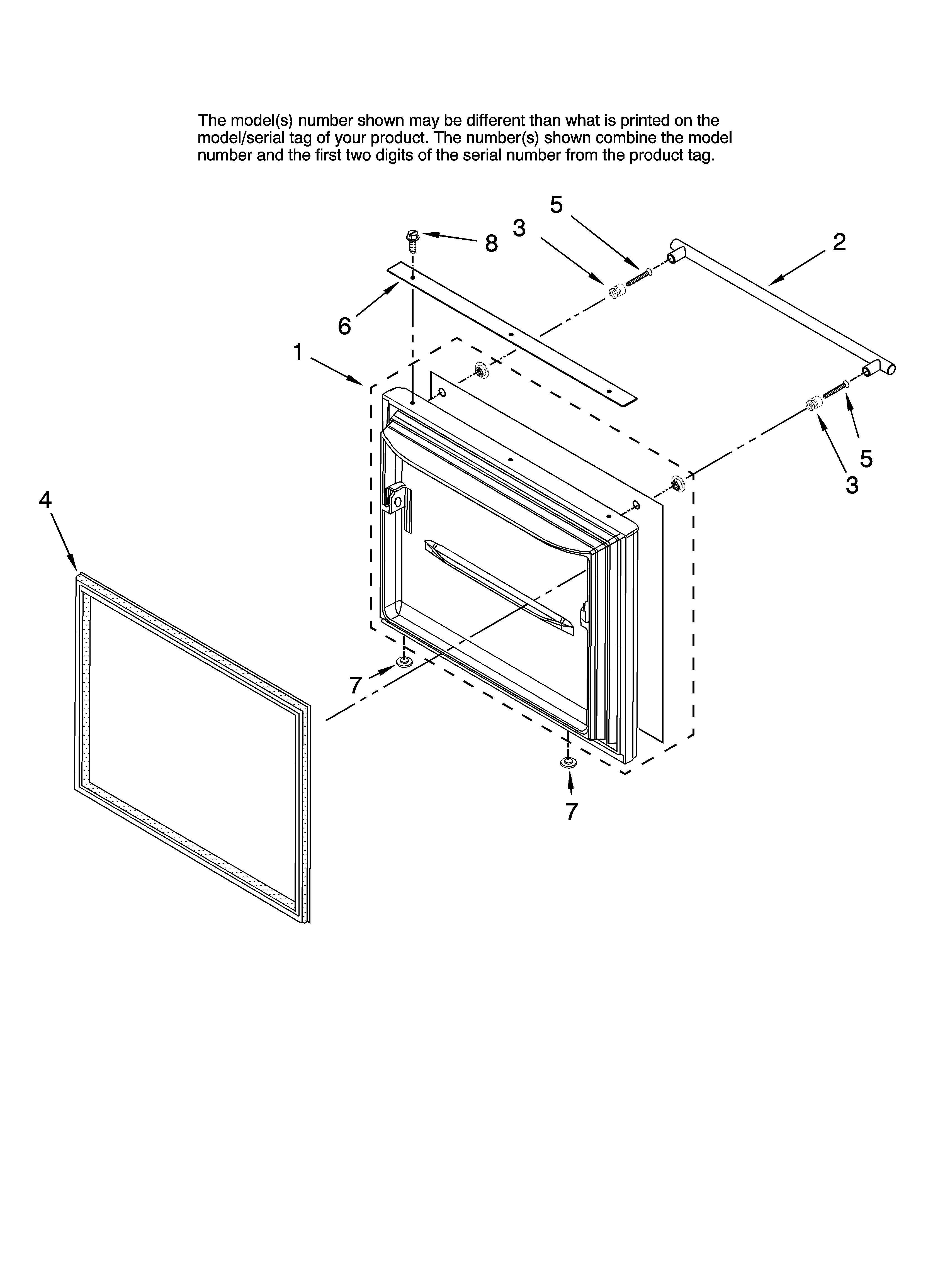

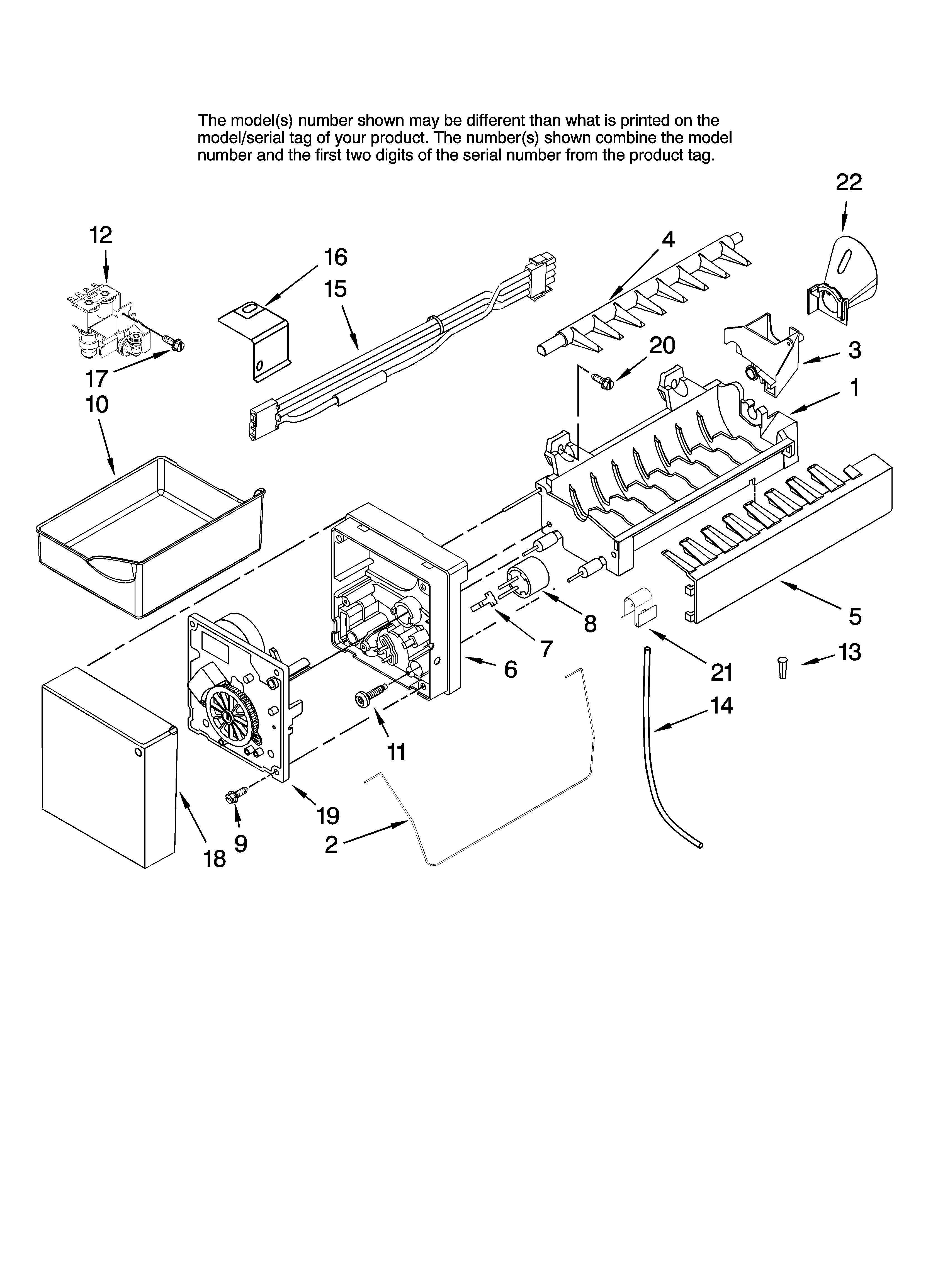

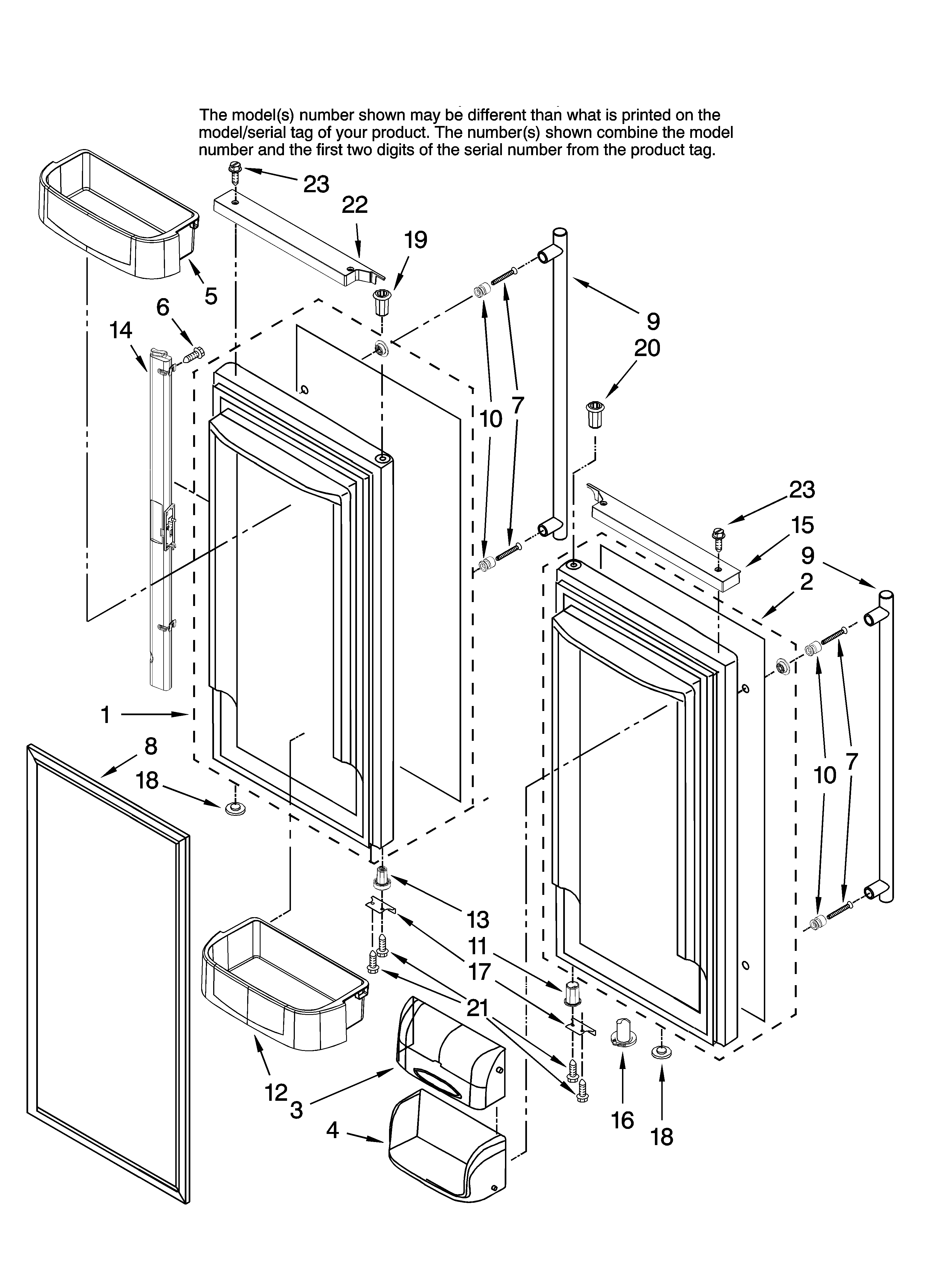

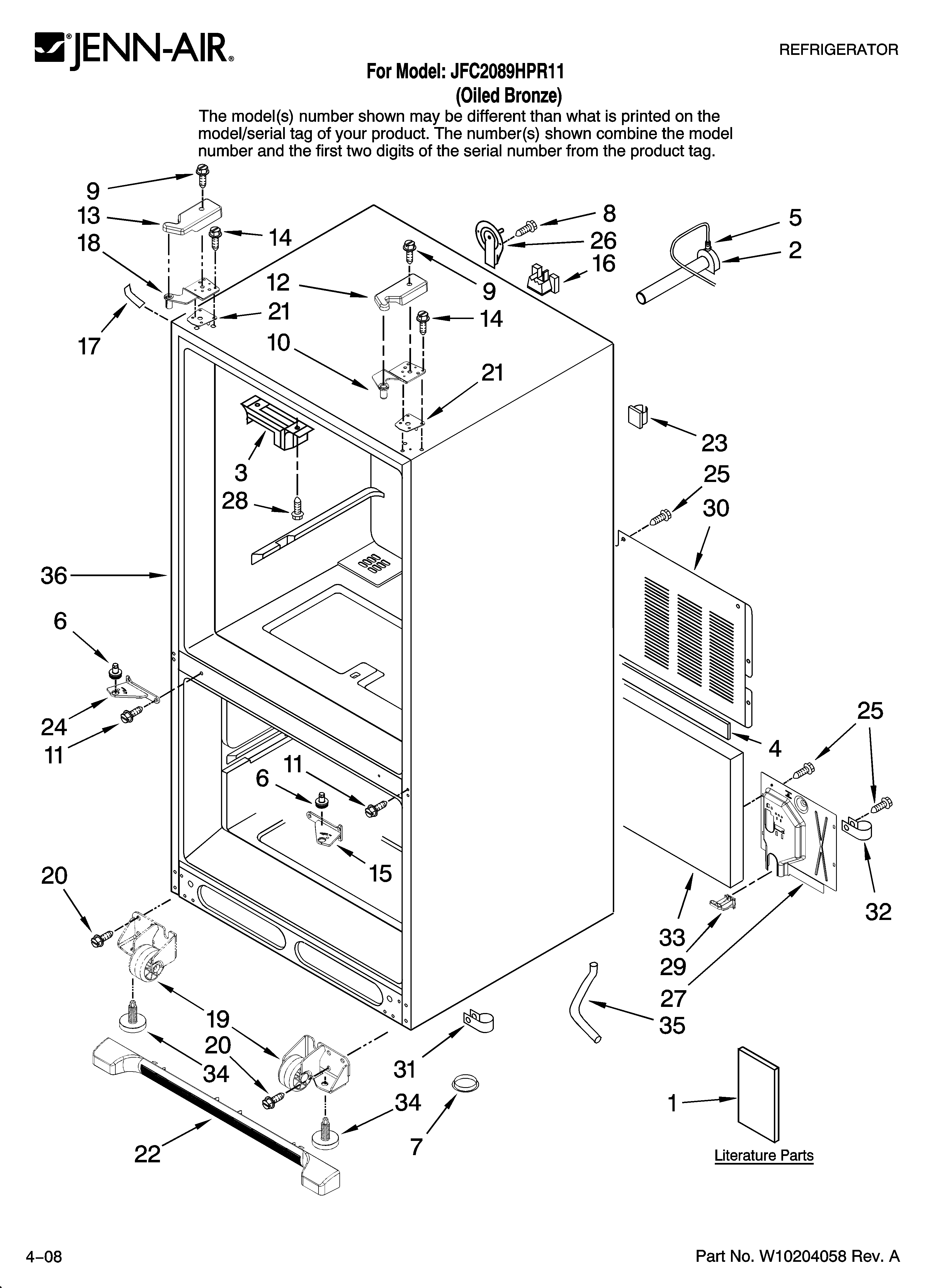

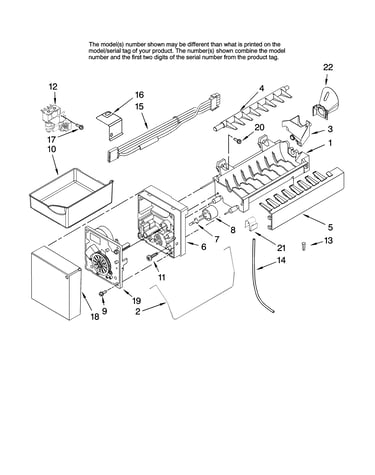

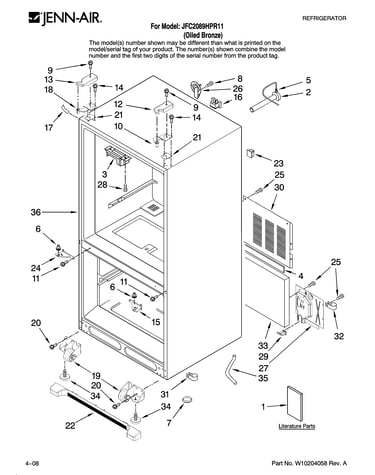

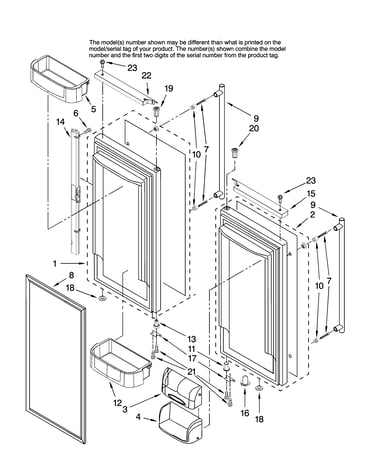

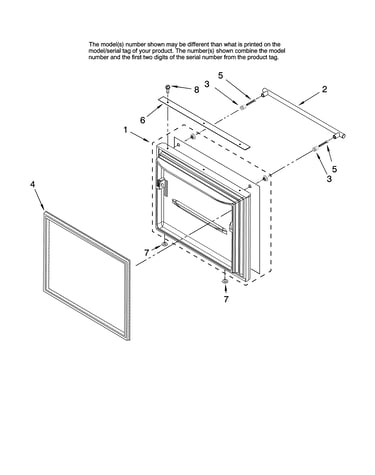

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |
Refrigerator Water Filter UKF8001AXX
#19

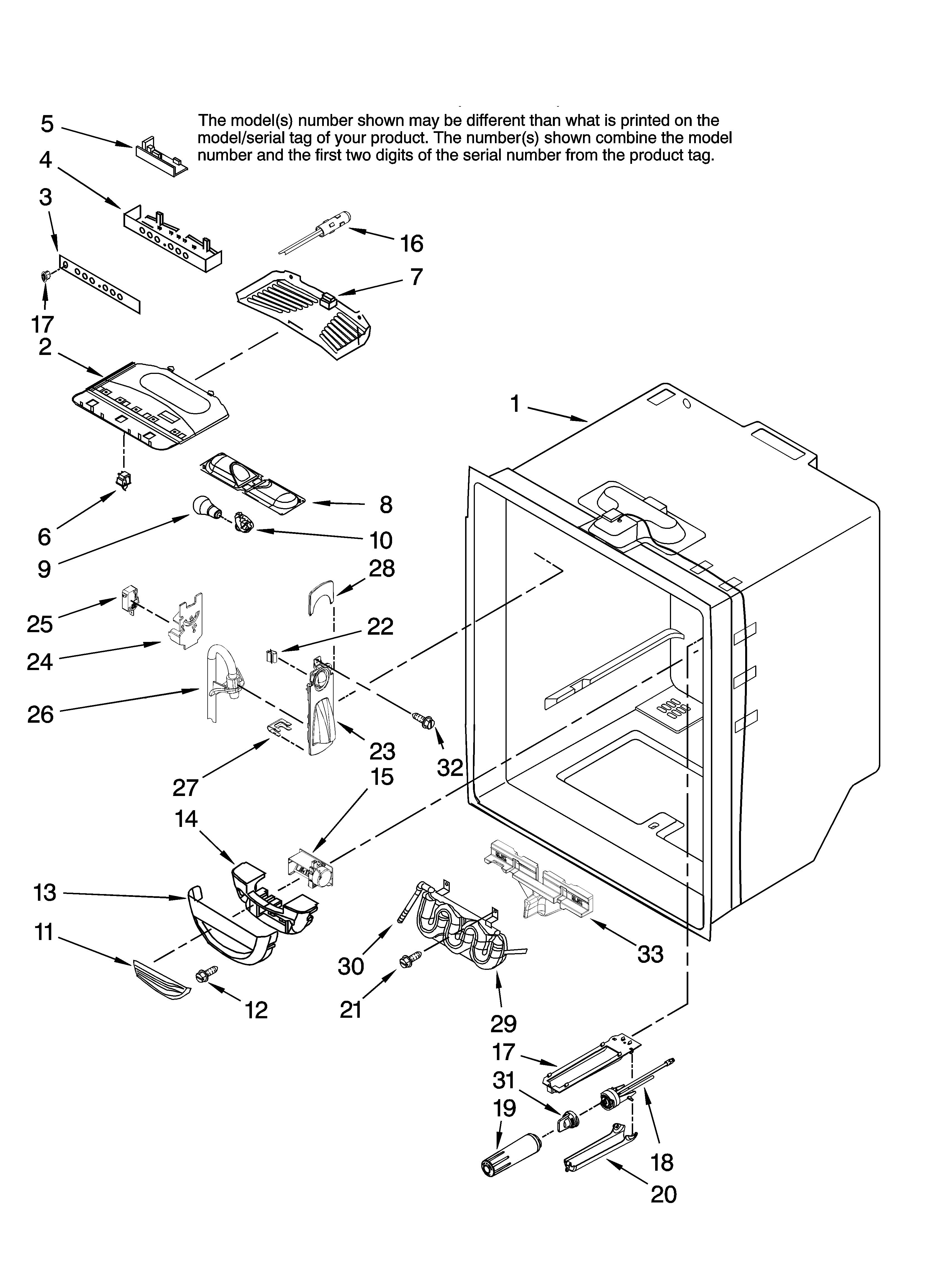

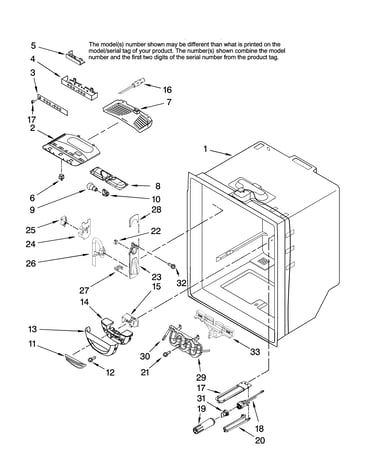

Refrigerator liner parts diagram

Refrigerator water filter

Part #UKF8001AXX

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces UKF8001AXX. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Drier 2317845
#27

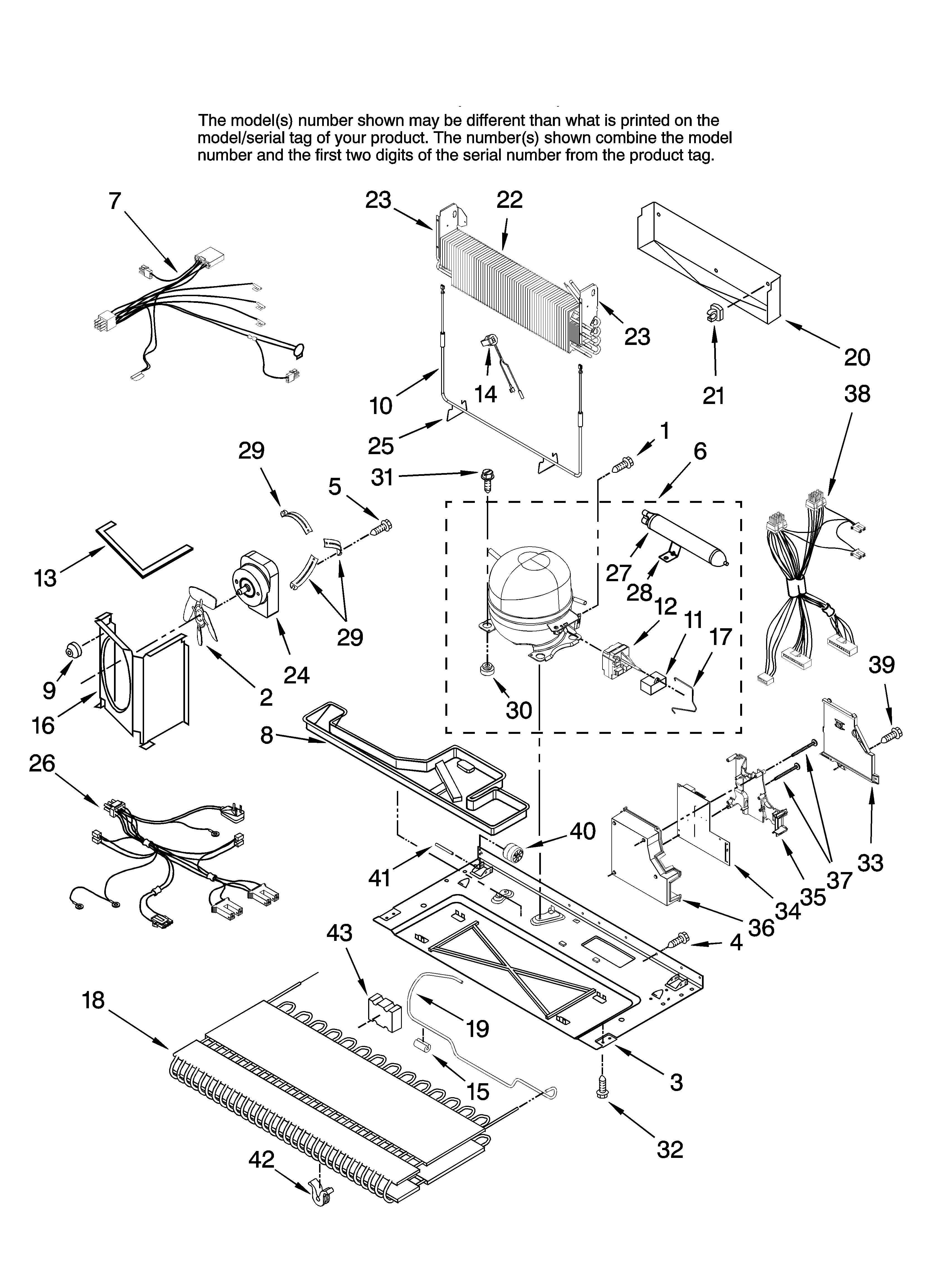

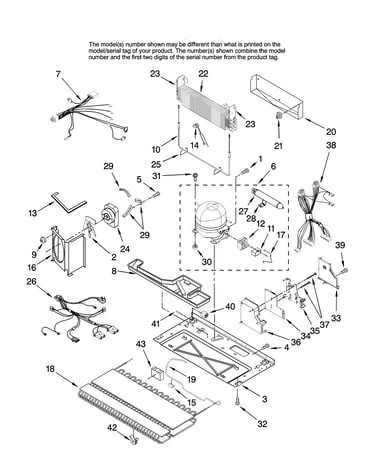

Unit parts diagram

Refrigerator drier

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Bulb A0282812
Refrigerator light bulb

Part #A0282812

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch C3680310
#6

Refrigerator liner parts diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Compressor 12002634
#6

Unit parts diagram

Refrigerator compressor

Part #12002634

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 12002634. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Refrigerator Overload Release 67005561
#12

Unit parts diagram

Refrigerator overload release

Part #67005561

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005561. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Capacitor W/ 67005562
#11

Unit parts diagram

Capacitor w/

Part #67005562

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005562. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Light Switch 67005653
#16

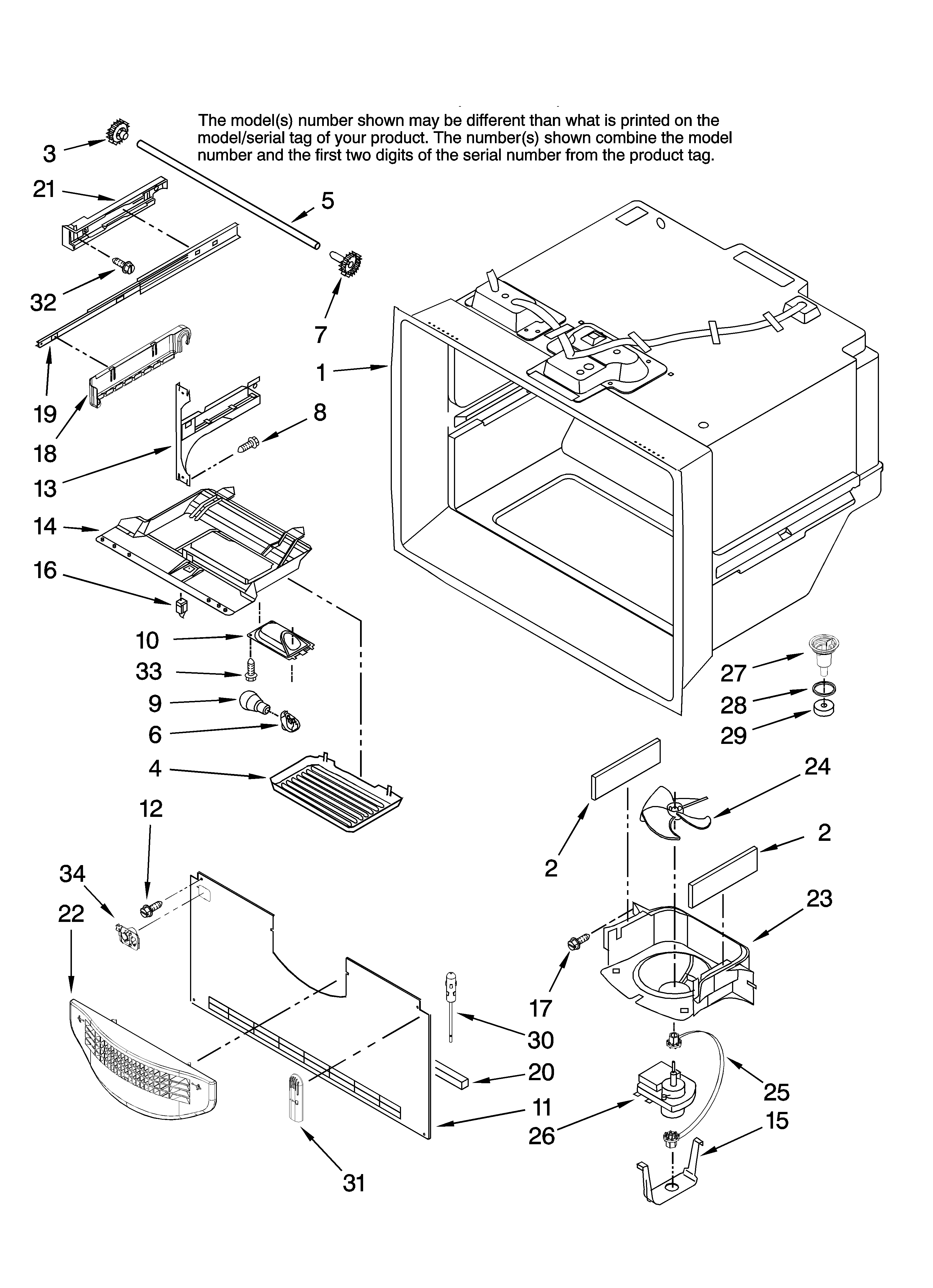

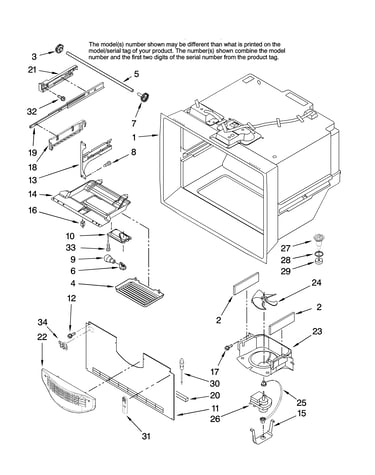

Freezer liner parts diagram

Refrigerator light switch

Part #67005653

Replaced by #12002646

?
Manufacturer substitution
This part replaces 67005653. Substitute parts can look different from the original.
BEST SELLER
$26.49
In Stock
Refrigerator Pantry Drawer Door 67005899
#31

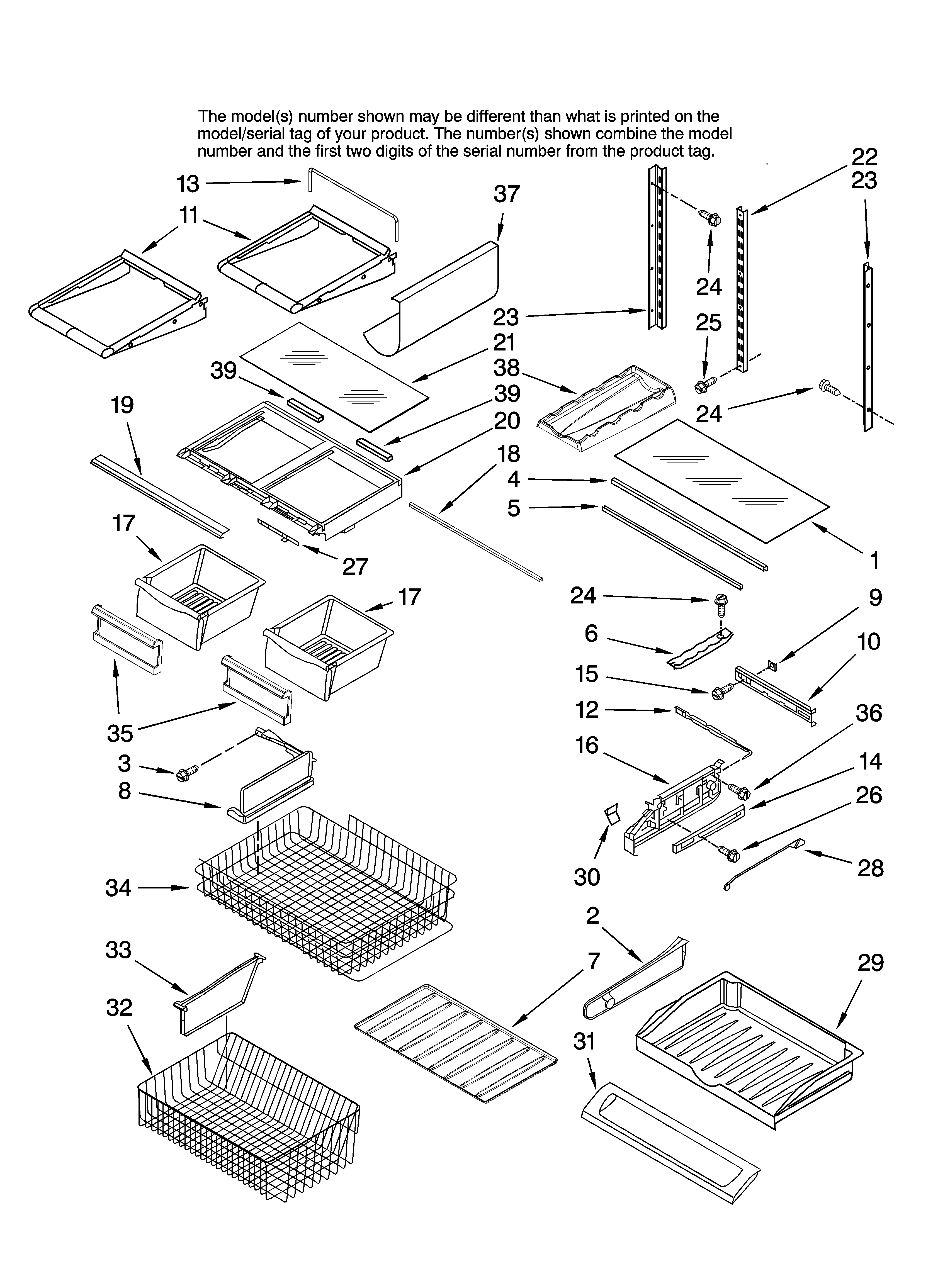

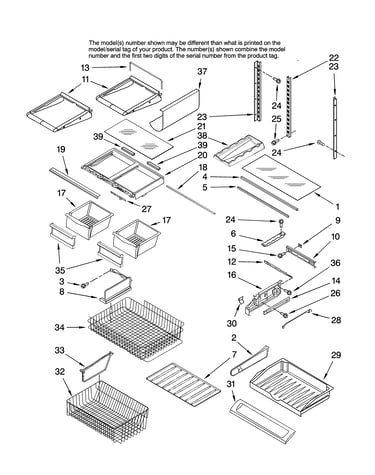

Shelf parts diagram

Refrigerator pantry drawer door

Part #67005899

Replaced by #W10827015

?
Manufacturer substitution
This part replaces 67005899. Substitute parts can look different from the original.
BEST SELLER
$100.46 |
11% OFF Phone Price : $112.46
In Stock
Evaporator Motor 67003636
#26

Freezer liner parts diagram

Evaporator motor

Part #67003636

Replaced by #WPW10128551

?
Manufacturer substitution
This part replaces 67003636. Substitute parts can look different from the original.
BEST SELLER
$65.76 |
8% OFF Phone Price : $71.76
In Stock
