Hoover
Handheld Vacuum

Model # BH50030 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover BH50030 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

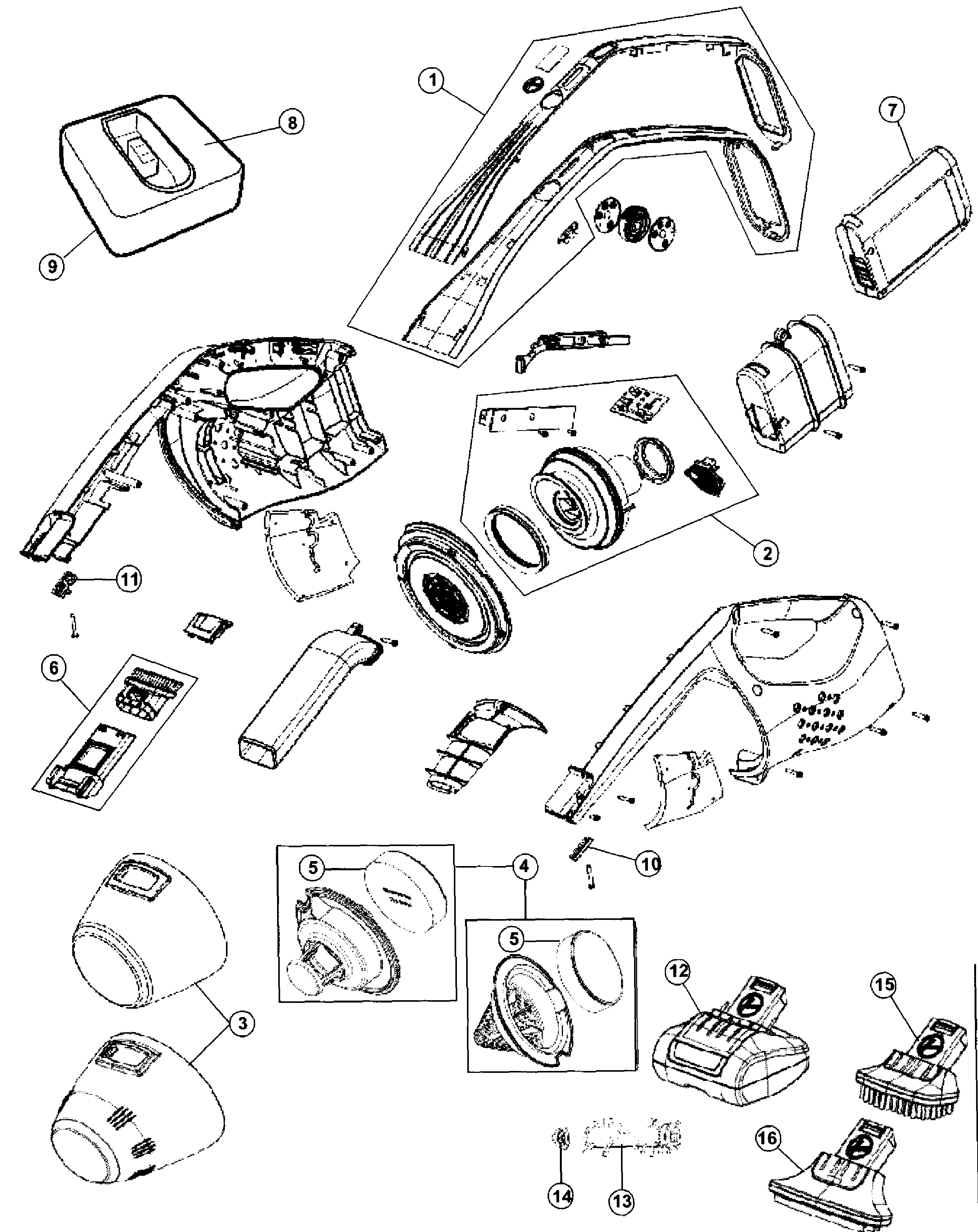

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |

Hoover Filter Assembly 304276001
#4

Vacuum diagram

Hoover filter assembly

Part #304276001

The manufacturer no longer makes this part, and there's no substitute part

Hoover Dusting Br 410049001
#15

Vacuum diagram

Hoover dusting br

Part #410049001

The manufacturer no longer makes this part, and there's no substitute part

Hoover Vacuum Dust Bin 347772003
#3

Vacuum diagram

Hoover vacuum dust bin

Part #347772003

The manufacturer no longer makes this part, and there's no substitute part

Foot 562220001
#9

Vacuum diagram

Foot

Part #562220001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Battery Charger 302736001
#8

Vacuum diagram

Vacuum battery charger

Part #302736001

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 002044001
#1

Vacuum diagram

Handle assembly

Part #002044001

The manufacturer no longer makes this part, and there's no substitute part

Bottom Hou 347972001
#11

Vacuum diagram

Bottom hou

Part #347972001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Battery Pack 302723001
#7

Vacuum diagram

Vacuum battery pack

Part #302723001

The manufacturer no longer makes this part, and there's no substitute part

Bottom Hou 347971001
#10

Vacuum diagram

Bottom hou

Part #347971001

The manufacturer no longer makes this part, and there's no substitute part

Wiring Motor 002045001
#2

Vacuum diagram

Wiring motor

Part #002045001

The manufacturer no longer makes this part, and there's no substitute part
