Model # SCD27 Official Samsung camcorder

Here are the diagrams and repair parts for Official Samsung SCD27 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Frnt Delta AD97-06482B
#100

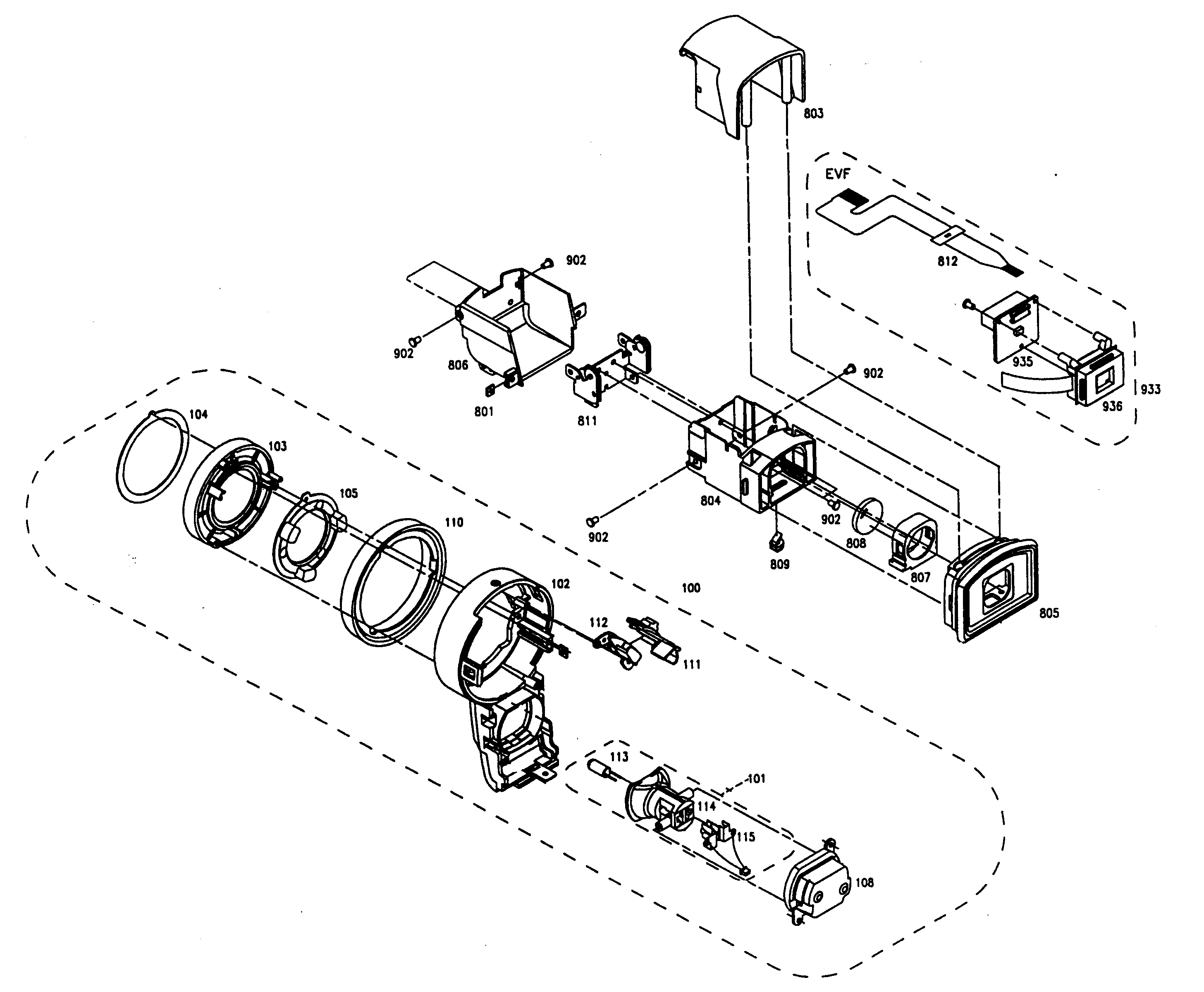

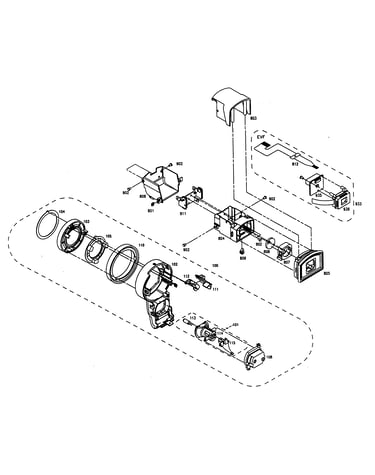

Front/evf parts diagram

Frnt delta

Part #AD97-06482B

The manufacturer no longer makes this part, and there's no substitute part

Door AD61-01028A
#617

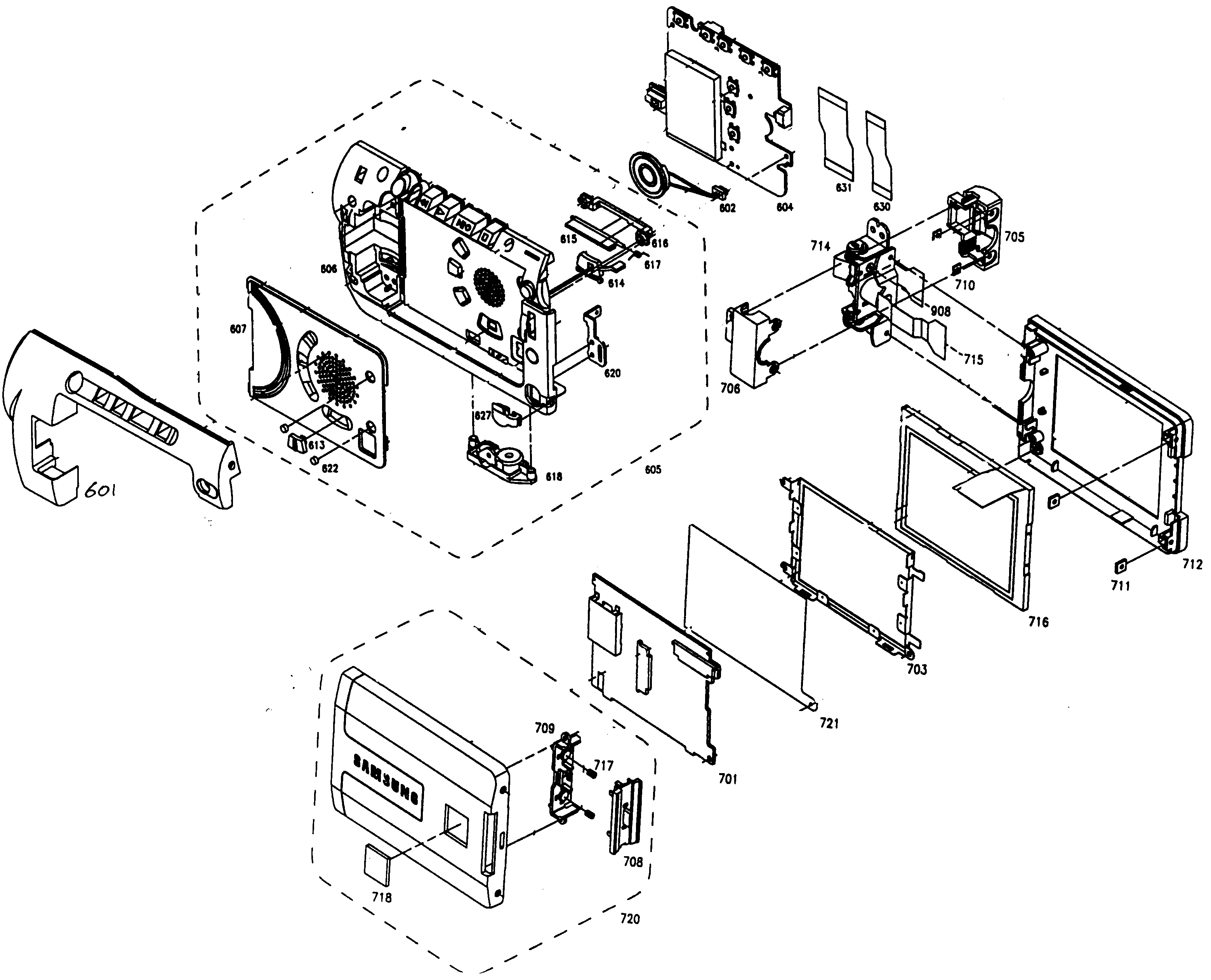

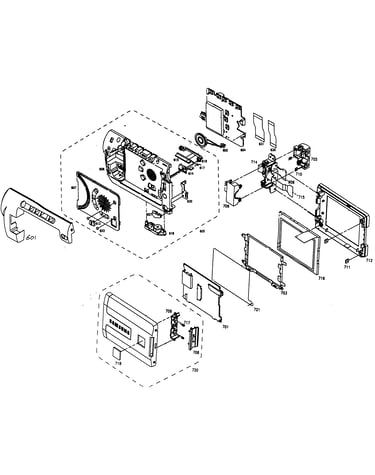

Left side assy diagram

Door

Part #AD61-01028A

The manufacturer no longer makes this part, and there's no substitute part

Case Eye View Finder AD61-01129A
#804

Front/evf parts diagram

Case eye view finder

Part #AD61-01129A

The manufacturer no longer makes this part, and there's no substitute part

Rear Case AD61-01141A
#204

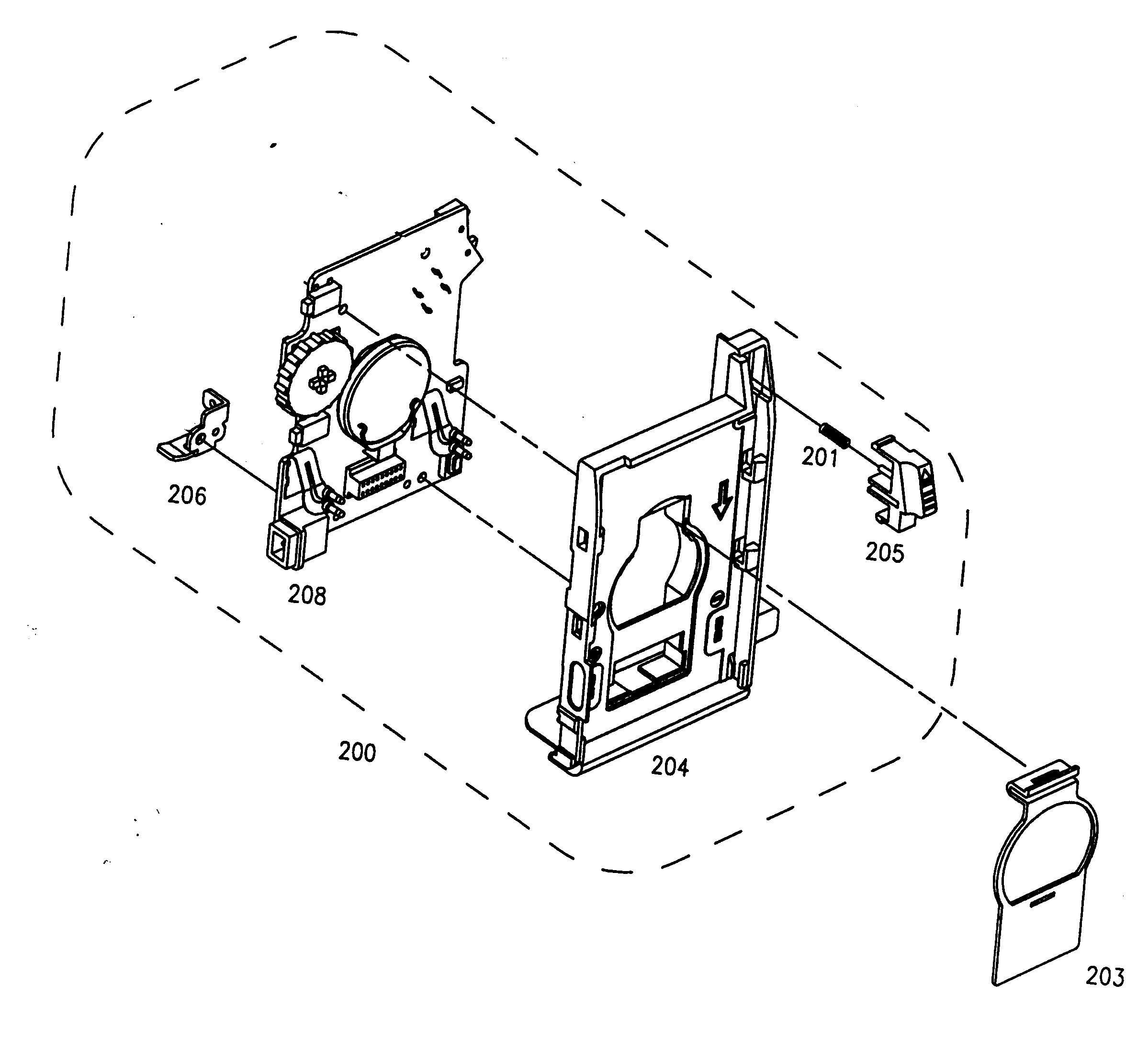

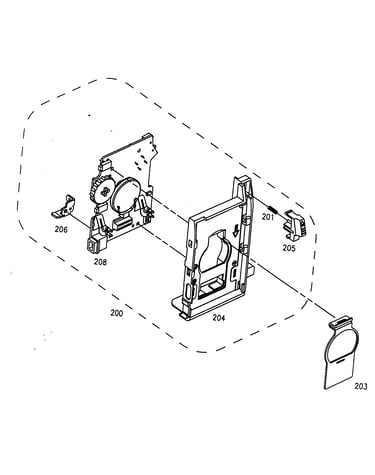

Back assy diagram

Rear case

Part #AD61-01141A

The manufacturer no longer makes this part, and there's no substitute part

Assembly AD97-06485A
#850

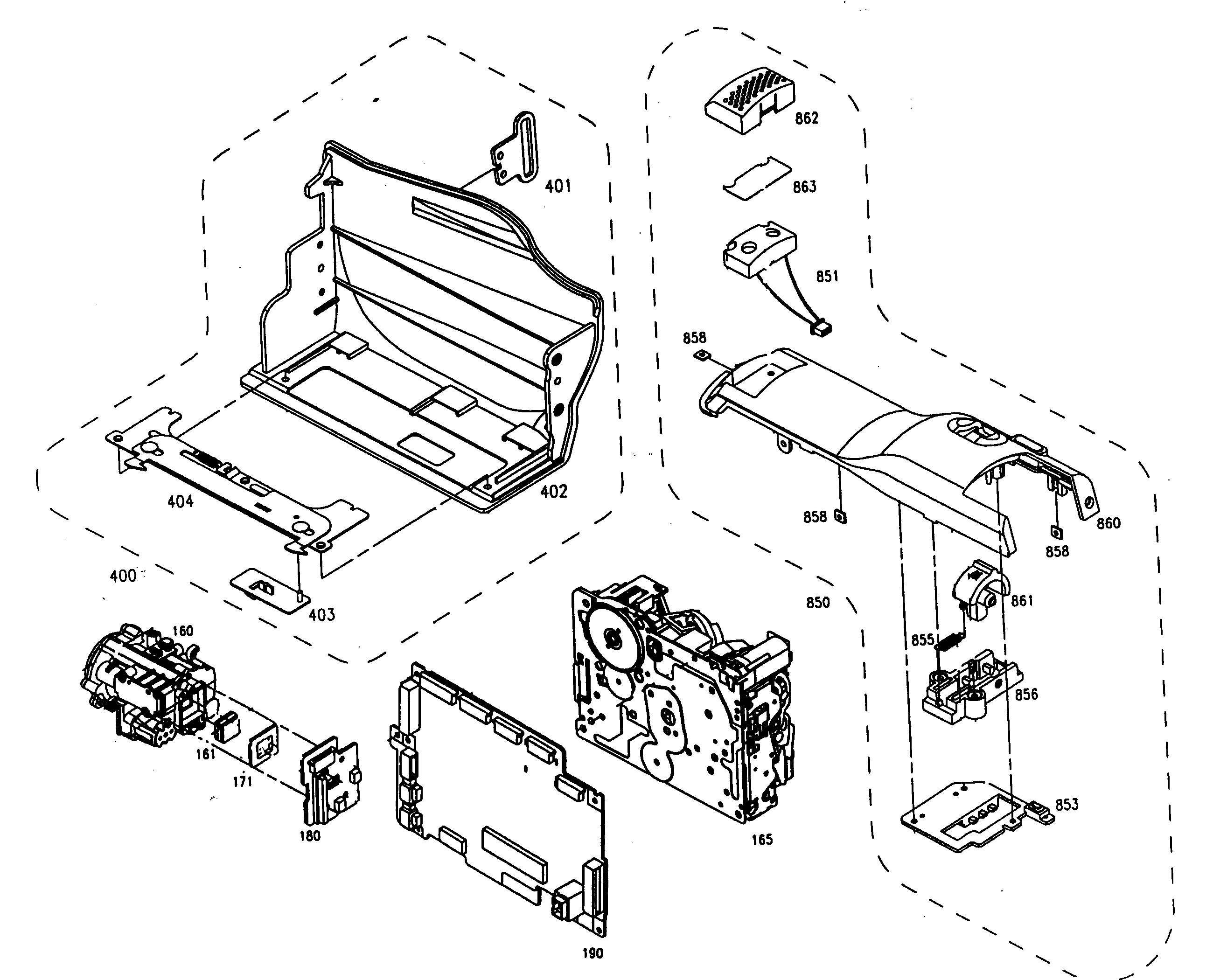

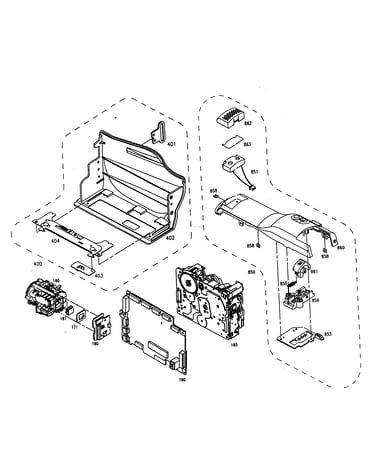

Right side assy diagram

Assembly

Part #AD97-06485A

The manufacturer no longer makes this part, and there's no substitute part

Holder AD61-01113A
#807

Front/evf parts diagram

Holder

Part #AD61-01113A

The manufacturer no longer makes this part, and there's no substitute part

Microphone Assembly AD97-06477A
#851

Right side assy diagram

Microphone assembly

Part #AD97-06477A

The manufacturer no longer makes this part, and there's no substitute part

Fuse 3601-000207
#NI

Front/evf parts diagram

Fuse

Part #3601-000207

The manufacturer no longer makes this part, and there's no substitute part

Fuse 3601-001331
#NI

Front/evf parts diagram

Fuse

Part #3601-001331

The manufacturer no longer makes this part, and there's no substitute part

Transf Smd 2601-001090
#NI

Front/evf parts diagram

Transf smd

Part #2601-001090

The manufacturer no longer makes this part, and there's no substitute part
