GE
Room Air Conditioner

Model # AGW10ABG1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AGW10ABG1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Ge Agw08/10/12 49-7449
#9999

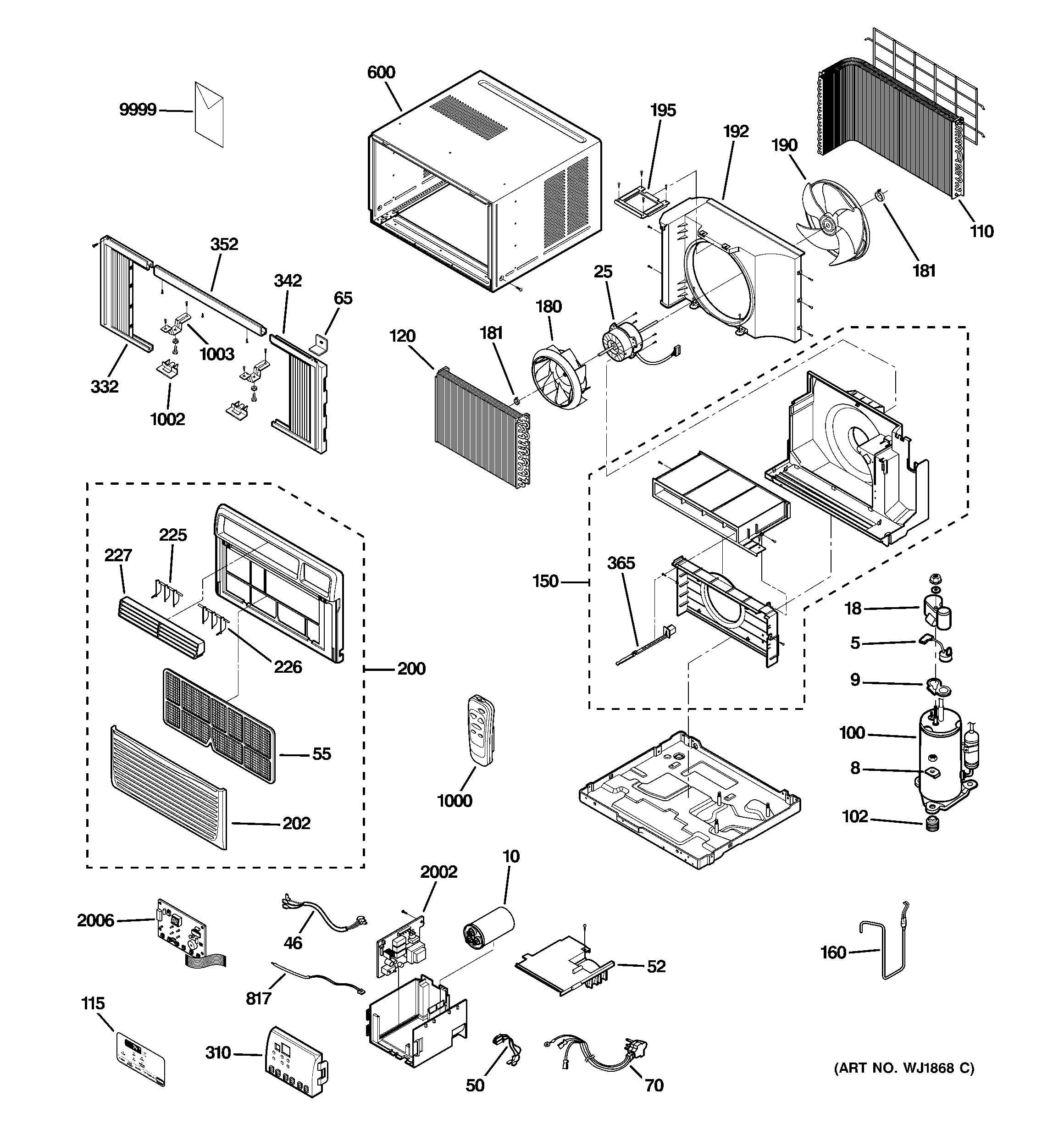

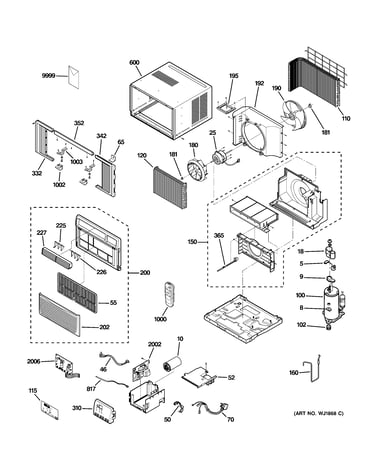

Room air conditioner diagram

Ge agw08/10/12

Part #49-7449

$17.99
In Stock
Ventilation Damper WJ14X10039
#365

Room air conditioner diagram

Ventilation damper

Part #WJ14X10039

The manufacturer no longer makes this part, and there's no substitute part

Sill Bracket WJ01X10074
#1003

Room air conditioner diagram

Sill bracket

Part #WJ01X10074

The manufacturer no longer makes this part, and there's no substitute part

Condenser WJ88X10102
#110

Room air conditioner diagram

Condenser

Part #WJ88X10102

The manufacturer no longer makes this part, and there's no substitute part

Compressor WJ98X10116
#100

Room air conditioner diagram

Compressor

Part #WJ98X10116

The manufacturer no longer makes this part, and there's no substitute part

Evaporator WJ87X10127
#120

Room air conditioner diagram

Evaporator

Part #WJ87X10127

The manufacturer no longer makes this part, and there's no substitute part

Louver,verti WJ85X10074
#226

Room air conditioner diagram

Louver,verti

Part #WJ85X10074

The manufacturer no longer makes this part, and there's no substitute part

Compressor Overload Protector WJ23X10014
#5

Room air conditioner diagram

Compressor overload protector

Part #WJ23X10014

The manufacturer no longer makes this part, and there's no substitute part

Horizontal Louver WJ85X10075
#227

Room air conditioner diagram

Horizontal louver

Part #WJ85X10075

The manufacturer no longer makes this part, and there's no substitute part

Fan WJ73X10024
#190

Room air conditioner diagram

Fan

Part #WJ73X10024

The manufacturer no longer makes this part, and there's no substitute part
