Sony
Digital Camcorder

Model # DCR-TRV900 Official Sony camcorder

Here are the diagrams and repair parts for Official Sony DCR-TRV900 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

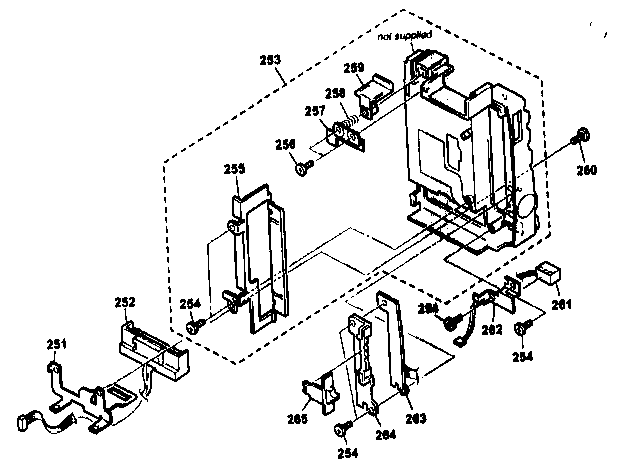

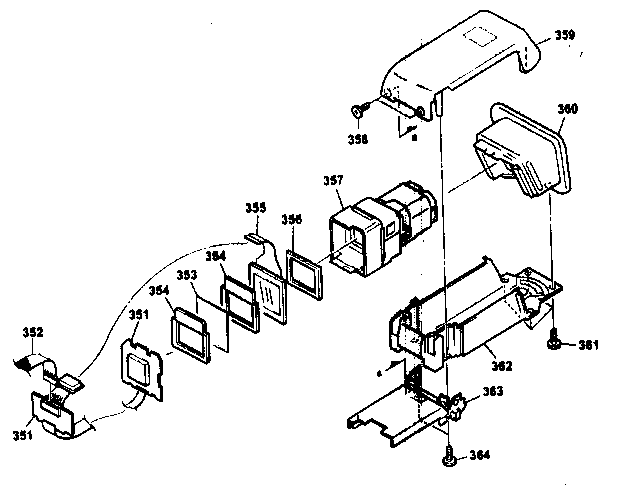

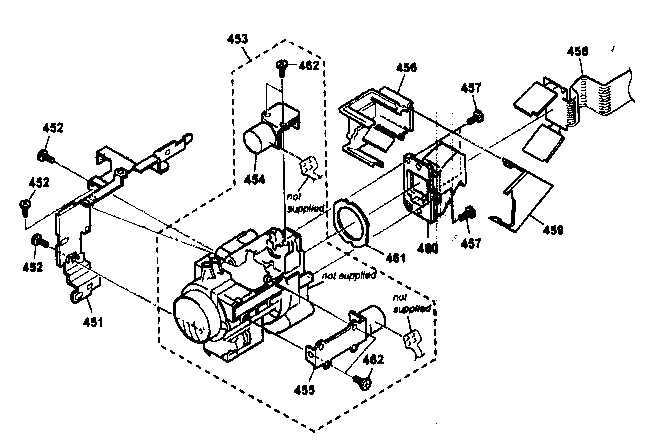

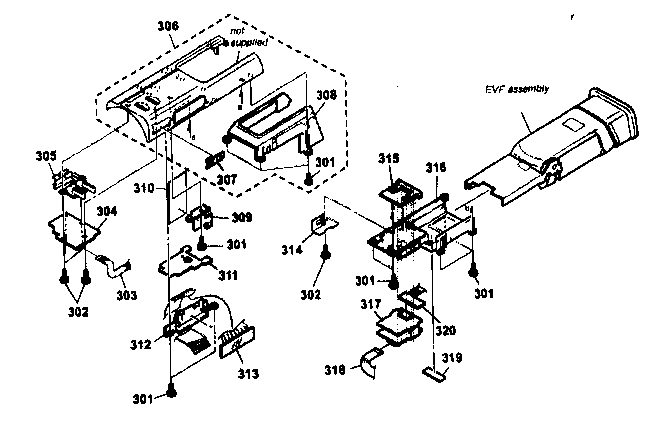

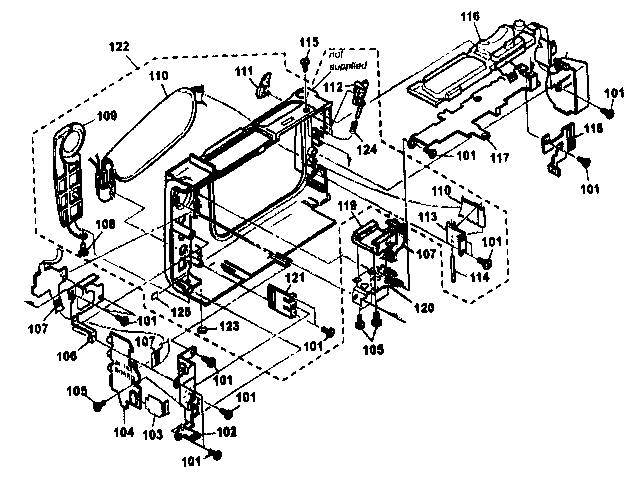

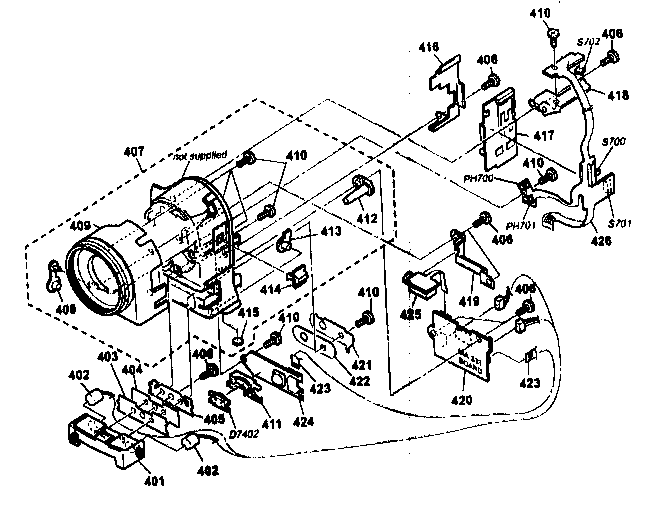

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Fp-9 Flexi 167097721
#157

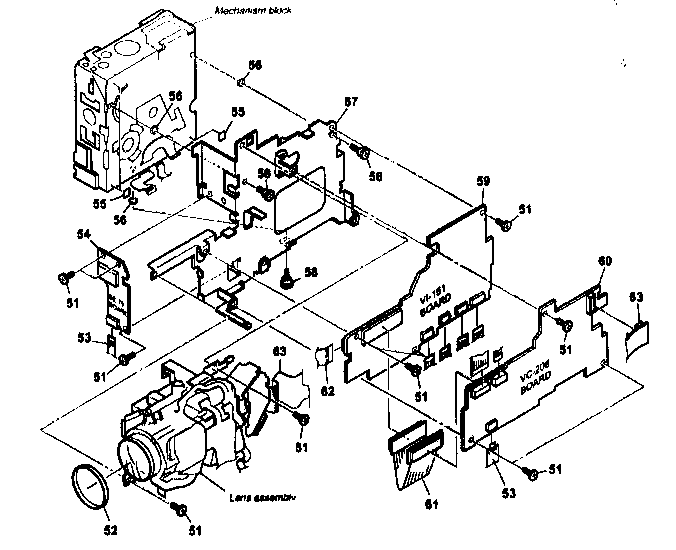

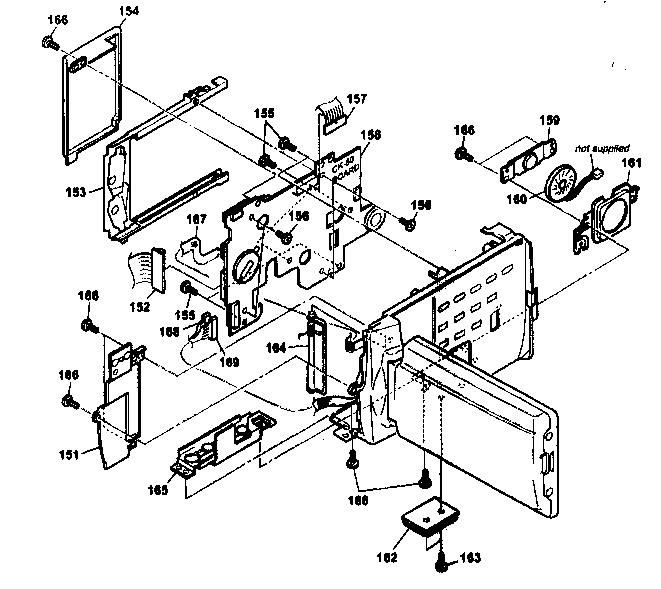

Cabinet r assy diagram

Fp-9 flexi

Part #167097721

The manufacturer no longer makes this part, and there's no substitute part

Compartment X39484412
#NI

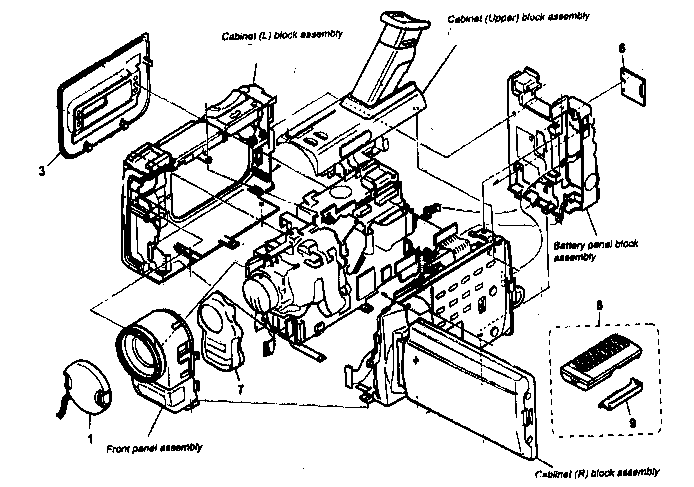

Cabinet parts diagram

Compartment

Part #X39484412

The manufacturer no longer makes this part, and there's no substitute part

Ic F712504 875953427
#NI

Cabinet parts diagram

Ic f712504

Part #875953427

The manufacturer no longer makes this part, and there's no substitute part

Transistor 872903943
#NI

Cabinet parts diagram

Transistor

Part #872903943

The manufacturer no longer makes this part, and there's no substitute part

Ic Hd64370 875956799
#NI

Cabinet parts diagram

Ic hd64370

Part #875956799

The manufacturer no longer makes this part, and there's no substitute part

Knob,ss Mo 305183501
#210

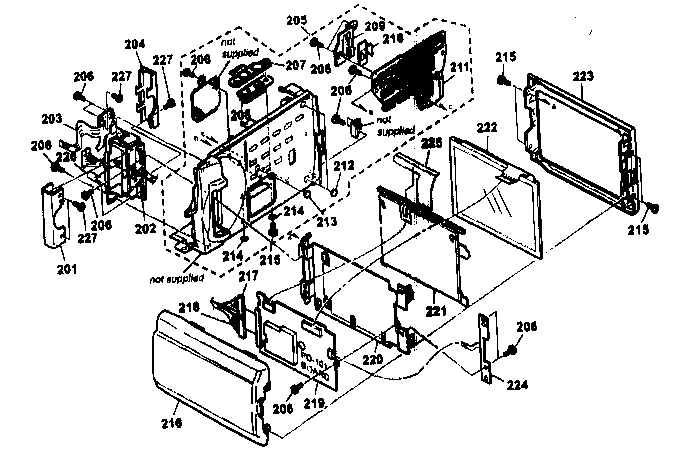

Lcd panel assy diagram

Knob,ss mo

Part #305183501

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875949230
#NI

Cabinet parts diagram

Integrated circuit

Part #875949230

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875208653
#NI

Cabinet parts diagram

Integrated circuit

Part #875208653

The manufacturer no longer makes this part, and there's no substitute part

Ic Cxd3133 875239226
#NI

Cabinet parts diagram

Ic cxd3133

Part #875239226

The manufacturer no longer makes this part, and there's no substitute part

Battery 152872421
#NI

Cabinet parts diagram

Battery

Part #152872421

The manufacturer no longer makes this part, and there's no substitute part
