Maytag
Gas Range

Model # CRG7700BAW Official Maytag gas freestanding range

Here are the diagrams and repair parts for Official Maytag CRG7700BAW gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

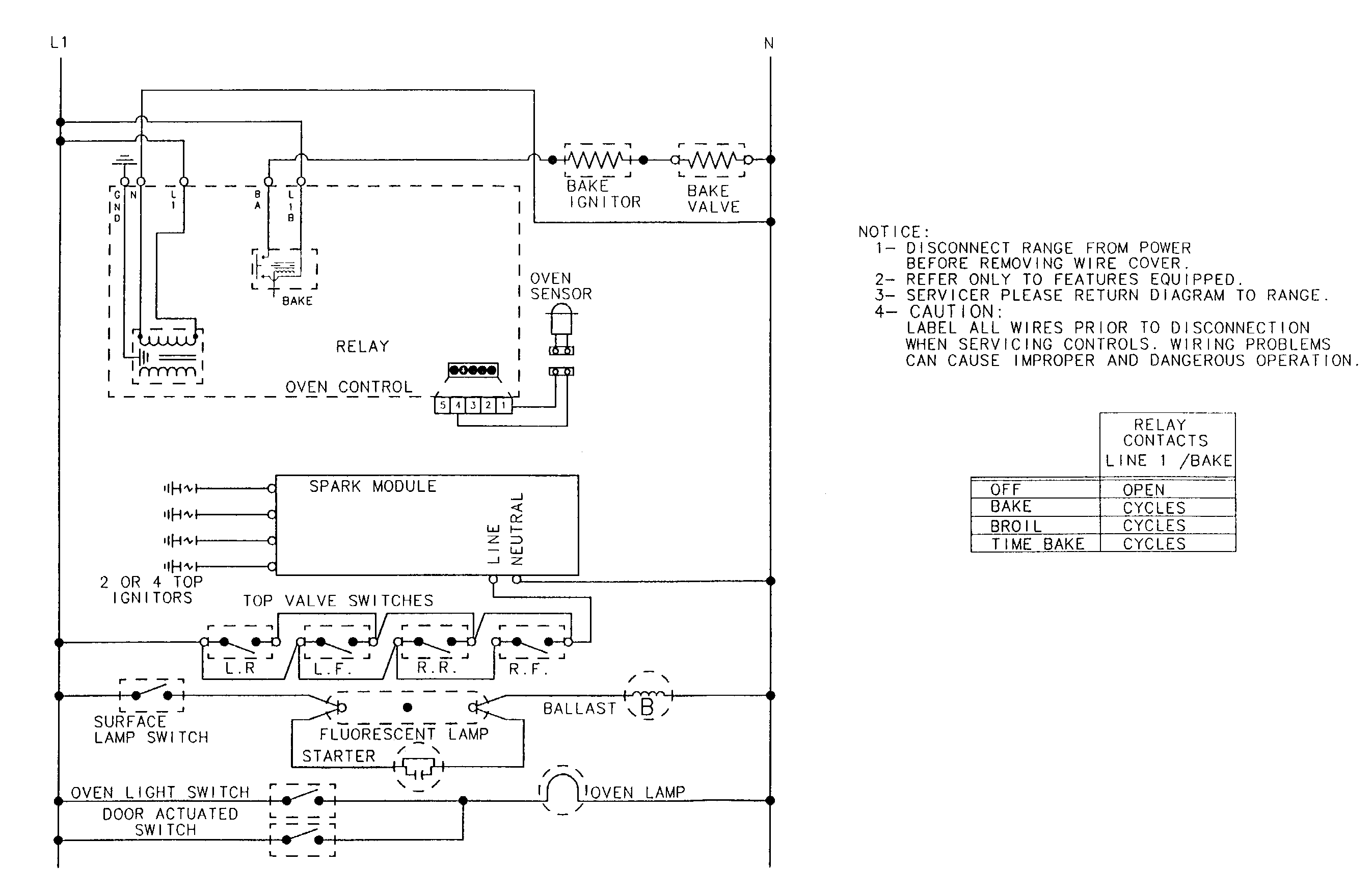

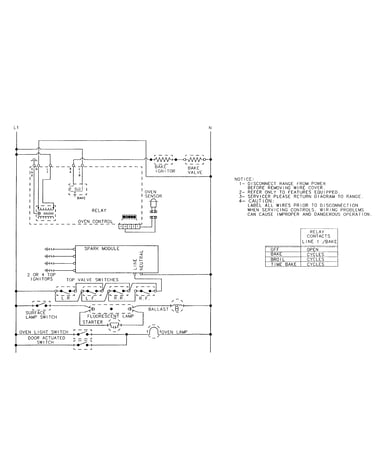

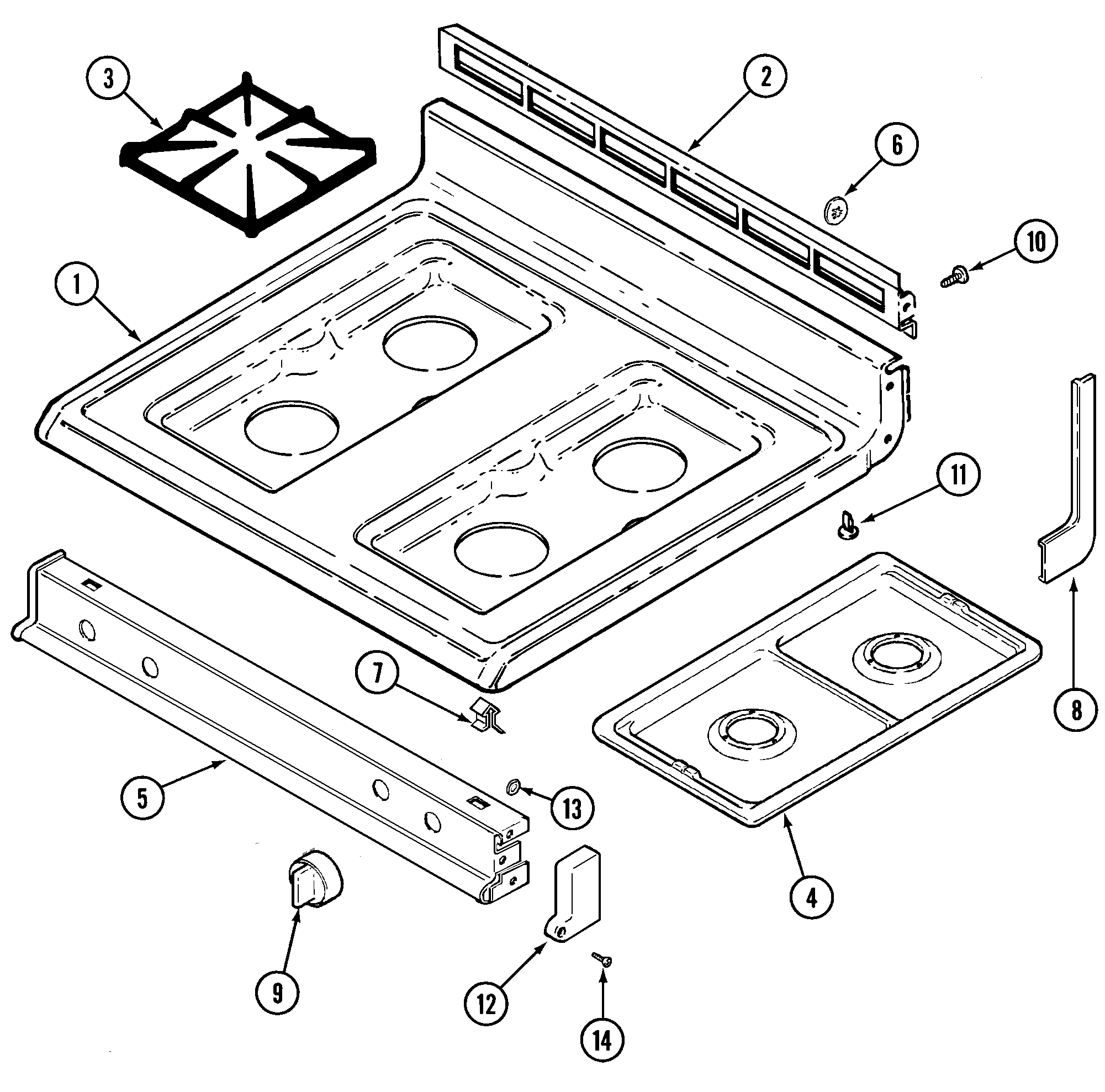

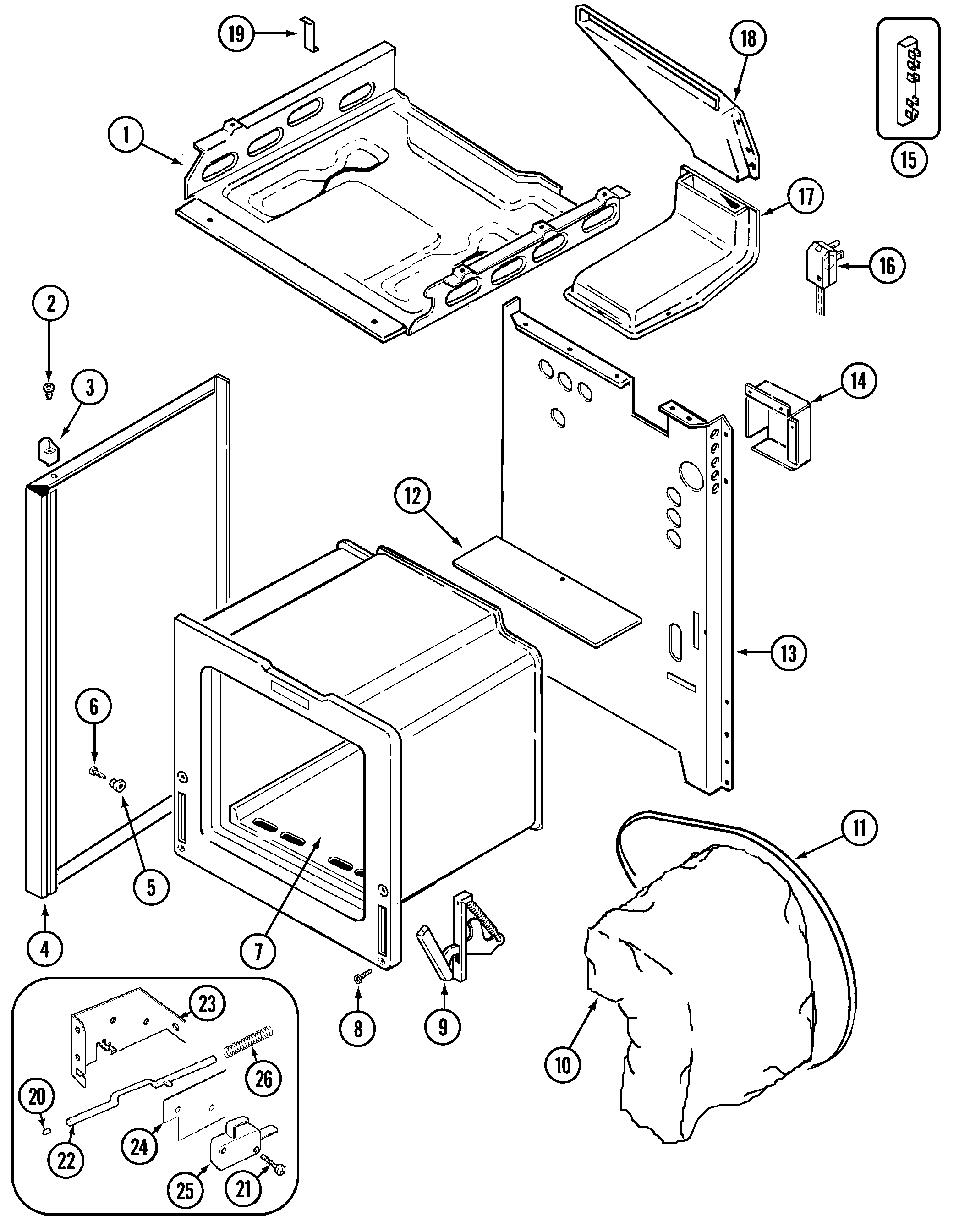

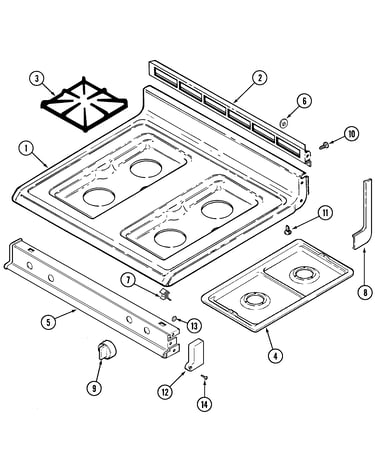

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Spark Module 7431P027-60
#7

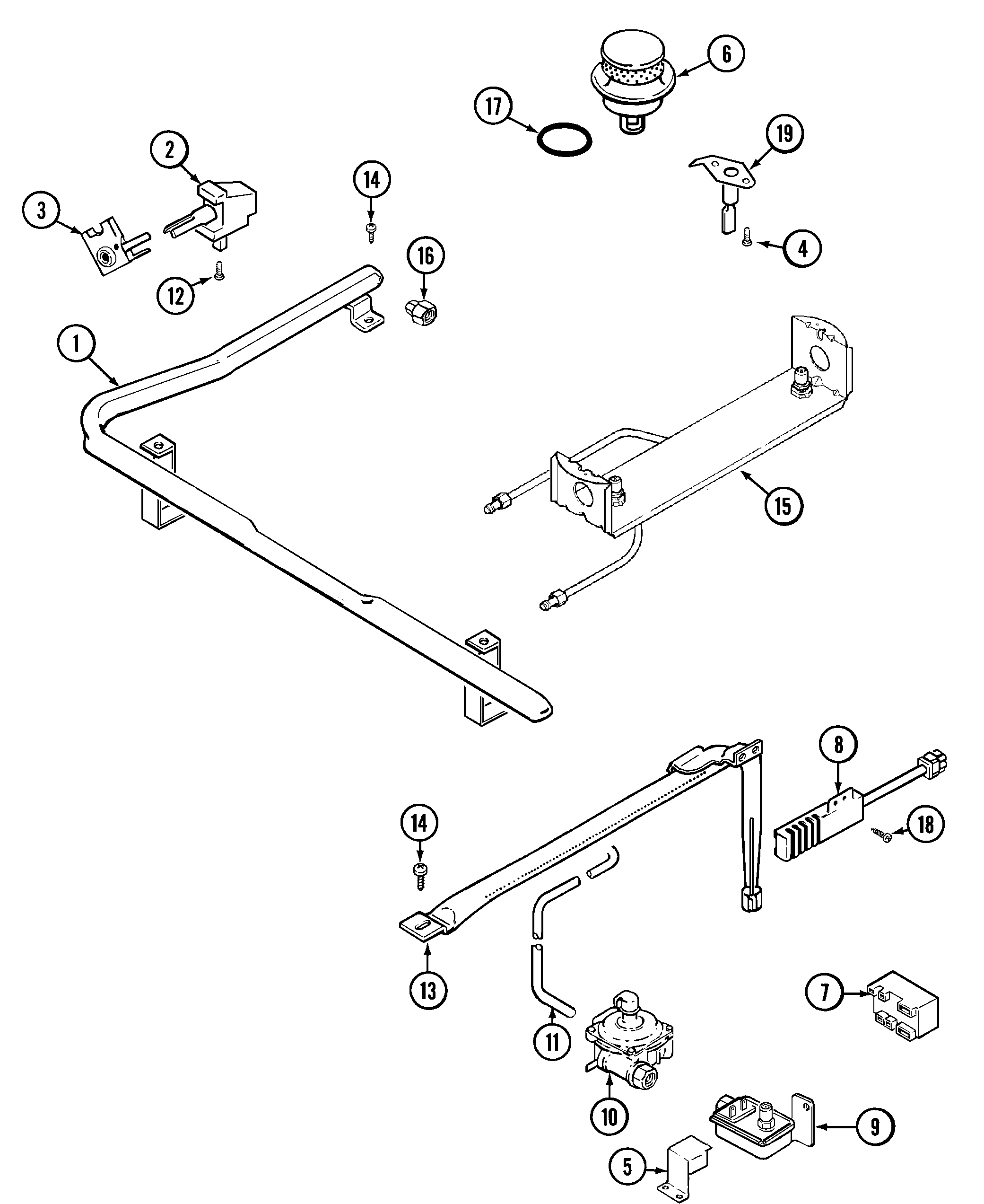

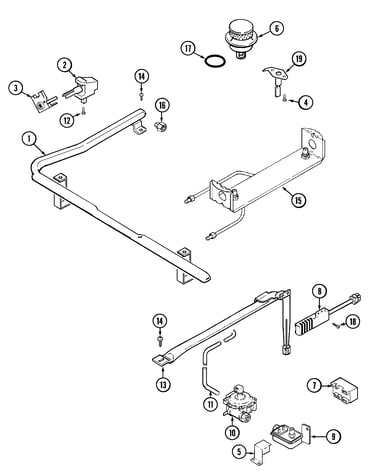

Gas controls diagram

Spark module

Part #7431P027-60

Replaced by #12001596

?
Manufacturer substitution
This part replaces 7431P027-60. Substitute parts can look different from the original.
$70.36 |
8% OFF Phone Price : $76.36
In Stock
Bracket Screw 7101P040-60
Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
"bracket, Ant" 3801F218-51
#3

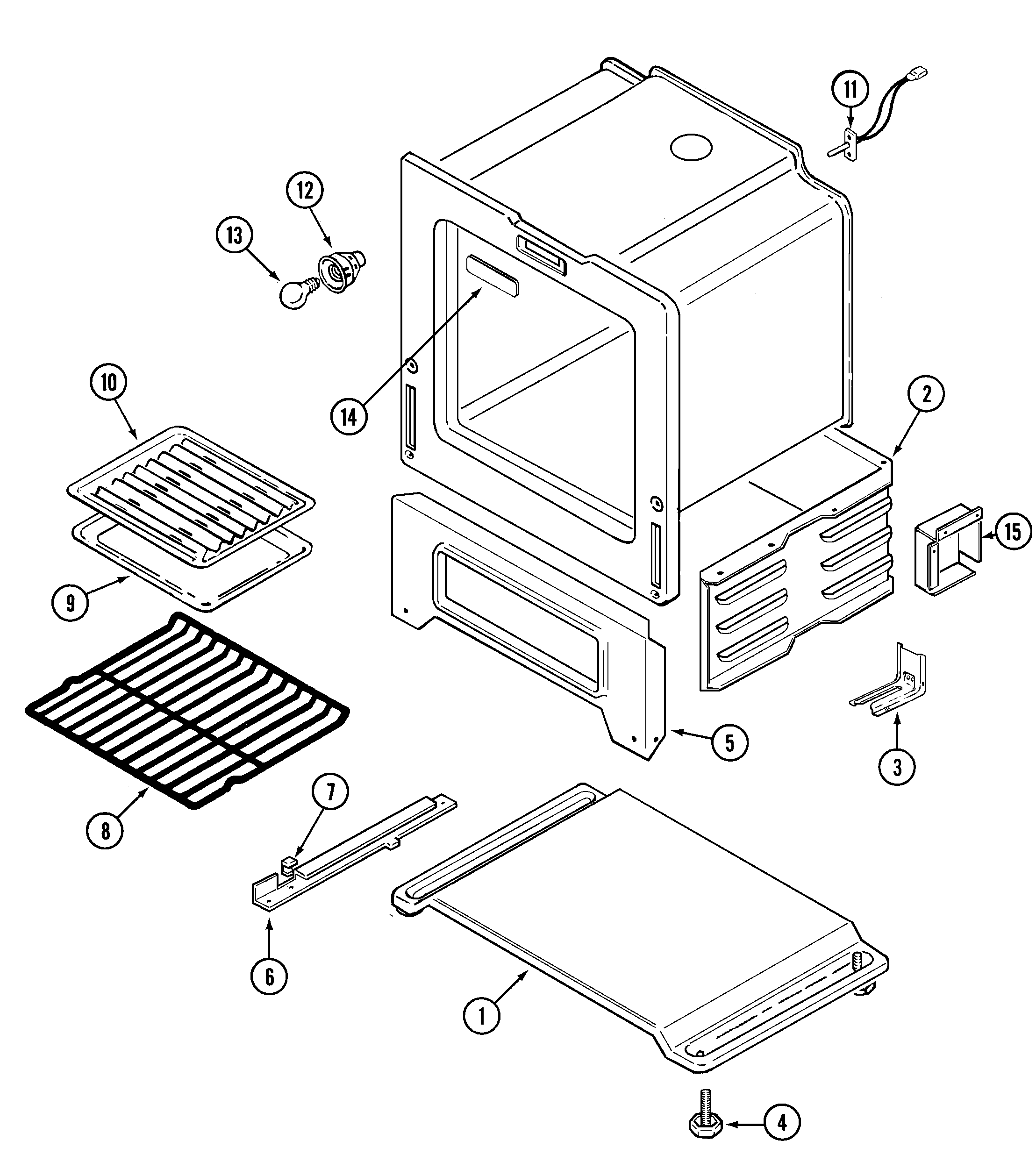

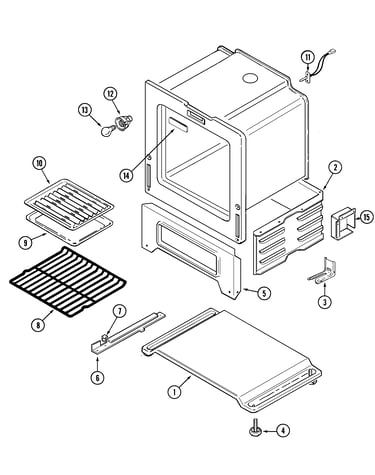

Oven/base diagram

"bracket, ant"

Part #3801F218-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F218-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Screw 7101P347-60
#6A

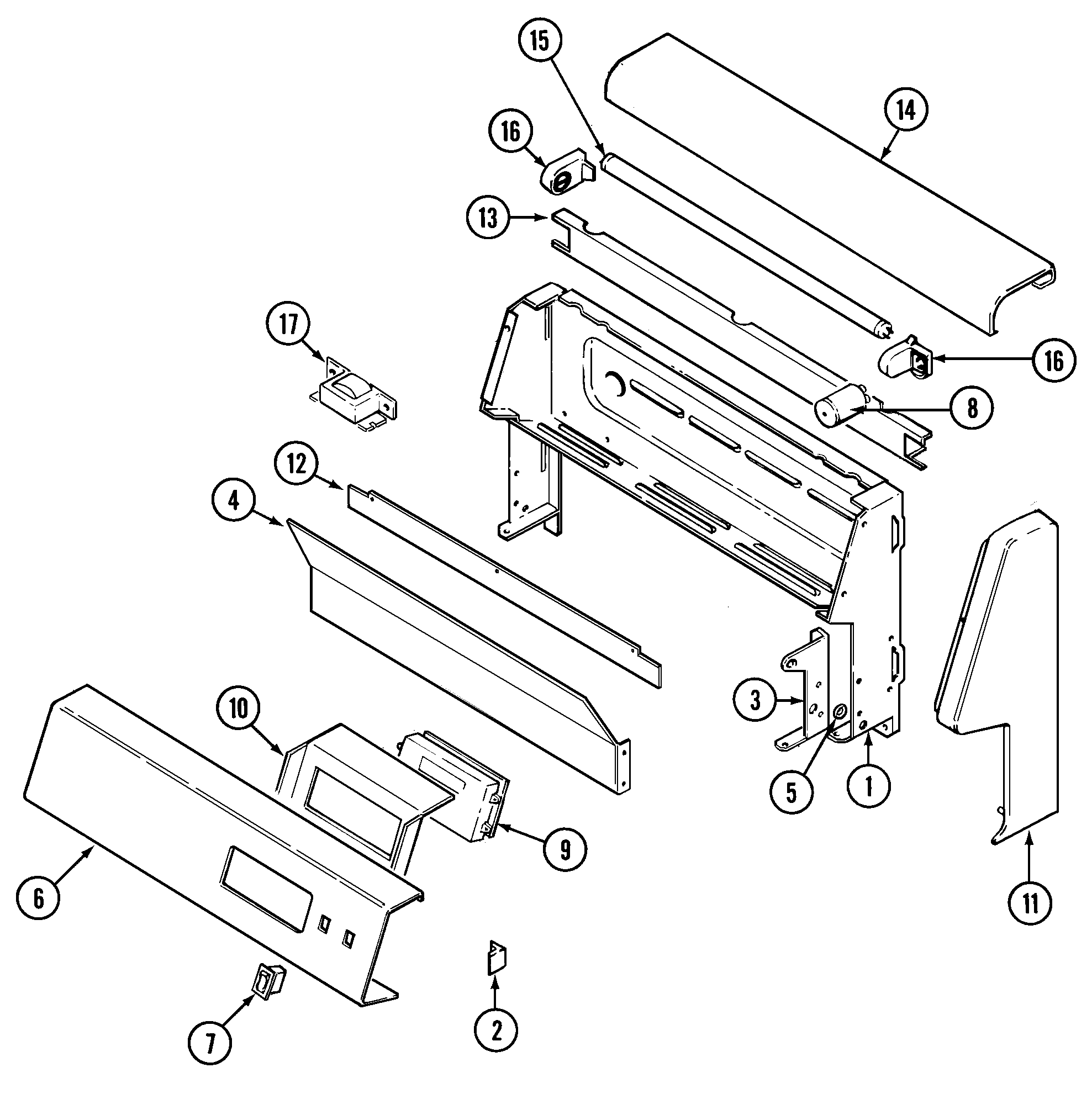

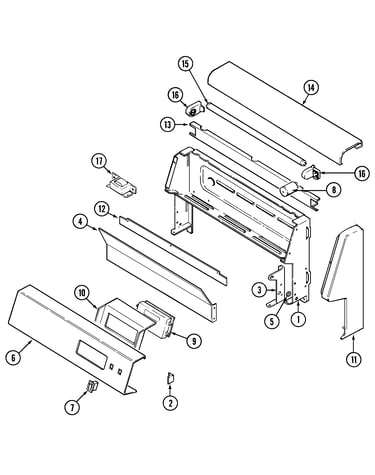

Control panel diagram

Screw

Part #7101P347-60

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 7101P347-60. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 7101P077-60
#2A

Control panel diagram

Screw

Part #7101P077-60

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 7101P077-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Receptacle 7407P088-60
#12

Oven/base diagram

Receptacle

Part #7407P088-60

Replaced by #WP7407P182-60

?
Manufacturer substitution
This part replaces 7407P088-60. Substitute parts can look different from the original.
$42.19 |
12% OFF Phone Price : $48.19
In Stock
Pressure Regulator 7510P067-60
#10

Gas controls diagram

Pressure regulator

Part #7510P067-60

Replaced by #WP74006429

?
Manufacturer substitution
This part replaces 7510P067-60. Substitute parts can look different from the original.
$145.61 |
8% OFF Phone Price : $157.61
In Stock
Hinge Drawer 3418F080-51
#18A

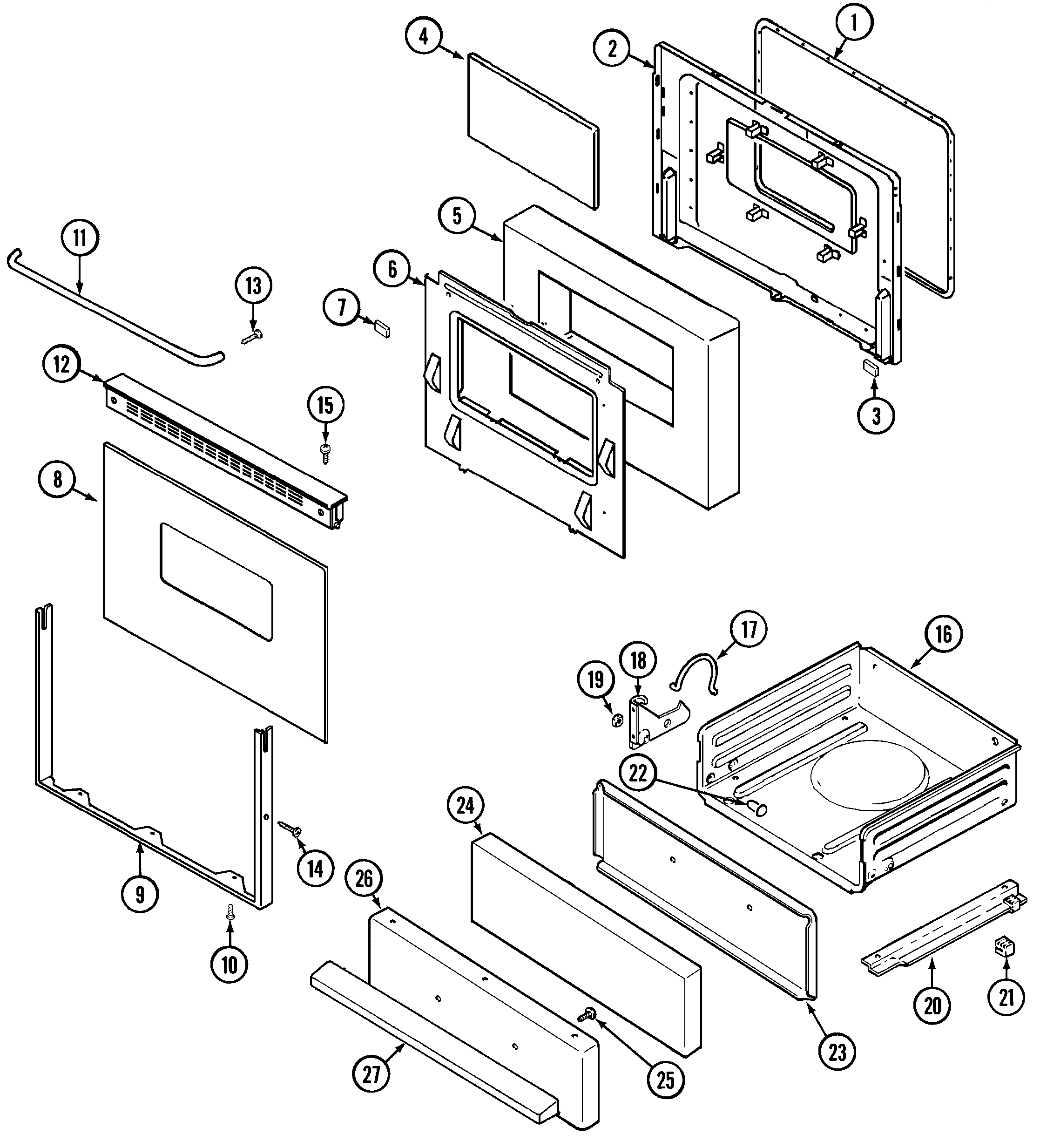

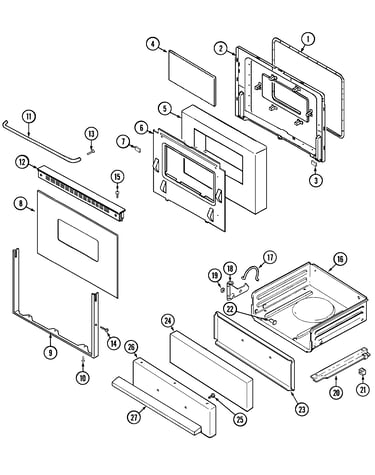

Door/drawer diagram

Hinge drawer

Part #3418F080-51

This item is not returnable
$3.29
In Stock
Range Sensor Wire Harness 5170P204-60
#18

Control panel diagram

Range sensor wire harness

Part #5170P204-60

$11.59 |
15% OFF Phone Price : $13.59
In Stock
Range Oven Burner Igniter 12400035
#8

Gas controls diagram

Range oven burner igniter

Part #12400035

$40.08 |
13% OFF Phone Price : $46.08
In Stock
