Tappan
Electric Range

Model # TEB500CCB4 Official Tappan electric wall oven - 5995297818

Here are the diagrams and repair parts for Official Tappan TEB500CCB4 electric wall oven - 5995297818, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

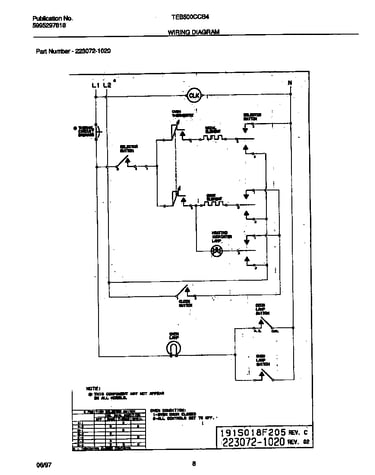

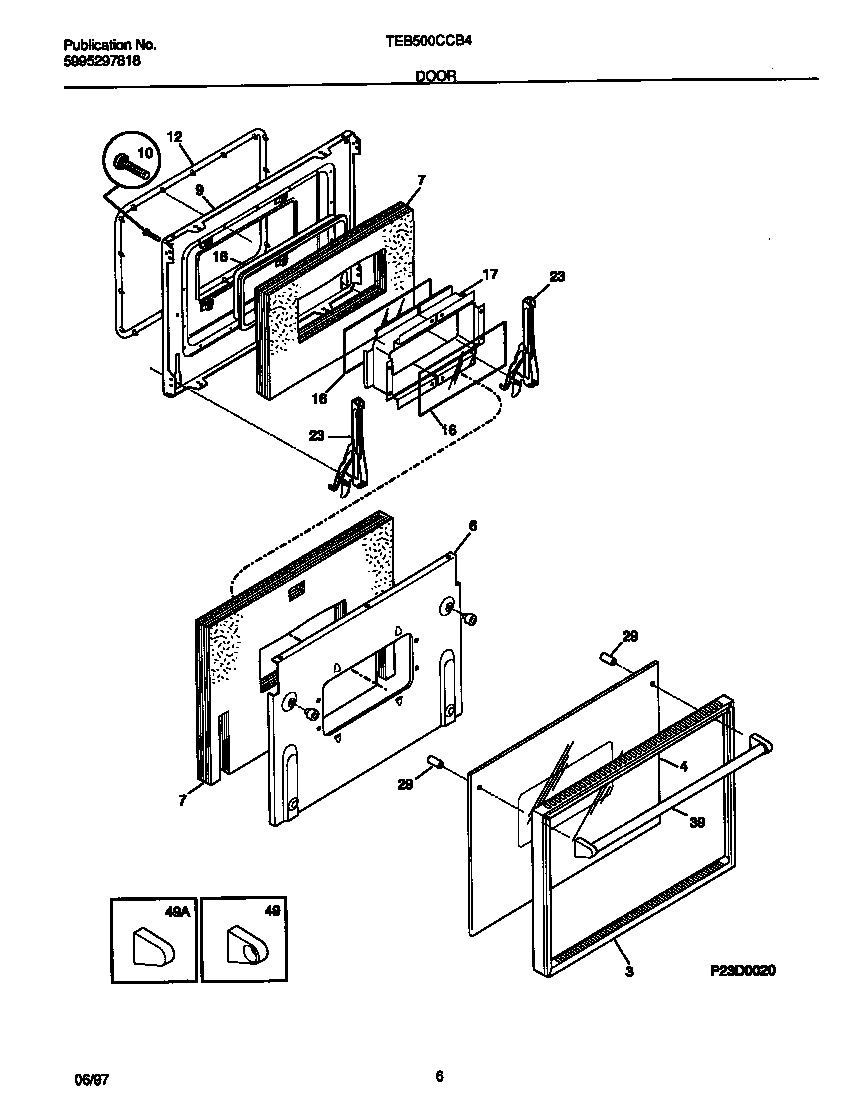

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Bulb 3201908
#15

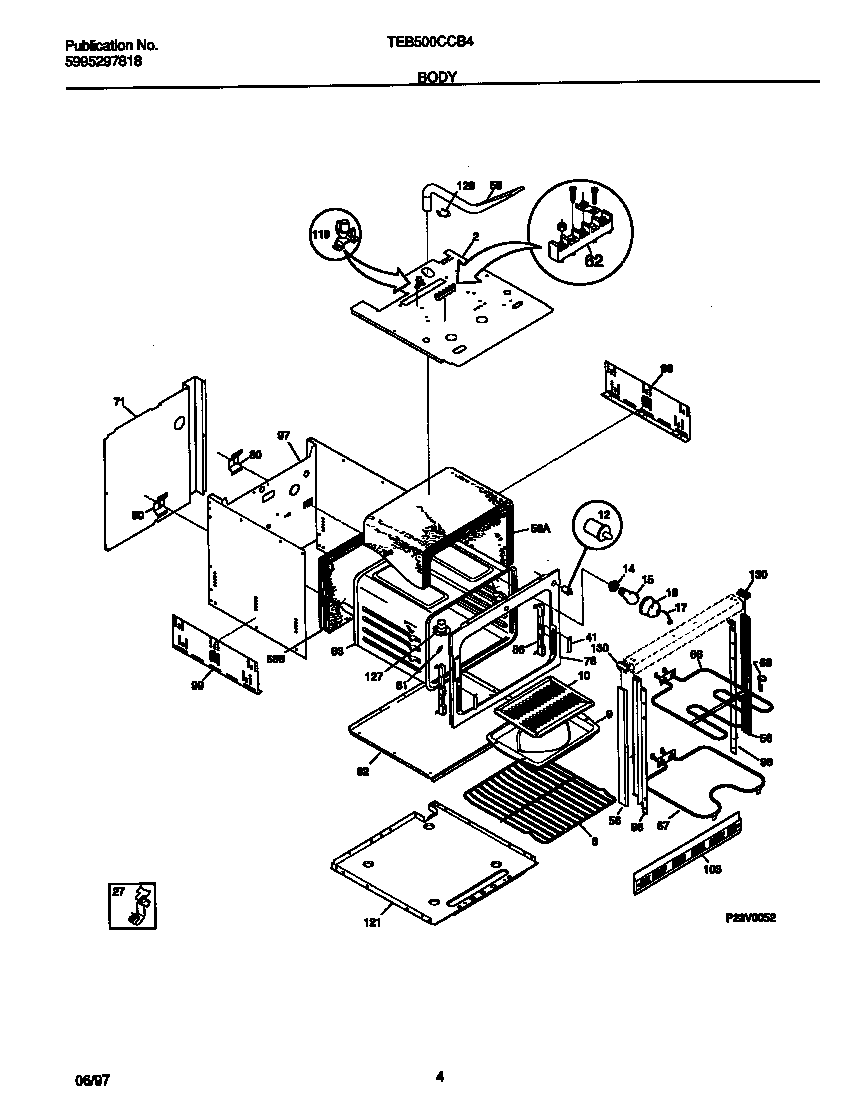

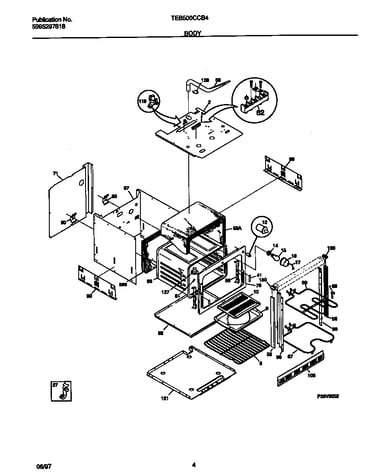

Body diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Terminal Block 5303310518
#62

Body diagram

Terminal block

Part #5303310518

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303310518. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Element 3202440
#67

Body diagram

Element

Part #3202440

Replaced by #318255101

?
Manufacturer substitution
This part replaces 3202440. Substitute parts can look different from the original.
BEST SELLER
$136.96 |
8% OFF Phone Price : $148.96
In Stock
Cover 3201911
#16

Body diagram

Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Range Screw 5303323134
#69

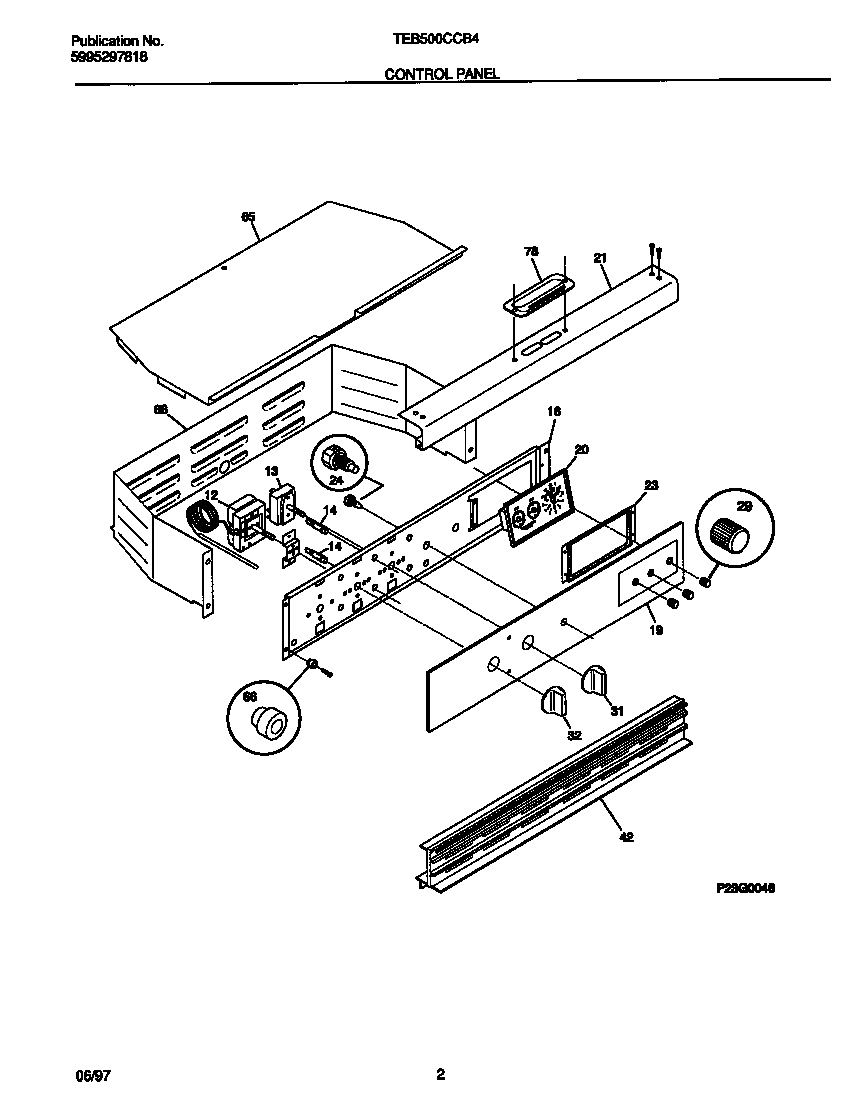

Control panel diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Oven Broiler Element 5303322963
#66

Body diagram

Oven broiler element

Part #5303322963

Replaced by #5303016247

?
Manufacturer substitution
This part replaces 5303322963. Substitute parts can look different from the original.
$163.62 |
7% OFF Phone Price : $175.62
In Stock
Screw 5303211311

#NI

All parts diagram

Screw

Part #5303211311

Replaced by #5303211311

?
Manufacturer substitution
This part replaces 5303211311. Substitute parts can look different from the original.
$16.66
In Stock
Control Housing 5303302397
#68

Control panel diagram

Control housing

Part #5303302397

$32.04
In Stock
Range Screw 5303308456

#NI

All parts diagram

Range screw

Part #5303308456

$9.91
In Stock
Wall Oven Door Hinge Receiver 3201631
#86

Body diagram

Wall oven door hinge receiver

Part #3201631

$114.40
In Stock
