Part #5304525427
Part #316056000
Replaced by #5304409888
Part #316021109
Part #316021110
Replaced by #316021109
Part #5304525432
Part #316001017
Part #5304529887
Part #139042600
Part #139021700
Part #5304528835

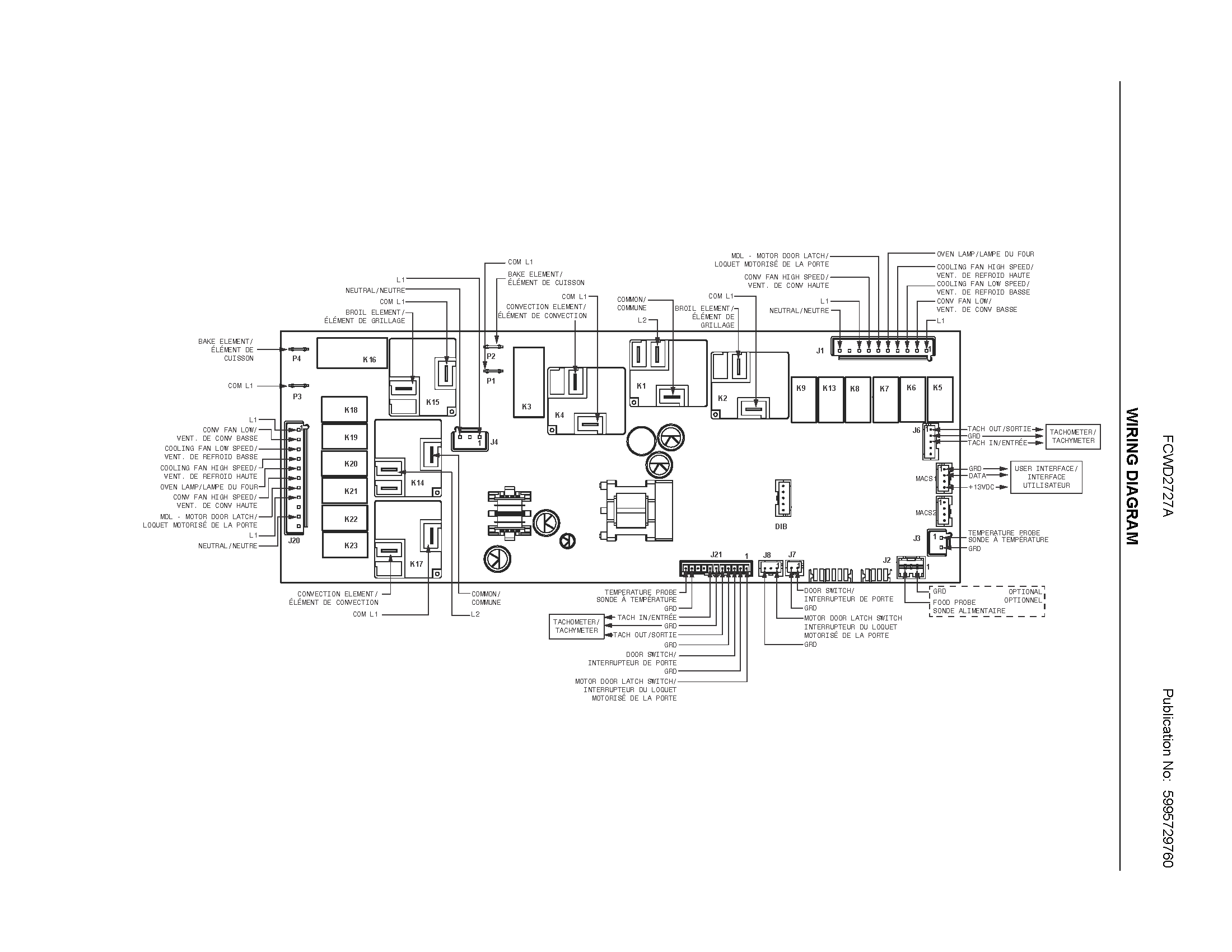

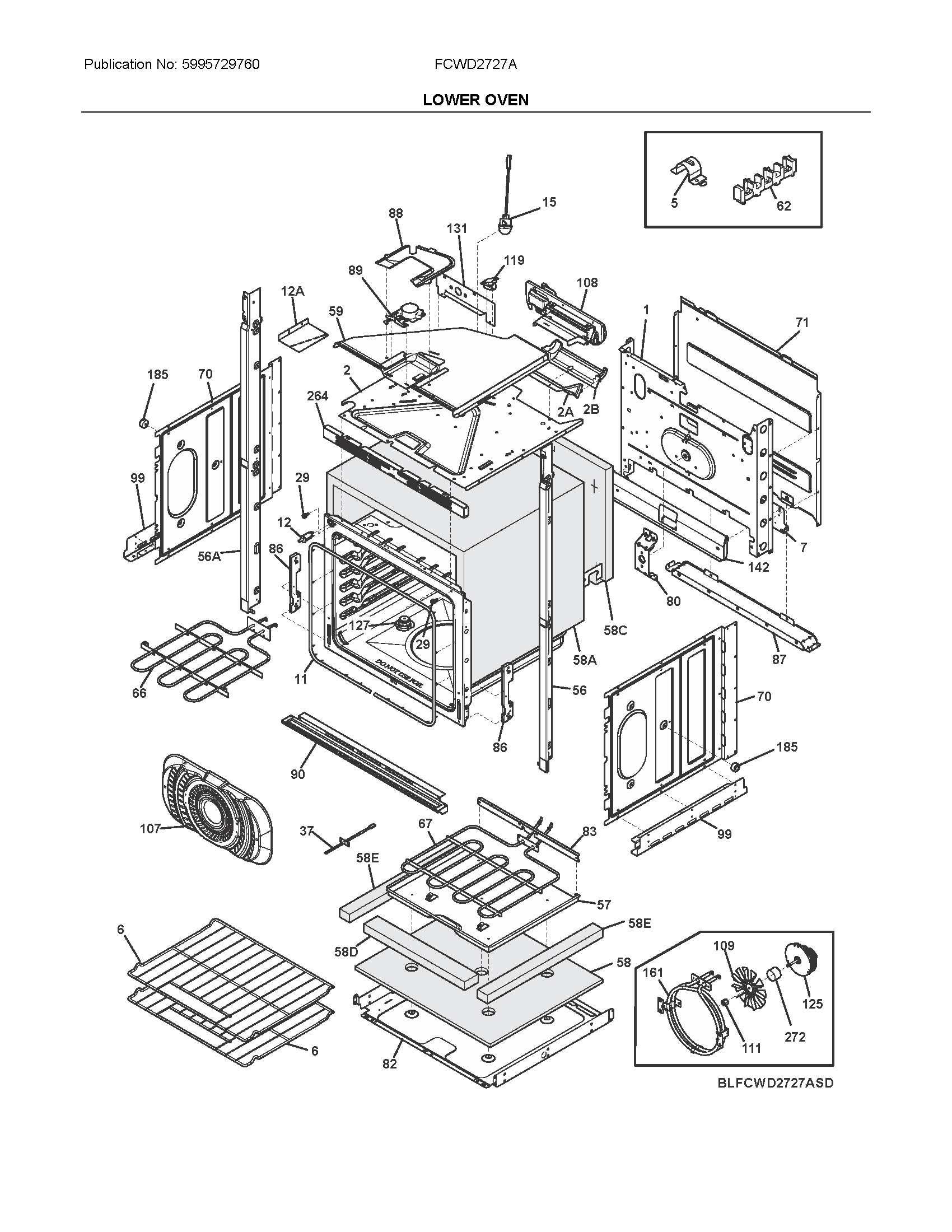

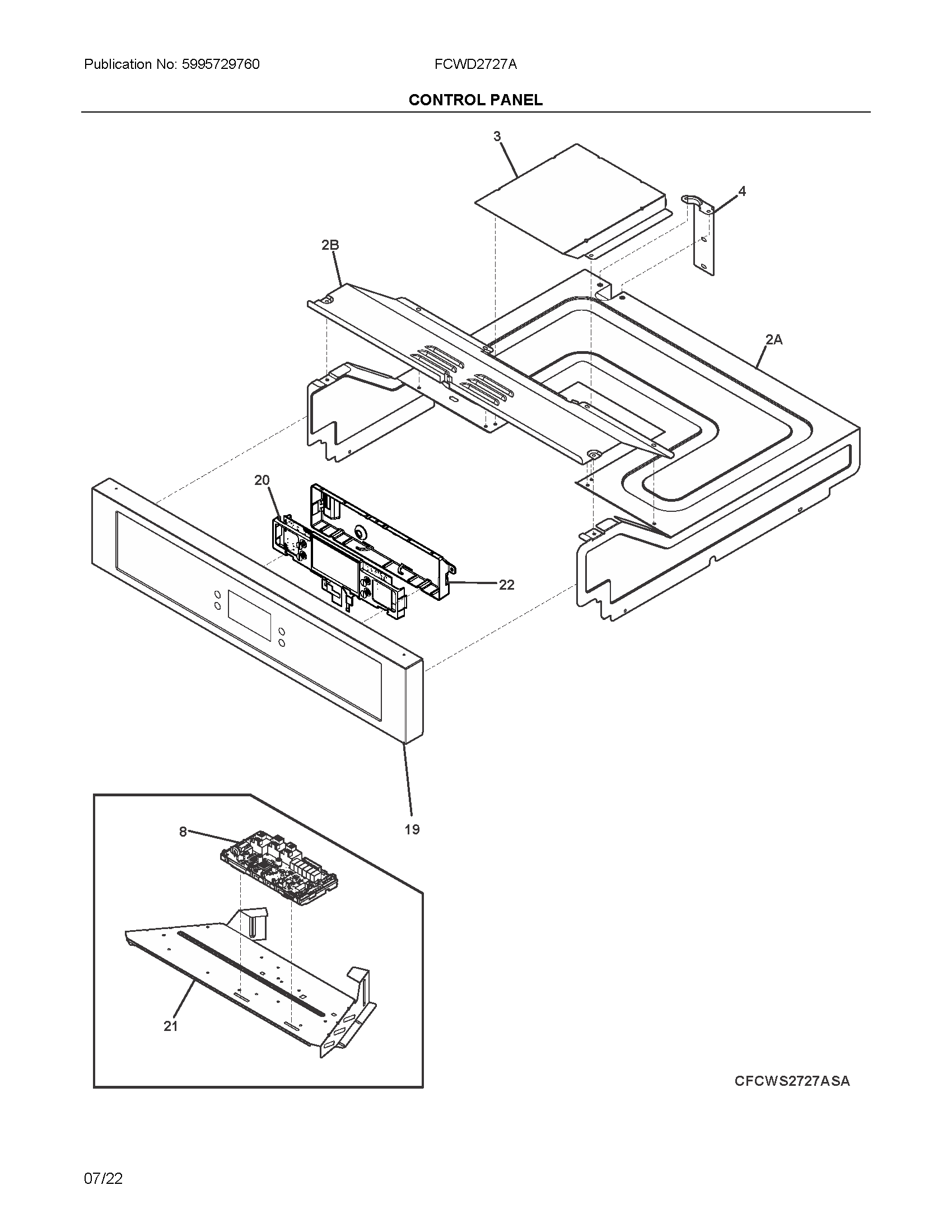

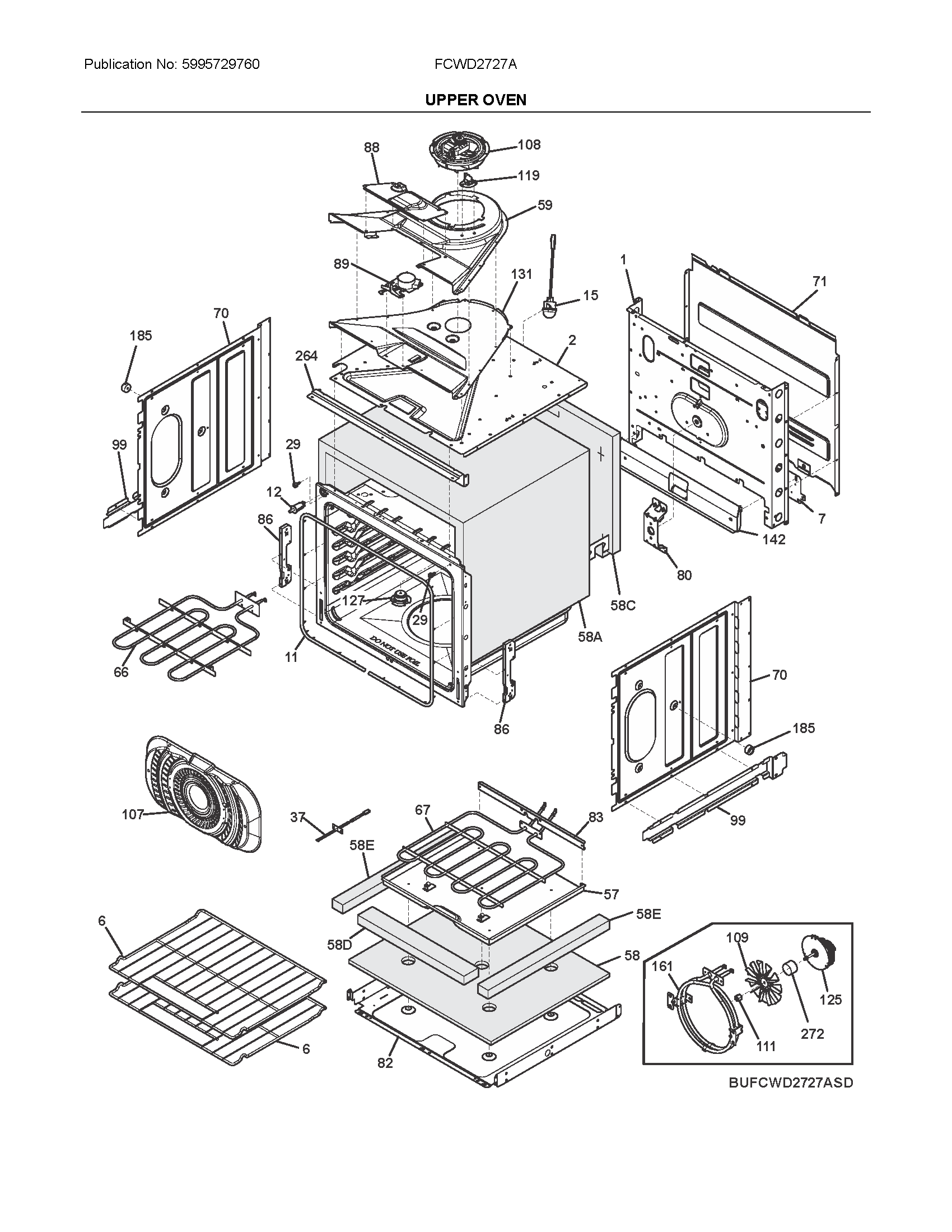

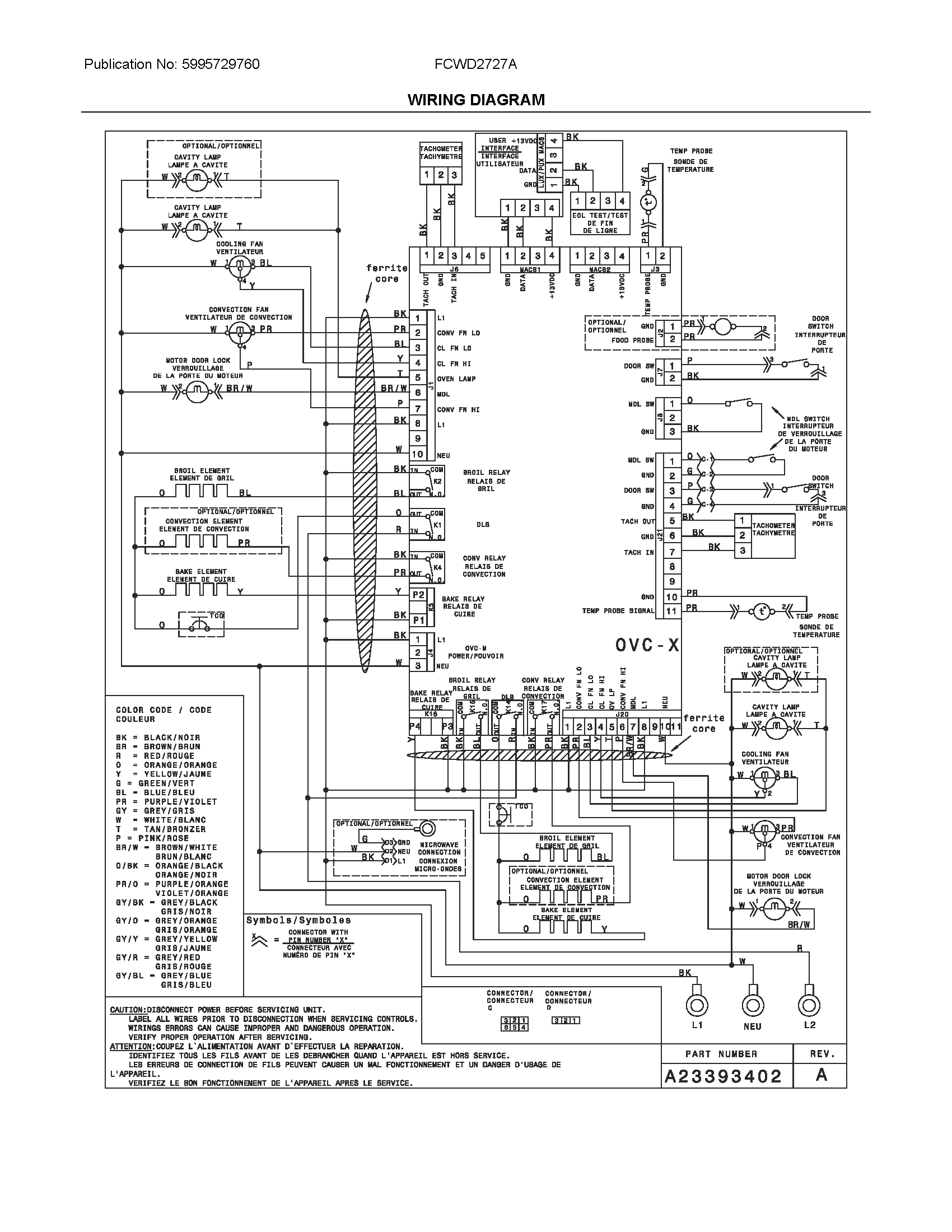

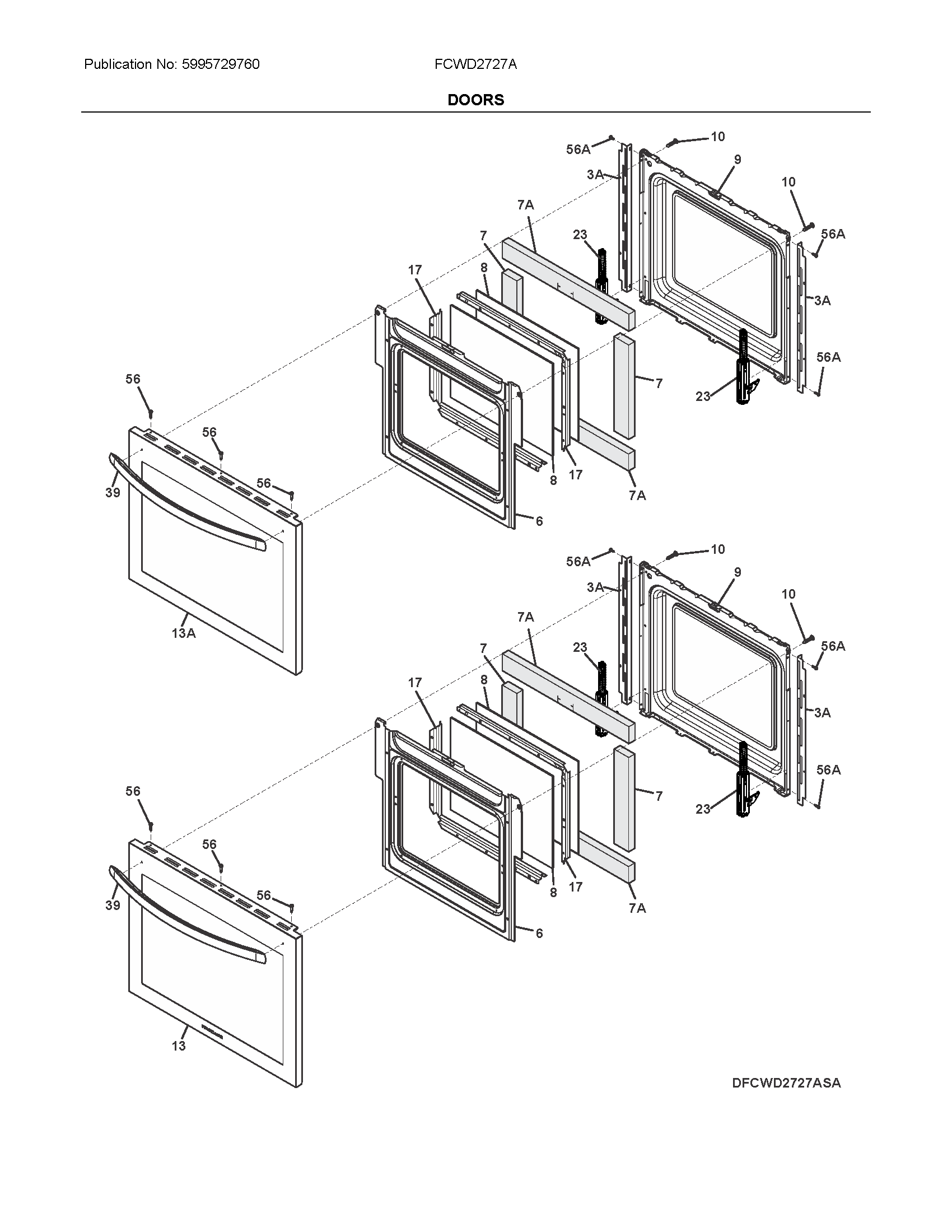

Here are the diagrams and repair parts for Official Frigidaire FCWD2727AWD wall oven, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Part #5304525427
Part #316056000
Replaced by #5304409888
Part #316021109
Part #316021110
Replaced by #316021109
Part #5304525432
Part #316001017
Part #5304529887
Part #139042600
Part #139021700
Part #5304528835
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Get your oven temperature under your control by replacing a faulty oven control thermostat.…
If your oven door flops open fast, it's time to replace the hinges. Follow these step-by-step instructions to do it your…
