Model # DLL2880DBL Official Hotpoint dryer

Here are the diagrams and repair parts for Official Hotpoint DLL2880DBL dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

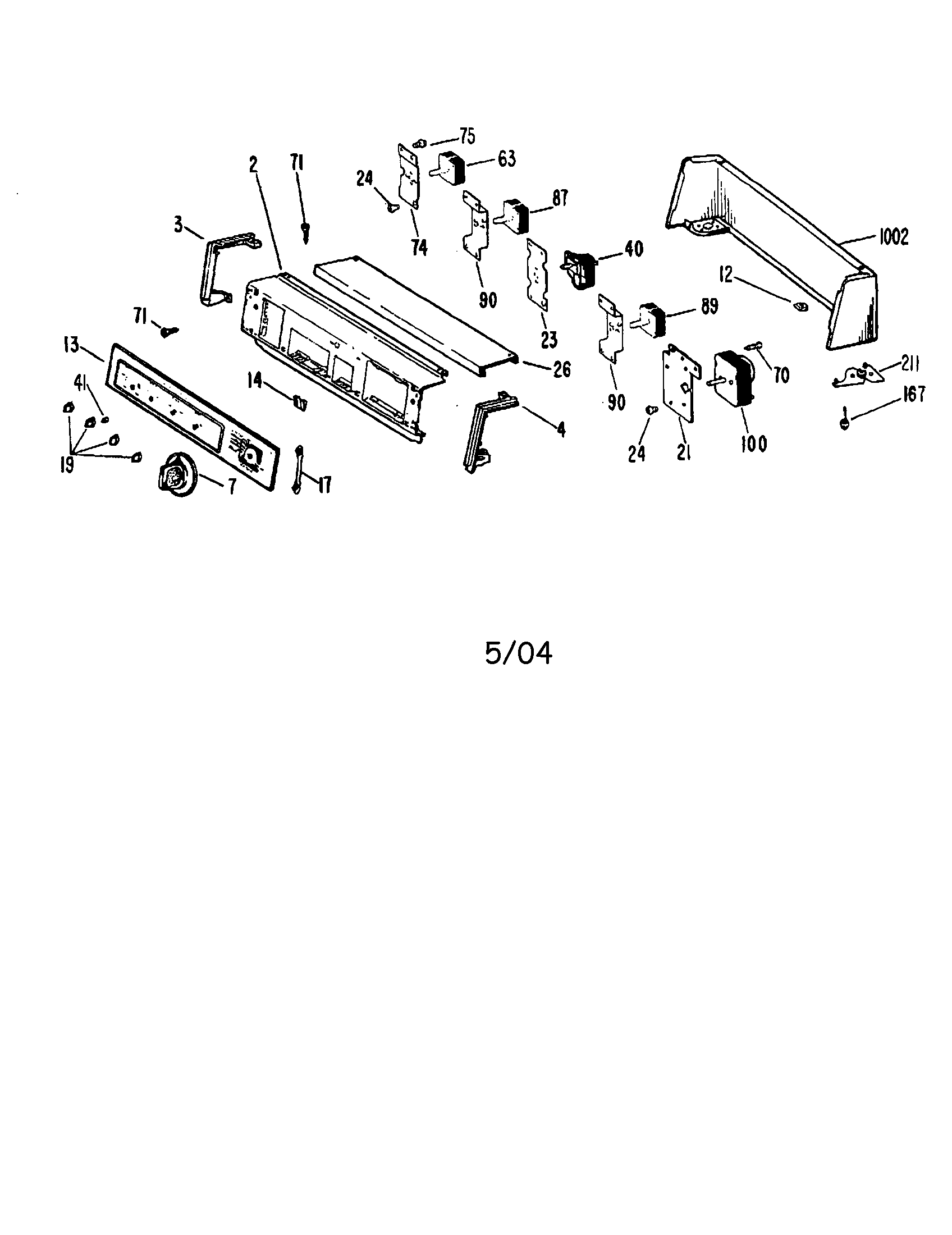

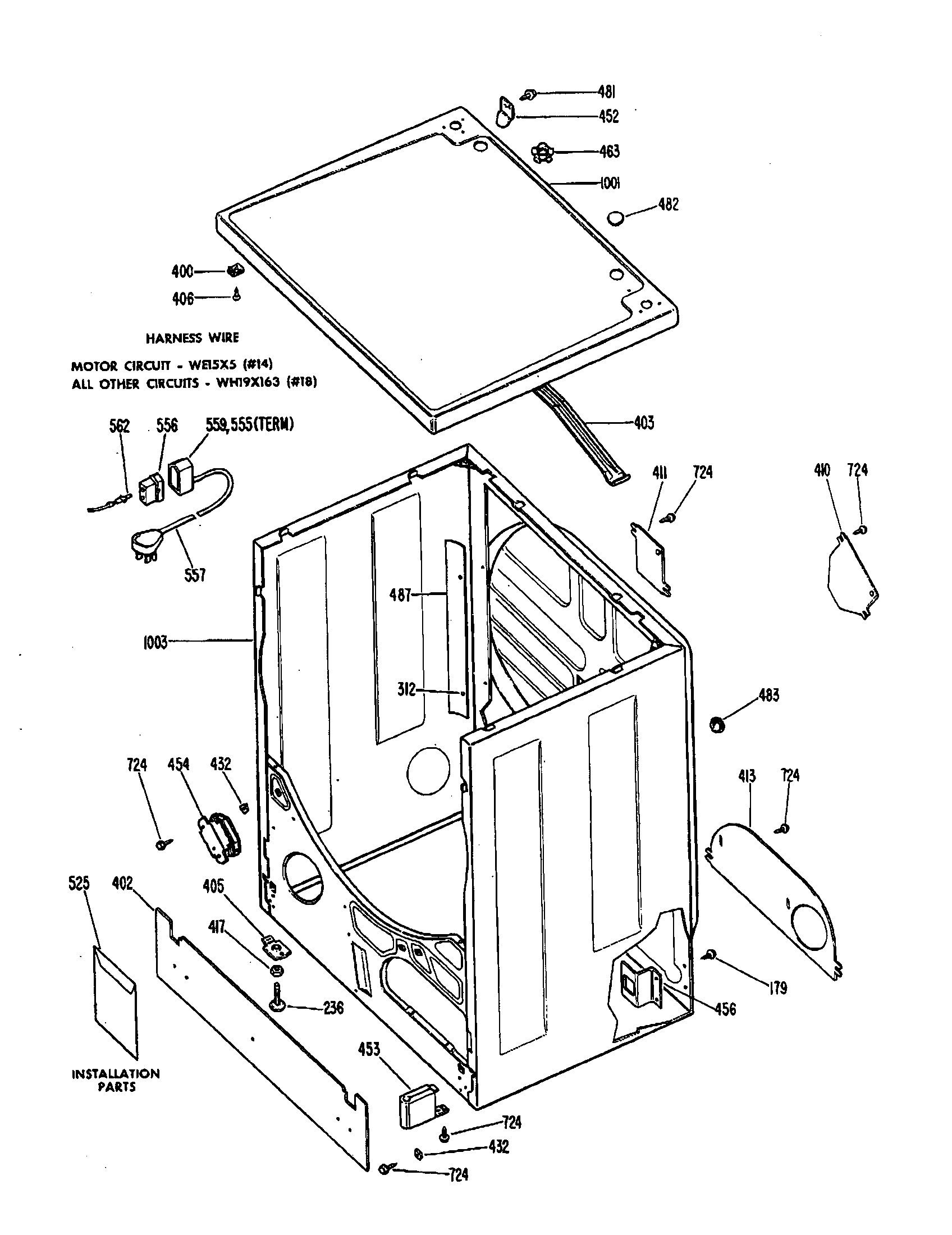

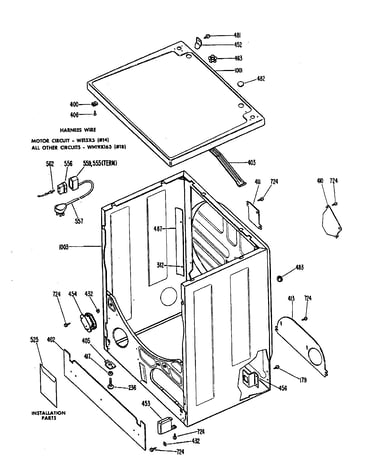

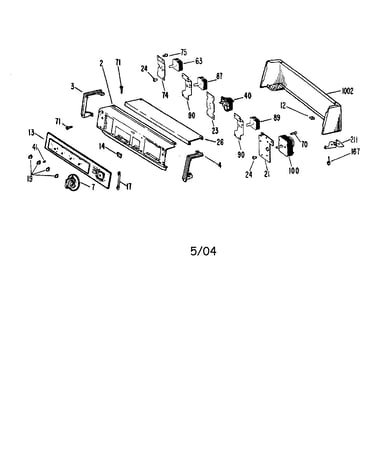

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 185 parts  |
Shft-brkt As WE03X0039
#508

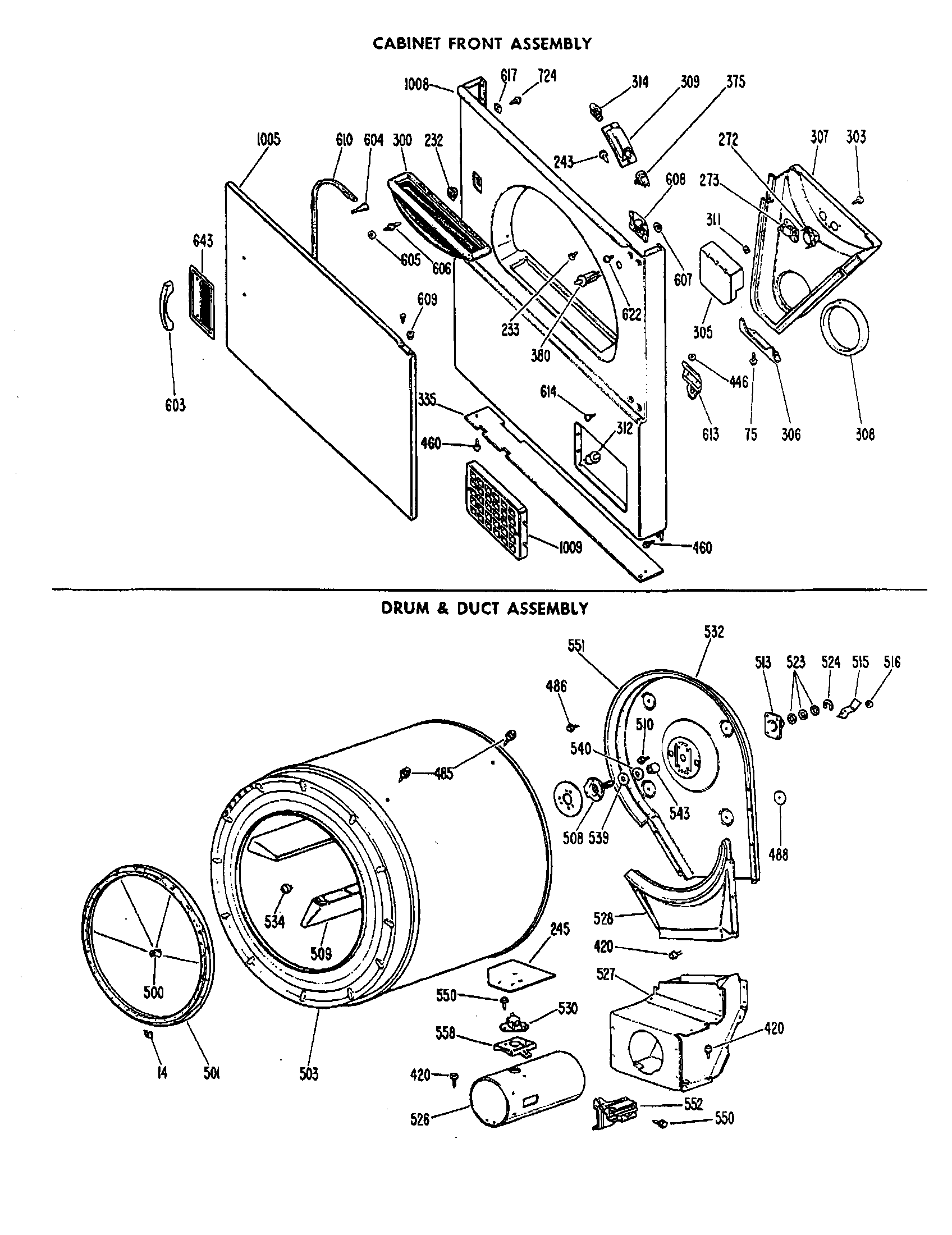

Cabinet front/drum/duct diagram

Shft-brkt as

Part #WE03X0039

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03X0039. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Washer WE02X0195
#539

Cabinet front/drum/duct diagram

Washer

Part #WE02X0195

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE02X0195. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Heat Detergent WE04X0448
#552

Cabinet front/drum/duct diagram

Heat detergent

Part #WE04X0448

Replaced by #WE4X448

?
Manufacturer substitution
This part replaces WE04X0448. Substitute parts can look different from the original.
BEST SELLER
$47.23 |
11% OFF Phone Price : $53.23
In Stock
Drive Belt WE12X0042
#213

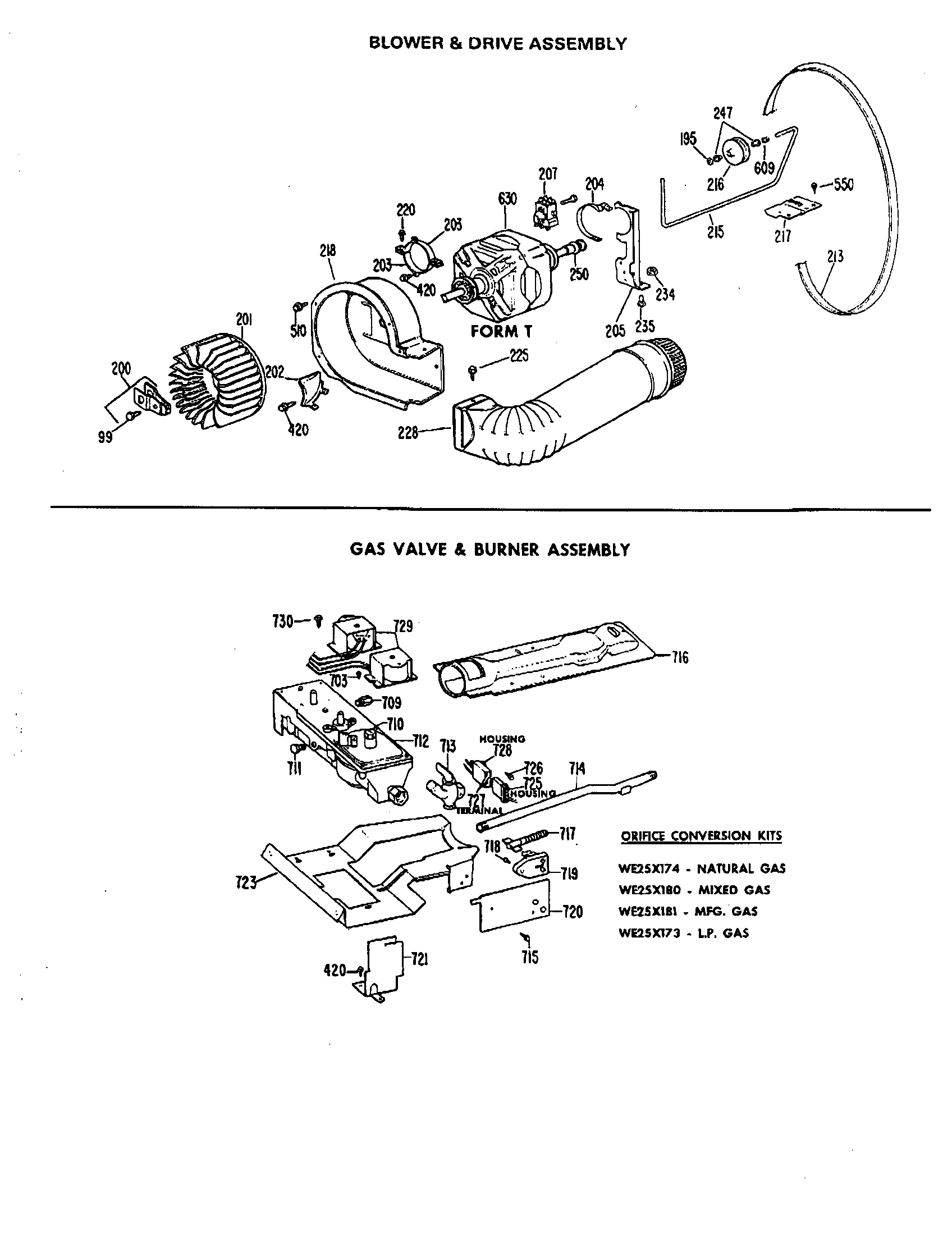

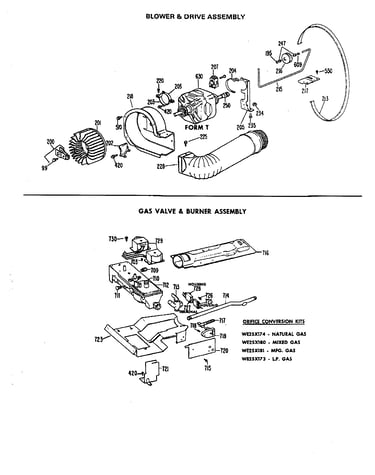

Blower/drive/gas valves/burner diagram

Drive belt

Part #WE12X0042

Replaced by #WE12X10014

?
Manufacturer substitution
This part replaces WE12X0042. Substitute parts can look different from the original.
BEST SELLER
$20.46 |
23% OFF Phone Price : $26.46
In Stock
Latch Clip WE01X1032
#232

Cabinet front/drum/duct diagram

Latch clip

Part #WE01X1032

Replaced by #WE1M1011

?
Manufacturer substitution
This part replaces WE01X1032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.55 |
16% OFF Phone Price : $12.55
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Sleeve Bearing WE03X0037
#543

Cabinet front/drum/duct diagram

Sleeve bearing

Part #WE03X0037

Replaced by #WE3X75

?
Manufacturer substitution
This part replaces WE03X0037. Substitute parts can look different from the original.
This item is not returnable
$6.82 |
13% OFF Phone Price : $7.82
In Stock
Bushing Strap WE01X0627
#515

Cabinet front/drum/duct diagram

Bushing strap

Part #WE01X0627

Replaced by #WE1X1172

?
Manufacturer substitution
This part replaces WE01X0627. Substitute parts can look different from the original.
$21.46 |
22% OFF Phone Price : $27.46
In Stock
Idler Pulley WE12X0047
#216

Blower/drive/gas valves/burner diagram

Idler pulley

Part #WE12X0047

Replaced by #WE12X81

?
Manufacturer substitution
This part replaces WE12X0047. Substitute parts can look different from the original.
This item is not returnable
$15.26 |
12% OFF Phone Price : $17.26
In Stock
Bearing WE01X0759
#247

Blower/drive/gas valves/burner diagram

Bearing

Part #WE01X0759

Replaced by #WE12X81

?
Manufacturer substitution
This part replaces WE01X0759. Substitute parts can look different from the original.
This item is not returnable
$15.26 |
12% OFF Phone Price : $17.26
In Stock
