Ryobi
Power Sander

Model # B-7100 Official Ryobi belt sander

Here are the diagrams and repair parts for Official Ryobi B-7100 belt sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Screw 9060520
#8

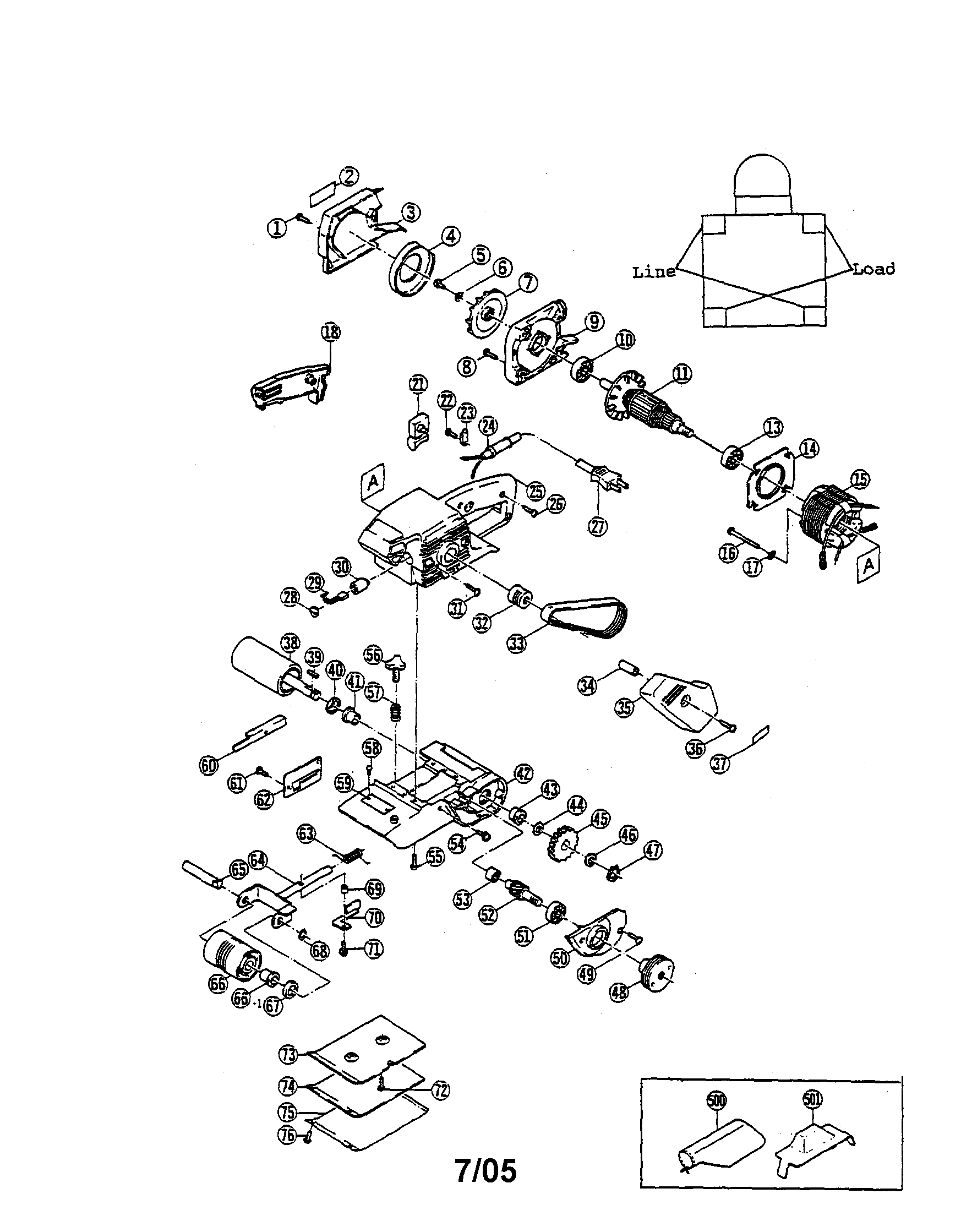

Belt sander diagram

Screw

Part #9060520

The manufacturer no longer makes this part, and there's no substitute part

Pulley (l) (b7075) 6860056
#48

Belt sander diagram

Pulley (l) (b7075)

Part #6860056

The manufacturer no longer makes this part, and there's no substitute part

Screw 9040420
#1

Belt sander diagram

Screw

Part #9040420

The manufacturer no longer makes this part, and there's no substitute part

Poly V-belt (b7100) 6860061
#33A

Belt sander diagram

Poly v-belt (b7100)

Part #6860061

The manufacturer no longer makes this part, and there's no substitute part

Name Plate (b7075) 6911317
#59

Belt sander diagram

Name plate (b7075)

Part #6911317

The manufacturer no longer makes this part, and there's no substitute part

V-belt 6860060
#33

Belt sander diagram

V-belt

Part #6860060

The manufacturer no longer makes this part, and there's no substitute part

Shoe Plate (b7100) 6150764
#75A

Belt sander diagram

Shoe plate (b7100)

Part #6150764

The manufacturer no longer makes this part, and there's no substitute part

Knob Bolt 6130269
#56

Belt sander diagram

Knob bolt

Part #6130269

The manufacturer no longer makes this part, and there's no substitute part

Armature 6030863
#11

Belt sander diagram

Armature

Part #6030863

The manufacturer no longer makes this part, and there's no substitute part

Gear Case Cover (b7075) 6820291
#50

Belt sander diagram

Gear case cover (b7075)

Part #6820291

The manufacturer no longer makes this part, and there's no substitute part
