Eureka
Upright Vacuum

Model # SC4580BT Official Eureka sanitaire commercial upright vacuum cleaner

Here are the diagrams and repair parts for Official Eureka SC4580BT sanitaire commercial upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

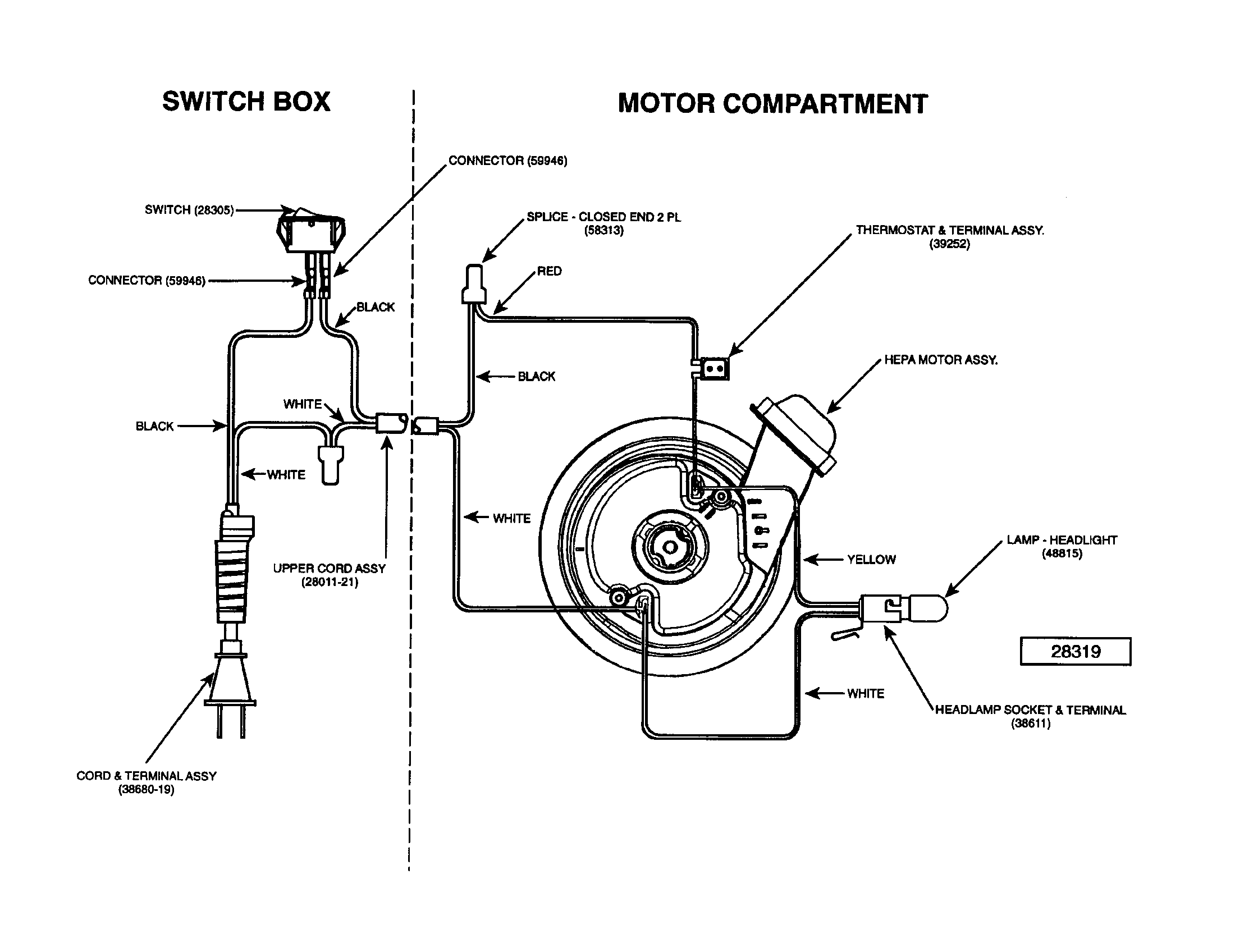

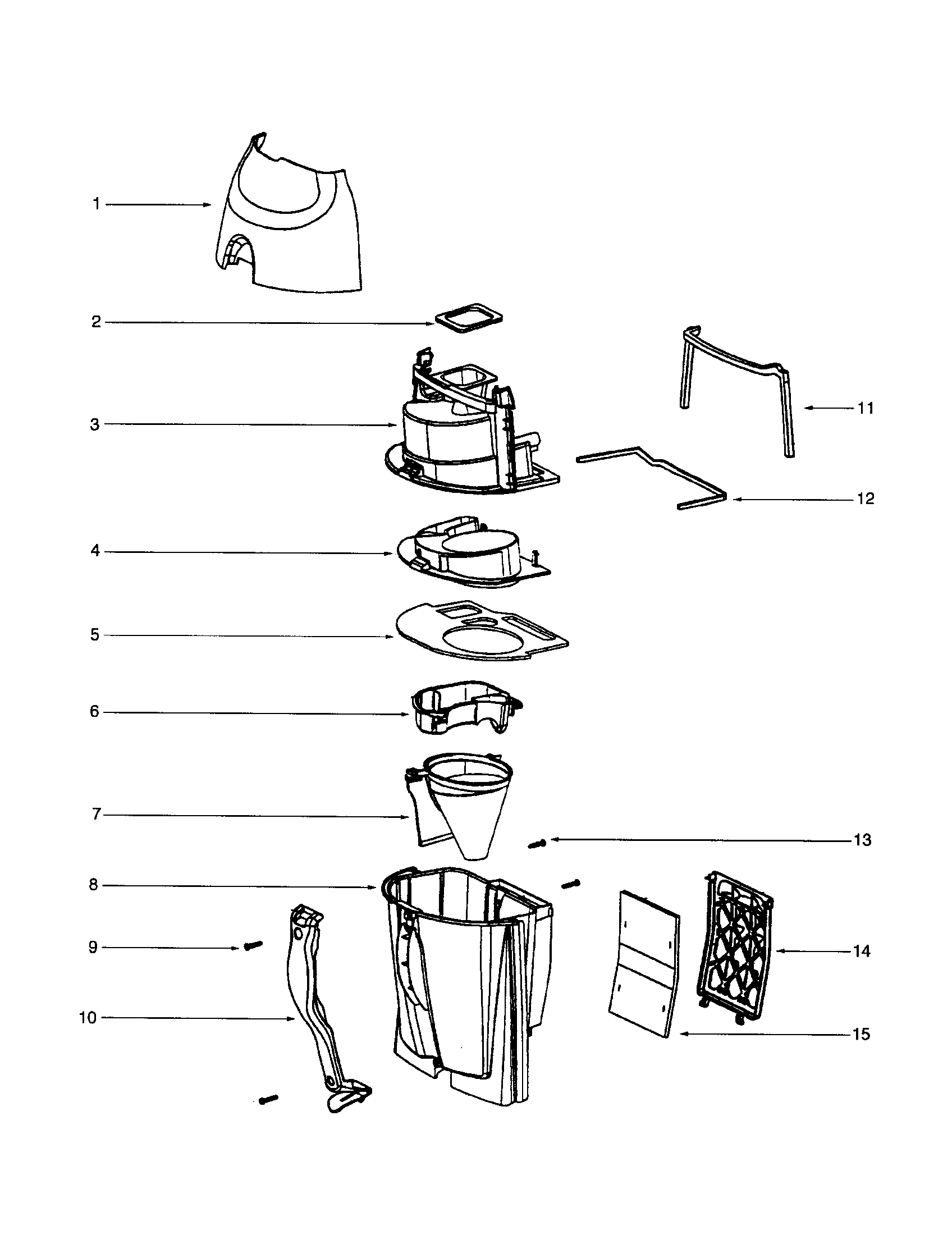

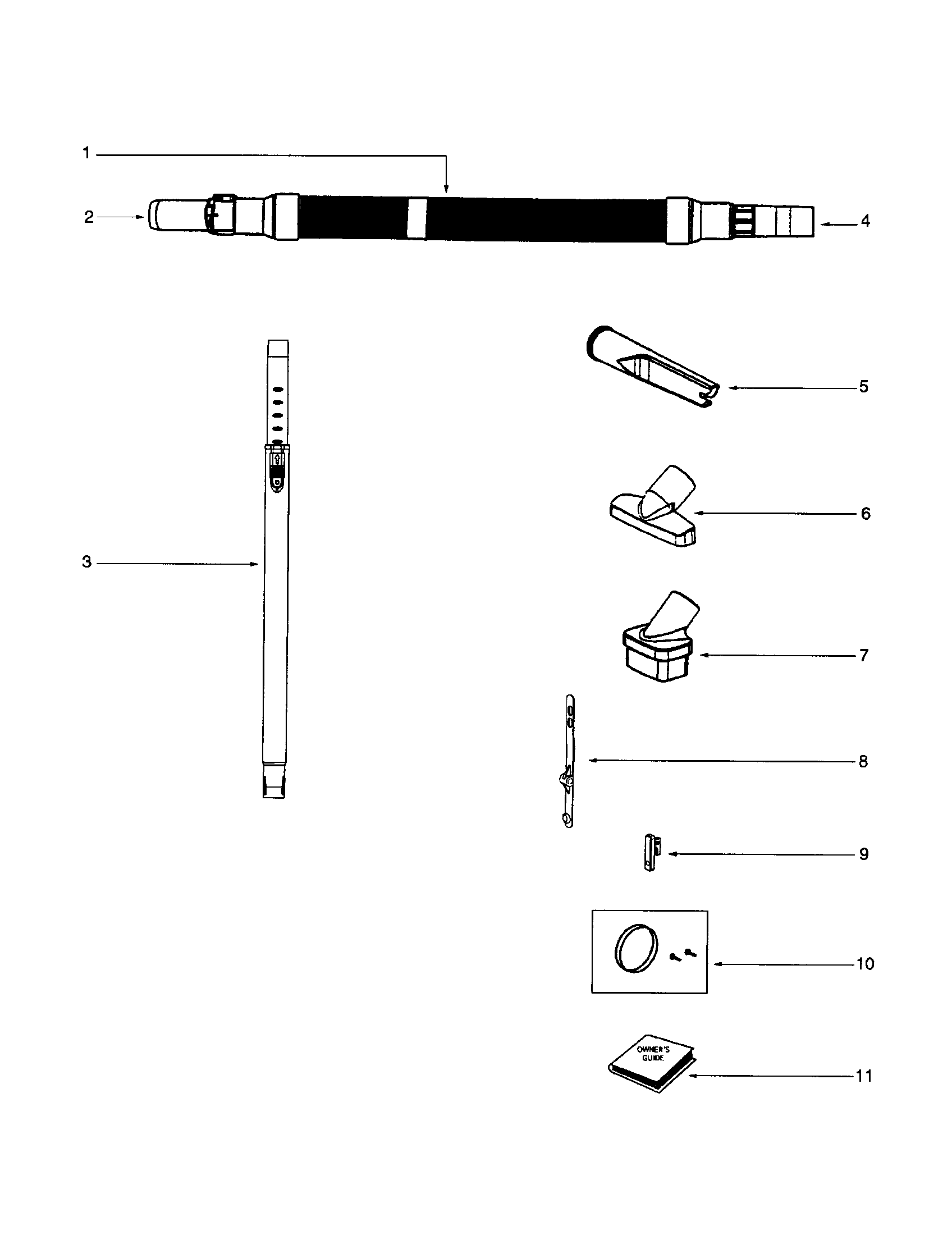

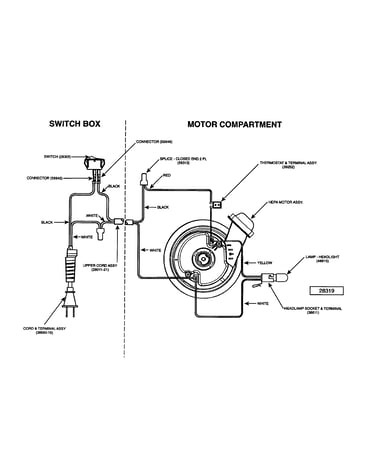

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Cover 15581-119N
#14

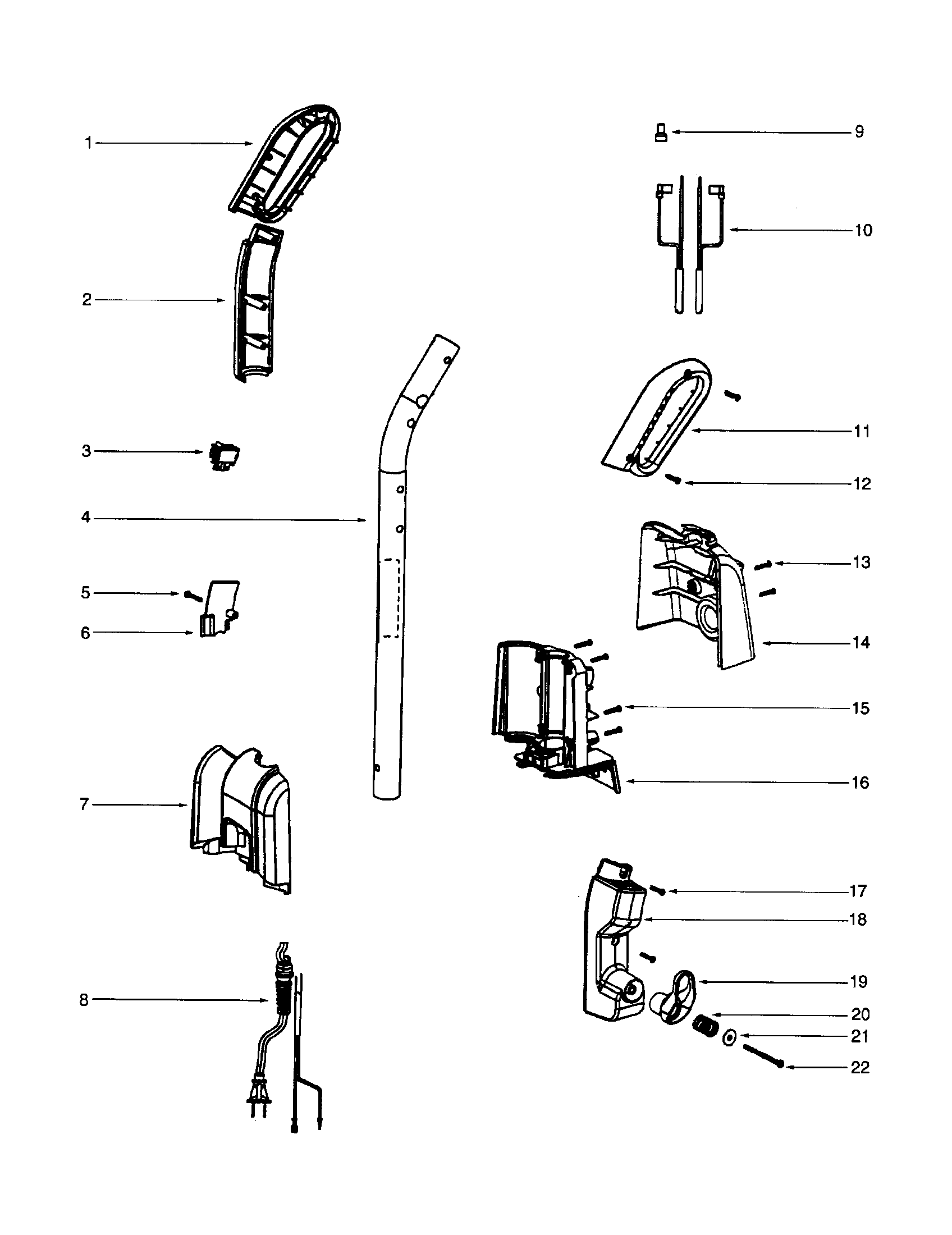

Handle diagram

Cover

Part #15581-119N

The manufacturer no longer makes this part, and there's no substitute part

Housing 02348-288N
#18

Handle diagram

Housing

Part #02348-288N

The manufacturer no longer makes this part, and there's no substitute part

Adapter 59361A
#8

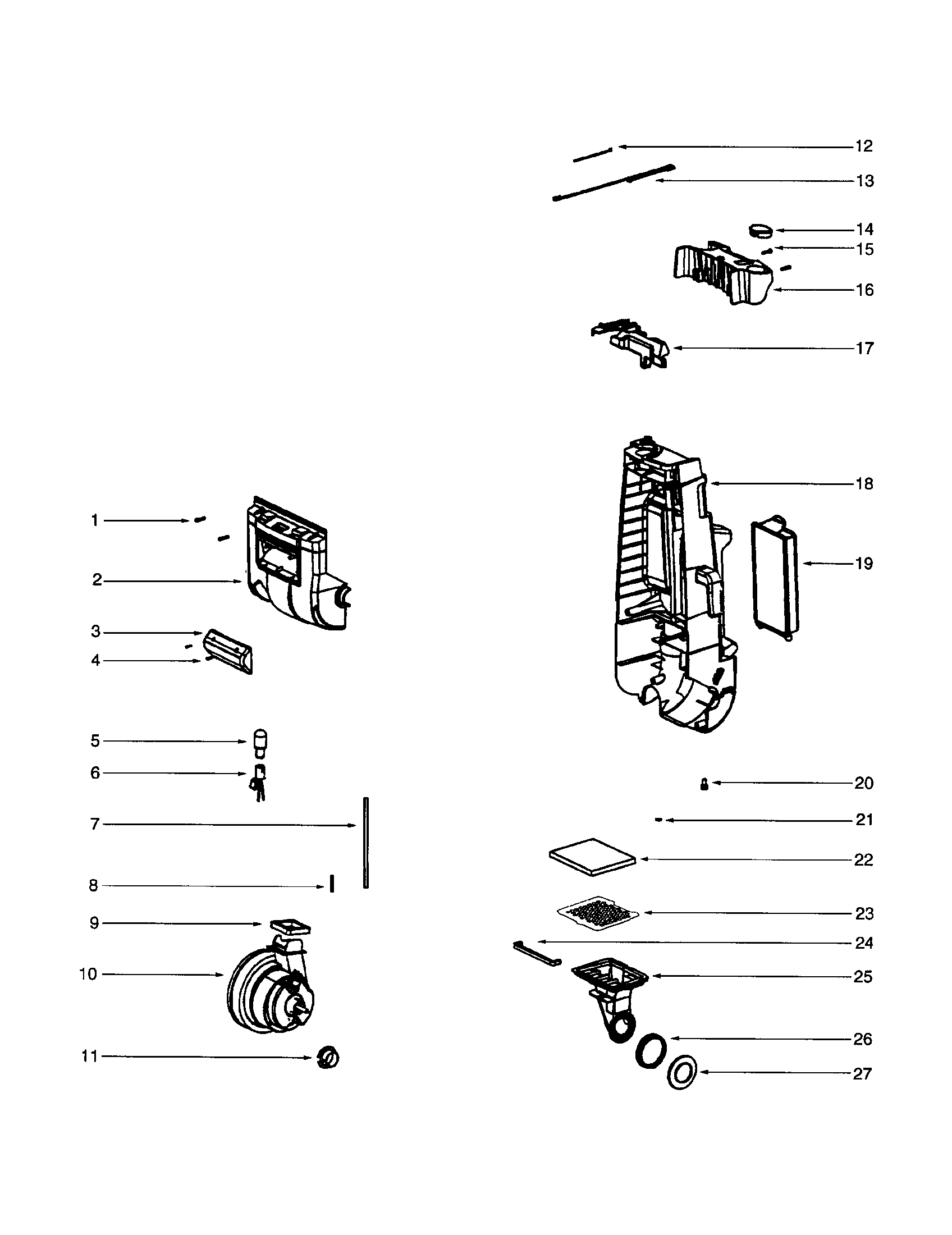

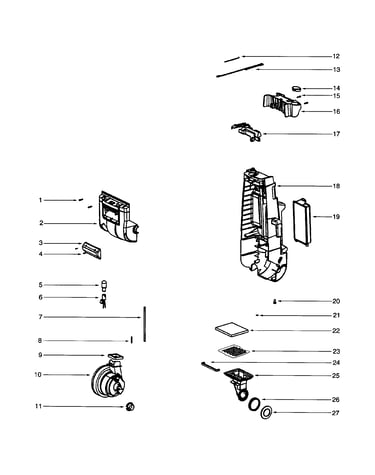

Motor cover diagram

Adapter

Part #59361A

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Wire Tie 46713-5
#12

Motor cover diagram

Electrolux wire tie

Part #46713-5

The manufacturer no longer makes this part, and there's no substitute part

Retainer 60941
#3

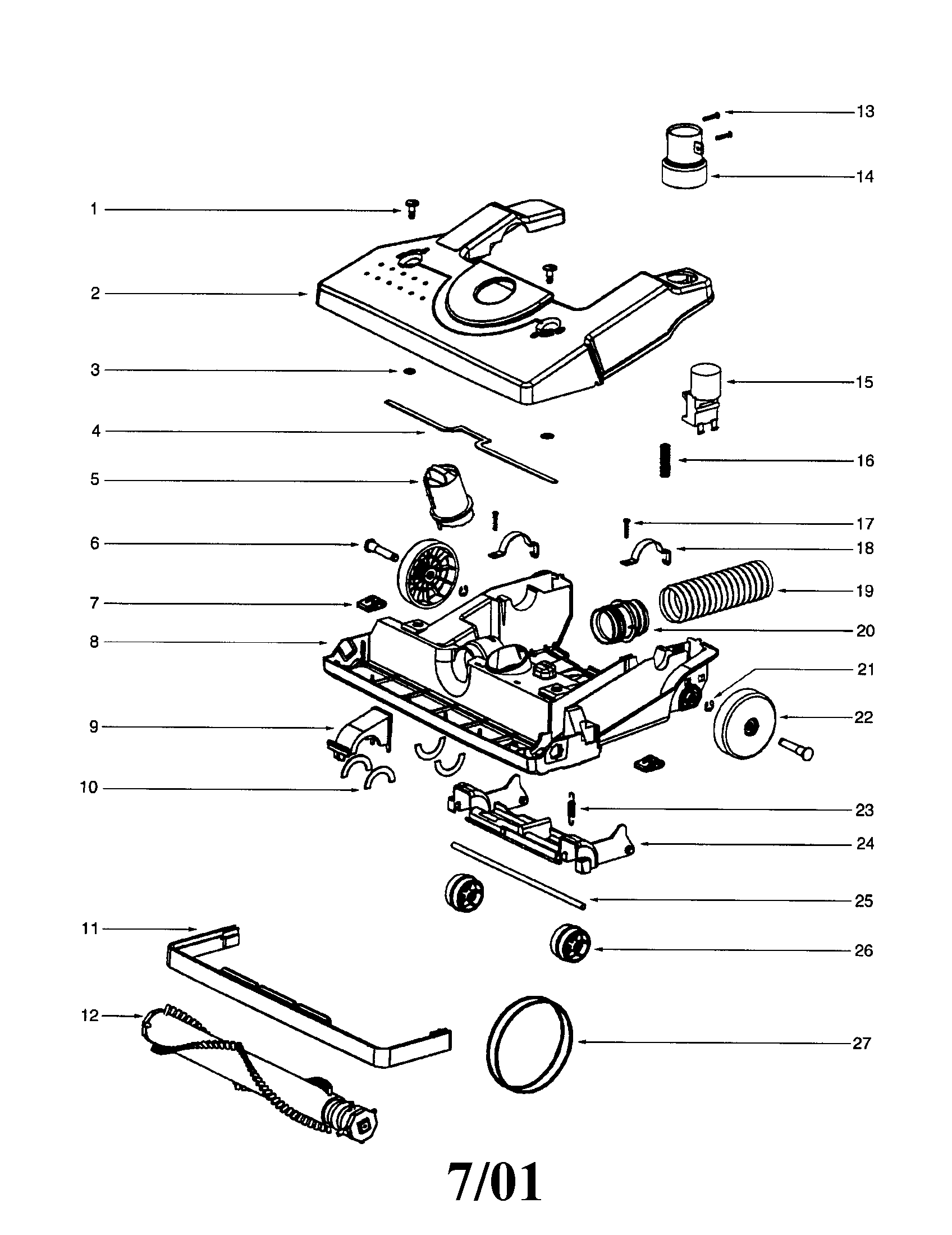

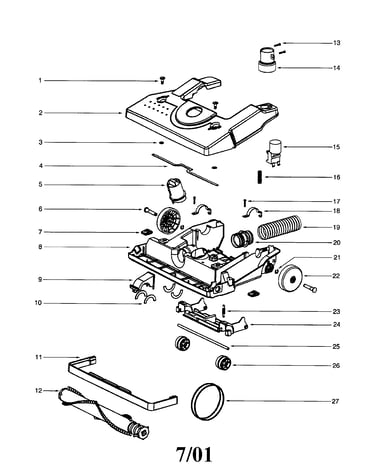

Base diagram

Retainer

Part #60941

The manufacturer no longer makes this part, and there's no substitute part

Handle 15580
#4

Handle diagram

Handle

Part #15580

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 60939
#7

Base diagram

Receptacle

Part #60939

The manufacturer no longer makes this part, and there's no substitute part

Hood 60249-1
#2

Base diagram

Hood

Part #60249-1

The manufacturer no longer makes this part, and there's no substitute part

Grip 15597-288N
#1

Handle diagram

Grip

Part #15597-288N

The manufacturer no longer makes this part, and there's no substitute part

Housing 70332-308N
#7

Handle diagram

Housing

Part #70332-308N

The manufacturer no longer makes this part, and there's no substitute part
