Model # KBAU272TSS00 Official KitchenAid grill access door
Here are the diagrams and repair parts for Official KitchenAid KBAU272TSS00 grill access door, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
KBAU272TSS00 Grill Access Door
#9

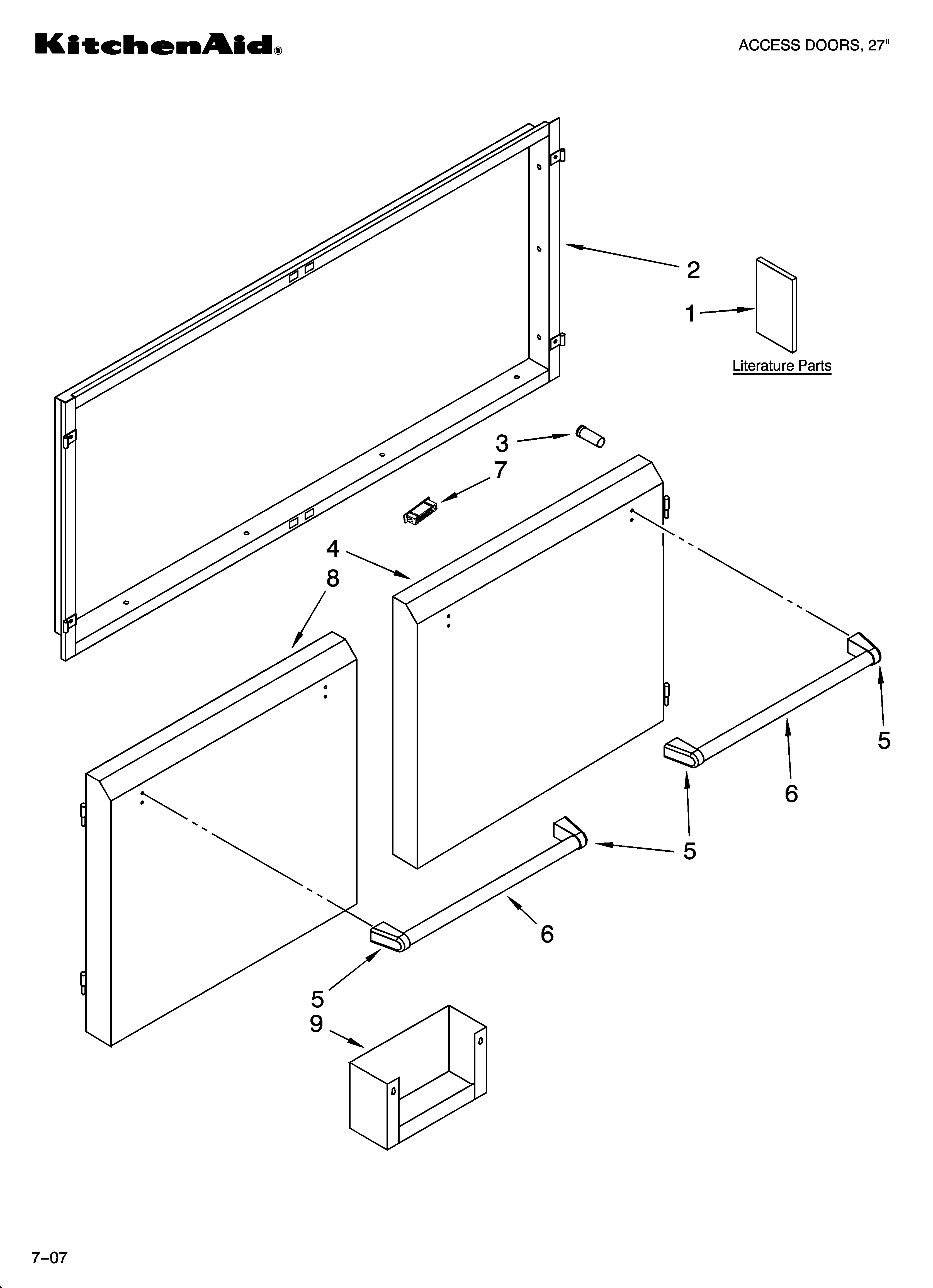

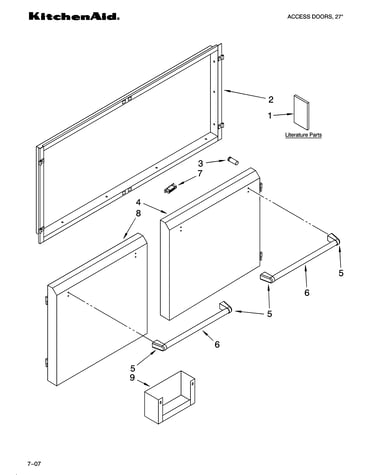

Door parts diagram
Electronic control
Part #W10141422
Replaced by #WP5702M027-60
?
Manufacturer substitution
This part replaces W10141422. Substitute parts can look different from the original.
$346.53
In Stock
#1
Door parts diagram
U & c guide / instructions, installation
Part #W101180968
The manufacturer no longer makes this part, and there's no substitute part
#7
Door parts diagram
Magnet
Part #W10128697
The manufacturer no longer makes this part, and there's no substitute part
#5
Door parts diagram
Bracket
Part #W10137052
The manufacturer no longer makes this part, and there's no substitute part
#3
Door parts diagram
Button plug
Part #W10128696
The manufacturer no longer makes this part, and there's no substitute part
#8
Door parts diagram
Door panel
Part #W10141430
The manufacturer no longer makes this part, and there's no substitute part
#4
Door parts diagram
Door panel
Part #W10141429
The manufacturer no longer makes this part, and there's no substitute part
#2
Door parts diagram
Frame
Part #W10141428
The manufacturer no longer makes this part, and there's no substitute part
#6
Door parts diagram
Door handle
Part #W10141200
The manufacturer no longer makes this part, and there's no substitute part
