Model # PRG304EH01 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PRG304EH01 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

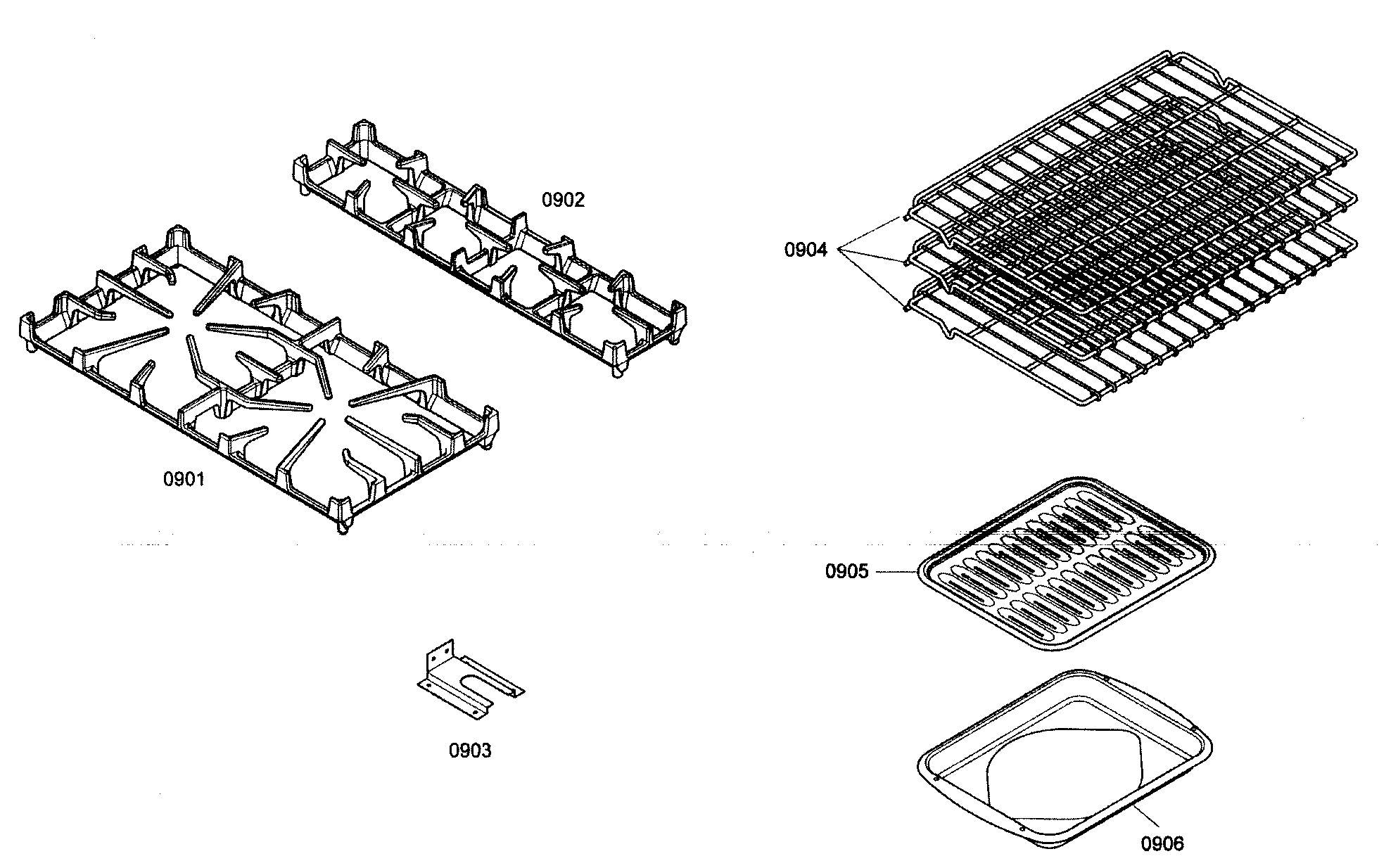

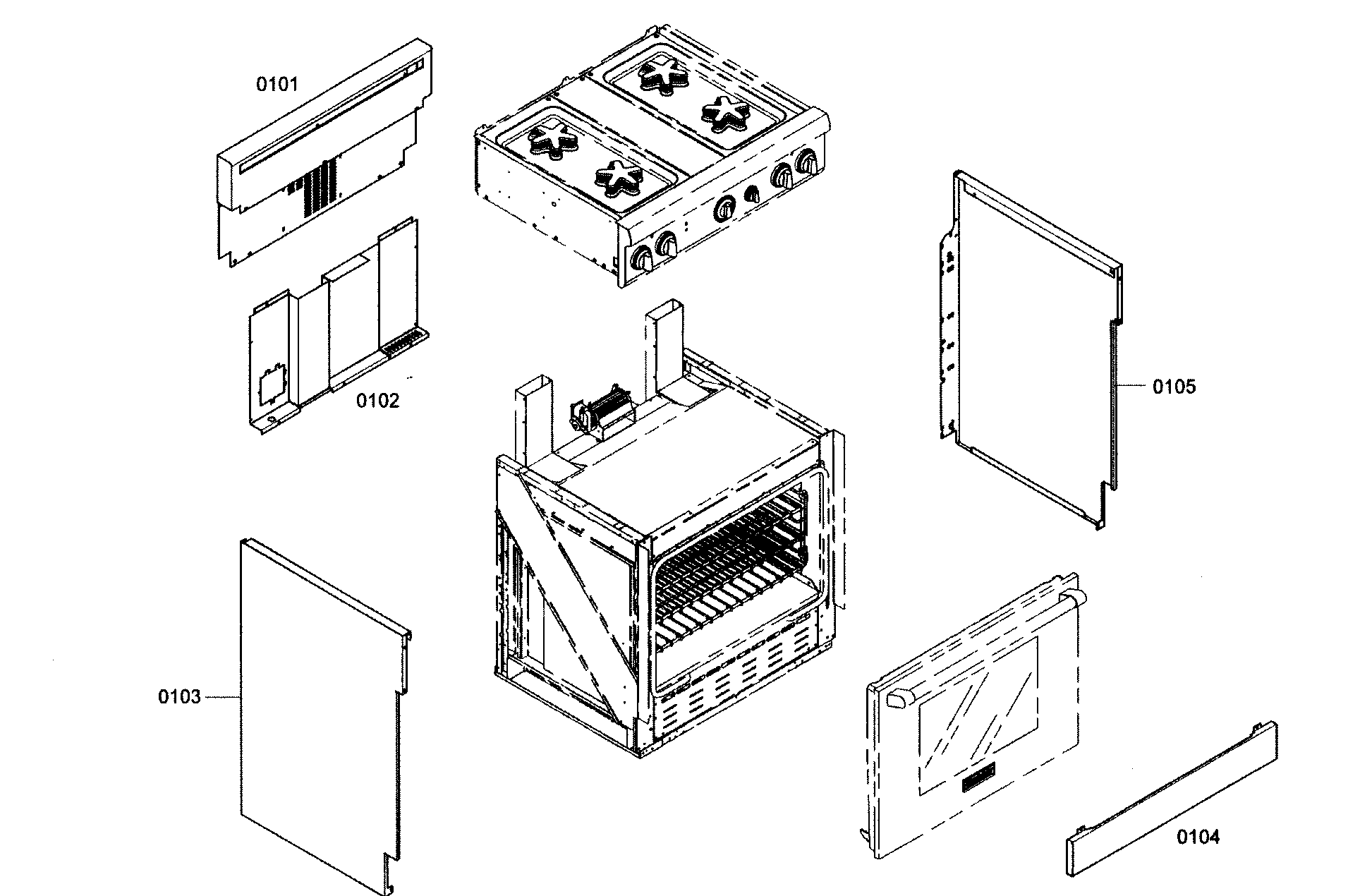

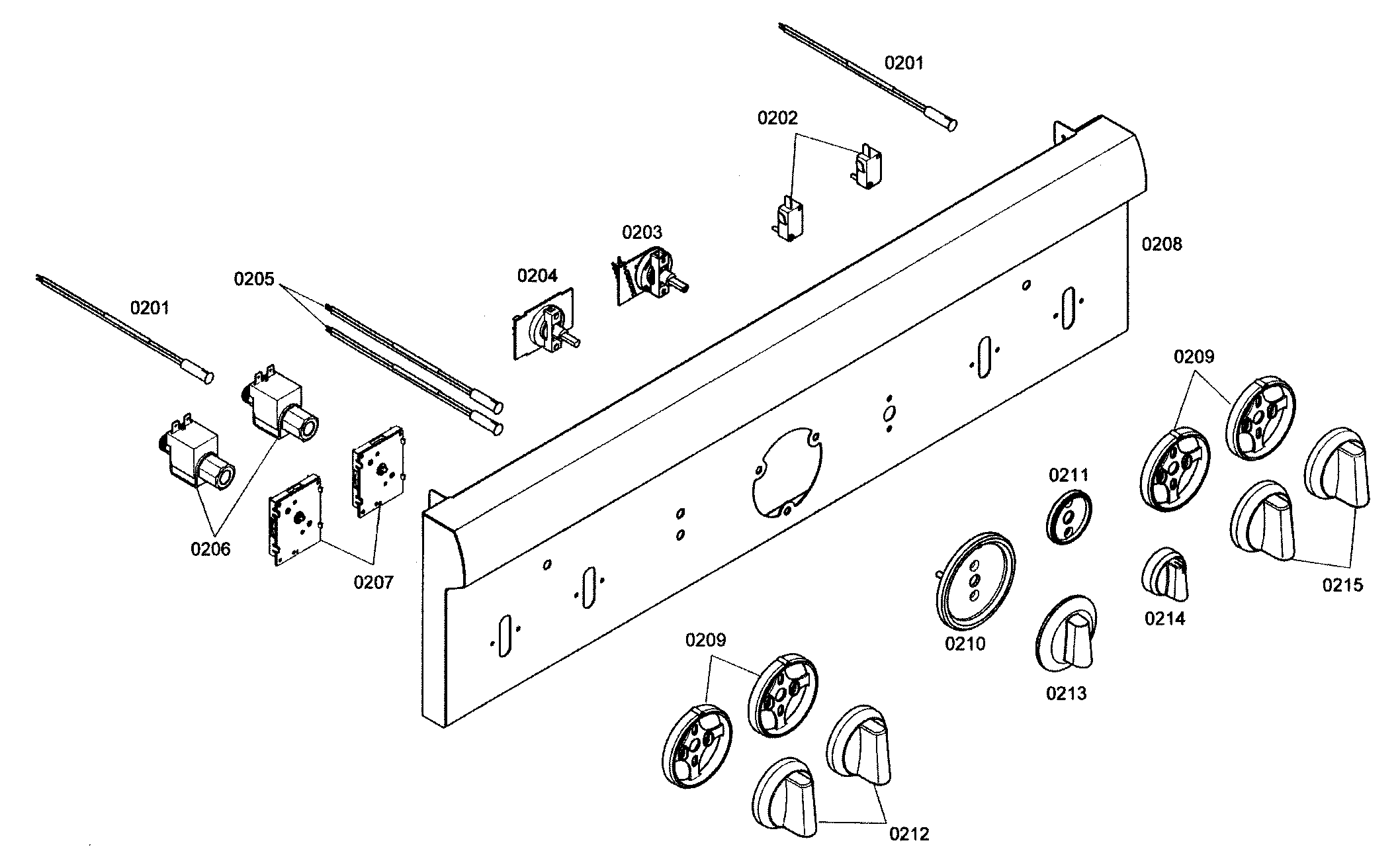

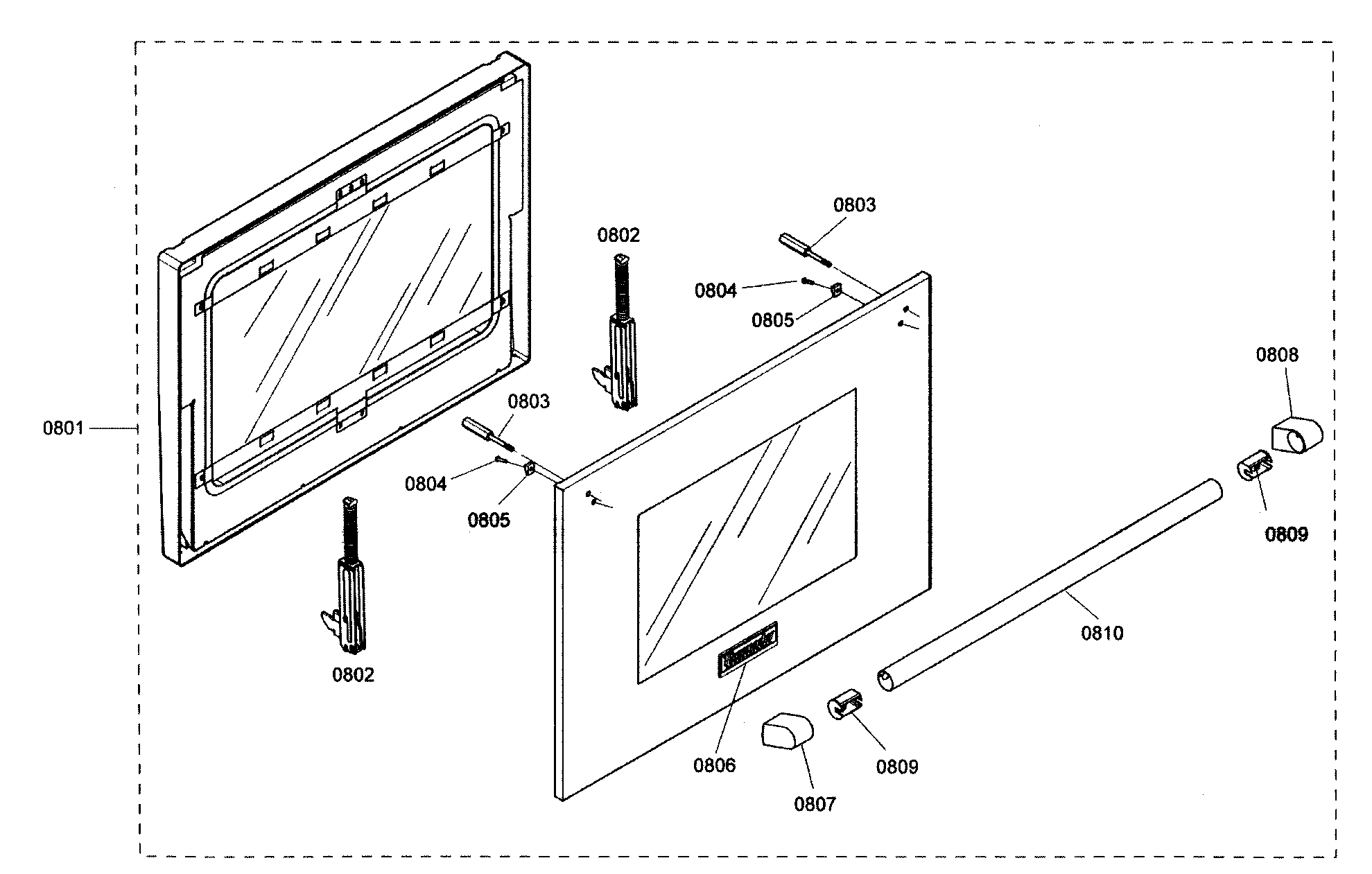

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Holder 600607
#310

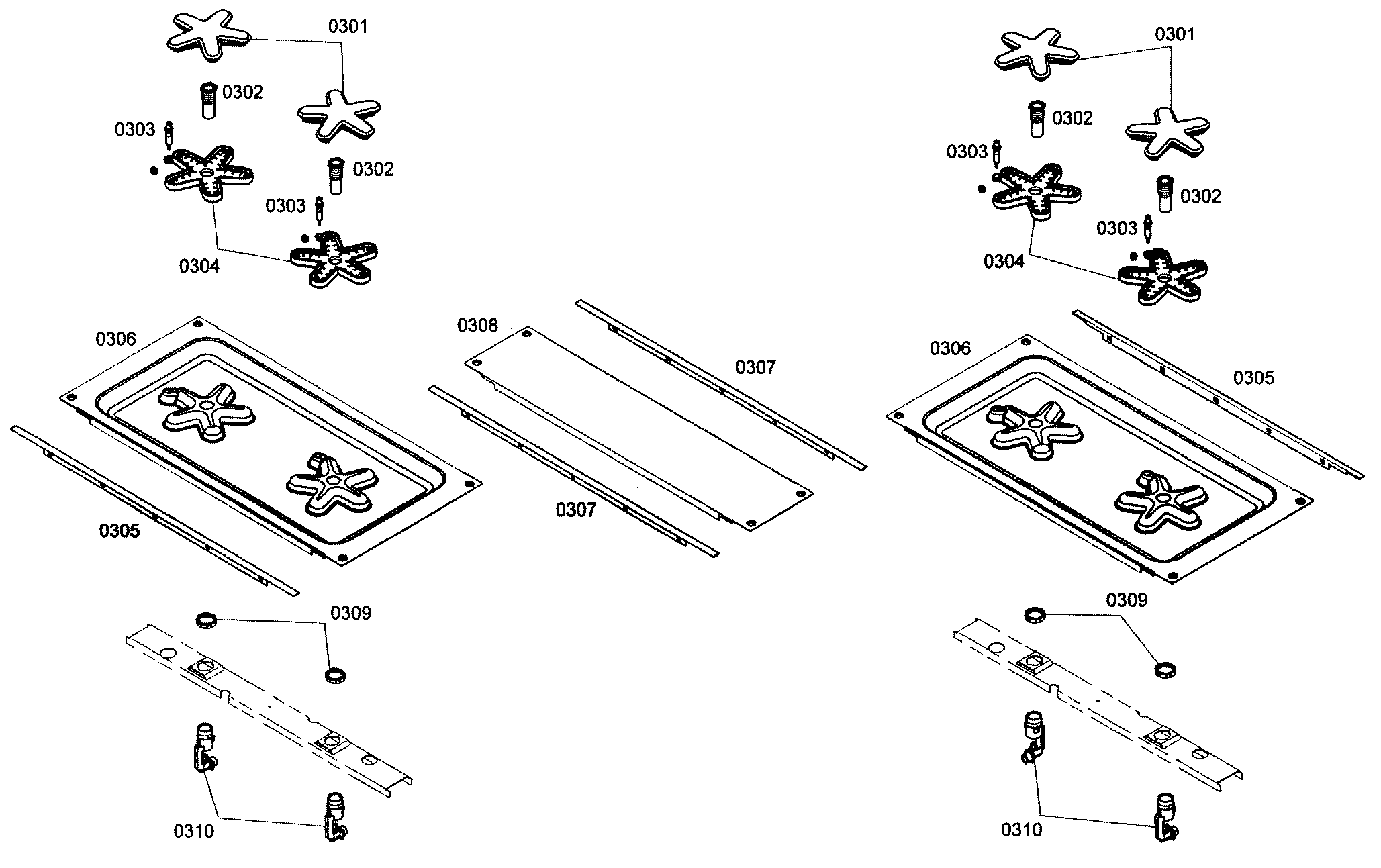

Burner assy diagram

Holder

Part #600607

Replaced by #00600607

?
Manufacturer substitution
This part replaces 600607. Substitute parts can look different from the original.
BEST SELLER
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Igniter 492431
#606

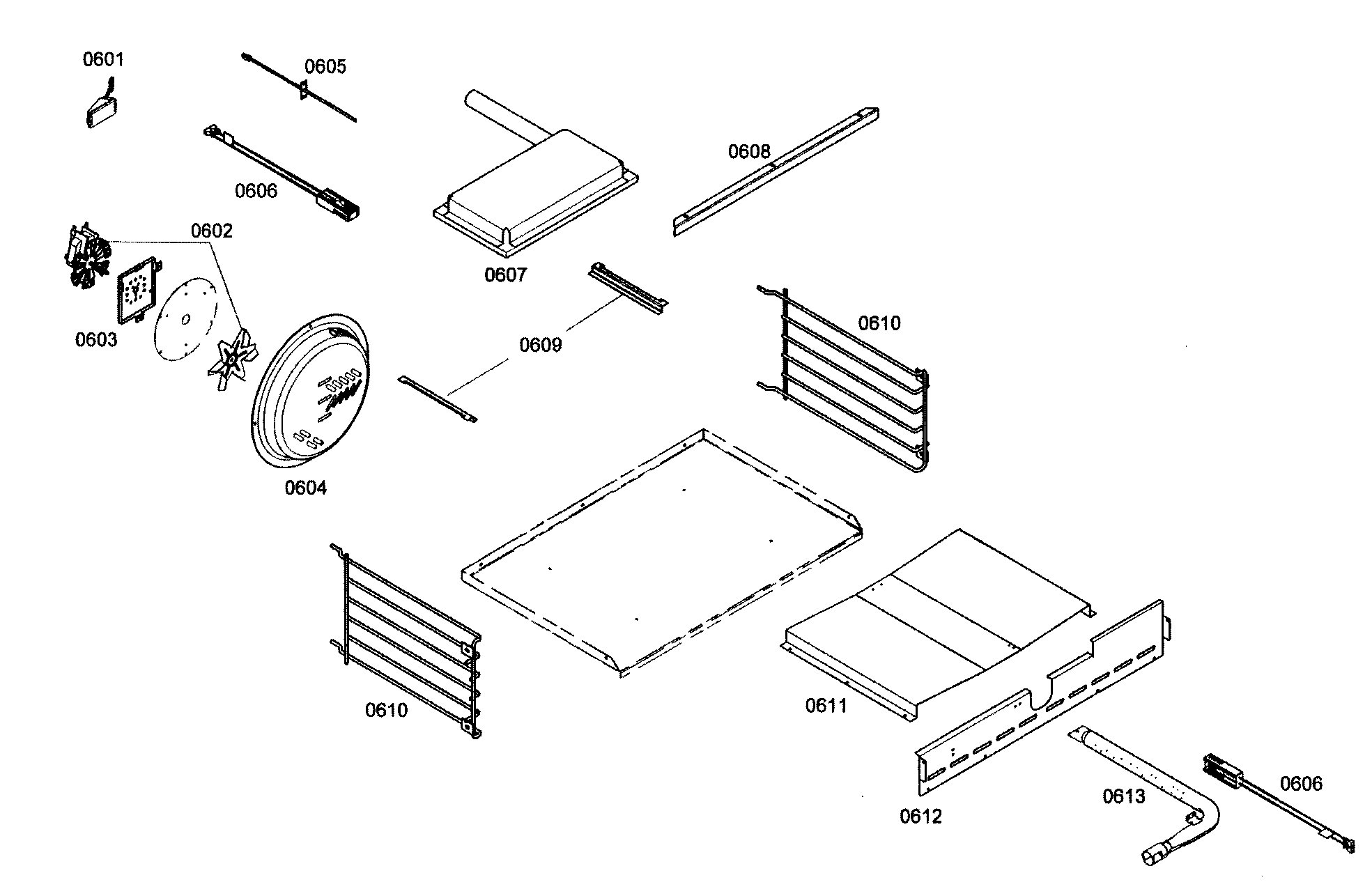

Lamp assy oven diagram

Igniter

Part #492431

Replaced by #00492431

?
Manufacturer substitution
This part replaces 492431. Substitute parts can look different from the original.
$120.69 |
9% OFF Phone Price : $132.69
In Stock
Tube 189023
#302

Burner assy diagram

Tube

Part #189023

Replaced by #00189023

?
Manufacturer substitution
This part replaces 189023. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
Back Order
Igniter Plug 603777
#303

Burner assy diagram

Igniter plug

Part #603777

Replaced by #00603777

?
Manufacturer substitution
This part replaces 603777. Substitute parts can look different from the original.
$27.36
In Stock
Ignition 427090
#502

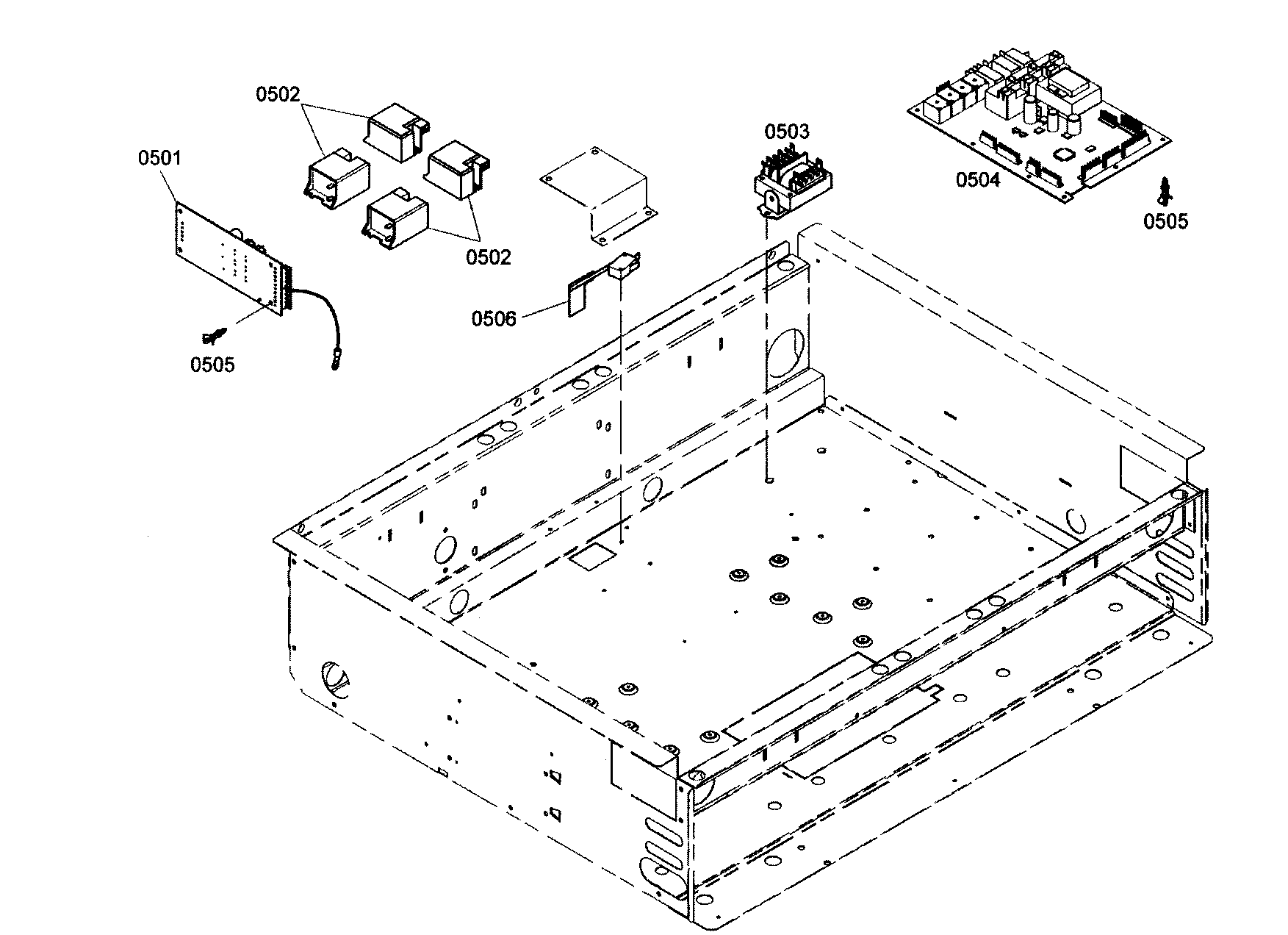

Oven assy diagram

Ignition

Part #427090

Replaced by #00619017

?
Manufacturer substitution
This part replaces 427090. Substitute parts can look different from the original.
$138.31 |
8% OFF Phone Price : $150.31
Back Order
Valve 492271
#421

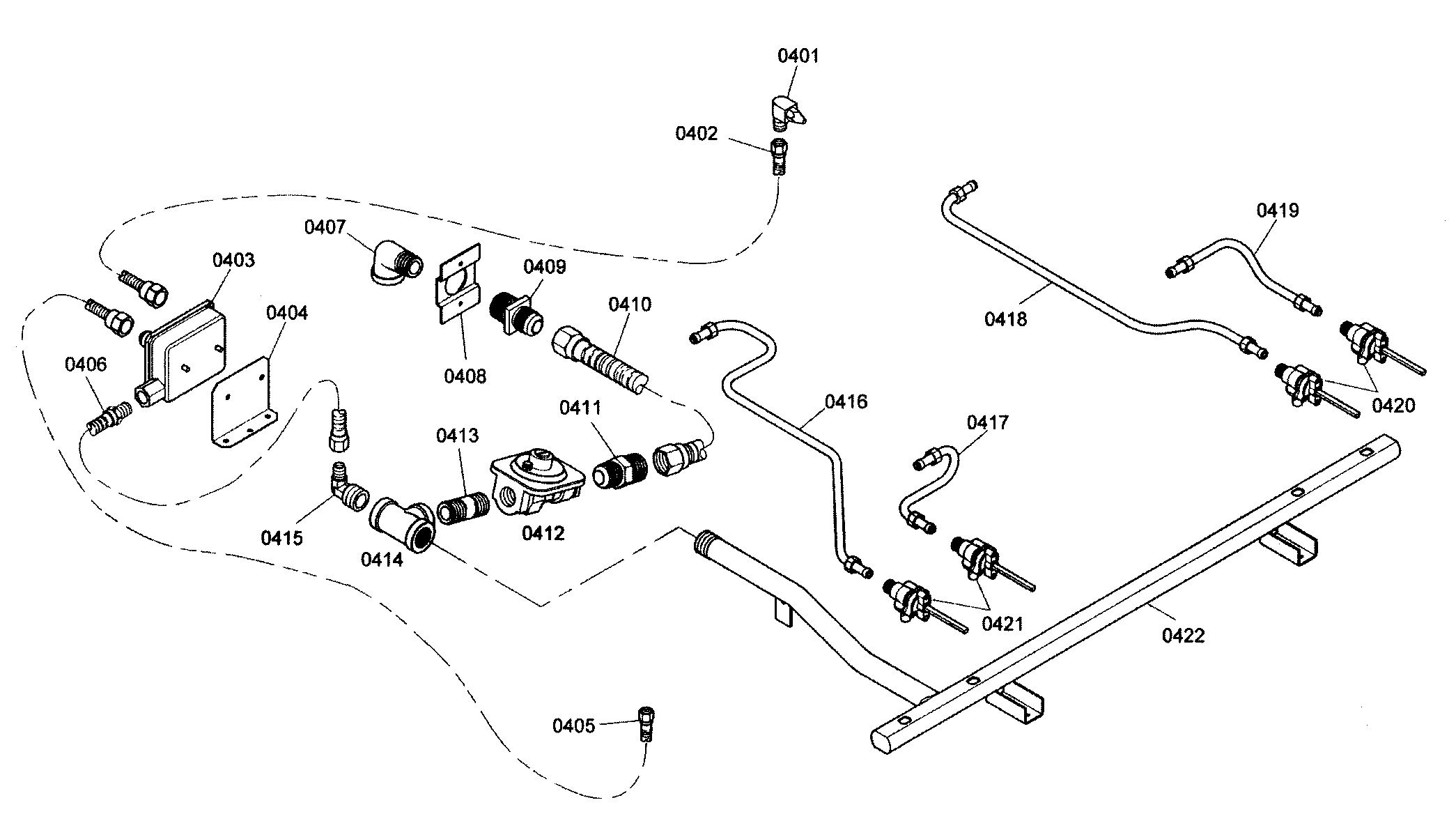

Connections diagram

Valve

Part #492271

Replaced by #00628629

?
Manufacturer substitution
This part replaces 492271. Substitute parts can look different from the original.
$105.73
In Stock
Tube 445582
#418

Connections diagram

Tube

Part #445582

Replaced by #00445582

?
Manufacturer substitution
This part replaces 445582. Substitute parts can look different from the original.
$136.49 |
8% OFF Phone Price : $148.49
In Stock
Frame 497750
#707

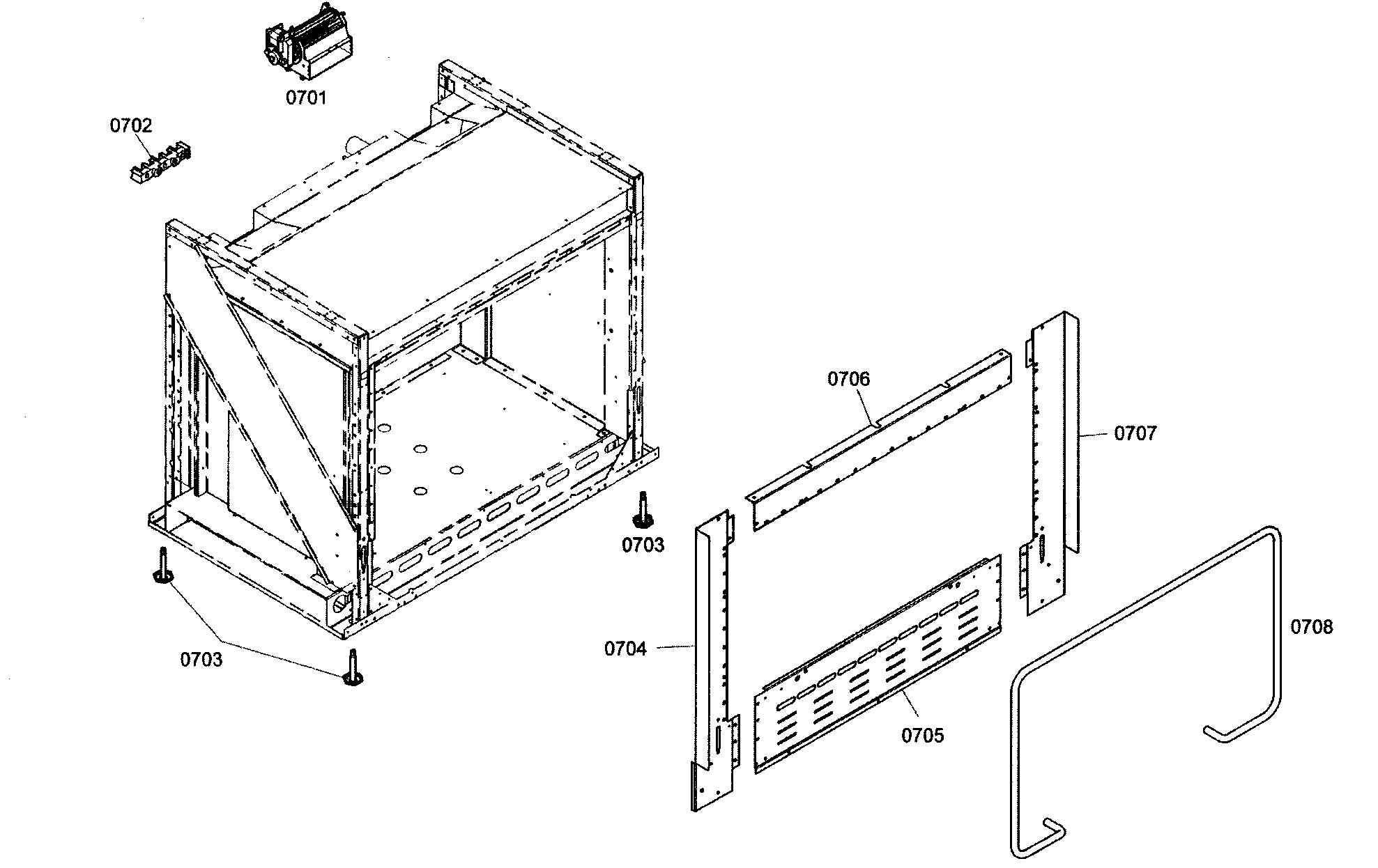

Oven cabinet parts diagram

Frame

Part #497750

Replaced by #00497750

?
Manufacturer substitution
This part replaces 497750. Substitute parts can look different from the original.
$167.62
In Stock
Cover 489125
#604

Lamp assy oven diagram

Cover

Part #489125

Replaced by #00489125

?
Manufacturer substitution
This part replaces 489125. Substitute parts can look different from the original.
$202.62
In Stock
Nut 188978
#309

Burner assy diagram

Nut

Part #188978

Replaced by #00188978

?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
In Stock
