Model # YMMV4205FB3 Official Maytag microwave/hood combo
Here are the diagrams and repair parts for Official Maytag YMMV4205FB3 microwave/hood combo, as well as links to manuals and error code tables, if available.
By Schematic

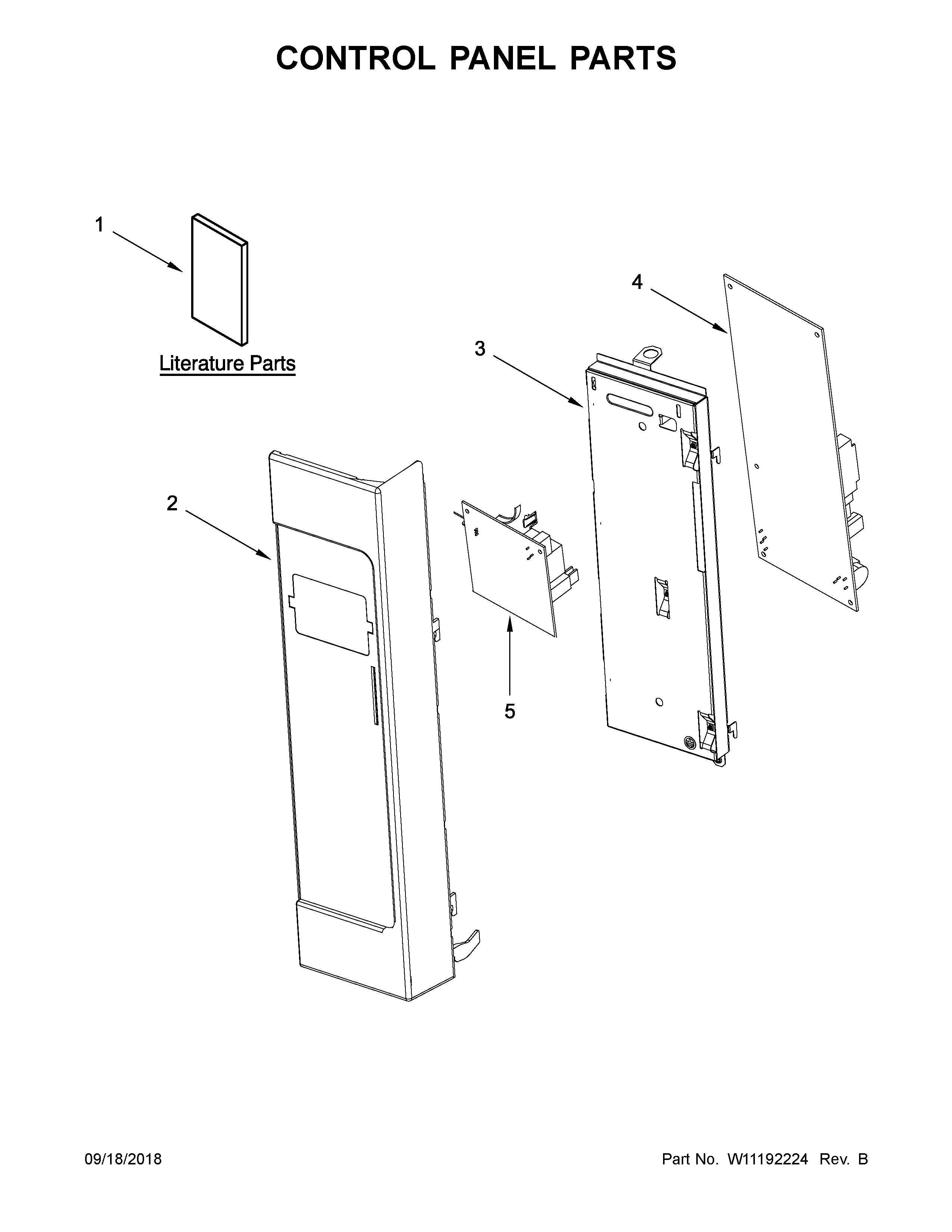

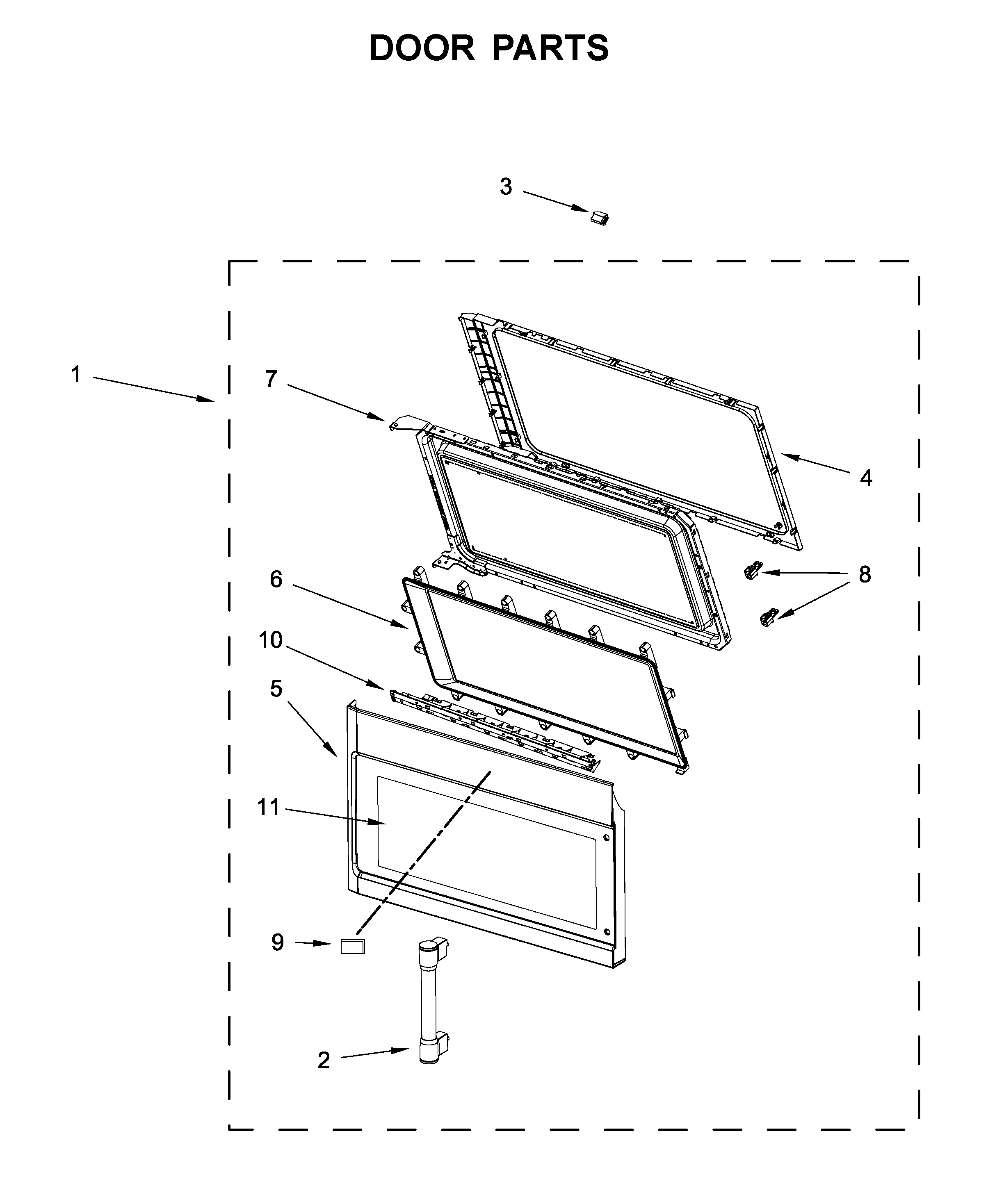

SELECT DIAGRAM
Browse Parts for
YMMV4205FB3 Microwave/Hood Combo
#13

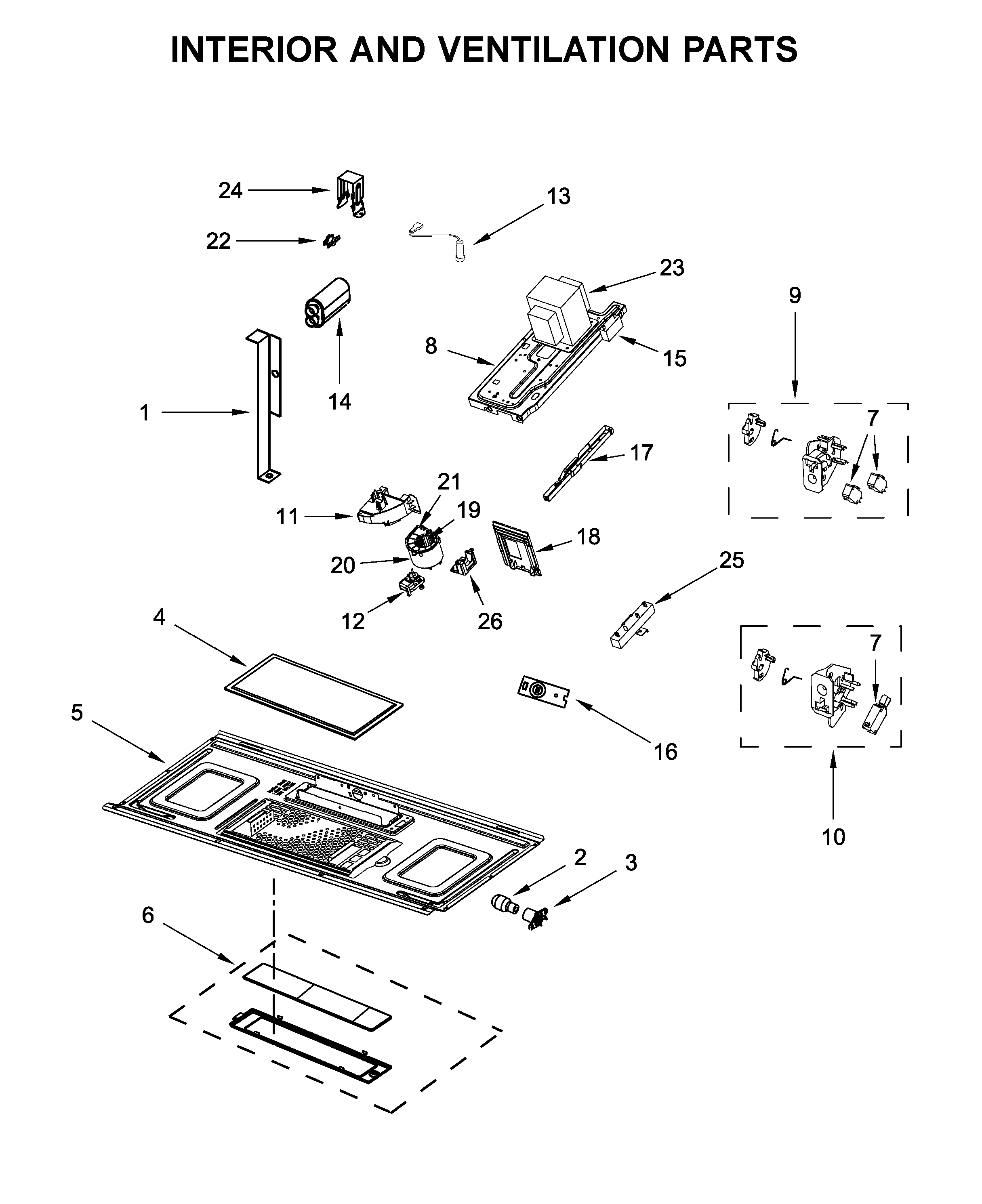

Interior and ventilation parts diagram
Diode
Part #W10575765
Replaced by #W11256462
?
Manufacturer substitution
This part replaces W10575765. Substitute parts can look different from the original.
$24.65 |
20% OFF Phone Price : $30.65
In Stock
#3

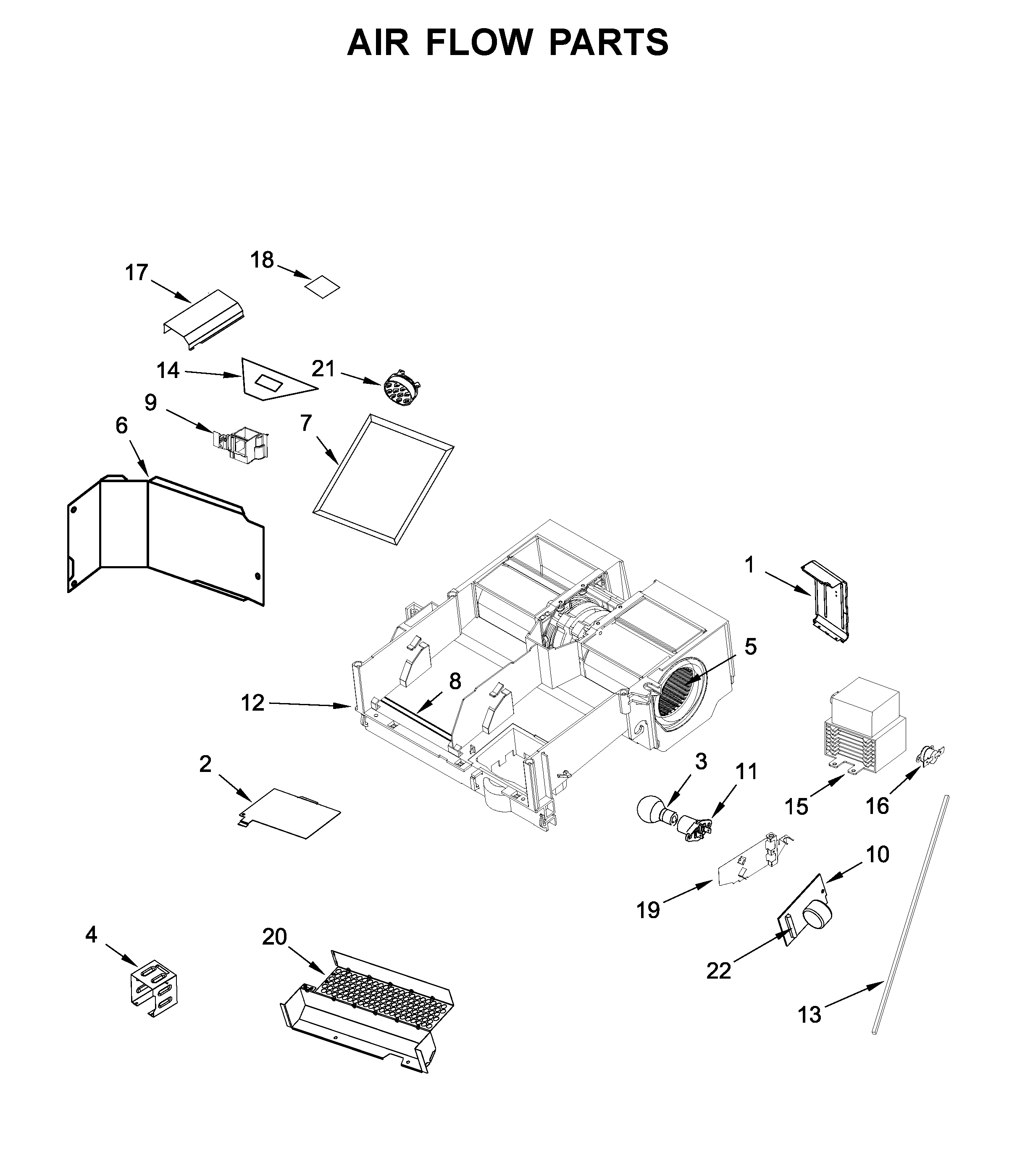

Air flow parts diagram
Lamp assembly
Part #4393681
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
$8.63 |
10% OFF Phone Price : $9.63
In Stock
#2
Interior and ventilation parts diagram
Microwave/hood light bulb
Part #8206232
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
$8.63 |
10% OFF Phone Price : $9.63
In Stock
#3
Interior and ventilation parts diagram
Microwave light socket
Part #W10210871
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#7
Air flow parts diagram
Filter
Part #8206230
Replaced by #8206230A
?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
$11.14 |
15% OFF Phone Price : $13.14
In Stock
#5

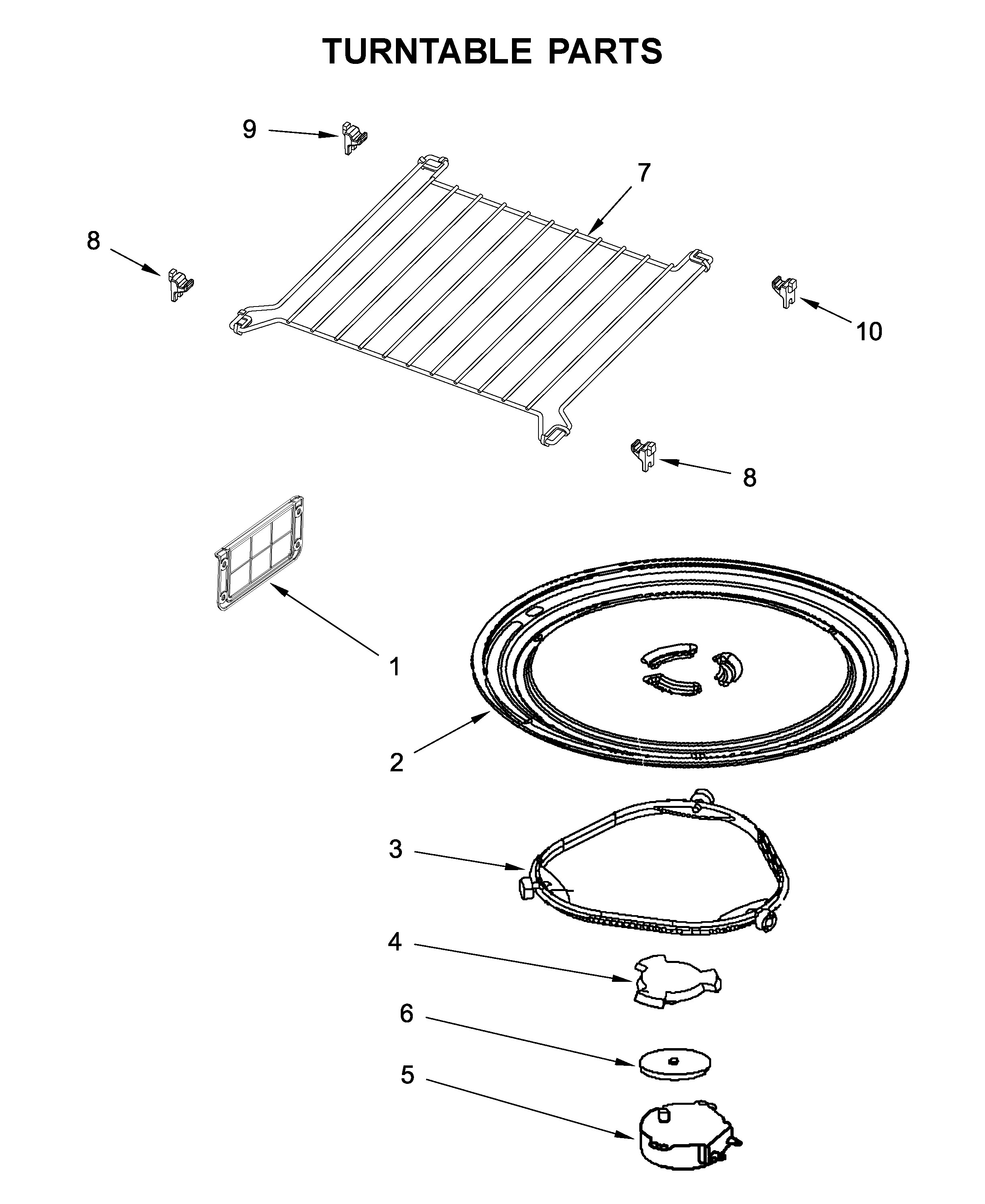

Turntable parts diagram
Microwave turntable motor (replaces 8183954)
Part #W10642989
$69.48 |
8% OFF Phone Price : $75.48
In Stock
#6A

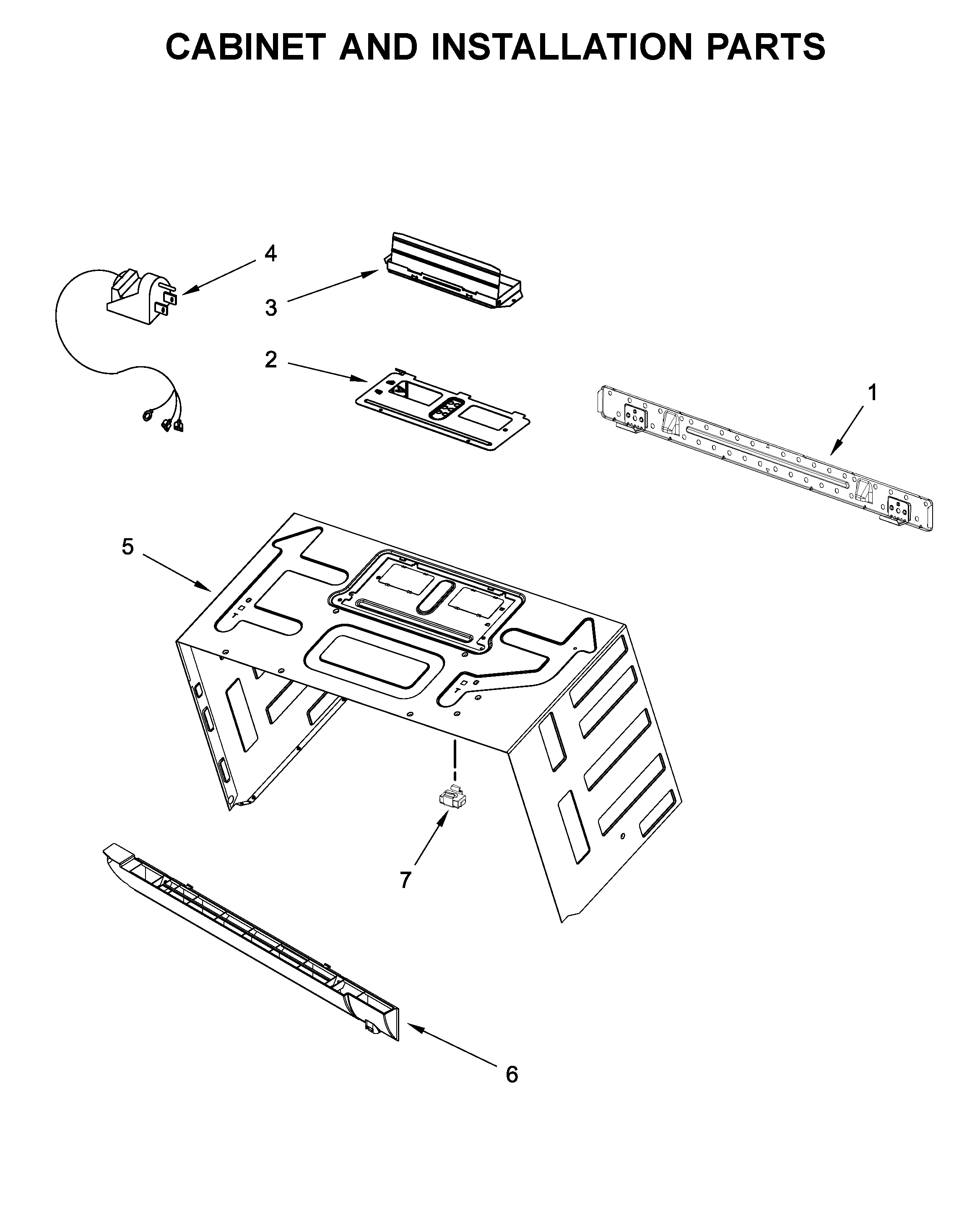

Cabinet and installation parts diagram
Microwave vent grille (black) (replaces w10533491)
Part #W10701697
$39.79 |
13% OFF Phone Price : $45.79
In Stock
#2
Turntable parts diagram
Microwave glass turntable tray
Part #W10531726
Replaced by #W11402532
?
Manufacturer substitution
This part replaces W10531726. Substitute parts can look different from the original.
$34.39 |
15% OFF Phone Price : $40.39
Back Order
#9
Interior and ventilation parts diagram
Assembly, upper interlock (includes switches)
Part #W11169313
Replaced by #W11192678
?
Manufacturer substitution
This part replaces W11169313. Substitute parts can look different from the original.
$22.19 |
21% OFF Phone Price : $28.19
In Stock
#10
Air flow parts diagram
Microwave/hood filter
Part #W10531156
Replaced by #WPW10531156
?
Manufacturer substitution
This part replaces W10531156. Substitute parts can look different from the original.
$63.31
In Stock
