Whirlpool
Compact Refrigerator

Model # EL05CCXAW0 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool EL05CCXAW0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Refrigerator Thermostat 4312399
#5

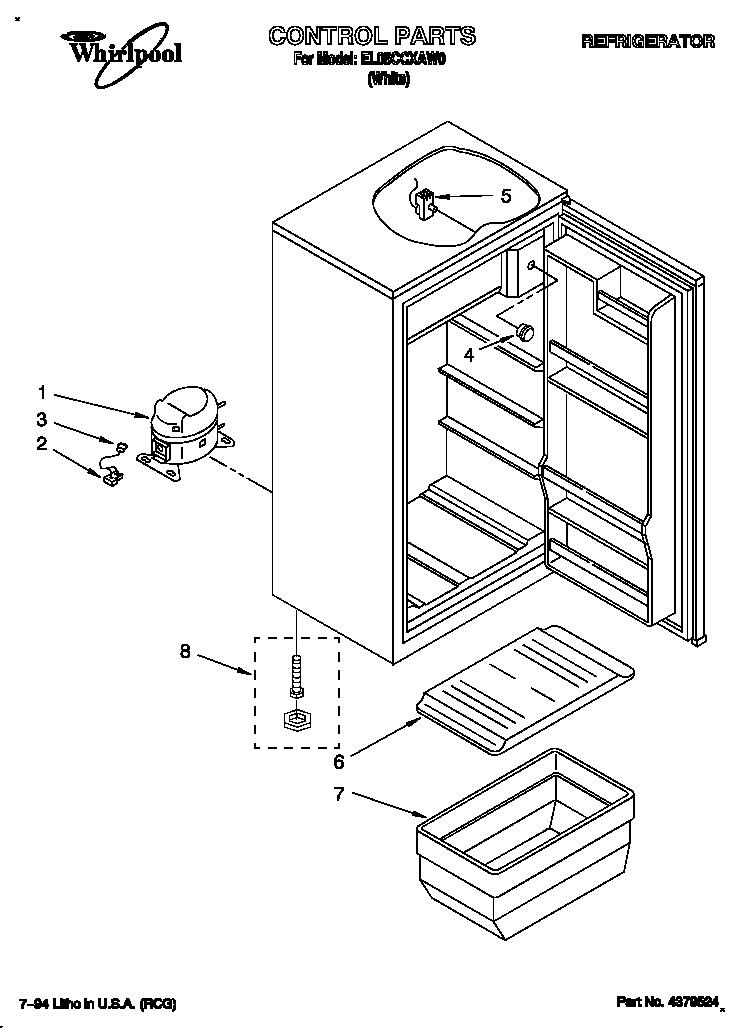

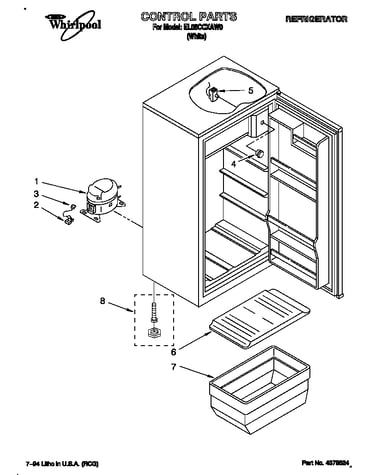

Unit/shelves diagram

Refrigerator thermostat

Part #4312399

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Pan Cover 4312403
#6

Unit/shelves diagram

Refrigerator pan cover

Part #4312403

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Crisper Pan 4312420
#7

Unit/shelves diagram

Refrigerator crisper pan

Part #4312420

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Thermostat Knob 4312419
#4

Unit/shelves diagram

Refrigerator thermostat knob

Part #4312419

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Overload 4312418
#3

Unit/shelves diagram

Refrigerator overload

Part #4312418

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Compressor 4312417
#1

Unit/shelves diagram

Refrigerator compressor

Part #4312417

The manufacturer no longer makes this part, and there's no substitute part

Leveler 4312407
#8

Unit/shelves diagram

Leveler

Part #4312407

The manufacturer no longer makes this part, and there's no substitute part
