Model # FXM4X3600AT1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP FXM4X3600AT1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Central Air Conditioner Air Filter, 21-1/2 X 19-7/8 X 1-in 1171653
#5

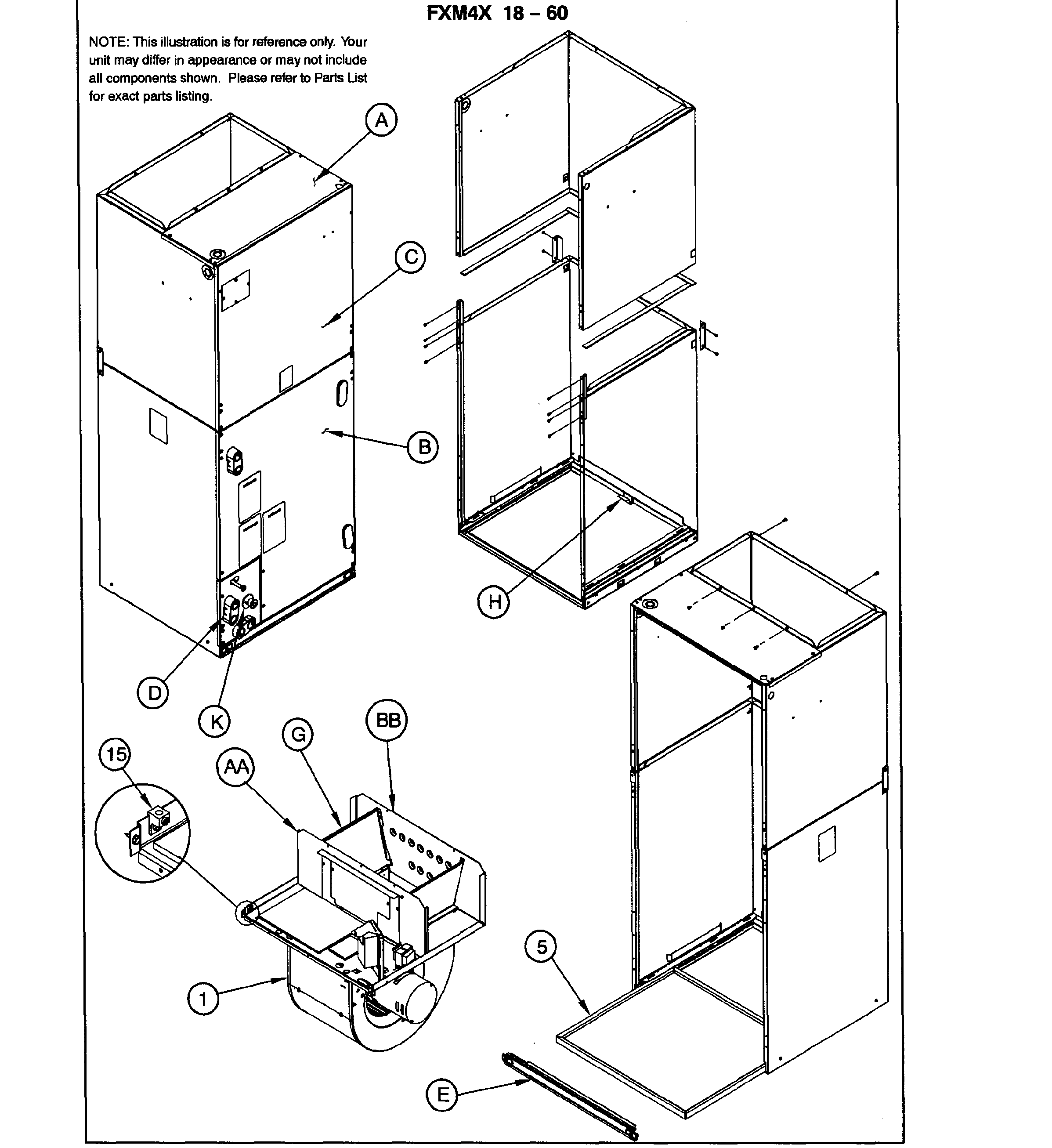

Cabinet diagram

Central air conditioner air filter, 21-1/2 x 19-7/8 x 1-in

Part #1171653

This item is not returnable
$47.05 |
11% OFF Phone Price : $53.05
In Stock
Screw 1170636
#Z

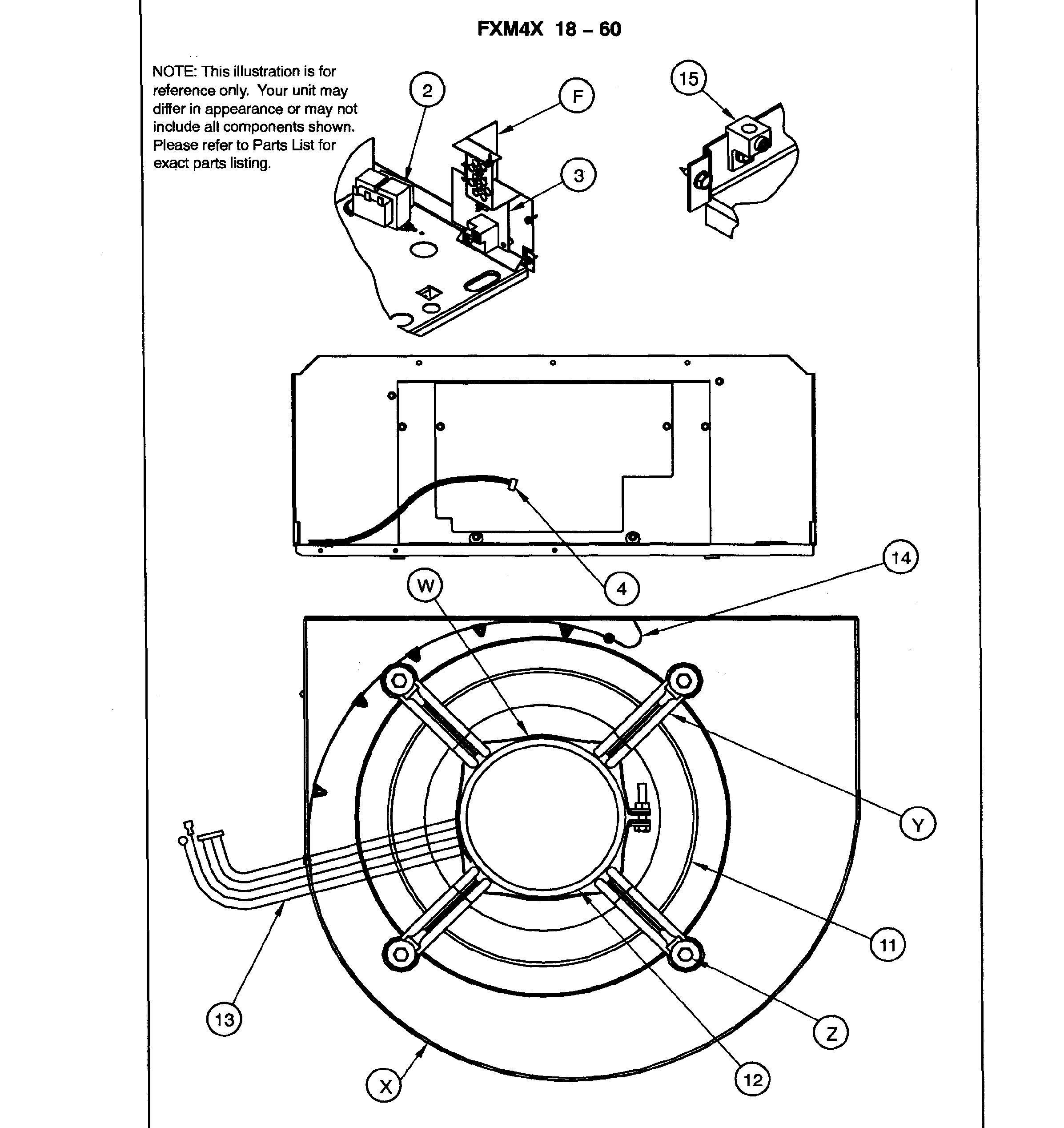

Blower diagram

Screw

Part #1170636

This item is not returnable
$2.40
In Stock
Harness 1178976
#NI

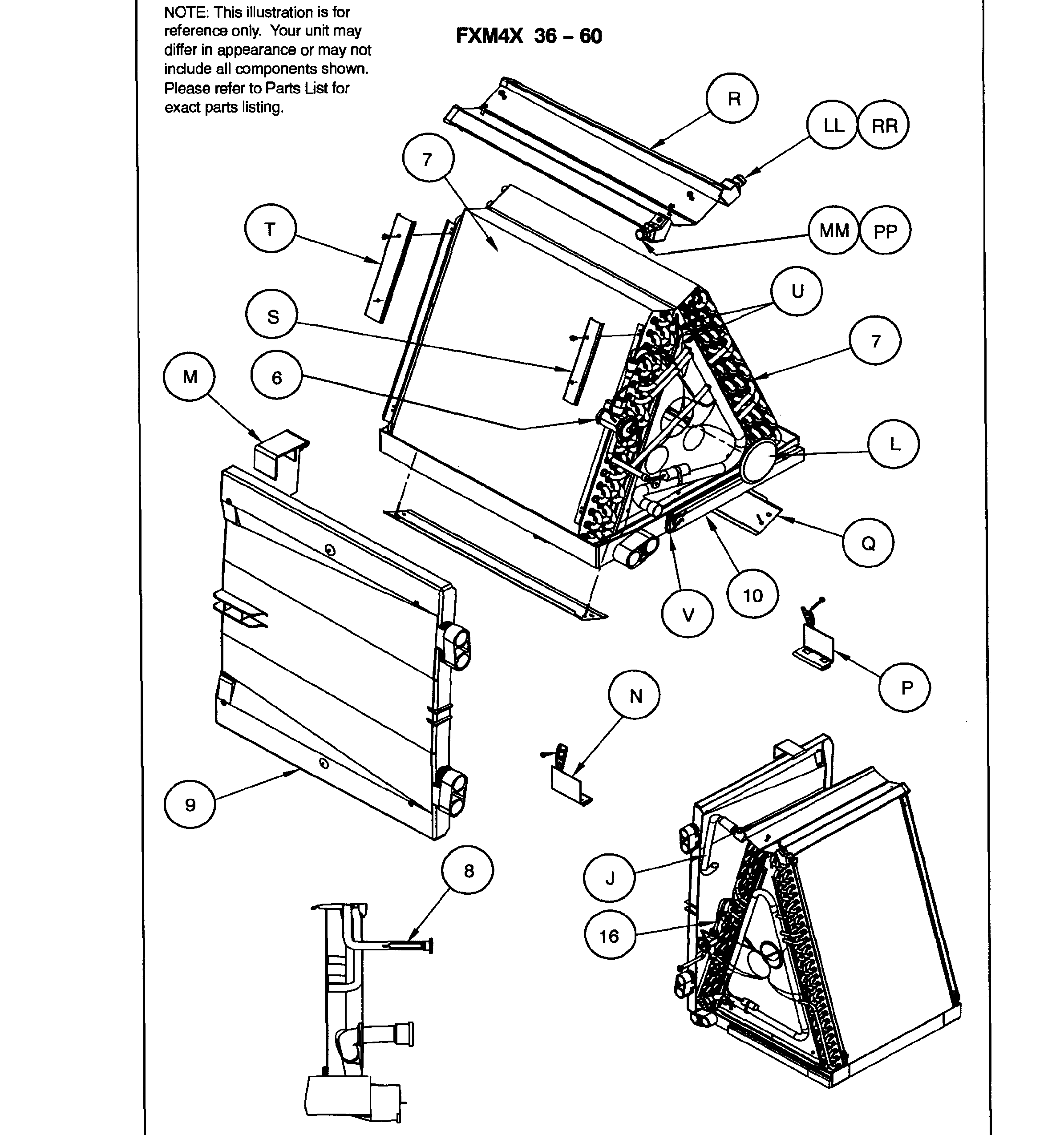

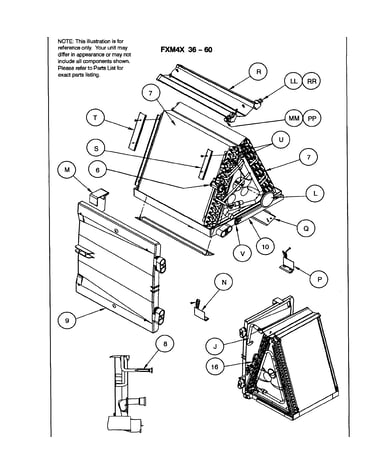

Coil assy diagram

Harness

Part #1178976

$79.38
In Stock
Arm & Grom 1173791
#Y

Blower diagram

Arm & grom

Part #1173791

$13.49
In Stock
Central Air Conditioner Air Handler Drain Pan Connector 1171636
#LL

Coil assy diagram

Central air conditioner air handler drain pan connector

Part #1171636

$8.51
In Stock
Drain Tube 1172337
#J

Coil assy diagram

Drain tube

Part #1172337

$29.62
In Stock
Grommet 1171737
#NI

Coil assy diagram

Grommet

Part #1171737

This item is not returnable
$2.34
In Stock
Trough Cnd 1171637
#T

Coil assy diagram

Trough cnd

Part #1171637

$49.20
In Stock
Transformer 1172028
#2

Blower diagram

Transformer

Part #1172028

$87.40
In Stock
Cap 1174950
#RR

Coil assy diagram

Cap

Part #1174950

This item is not returnable
$3.83
In Stock
