Kenmore
Gas Grill

Model # 14117327 Official Kenmore lp gas & natural gas grill

Here are the diagrams and repair parts for Official Kenmore 14117327 lp gas & natural gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Gas Grill Flame Tamer P01705009E
#8

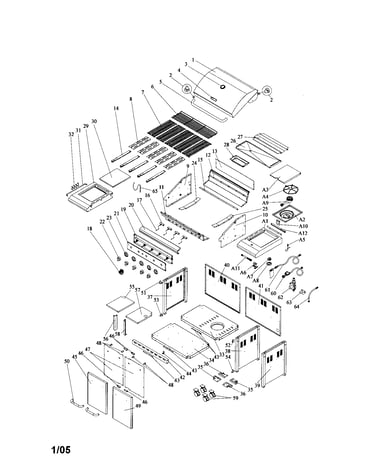

Lpg and ng grill diagram

Gas grill flame tamer

Part #P01705009E

$28.51 |
17% OFF Phone Price : $34.51
In Stock
Door Trim Plate P07510003D
#47

Lpg and ng grill diagram

Door trim plate

Part #P07510003D

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Door Magnet P05523002K
#46

Lpg and ng grill diagram

Gas grill door magnet

Part #P05523002K

The manufacturer no longer makes this part, and there's no substitute part

Door P04305001E
#45

Lpg and ng grill diagram

Door

Part #P04305001E

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Burner, Side P02002055D
#A09

Lpg and ng grill diagram

Gas grill burner, side

Part #P02002055D

The manufacturer no longer makes this part, and there's no substitute part

Operator's Manual P80102002A

#NI03

All parts diagram

Operator's manual

Part #P80102002A

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Bottom Panel P01004017K
#33

Lpg and ng grill diagram

Gas grill bottom panel

Part #P01004017K

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Side Burner Bracket P02215072E
#A10

Lpg and ng grill diagram

Gas grill side burner bracket

Part #P02215072E

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Main Burner P02008011A
#14A

Lpg and ng grill diagram

Gas grill main burner

Part #P02008011A

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Temperature Gauge P00601071A
#3

Lpg and ng grill diagram

Gas grill temperature gauge

Part #P00601071A

The manufacturer no longer makes this part, and there's no substitute part
