KitchenAid
Electric Cooktop

Model # KECC568RPT02 Official KitchenAid electric counter unit

Here are the diagrams and repair parts for Official KitchenAid KECC568RPT02 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Cleaner 4456147
#NI

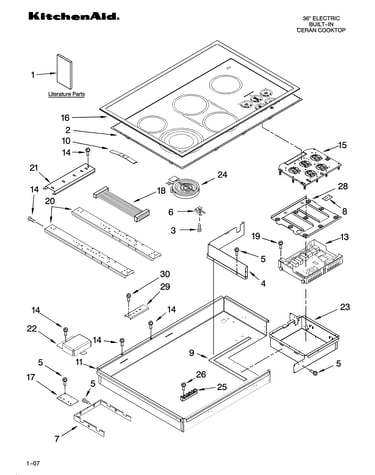

Cooktop parts, optional parts diagram

Cleaner

Part #4456147

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 4456147. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Screw 3196160
#5

Cooktop parts, optional parts diagram

Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Triple Radiant Surface Element 8285847
#24

Cooktop parts, optional parts diagram

Range triple radiant surface element

Part #8285847

Replaced by #WP8285847

?
Manufacturer substitution
This part replaces 8285847. Substitute parts can look different from the original.
$178.99 |
6% OFF Phone Price : $190.99
In Stock
Cooktop Element, Left Rear And Right Front 8285230
#24A

Cooktop parts, optional parts diagram

Cooktop element, left rear and right front

Part #8285230

Replaced by #WP8285230

?
Manufacturer substitution
This part replaces 8285230. Substitute parts can look different from the original.
$119.51 |
9% OFF Phone Price : $131.51
In Stock
Terminal Block 4449868
#25

Cooktop parts, optional parts diagram

Terminal block

Part #4449868

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 4449868. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Range Screw 3196163
#26

Cooktop parts, optional parts diagram

Range screw

Part #3196163

Replaced by #WP3196163

?
Manufacturer substitution
This part replaces 3196163. Substitute parts can look different from the original.
This item is not returnable
$4.02 |
20% OFF Phone Price : $5.02
In Stock
Mounting Bracket 4455917
#29

Cooktop parts, optional parts diagram

Mounting bracket

Part #4455917

Replaced by #8186533

?
Manufacturer substitution
This part replaces 4455917. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Range Screw 4449745
#19

Cooktop parts, optional parts diagram

Range screw

Part #4449745

Replaced by #WP4449745

?
Manufacturer substitution
This part replaces 4449745. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831
#NI

Cooktop parts, optional parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Spring 9759094
#6

Cooktop parts, optional parts diagram

Spring

Part #9759094

This item is not returnable
$6.39
In Stock
