Kenmore Elite
Electric Range

Model # 79097502000 Official Kenmore Elite electric range

Here are the diagrams and repair parts for Official Kenmore Elite 79097502000 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

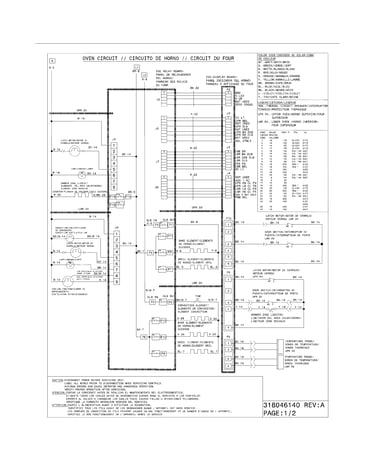

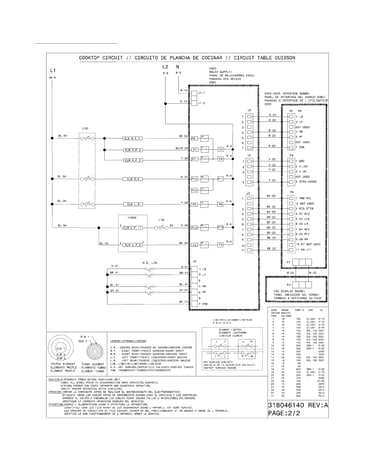

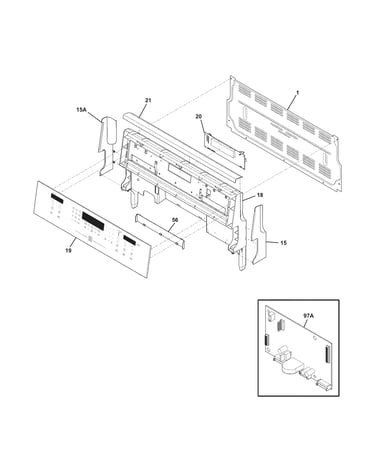

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 217 parts  |
Range Oven Temperature Sensor 318562500
#37

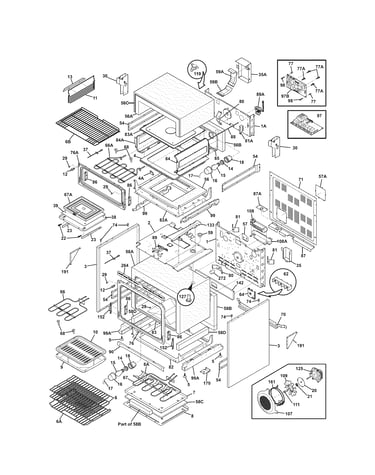

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Element 318198830
#15

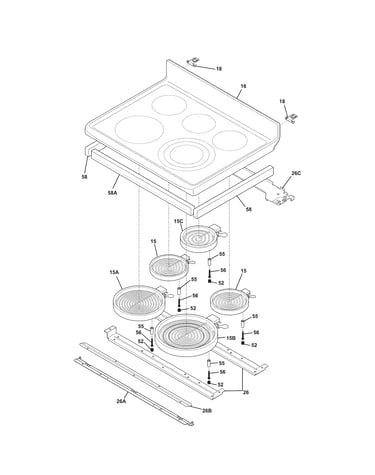

Main top diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Oven Element 318601601
#67A

Body diagram

Oven element

Part #318601601

Replaced by #318601604

?
Manufacturer substitution
This part replaces 318601601. Substitute parts can look different from the original.
BEST SELLER
$197.10 |
6% OFF Phone Price : $209.10
In Stock
Range Oven Door Inner Glass 316117500
#8

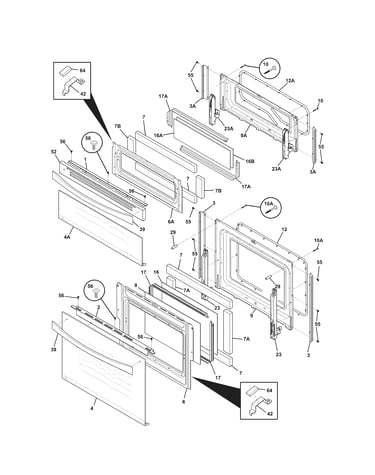

Doors diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Cooktop Element 318297809
#15B

Main top diagram

Cooktop element

Part #318297809

Replaced by #318297810

?
Manufacturer substitution
This part replaces 318297809. Substitute parts can look different from the original.
BEST SELLER
$245.54 |
5% OFF Phone Price : $257.54
In Stock
Range Oven Relay Control Board 316443927
#97B

Body diagram

Range oven relay control board

Part #316443927

BEST SELLER
This item is not returnable
$295.20 |
$12.00 OFF Phone Price : $307.20
In Stock
Range Oven Door Switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, P351140) 316445501
#12

Body diagram

Range oven door switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, p351140)

Part #316445501

$63.47 |
9% OFF Phone Price : $69.47
In Stock
Frigidaire Range Main Top (black) 318394218
#16

Main top diagram

Frigidaire range main top (black)

Part #318394218

$349.47 |
$12.00 OFF Phone Price : $361.47
In Stock
Kenmore Pro Wall Oven Bake Element Wire Harness (replaces 318231838, 7318231870) 318231870
#NI

Body diagram

Kenmore pro wall oven bake element wire harness (replaces 318231838, 7318231870)

Part #318231870

$56.67 |
10% OFF Phone Price : $62.67
In Stock
