Model # GM1110PRW Official Maytag gas range

Here are the diagrams and repair parts for Official Maytag GM1110PRW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

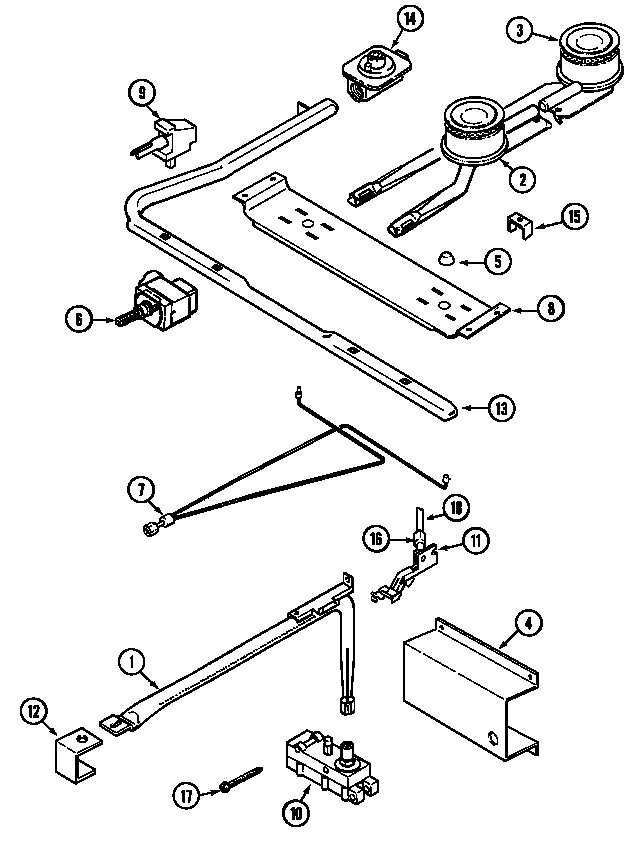

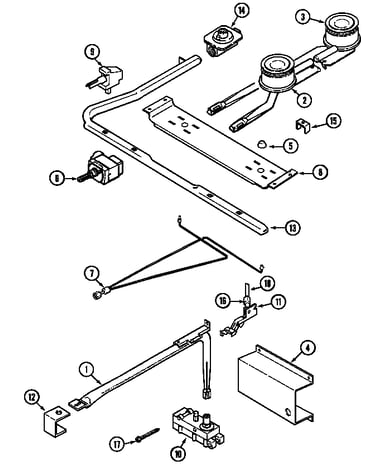

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Clamp Screw 7101P080-60
#8

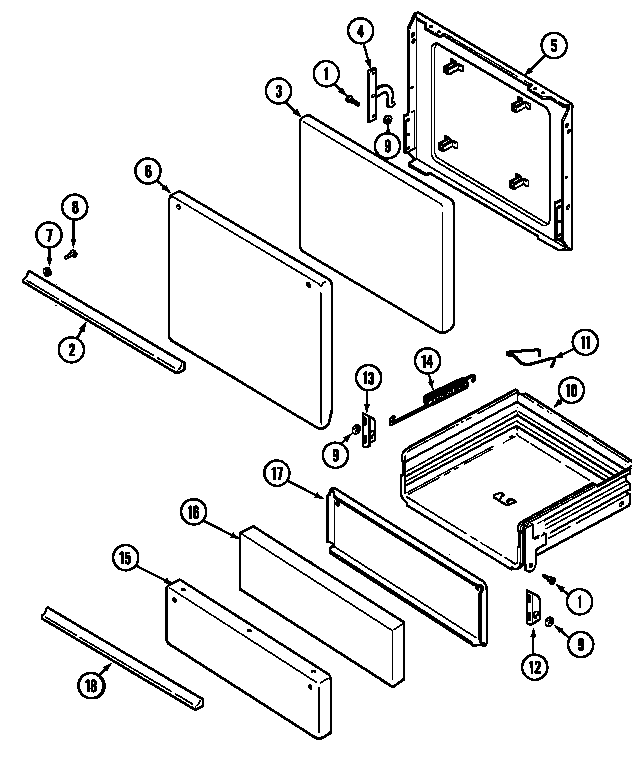

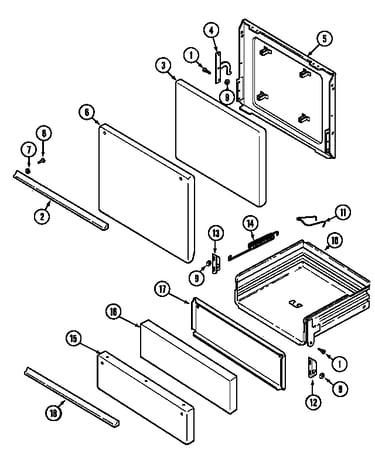

Door/drawer diagram

Clamp screw

Part #7101P080-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
"bracket, Ant" 3801F218-51
#16

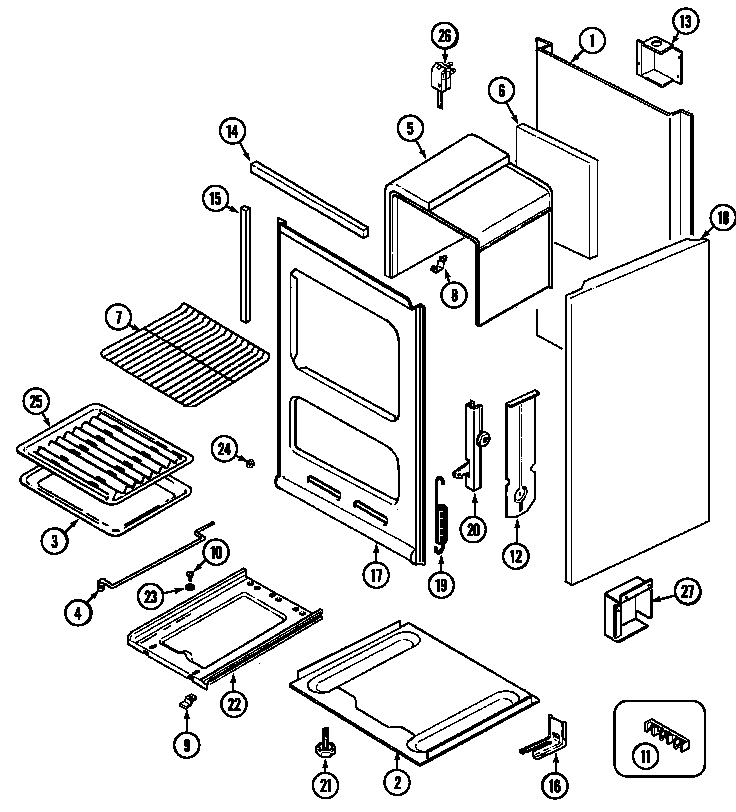

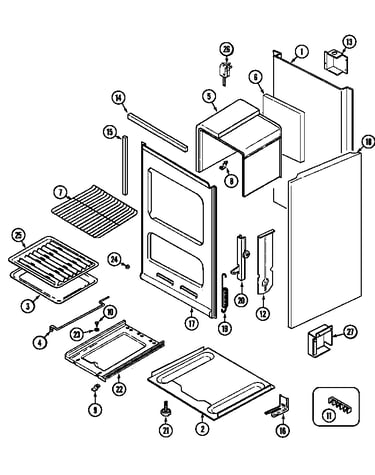

Body/oven diagram

"bracket, ant"

Part #3801F218-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F218-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Screw 7101P061-60
#13A

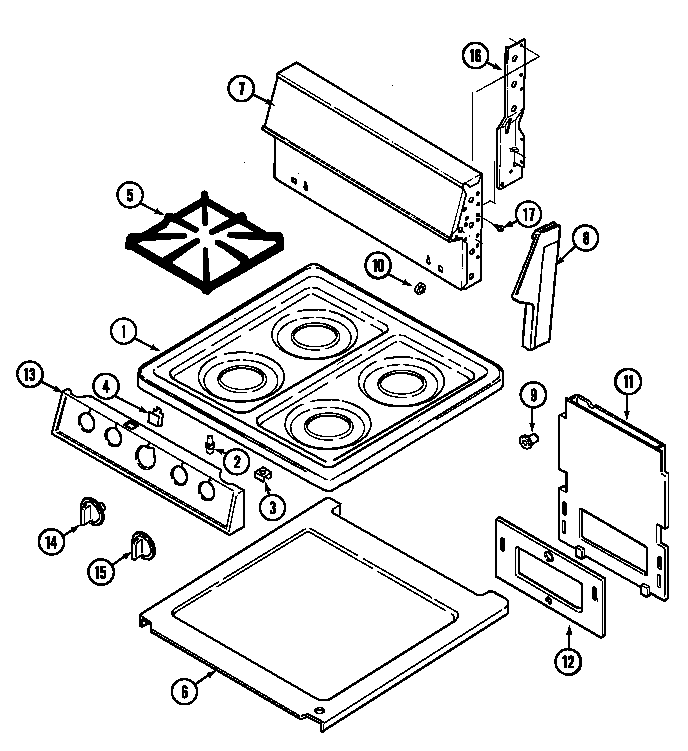

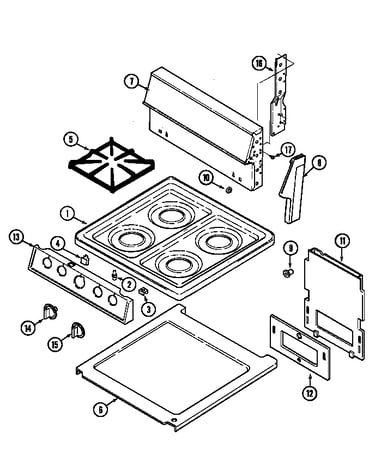

Top assembly diagram

Screw

Part #7101P061-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P061-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw With Washer 7101P188-60
#20C

Body/oven diagram

Screw with washer

Part #7101P188-60

Replaced by #WP3400094

?
Manufacturer substitution
This part replaces 7101P188-60. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Strike Nut 7103P105-60
#3

Top assembly diagram

Strike nut

Part #7103P105-60

Replaced by #WP486255

?
Manufacturer substitution
This part replaces 7103P105-60. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw 7101P147-60
#17

Top assembly diagram

Screw

Part #7101P147-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P147-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Bracket Screw 7101P289-60
#16A

Body/oven diagram

Bracket screw

Part #7101P289-60

Replaced by #WP7101P485-60

?
Manufacturer substitution
This part replaces 7101P289-60. Substitute parts can look different from the original.
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Screw 7101P068-60
#27B

Body/oven diagram

Screw

Part #7101P068-60

Replaced by #WP3400074

?
Manufacturer substitution
This part replaces 7101P068-60. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Lock Nut 7103P072-60
#9

Door/drawer diagram

Lock nut

Part #7103P072-60

Replaced by #W10080180

?
Manufacturer substitution
This part replaces 7103P072-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Handle Screw 7101P283-60
#18A

Door/drawer diagram

Handle screw

Part #7101P283-60

Replaced by #74002481

?
Manufacturer substitution
This part replaces 7101P283-60. Substitute parts can look different from the original.
This item is not returnable
$5.40
In Stock
