Model # CV1820F Official Eureka central vacuum

Here are the diagrams and repair parts for Official Eureka CV1820F central vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Power Cord 100-343
#13

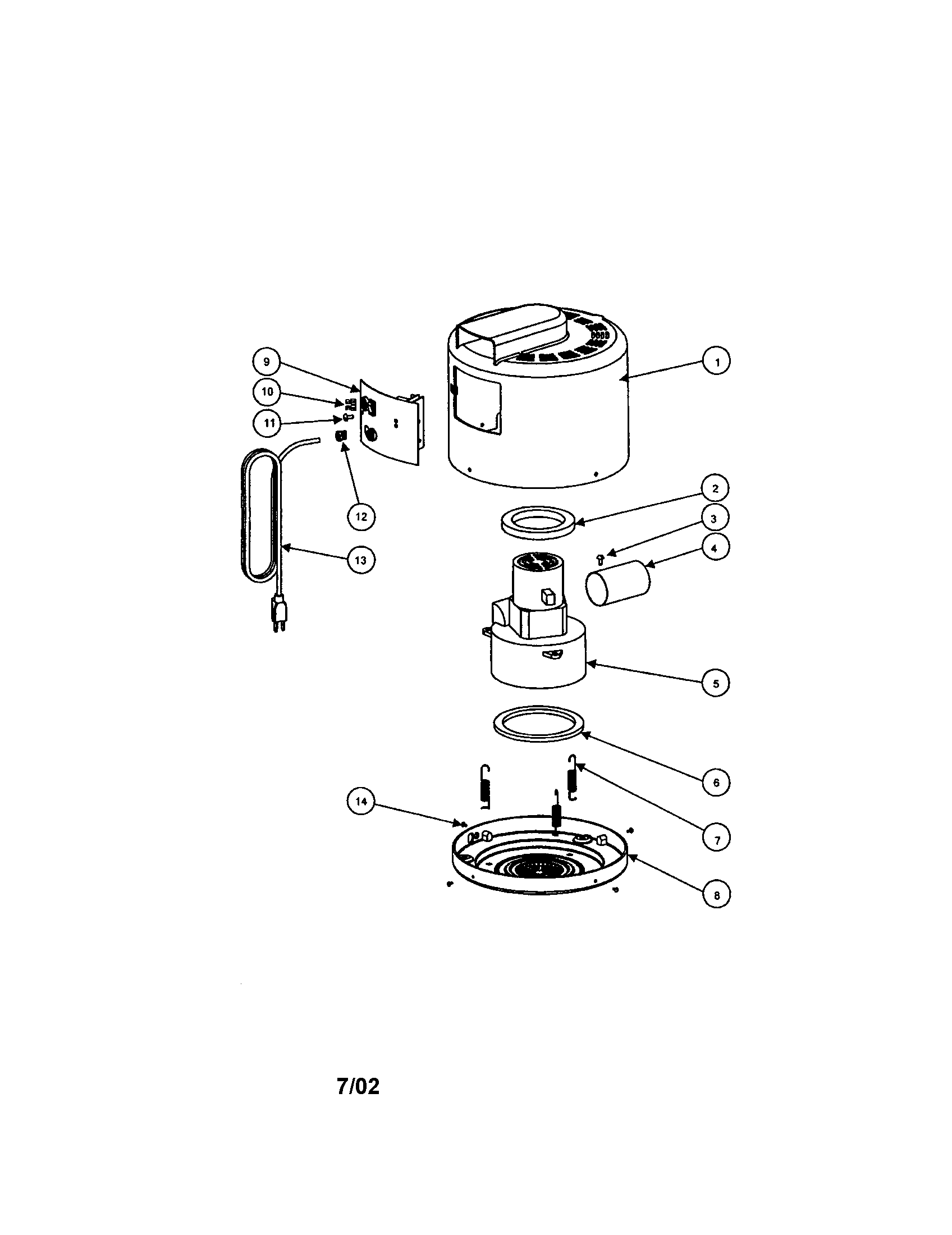

Motor diagram

Power cord

Part #100-343

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Coupling 39041
#10

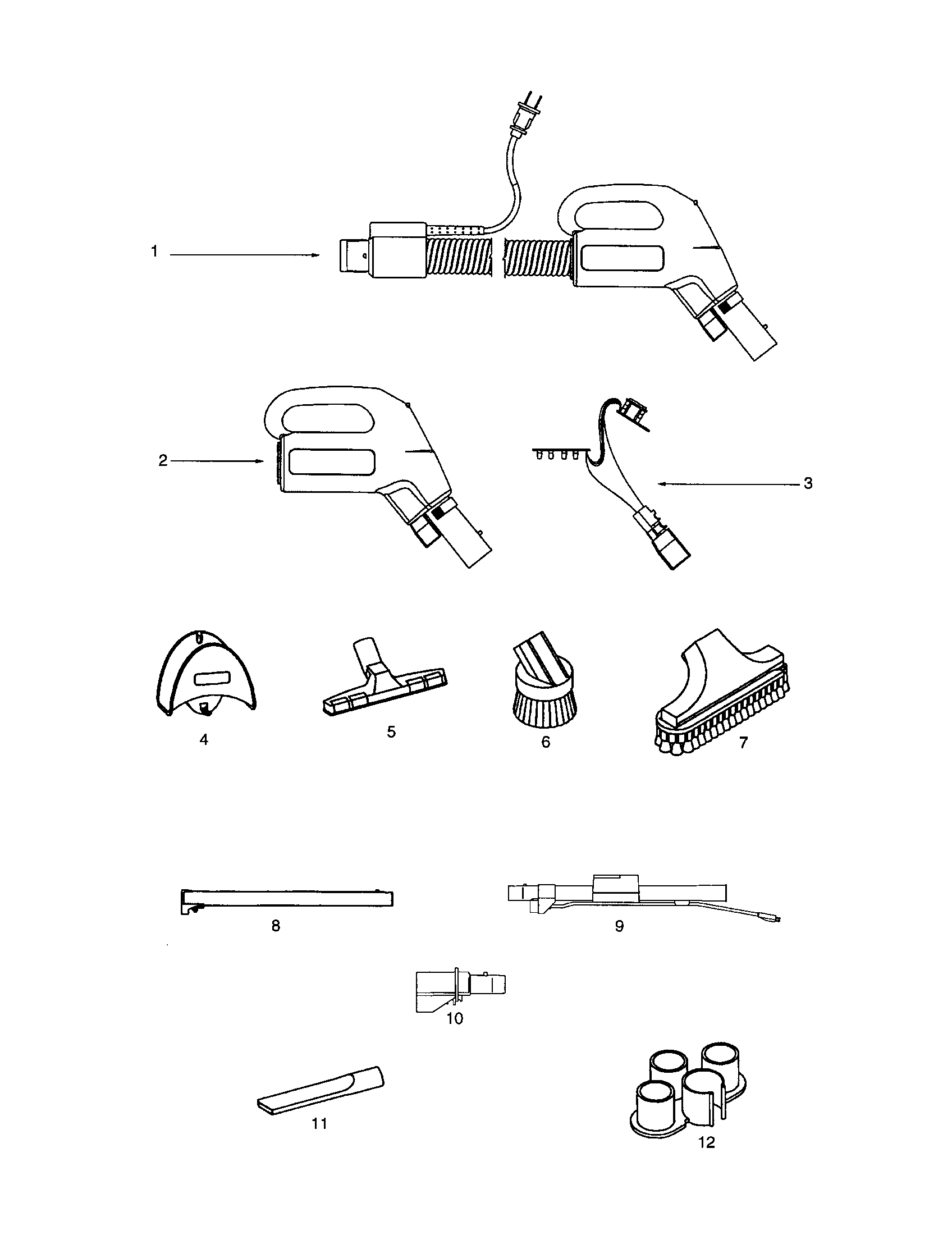

Accessories diagram

Kenmore coupling

Part #39041

The manufacturer no longer makes this part, and there's no substitute part

Felt Washer 56180
#9

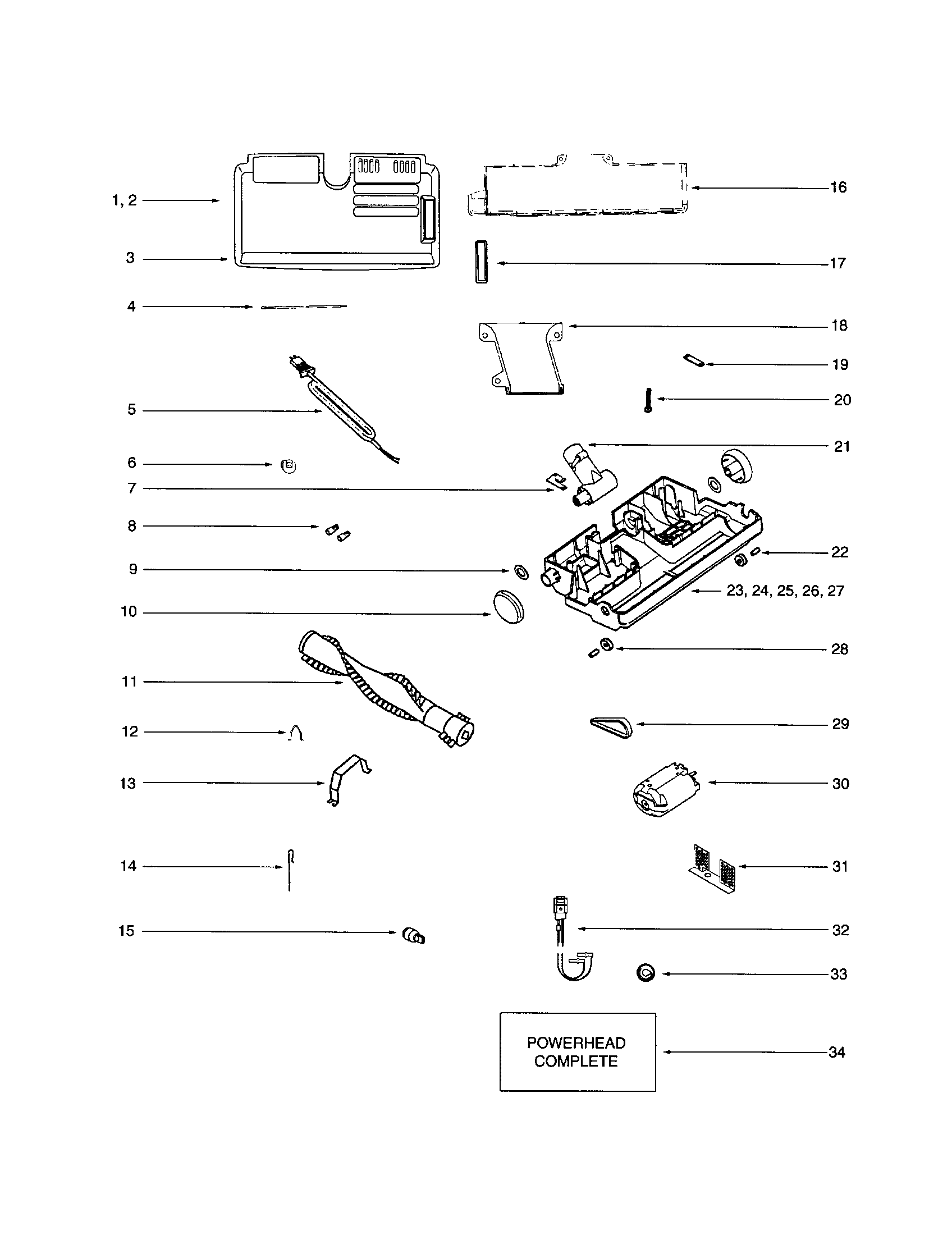

Power head diagram

Felt washer

Part #56180

The manufacturer no longer makes this part, and there's no substitute part

Plate 640-305
#8

Motor diagram

Plate

Part #640-305

The manufacturer no longer makes this part, and there's no substitute part

Body 126-046
#3

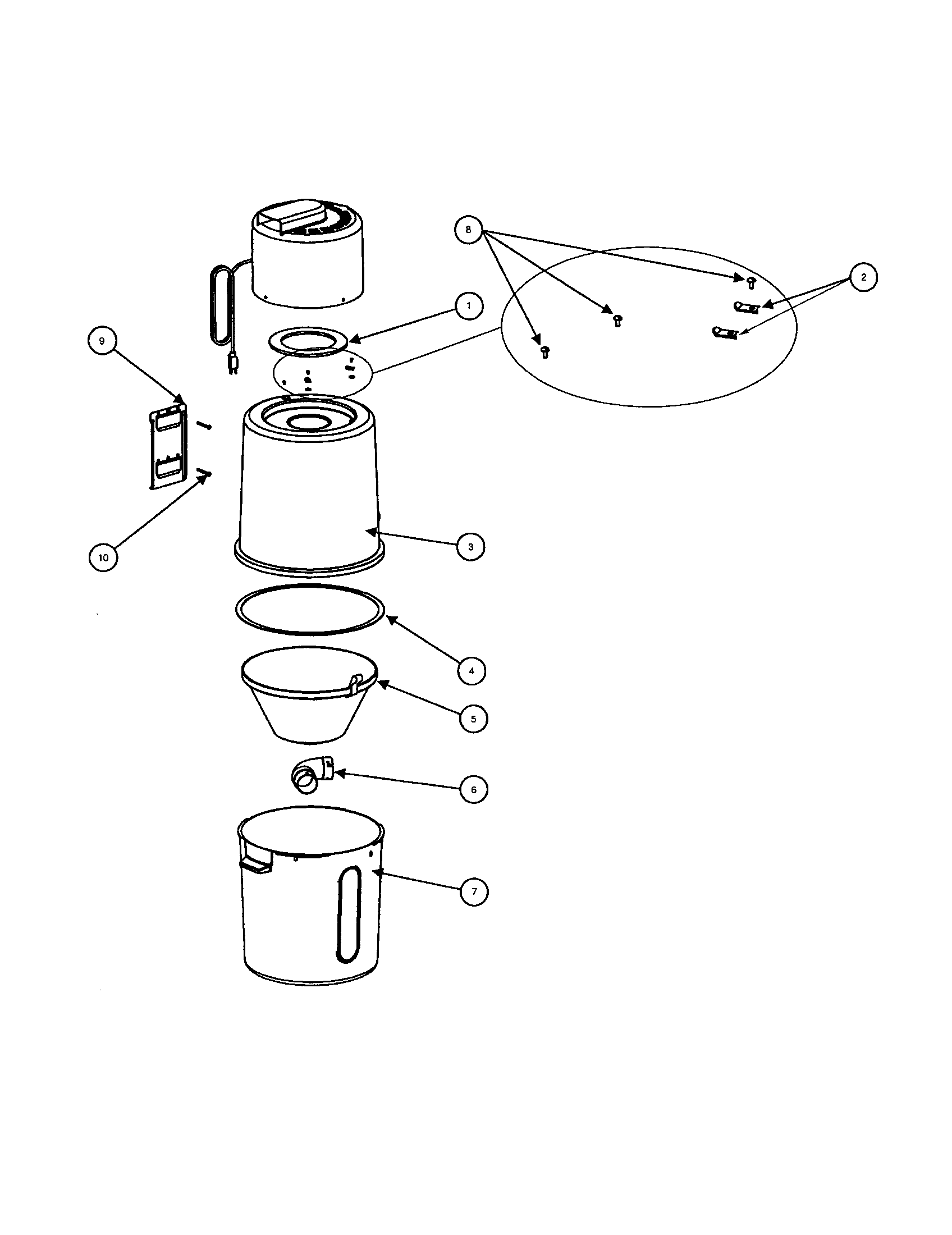

Upper body diagram

Body

Part #126-046

The manufacturer no longer makes this part, and there's no substitute part

Terminal 54816
#10

Motor diagram

Terminal

Part #54816

The manufacturer no longer makes this part, and there's no substitute part

Screw 345-523
#10

Upper body diagram

Screw

Part #345-523

The manufacturer no longer makes this part, and there's no substitute part

Latch Insert 55974
#12

Power head diagram

Latch insert

Part #55974

The manufacturer no longer makes this part, and there's no substitute part

Bracket 145-337
#9

Upper body diagram

Bracket

Part #145-337

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 140-222
#5

Motor diagram

Motor assembly

Part #140-222

The manufacturer no longer makes this part, and there's no substitute part
