Model # 234796810 Official Craftsman 17" gas line trimmer
Here are the diagrams and repair parts for Official Craftsman 234796810 17" gas line trimmer, as well as links to manuals and error code tables, if available.
By Schematic

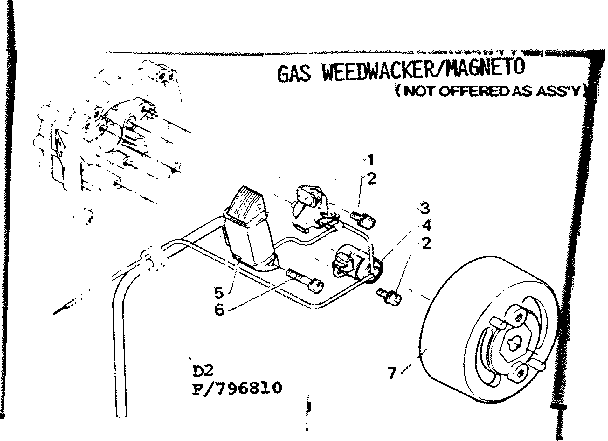

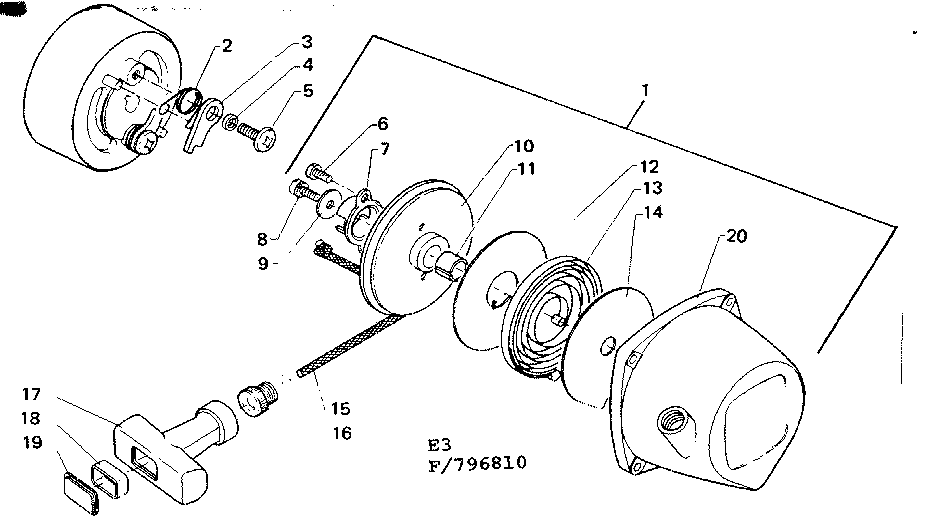

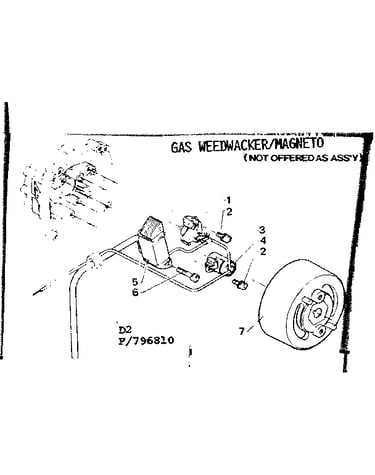

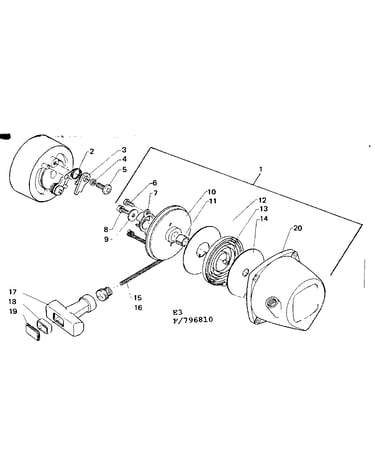

SELECT DIAGRAM
Browse Parts for234796810 17" Gas Line Trimmer
- #14

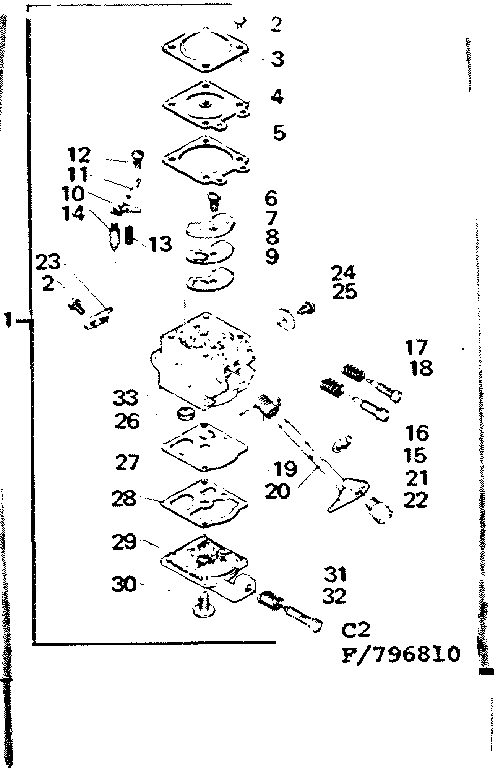

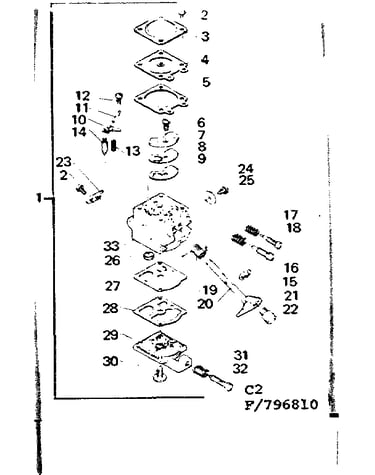

Carburetor diagram
ValvePart #6836-00
Replaced by #503117001
?Manufacturer substitutionThis part replaces 6836-00. Substitute parts can look different from the original.$54.12In Stock - #26
Carburetor diagram
ScreenPart #6846-00
Replaced by #530035178
?Manufacturer substitutionThis part replaces 6846-00. Substitute parts can look different from the original.This item is not returnable$5.54In Stock - #4
Carburetor diagram
DiaphragmPart #6826-00
Replaced by #503896701
?Manufacturer substitutionThis part replaces 6826-00. Substitute parts can look different from the original.This item is not returnable$103.12In Stock - #28
Carburetor diagram
GasketPart #6848-00
The manufacturer no longer makes this part, and there's no substitute part
- #30

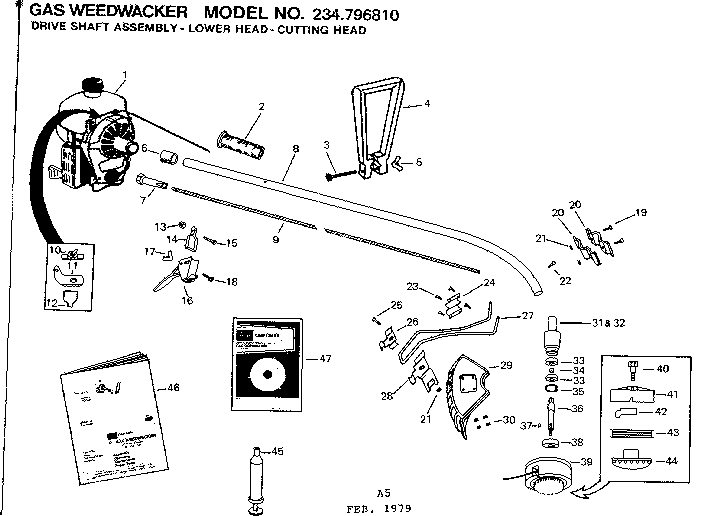

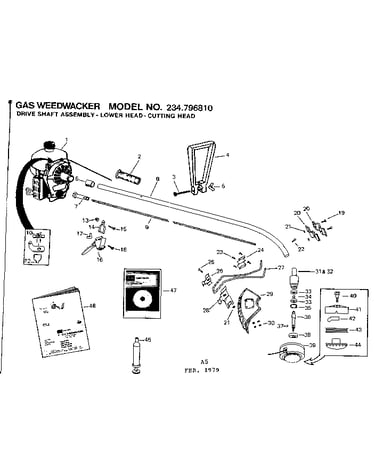

Drive shaft assembly and lower cutting head diagram
NutPart #5522-00
The manufacturer no longer makes this part, and there's no substitute part
- #80

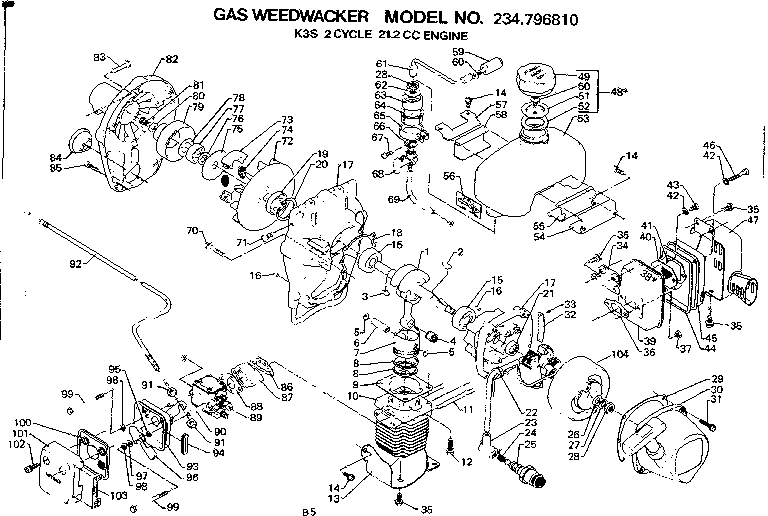

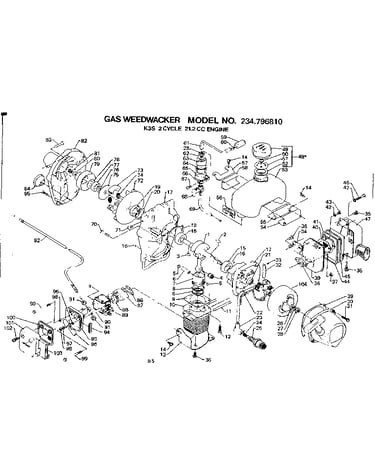

Engine diagram
WasherPart #6711-00
The manufacturer no longer makes this part, and there's no substitute part
- #103
Engine diagram
DecalPart #8704-00
The manufacturer no longer makes this part, and there's no substitute part
- #13
Carburetor diagram
SpringPart #6835-00
The manufacturer no longer makes this part, and there's no substitute part
- #7
Carburetor diagram
PlatePart #6829-00
The manufacturer no longer makes this part, and there's no substitute part
- #15
Engine diagram
BearingPart #6706-00
The manufacturer no longer makes this part, and there's no substitute part
