Dacor
Electric Wall Oven

Model # ROV230B Official Dacor electric oven

Here are the diagrams and repair parts for Official Dacor ROV230B electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

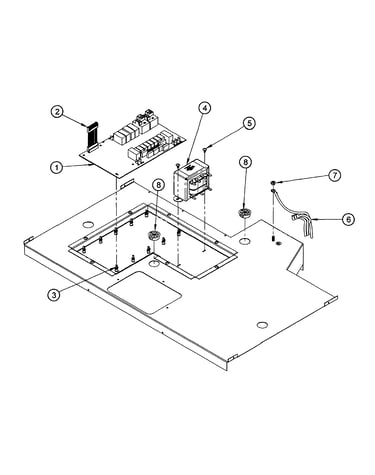

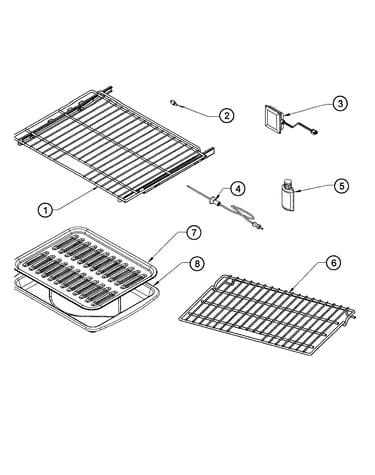

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Wall Oven Door Window Assembly 72968
#9

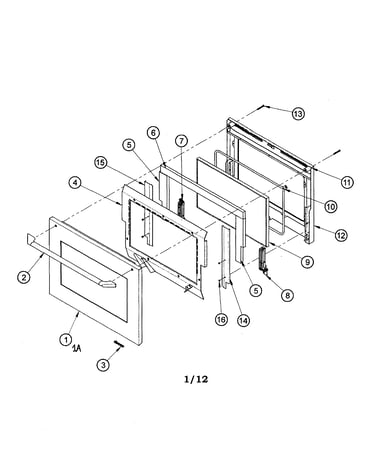

Door diagram

Wall oven door window assembly

Part #72968

$176.99
In Stock
Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Dacor Bezel Assembly 701504-02
#1

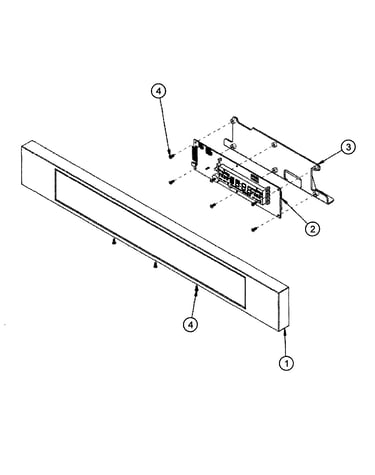

Control panel diagram

Dacor bezel assembly

Part #701504-02

$629.99
In Stock
Screw 83709
#9

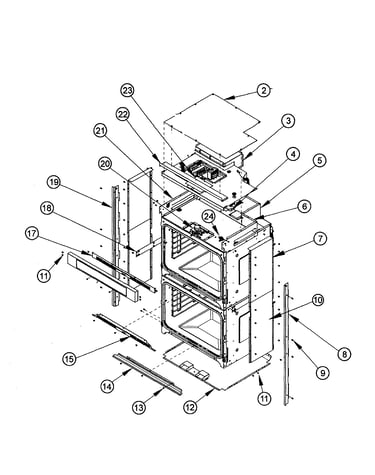

Chassis diagram

Screw

Part #83709

This item is not returnable
$2.16
In Stock
Heat Shield 105462
#7

Chassis diagram

Heat shield

Part #105462

$17.99
In Stock
Rear Duct 105326
#3

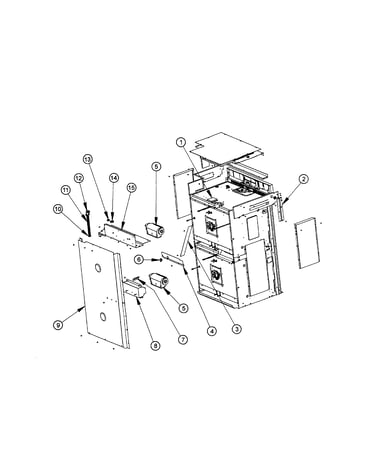

Rear chassis diagram

Rear duct

Part #105326

$8.99
In Stock
Screw 83379
#19

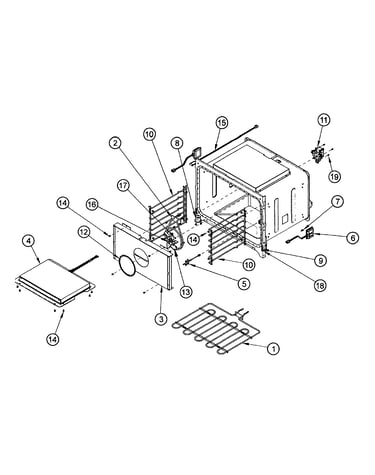

Oven cell diagram

Screw

Part #83379

This item is not returnable
$2.16
In Stock
Grill Exhu 105350
#14

Chassis diagram

Grill exhu

Part #105350

$12.99
In Stock
Duct Smoke 105330
#1

Rear chassis diagram

Duct smoke

Part #105330

This item is not returnable
$3.99
In Stock
Bracket 105510-01
#14

Door diagram

Bracket

Part #105510-01

This item is not returnable
$4.49
In Stock
