Universal/Multiflex (Frigidaire)
Electric Range

Model # MEF302PBDG Official Universal/Multiflex (Frigidaire) electric range - 5995283503

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MEF302PBDG electric range - 5995283503, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

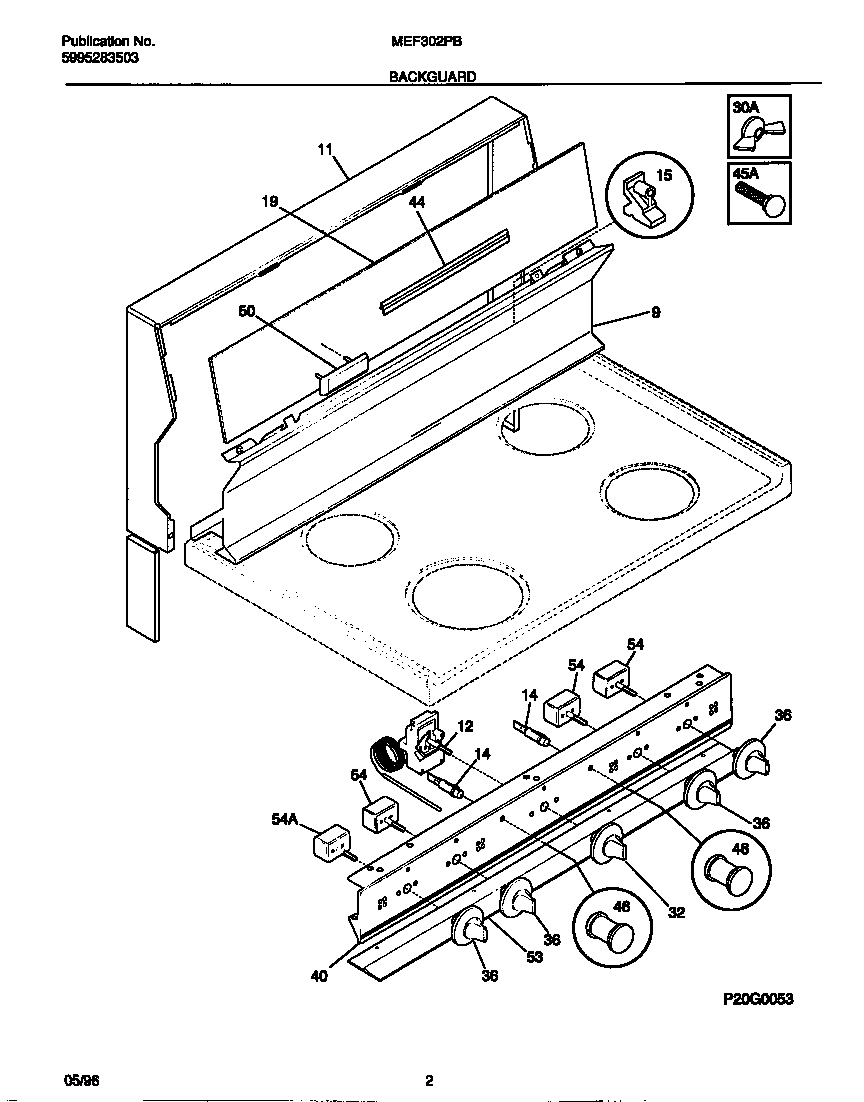

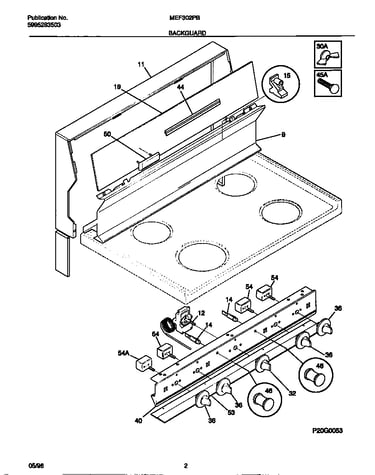

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Range Coil Surface Element, 8-in 5303015715
#15

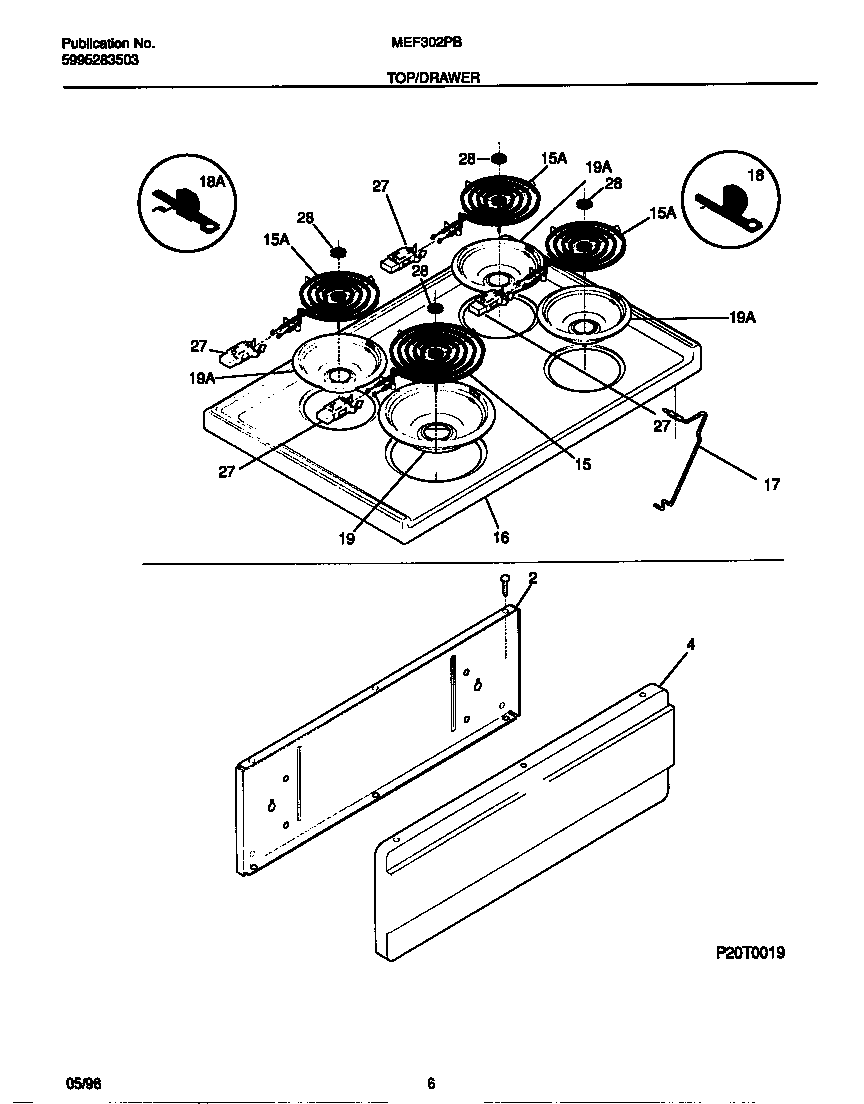

Top/drawer diagram

Range coil surface element, 8-in

Part #5303015715

Replaced by #316442300

?
Manufacturer substitution
This part replaces 5303015715. Substitute parts can look different from the original.
BEST SELLER
$26.03 |
19% OFF Phone Price : $32.03
In Stock
Range Coil Surface Element, 6-in 5303015716
#15

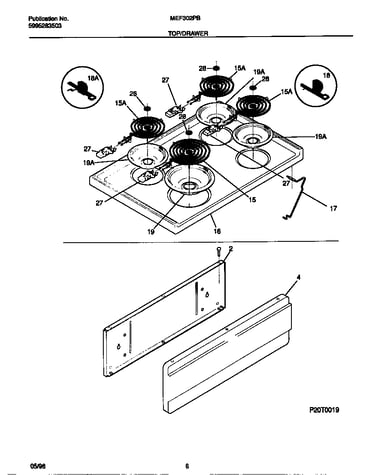

Top/drawer diagram

Range coil surface element, 6-in

Part #5303015716

Replaced by #318372210

?
Manufacturer substitution
This part replaces 5303015716. Substitute parts can look different from the original.
BEST SELLER
$24.97 |
19% OFF Phone Price : $30.97
In Stock
Range Bake Element (replaces 000212004, 001311298, 001312853, 08002858, 09990061, 1311298, 1312852, 1312853, 3051519, 316075101, 8002858, K001311298, K001312853, K1311298, K1312852, K1312853, Q000212004) 5303051519
#67

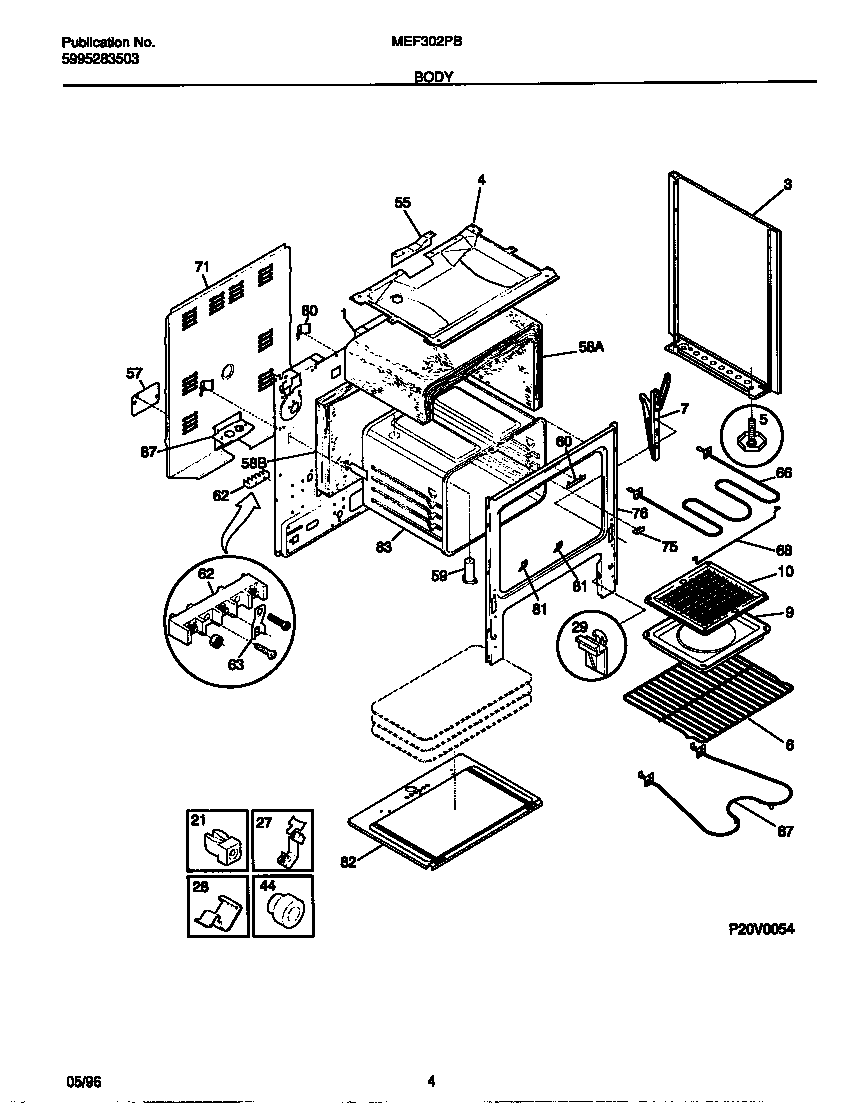

Body diagram

Range bake element (replaces 000212004, 001311298, 001312853, 08002858, 09990061, 1311298, 1312852, 1312853, 3051519, 316075101, 8002858, k001311298, k001312853, k1311298, k1312852, k1312853, q000212004)

Part #5303051519

BEST SELLER
$36.94 |
14% OFF Phone Price : $42.94
In Stock
Range Screw (replaces 5303270172, 636t142p01, 75303285179) 5303285179

#NI

All parts diagram

Range screw (replaces 5303270172, 636t142p01, 75303285179)

Part #5303285179

This item is not returnable
$13.29
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616
#27

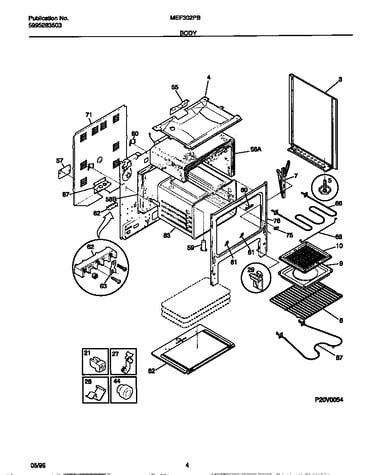

Body diagram

Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Range Screw, #8-18 X 1/2-in 5303271648

#NI

All parts diagram

Range screw, #8-18 x 1/2-in

Part #5303271648

$15.77
In Stock
Range Broil Element 5303051516
#66

Body diagram

Range broil element

Part #5303051516

$138.69 |
8% OFF Phone Price : $150.69
In Stock
Range Oven Door Seal 5303202011
#12

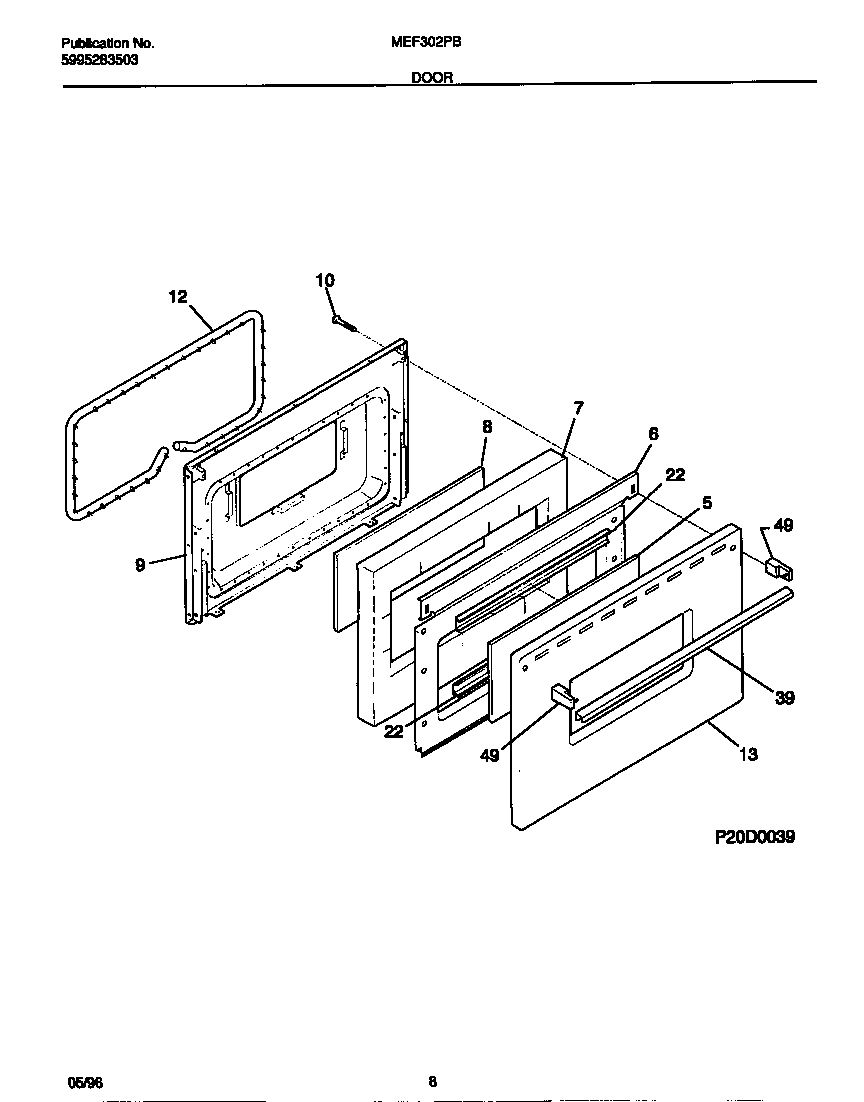

Door diagram

Range oven door seal

Part #5303202011

$91.55 |
6% OFF Phone Price : $97.55
In Stock
Bumper 3131903
Bumper

Part #3131903

$47.29
In Stock
Nut 5303051099

#NI

All parts diagram

Nut

Part #5303051099

Replaced by #316205500

?
Manufacturer substitution
This part replaces 5303051099. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
