Craftsman
Electric Walk-Behind Mower

Model # 13191504 Official Craftsman 18" lawn mower

Here are the diagrams and repair parts for Official Craftsman 13191504 18" lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

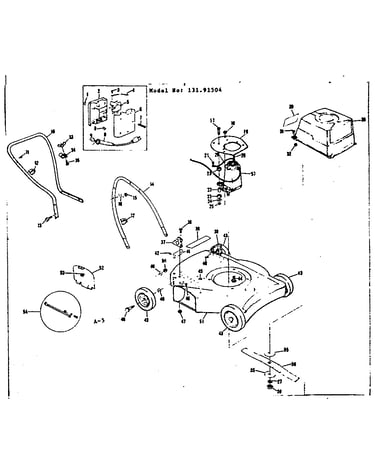

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Cotter Pin 455563
#40

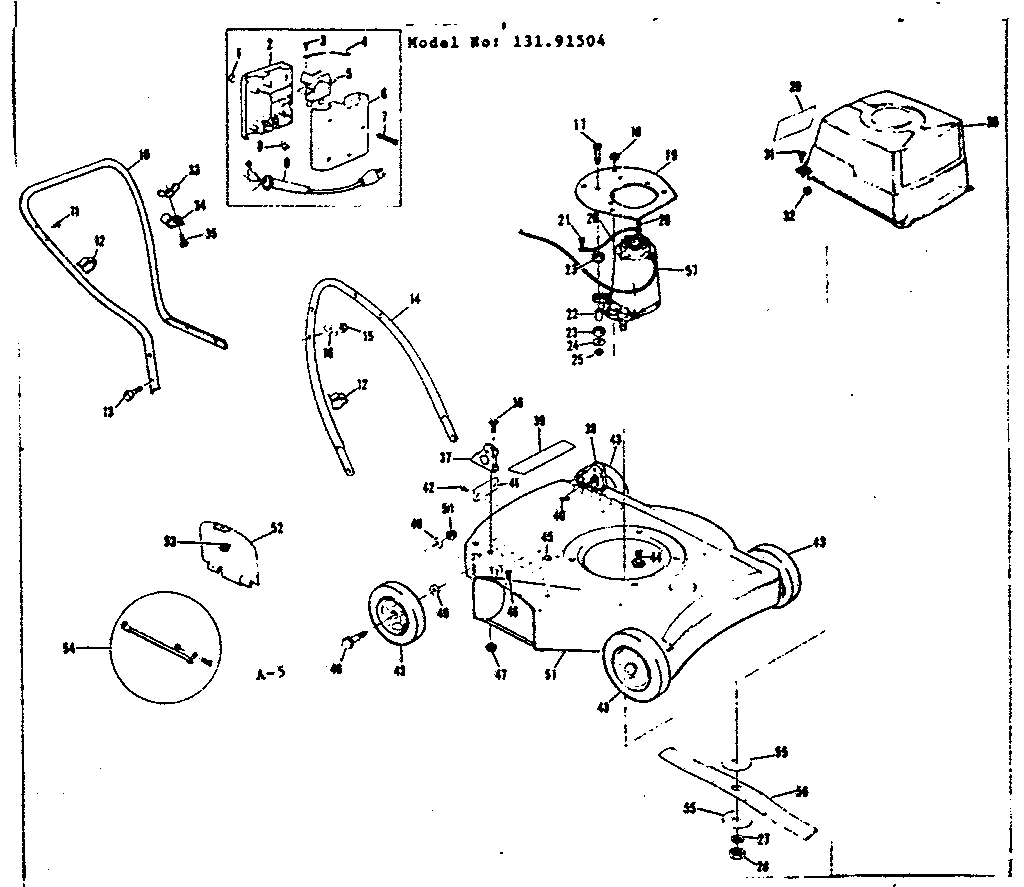

Replacement parts diagram

Cotter pin

Part #455563

Replaced by #532051793

?
Manufacturer substitution
This part replaces 455563. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Washer Blade 61651
#27

Replacement parts diagram

Washer blade

Part #61651

Replaced by #532401630

?
Manufacturer substitution
This part replaces 61651. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Bolt 60838
#48

Replacement parts diagram

Bolt

Part #60838

The manufacturer no longer makes this part, and there's no substitute part

Bolt 141525
#46

Replacement parts diagram

Bolt

Part #141525

The manufacturer no longer makes this part, and there's no substitute part

Washer 50815
#55

Replacement parts diagram

Washer

Part #50815

The manufacturer no longer makes this part, and there's no substitute part

Bolt 122052
#17

Replacement parts diagram

Bolt

Part #122052

The manufacturer no longer makes this part, and there's no substitute part

Warning Label 62534
#39

Replacement parts diagram

Warning label

Part #62534

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly 61312
#4

Replacement parts diagram

Wire assembly

Part #61312

The manufacturer no longer makes this part, and there's no substitute part

Motor Mounting Plate 61654
#19

Replacement parts diagram

Motor mounting plate

Part #61654

The manufacturer no longer makes this part, and there's no substitute part

Horn Guard 60727
#54

Replacement parts diagram

Horn guard

Part #60727

The manufacturer no longer makes this part, and there's no substitute part
