Model # WRT318FMDB01 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRT318FMDB01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

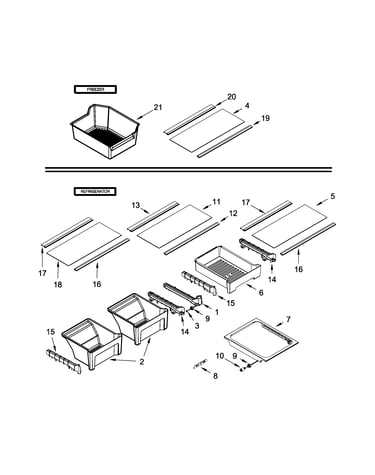

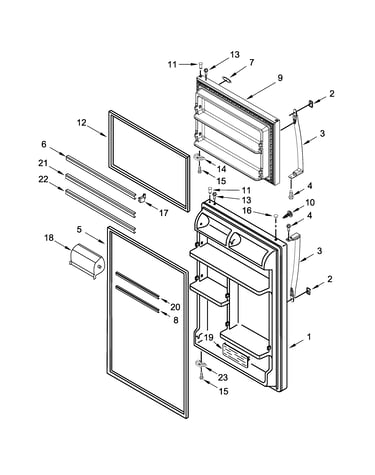

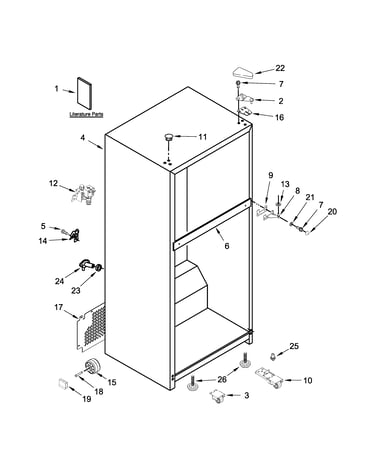

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Refrigerator Ice Maker Assembly W10632400
#100

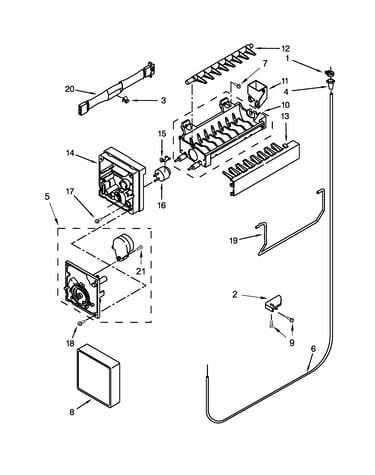

Icemaker parts diagram

Refrigerator ice maker assembly

Part #W10632400

Replaced by #4317943

?
Manufacturer substitution
This part replaces W10632400. Substitute parts can look different from the original.
BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Refrigerator Light Bulb 2311792
#17

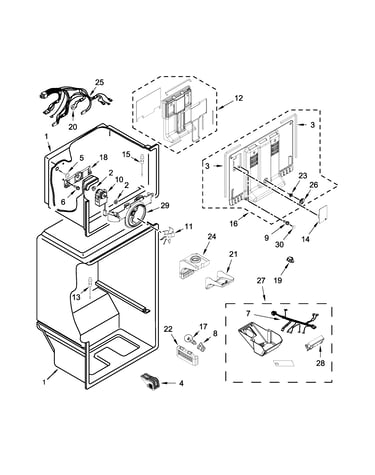

Liner parts diagram

Refrigerator light bulb

Part #2311792

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2311792. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Switch 1118894
#19

Liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Evaporator Fan Motor 2315539
#10

Liner parts diagram

Refrigerator evaporator fan motor

Part #2315539

Replaced by #WP2315539

?
Manufacturer substitution
This part replaces 2315539. Substitute parts can look different from the original.
BEST SELLER
$57.37 |
9% OFF Phone Price : $63.37
In Stock
Refrigerator Drier Assembly W10669573
#24

Unit parts diagram

Refrigerator drier assembly

Part #W10669573

Replaced by #W10843121

?
Manufacturer substitution
This part replaces W10669573. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Capacitor W10590083
#19

Unit parts diagram

Refrigerator capacitor

Part #W10590083

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces W10590083. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Refrigerator Compressor W10445422
#28

Unit parts diagram

Refrigerator compressor

Part #W10445422

Replaced by #W10507884

?
Manufacturer substitution
This part replaces W10445422. Substitute parts can look different from the original.
BEST SELLER
$353.01 |
$12.00 OFF Phone Price : $365.01
In Stock
Refrigerator Thermistor W10383615
#15

Liner parts diagram

Refrigerator thermistor

Part #W10383615

Replaced by #WPW10383615

?
Manufacturer substitution
This part replaces W10383615. Substitute parts can look different from the original.
BEST SELLER
$30.96 |
16% OFF Phone Price : $36.96
In Stock
Fan Blade 2200509
#11

Liner parts diagram

Fan blade

Part #2200509

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2200509. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Refrigerator Evaporator W10570565
#5

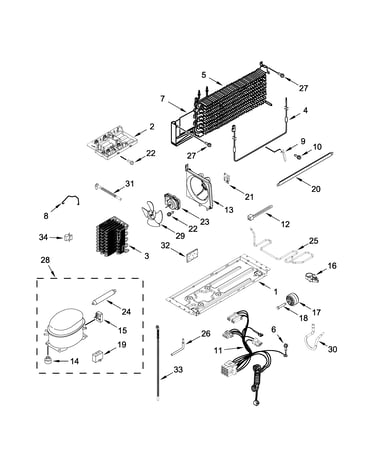

Unit parts diagram

Refrigerator evaporator

Part #W10570565

Replaced by #W10836706

?
Manufacturer substitution
This part replaces W10570565. Substitute parts can look different from the original.
BEST SELLER
$206.39 |
5% OFF Phone Price : $218.39
In Stock
