Model # LDE9900ACW Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag LDE9900ACW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

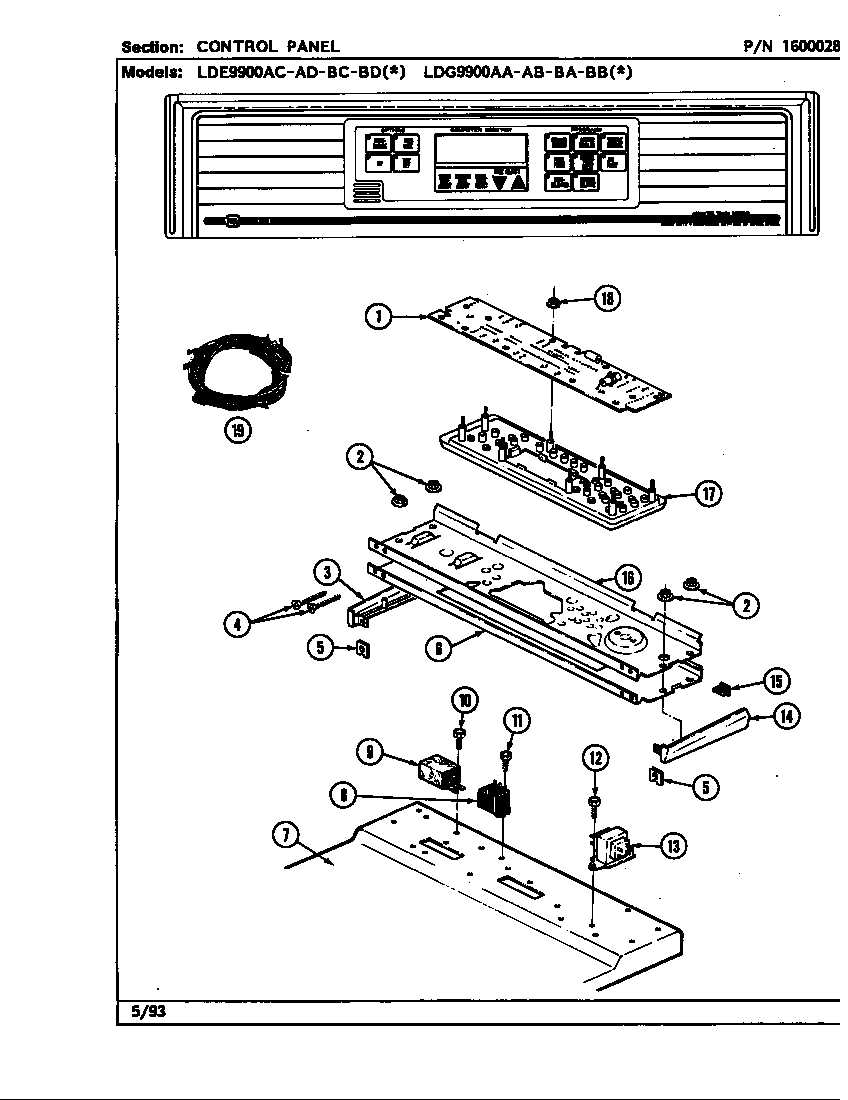

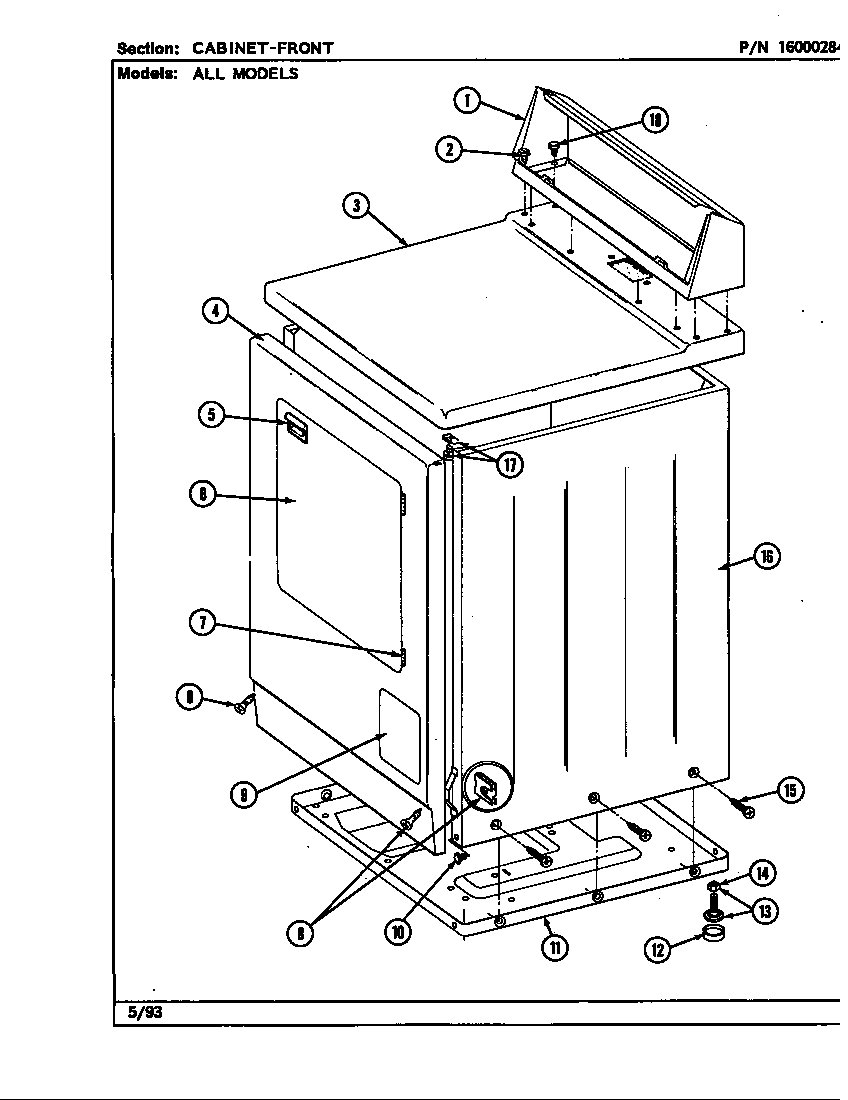

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Thermostat 306910
#3

Thermostats diagram

Thermostat

Part #306910

Replaced by #WP3387134

?
Manufacturer substitution
This part replaces 306910. Substitute parts can look different from the original.
BEST SELLER
$18.96 |
10% OFF Phone Price : $20.96
In Stock
Roller W/bea 303373
#21

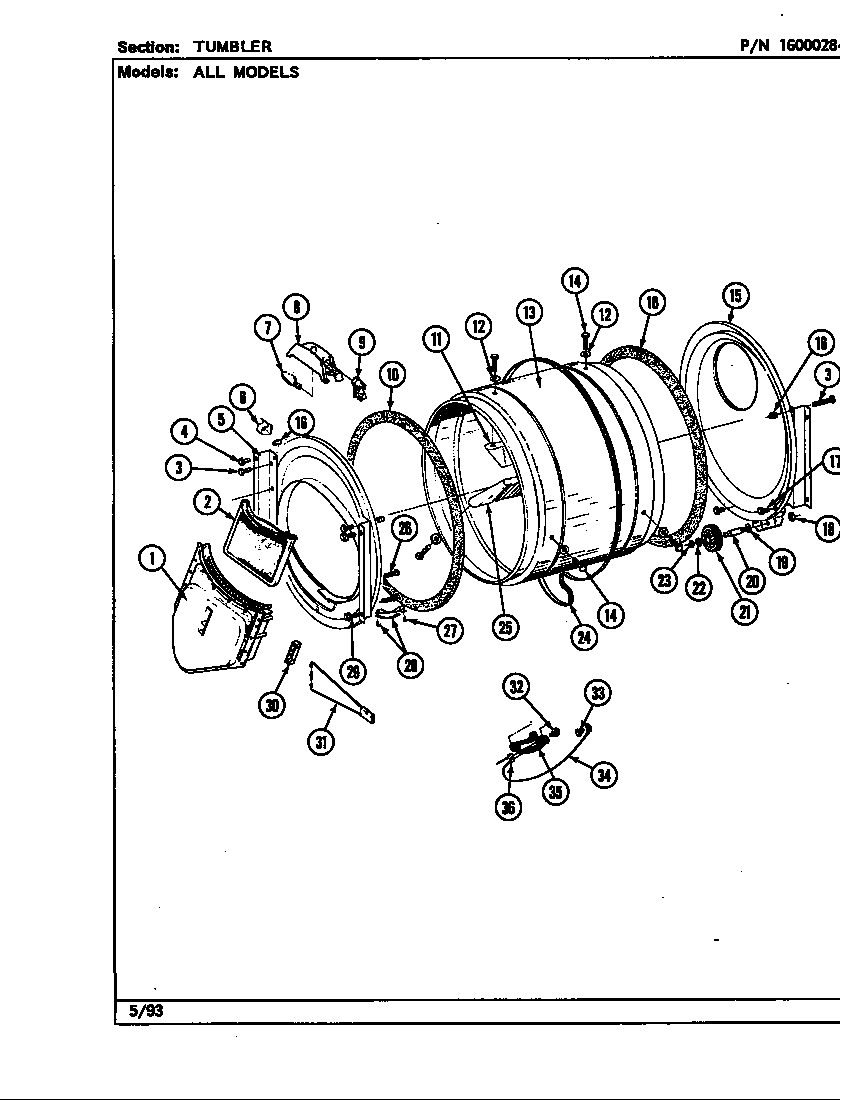

Tumbler diagram

Roller w/bea

Part #303373

Replaced by #12001541

?
Manufacturer substitution
This part replaces 303373. Substitute parts can look different from the original.
BEST SELLER
$27.69 |
18% OFF Phone Price : $33.69
In Stock
Idler Pulley 303705
#19

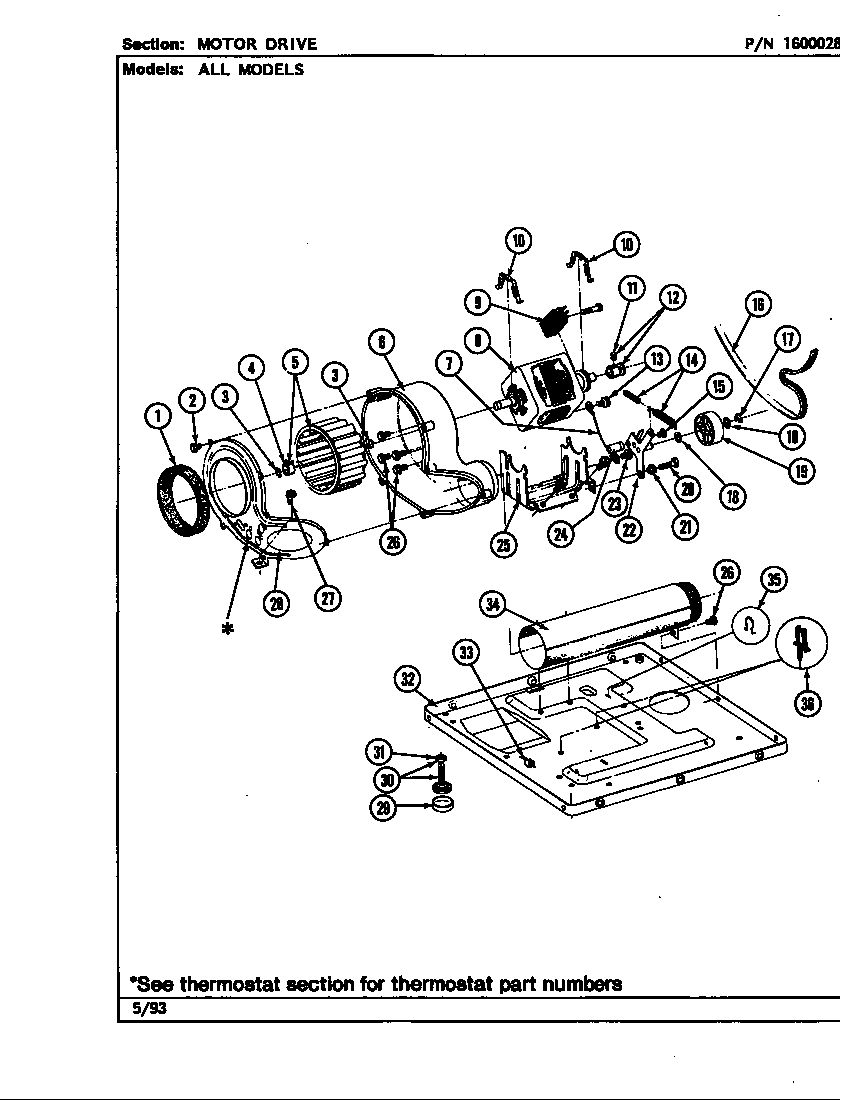

Motor drive diagram

Idler pulley

Part #303705

Replaced by #WP6-3037050

?
Manufacturer substitution
This part replaces 303705. Substitute parts can look different from the original.
BEST SELLER
$19.25 |
10% OFF Was : $21.39
In Stock
Dryer Drum Bearing Kit (replaces 312940, 312941) 306508
#28

Tumbler diagram

Dryer drum bearing kit (replaces 312940, 312941)

Part #306508

BEST SELLER
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Blower Wheel Clamp 312967
#4

Motor drive diagram

Blower wheel clamp

Part #312967

Replaced by #WP312967

?
Manufacturer substitution
This part replaces 312967. Substitute parts can look different from the original.
BEST SELLER
$8.39 |
11% OFF Phone Price : $9.39
In Stock
Tumbler Shaft 312948
#20

Tumbler diagram

Tumbler shaft

Part #312948

Replaced by #WP6-3129480

?
Manufacturer substitution
This part replaces 312948. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.19 |
12% OFF Phone Price : $8.19
In Stock
Washer Screw 211294
Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 313559
Screw

Part #313559

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 313559. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw, #10-3 311423
#10

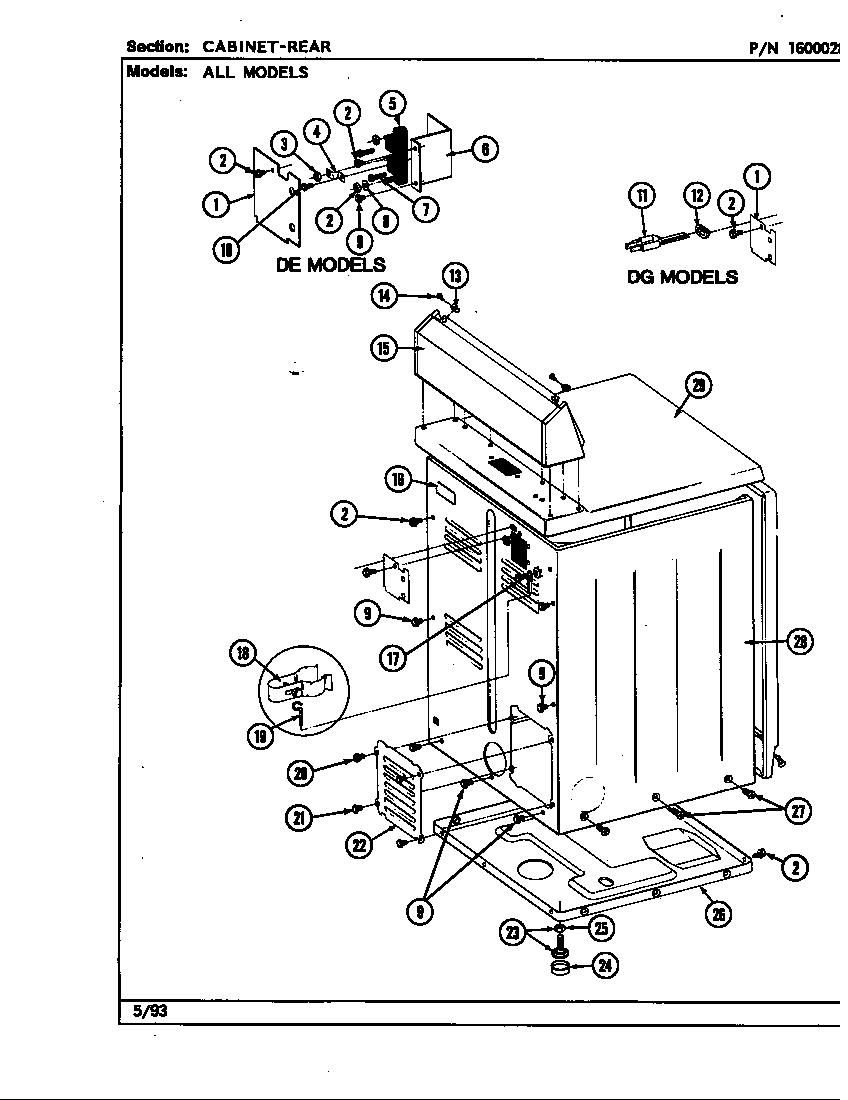

Cabinet-rear diagram

Screw, #10-3

Part #311423

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 311423. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Dryer High-limit Thermostat 303396
#11

Heater diagram

Dryer high-limit thermostat

Part #303396

Replaced by #WP303396

?
Manufacturer substitution
This part replaces 303396. Substitute parts can look different from the original.
BEST SELLER
$25.19 |
19% OFF Phone Price : $31.19
In Stock
