Model # 5KFPM770SNK1 Official KitchenAid food processor

Here are the diagrams and repair parts for Official KitchenAid 5KFPM770SNK1 food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 63 parts |

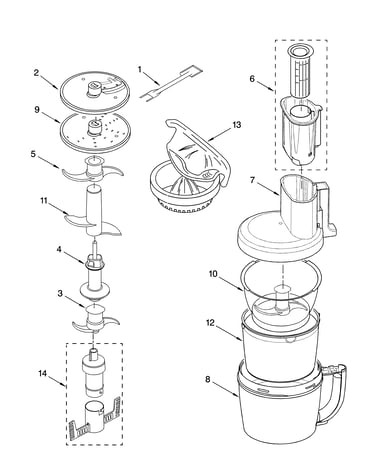

Attachment parts diagram

Food processor scraper

Part #8211760

$25.79 |

19% OFF Phone Price : $31.79

In Stock

Qty

#1A

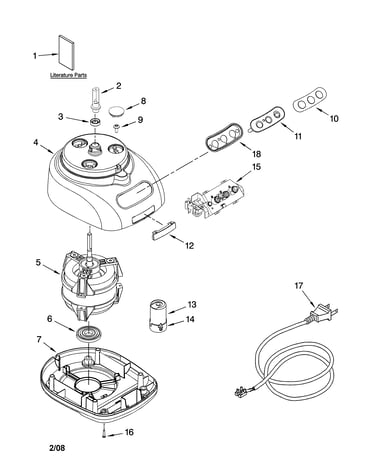

Motor and housing parts diagram

Parts list

Part #W10185704

This item is not returnable

$3.99

In Stock

Qty

#7A

Attachment parts diagram

Bowl cover

Part #8212024

The manufacturer no longer makes this part, and there's no substitute part

Motor and housing parts diagram

Base

Part #8212081

The manufacturer no longer makes this part, and there's no substitute part

#13

Attachment parts diagram

Extractor

Part #W10186748

The manufacturer no longer makes this part, and there's no substitute part

#10

Motor and housing parts diagram

Overlay

Part #8212087

The manufacturer no longer makes this part, and there's no substitute part

Motor and housing parts diagram

Sleeve shaft

Part #W10187053

The manufacturer no longer makes this part, and there's no substitute part

Motor and housing parts diagram

Use and care guide

Part #8212058

The manufacturer no longer makes this part, and there's no substitute part

Attachment parts diagram

Blade

Part #W10187050

The manufacturer no longer makes this part, and there's no substitute part

#10A

Motor and housing parts diagram

Overlay

Part #8212088

The manufacturer no longer makes this part, and there's no substitute part
